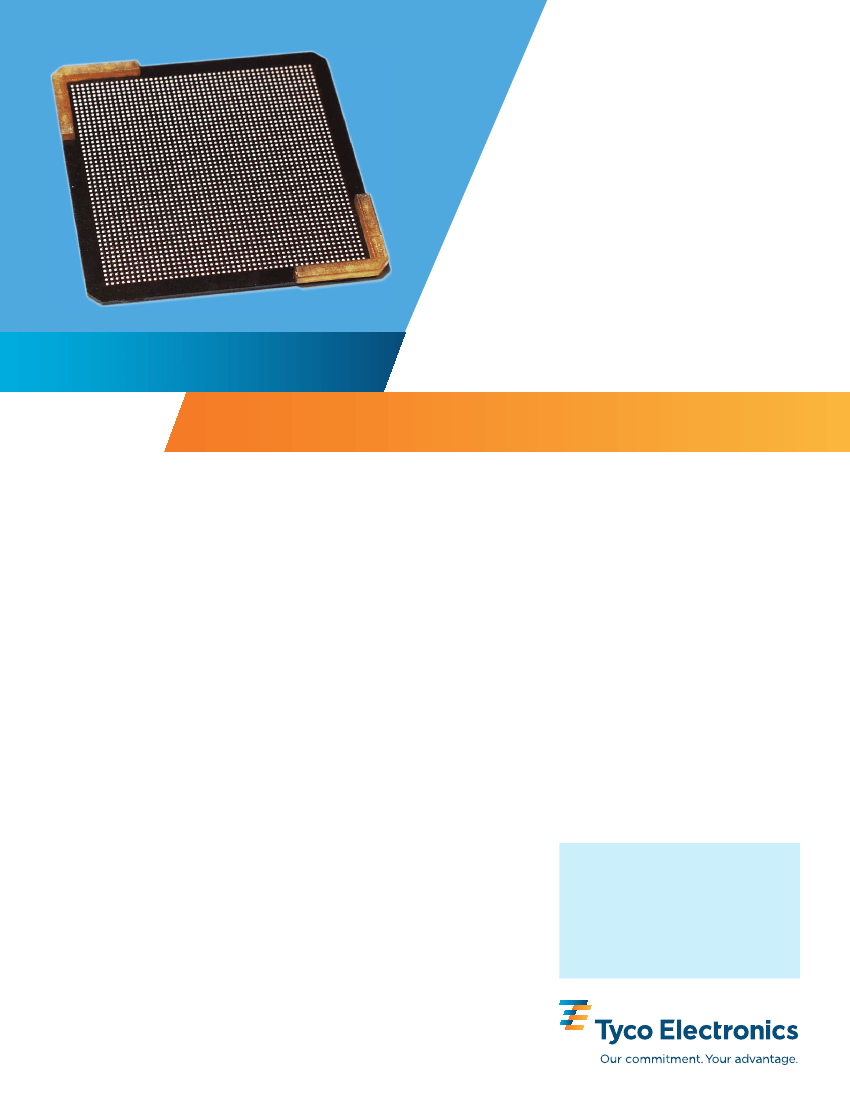

Matrix Series BGA Sockets
Featuring HXC Material System
DESCRIPTION
Tyco Electronics is pleased to announce
HXC 125 polymer. The sockets are fully
The unique design of the BGA socket uses
an anti-overstress feature which protects
ball to rest in. This well acts as an
the contact and also provides a well for the
alignment feature which centers the BGA
Corner frames provide for gross alignment
of the package to the socket.
KEY FEATURES
• No tooling or set up charges
the Matrix Series of BGA Sockets utilizing
arrayed matrixes of contacts available on
• Full array stops provide anti-overstress
protection and fine alignment
• Compact design minimizes real
estate required
0.80mm, 1.00mm, and 1.27mm pitch. The
solderless, compression mount HXC 125
contact system allows you to test a BGA
device without attaching it directly to the
board. The HXC 125 polymer provides
electrically transparent signal transfer.
ball to the HXC 125 polymer material.
• Multiple cycles
APPLICATIONS
The HXC 125 polymer system provides
temperature polymer compound that has
proprietary material consists of a high
a highly conductive interconnect. This
• Fully arrayed patterns available in
1.27mm, 1.00mm and 0.80mm.
•Allows socketing of BGA devices during
prototyping and development
• Sockets designed to accept JEDEC
standard BGA’s
• Complete hardware kits available
• Bolster plate provides support,
eliminating board bow
been embedded with metalized
micro-contacts just 0.635mm in diameter
are held in a grid pattern by a thin
characteristics are optimized.
and less than 1mm high. The contacts
polyimide substrate. When mechanically
compressed, the contacts electrical
particles. The material is formed into
• Accommodates multiple ball sizes
• Unique corner frame design allows
for gross alignment of the package
to the socket
• Array sizes up to 40 x 40 (1.27mm), 50 x
50 (1.00mm) and 60 x 60 (0.80mm).
• Spring plate provides even force
distribution of compression load
• Single screw spring plate allows
for easy actuation
FOR MORE INFORMATION
Technical Support
• Developed for use in test, development
and production environments
• Solderless, compression mount
HXC 125 polymer allows for easy
socket replacement
Internet:
http://www.tycoelectronics.com
USA: 1-800-522-6752
UK: 44-1908-574289
Canada: 1-905-470-4425
Japan: 81-44-844-8013

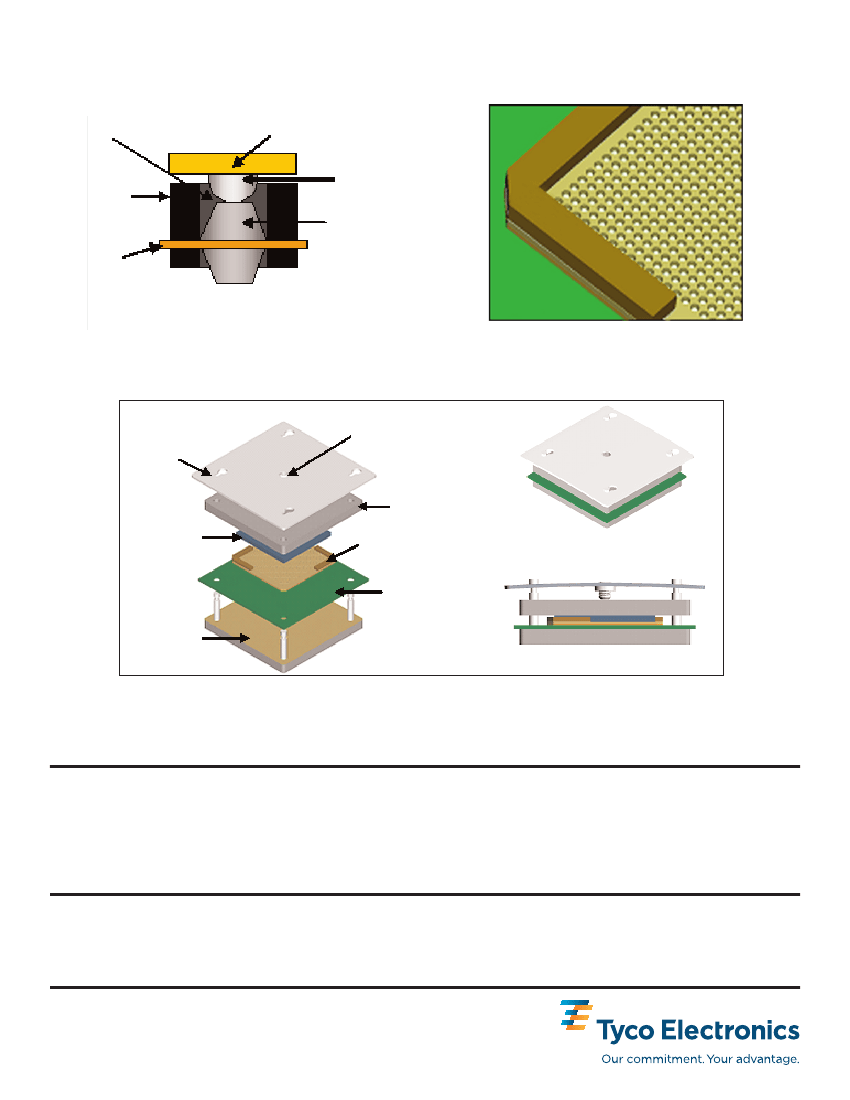

Matrix Series BGA Sockets
Well
Full Array
Stop
Polyimide
Carrier
BGA
Package
BGA Ball
HXC 125
Polymer
Contact
Contact to Solder Ball Interface
Close up of corner frame and
HXC Polymer contacts
Actuation
Screw
Top Support
Plate
HXC 125
Polymer Socket
PC Board
Spring
Plate
BGA
Device
System shown fully compressed
Bolster
Plate
Side view fully compressed
The HXC 125 socket provides a compression mount solderless interconnect. A hardware system is required to generate
the necessary forces. Tyco Electronics offers a complete hardware solution for each socket size. Each hardware kit
contains enough hardware for one socket - a spring plate, a top plate, a bolster plate with insulator.
ELECTRICAL
• Current Capability:
• Contact Resistance:
4 amps per column max
1000 megohms at 100 VDC
50 milliohms max
• Inductance:
• Capacitance:
Self .4nH, Mutual .2nH
.1pF
• Insulation Resistance:
MECHANICAL
• Compression Force:
• Durability:
20 cycles dependent on application
45 grams/contact nominal
ENVIRONMENTAL
• Operating Temperature: 0°C to 90°C
2
Matrix Series BGA Sockets
MATERIALS
• Contact:
• Insulator:
HXC 125 Polymer, Metalized Polymer
Polyimide
Thermoplastic, 94V-0
Ball Sizes
Pitch
1.00 mm
1.00 mm
1.27 mm
0.80 mm
•Corner Frame:
• Solder Ball:
• Stop:
• PCB Plating:
Tin/Lead
Thermoplastic with acrylic adhesive, 94V-0
Gold, tin/lead or silver
PRODUCT DIMENSIONS
Style
Type 1
Type 2
Type 1
Type 1
Ball Diameter
0.55 to 0.72 mm
0.55 to 0.72 mm
0.60 to 0.90 mm
0.40 to 0.55 mm
Ordering information: Please contact the factory dimensional specifications, packages and ball sizes
.
0.38 to 0.59 mm
0.36 to 0.54 mm
0.19 to 0.32 mm
Ball Length
0.30 to 0.47 mm
PART NUMBERS
Package
Size
17 mm
18 mm
18 mm
19 mm
19 mm
20 mm
20 mm
21 mm
21 mm
23 mm
23 mm
25 mm
25 mm
27 mm
27 mm
27 mm
29 mm
29 mm
31 mm
31 mm
1.00mm Pitch Matrix Series BGA Sockets
Pin
Count
256
256
289
289
324
324
361
361
400
441
484
529
576
576
625
676
729
784
841
900
Style
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
Socket Part
Number
1640240-1
1640258-1
3-1640240-6
3-1640258-6
1640240-2
1640258-2
3-1640240-7
3-1640258-7
1640240-3
1640258-3
3-1640240-8
3-1640258-8
1640240-4
1640258-4
3-1640240-9
3-1640258-9
1640240-5
1640258-5
1640240-6
1640258-6
1640240-7
1640258-7
1640240-8
1640258-8
1640240-9
1640258-9
4-1640240-0
4-1640258-0
1-1640240-0
1-1640258-0
1-1640240-1
1-1640258-1
1-1640240-2
1-1640258-2
1-1640240-3
1-1640258-3
1-1640240-4
1-1640258-4
1-1640240-5
1-1640258-5
Hardware Kit
Part No.
1640261-1
1640261-1
1640261-2
1640261-2
1640261-3
1640261-3
1640261-4
1640261-4
1640261-2
1640261-5
1640261-6
1640261-7
1640261-5
1640261-5
1640261-8
1640261-9
1640261-5
1-1640261-0
1-1640261-1
1-1640261-2
Package
Size
33 mm
33 mm
35 mm
35 mm
37.5 mm
37.5 mm
38 mm
40 mm
40 mm
42.5 mm
43 mm
43 mm
45 mm
45 mm
47.5 mm
47.5 mm
47.5 mm
50 mm
50 mm
51 mm
Pin
Count
961
1024
1089
1156
1225
1296
1369
1444
1521
1600
1681
1764
1849
1936
2025
2116
2209
2304
2401
2500
Style
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
Socket Part
Number
1-1640240-6
1-1640258-6
1-1640240-7
1-1640258-7
1-1640240-8
1-1640258-8
1-1640240-9
1-1640258-9
2-1640240-0
2-1640258-0
2-1640240-1
2-1640258-1
2-1640240-2
2-1640258-2
2-1640240-3
2-1640258-3
2-1640240-4
2-1640258-4
2-1640240-5
2-1640258-5
2-1640240-6
2-1640258-6
2-1640240-7
2-1640258-7
2-1640240-8
2-1640258-8
2-1640240-9
2-1640258-9
3-1640240-0
3-1640258-0
3-1640240-1
3-1640258-1
3-1640240-2
3-1640258-2
3-1640240-3
3-1640258-3
3-1640240-4
3-1640258-4
3-1640240-5
3-1640258-5
Hardware Kit
Part No.
1-1640261-3
1-1640261-4
1-1640261-5
1-1640261-6
1-1640261-7
1-1640261-3
1-1640261-8
1-1640261-5
1-1640261-9
2-1640261-0
2-1640261-1
2-1640261-2
2-1640261-3
2-1640261-4
2-1640261-5
2-1640261-6
2-1640261-7
2-1640261-8
2-1640261-9
3-1640261-0
Note:
Part Numbers are RoHS Compliant.
3
Matrix Series BGA Sockets
PART NUMBERS
1.27 mm Pitch Matrix Series BGA Sockets
Package
Size
21 mm
23 mm
23 mm
25 mm
25 mm
27 mm
27 mm
29 mm
29 mm
31 mm
31 mm
33 mm
33 mm
35 mm
35 mm
37.5 mm
37.5 mm
40 mm
40 mm
42.5 mm
42.5 mm
45 mm
45 mm
47.5 mm
47.5 mm
50 mm
50 mm
52.5 mm
Pin
Count
256
289
324
324
361
400
441
441
484
529
576
576
625
676
729
784
841
900
961
1024
1089
1156
1225
1296
1369
1444
1521
1600
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Style
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Socket Part
Number
1640320-1
1640320-2
1640320-3
2-1640320-5
1640320-4
1640320-5
1640320-6
2-1640320-6
1640320-7
1640320-8
1640320-9
2-1640320-7
1-1640320-0
1-1640320-1
1-1640320-2
1-1640320-3
1-1640320-4
1-1640320-5
1-1640320-6
1-1640320-7
1-1640320-8
1-1640320-9
2-1640320-0
2-1640320-1
2-1640320-2
2-1640320-3
2-1640320-4
2-1640320-8
Hardware Kit
Part No.
1640261-1
1640261-2
1640261-3
1640261-3
1640261-4
1640261-2
1640261-5
1-1640261-5
3-1640261-1
3-1640261-2
1-1640261-6
1-1640261-6
1-1640261-3
1-1640261-4
1-1640261-5
1-1640261-9
1-1640261-1
1-1640261-2
2-1640261-0
3-1640261-3
2-1640261-3
2-1640261-4
3-1640261-4
2-1640261-2
3-1640261-5
3-1640261-6
2-1640261-8
3-1640261-7
0.80 mm Pitch Matrix Series BGA Sockets
Package
Size
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
Pin
Count
196
196
225
256
289
289
324
324
361
361
400
441
484
484
529
529
576
576
625
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Type
Style
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Socket Part
Number
1640294-1
1-1640294-1
1640294-2
1-1640294-2
1640294-3
1-1640294-3
1640294-4
1-1640294-4
1640294-5
1-1640294-5
1640294-6
1-1640294-6
1640294-7
1-1640294-7
1640294-8
1-1640294-8
1640294-9
1-1640294-9
1-1640294-0
Hardware Kit
Part No.
1640302-1
1640302-1
1640302-2
1640302-1
1640302-3
1640302-3
1640302-4
1640302-4
1640302-5
1640302-5
1640302-4
1640302-8
1640302-6
1640302-6
1640302-7
1640302-7
1640302-8
1640302-8
1640302-6
Note:
Part Numbers are RoHS Compliant.
4
Matrix Series BGA Sockets
Restriction on the use of Hazardous Substances (RoHS)
At Tyco Electronics, we’re ready to support your RoHS
requirements. We’ve assessed more than 1.5 million end
items/components for RoHS compliance, and issued new
part numbers where any change was required to eliminate
the restricted materials. Part numbers in this catalog are
identified as:
Getting the Information You Need
Our comprehensive on-line RoHS Customer Support Center
provides a forum to answer your questions and support your
RoHS needs. A RoHS FAQ (Frequently
Asked Questions) is
available with links to more detailed
information. You can also
submit RoHS questions and receive a
response within 24
hours during a normal work week.
The Support Center also provides:
• Cross-Reference from Non-compliant
to Compliant Products
• Ability to browse RoHS Compliant
Products in our on-line catalog
RoHS Compliant
— Part numbers in this catalog are RoHS
Compliant, unless marked otherwise. These products comply with
European Union Directive 2002/95/EC as amended 1 January
2006 that restricts the use of lead, mercury, cadmium, hexavalent
chromium, PBB, and PBDE in certain electrical and electronic
products sold into the EU as of 1 July 2006.
NOTE: For purposes of this Catalog, included within the
definition of RoHS Compliant are products that are clearly
“Out of Scope” of the RoHS Directive such as hand tools and
other non-electrical accessories.
NOTE: Information regarding RoHS compliance is provided based
on reasonable inquiry of our suppliers and represents
our current actual knowledge based on the information
provided by our suppliers. This information is subject to
change. For latest compliance status, refer to our website
referenced at right.
• Downloadable Technical Data Customer
Information Presentation
• More detailed information regarding
the definitions used above
• So whatever your questions when it comes to RoHS, we’ve
got the answers at
www.tycoelectronics.com/leadfree
Disclaimer
While Tyco Electronics Corporation and its affiliates referenced herein (“Tyco Electronics”) have made every reasonable effort to
ensure the accuracy of the information in this catalog, Tyco Electronics does not guarantee that it is error free, nor does
Tyco Electronics make any other representation, warranty or guarantee that the information is accurate, correct reliable or current.
Tyco Electronics reserves the right to make any adjustments to the information contained herein at any time without notice.
Tyco Electronics expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to,
any implied warranties of merchantability or fitness for a particular purpose. Tyco Electronics’ only obligations are those in the
Tyco Electronics Standard Terms and Conditions of Sale, and in no case will Tyco Electronics be responsible for any incidental,
indirect, or consequential damages arising from the sale, resale, or misuse of its products. Users should independently evaluate
the suitability of, and test each product, for their application.
5
1654563-CC&CE-PDF-07-08 © 2008 by Tyco Electronics Corporation. All Rights Reserved.
TE logo and TYCO ELECTRONICS are trademarks.
Other Products, logos, and company names mentioned
herein may be trademarks of their respective owners.
5
京公网安备 11010802033920号
EEWORLD
