1488509-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1488509-9

1488509-9: DescriptionCABLE TERMINATED, MALE, SMB CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1488509-9 Overview

CABLE TERMINATED, MALE, SMB CONNECTOR, CRIMP, JACK

1488509-9 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	APPLICABLE CABLE: 58/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1488509
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

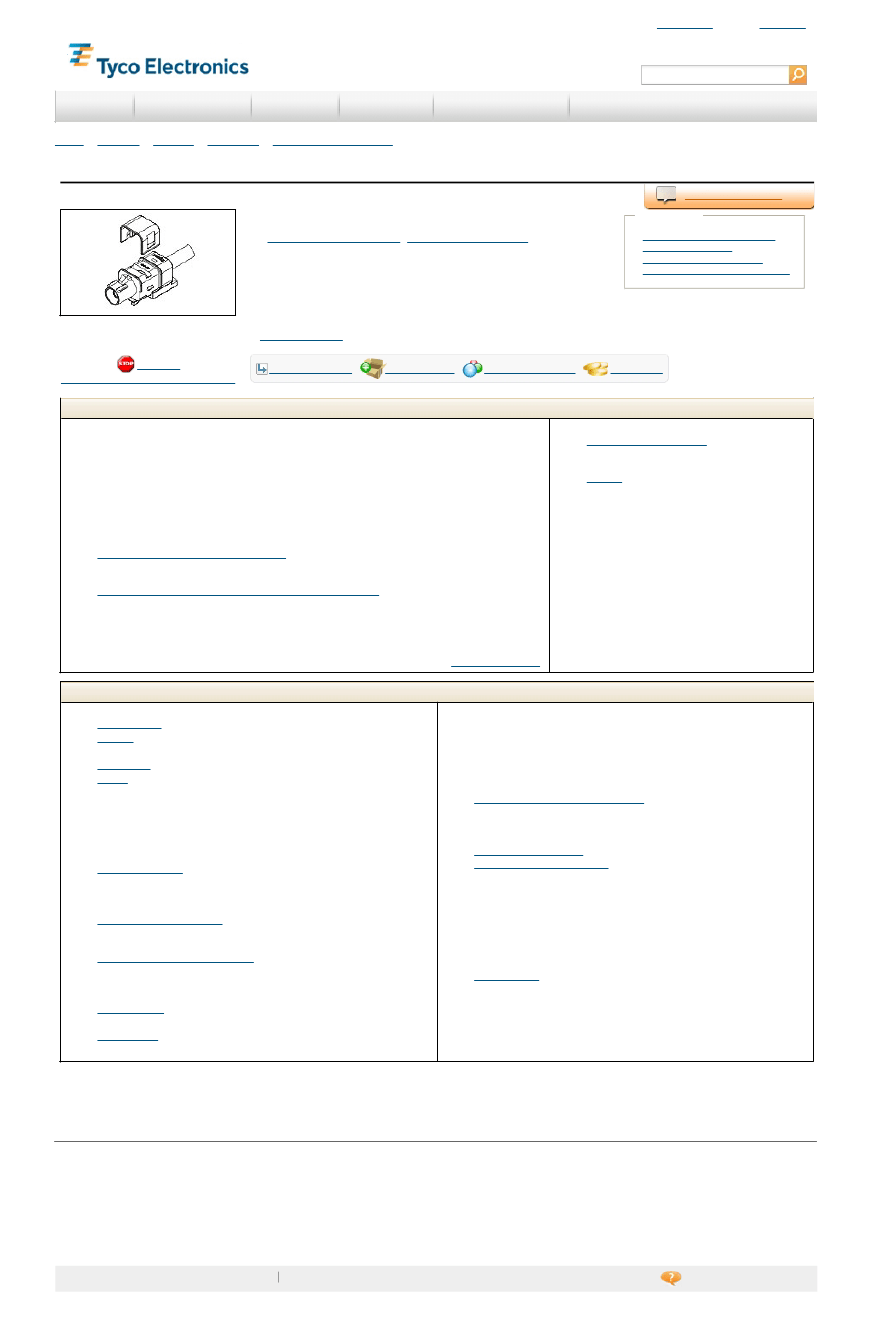

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se arch by Ke yword or Part #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

RF & C oax

Product Feature Selector

> Product Details

1488509-9 Product Details

Live Product Chat

SMB RF Connectors

C onve rte d to ELV C om pliant

(

Sta te m e nt of C om pliance

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

1488509-9

T E I nternal N umber: 1 4 8 8 5 0 9 - 9

Product Highlights:

C onnector

Jack

FAKRA

Terminate To C oaxial C able

C oupler Style = Quick C onnect/Disconnect

View all Features

Obsolete

C ontact Product Information C enter

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

FAKRA SMB 50-Ohm Inline C onnectors

(PDF, English)

Instruction Sheets:

FAKRA SMB 50-Ohm Inline Jack Kit 1488509-[ ] with C e...

(PDF, English)

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= C onnector

Gender

= Jack

C onnector Series = FAKRA

Body Style

= Straight

Grade

= C ommercial

Number of Positions = 1

Profile = Standard

C omment = Pin contact 1488534-2 must be ordered separately.;

With body clip.

Mechanical Attachment:

Panel Attachment

= Without

Keying = I

Electrical Characteristics:

C onnector Impedance (?)

= 50

Termination Related Features:

C oaxial C able Termination Type

= C rimp

Body Related Features:

C oupler Style = Quick C onnect/Disconnect

Pin Protection

= Without

Solder Lug = Without

Body Plating

= Tin-Lead over Nickel

Contact Related Features:

C ontacts = Without

Housing Related Features:

Housing C olor = Beige

Configuration Related Features:

C oaxial C able Type (RG/U or Mfg.)

= 58, 58LL

Environmental Protection = Without

Industry Standards:

RoHS/ELV C ompliance

= ELV compliant

Lead Free Solder Processes

= Not reviewed for lead free solder

process

RoHS/ELV C ompliance History = C onverted to comply with ELV

directive

Identification Marking:

Key Identifier = I

Conditions for Usage:

Terminate To

= C oaxial C able

Other:

Brand = Tyco Electronics

Additional Information:

Product Line Information
