15-47-4057 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 15-47-4057

15-47-4057: DescriptionCard Edge Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Plug,; CategoryThe connector The connector; File Size360KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

15-47-4057 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15-47-4057	-	-	View	Buy Now

15-47-4057 Overview

Card Edge Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Plug,

15-47-4057 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SL
subject depth	0.6 inch
body length	0.499 inch
Body/casing type	PLUG
Connector type	FFC/FPC CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 25 circuits

Positive latch locks connector to header or panel mount

Piercing crimp provides 3 high-pressure interfaces with

the conductor

Terminals preloaded into housing

Reference Information

Product Speciﬁcation: PS-40556

Packaging: Tube

Tooling Information: See end of section

UL File No.: E29179

CSA File No.: LR19980

Mates With: C-Grid



locking headers and panel mounts

Designed In: Inches

Electrical

Voltage: 250V

Current: 2.0A (for Copper conductors)

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Contact Retention to Housing: 13.34N (3 lb) min.

Mating Force: 2.22N (.50 lb) max.

Unmating Force: 0.28N (.06 lb) min.

Wire Pull-Out Force: 26.69N (6 lb)

Durability: Tin/Lead—25 cycles max.

Gold—50 cycles max.

Physical

Housing: Polyester, UL 94V-0

Contact: Phosphor Bronze

Plating: See Table

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

™

FFC/FPC Connector

70430

Single Row, Female

Version G

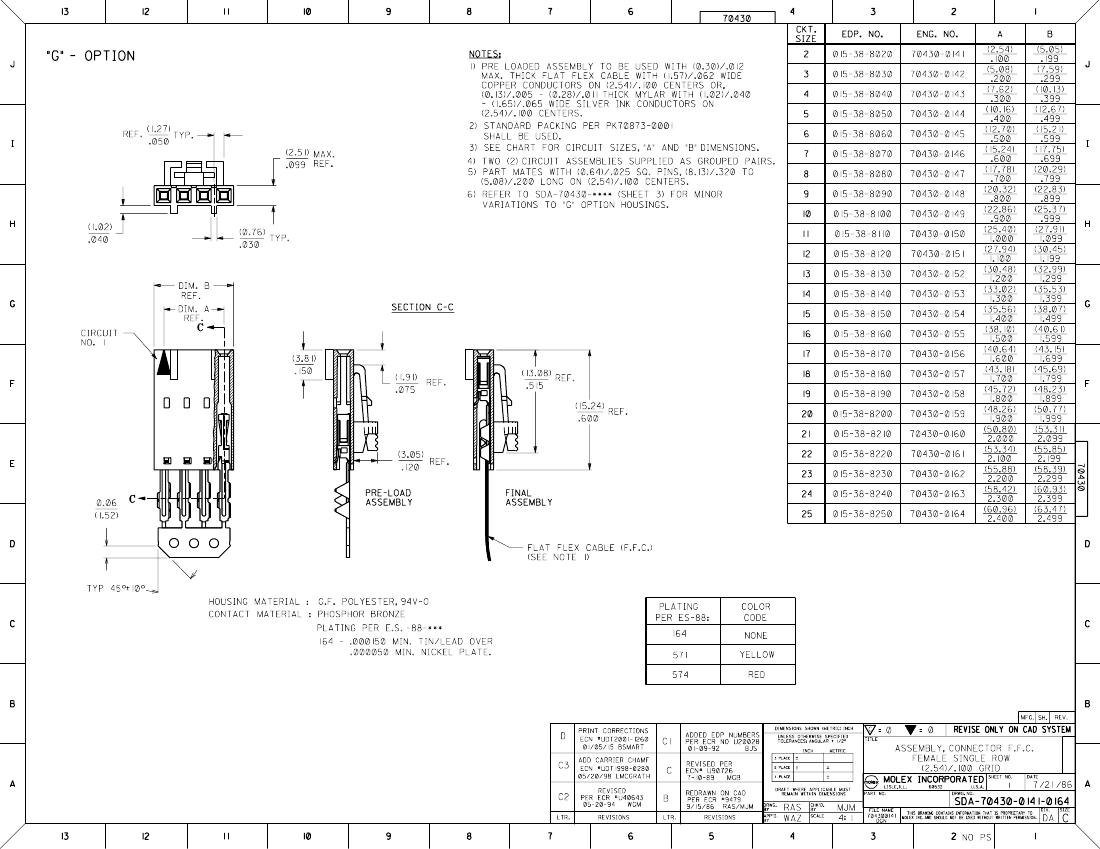

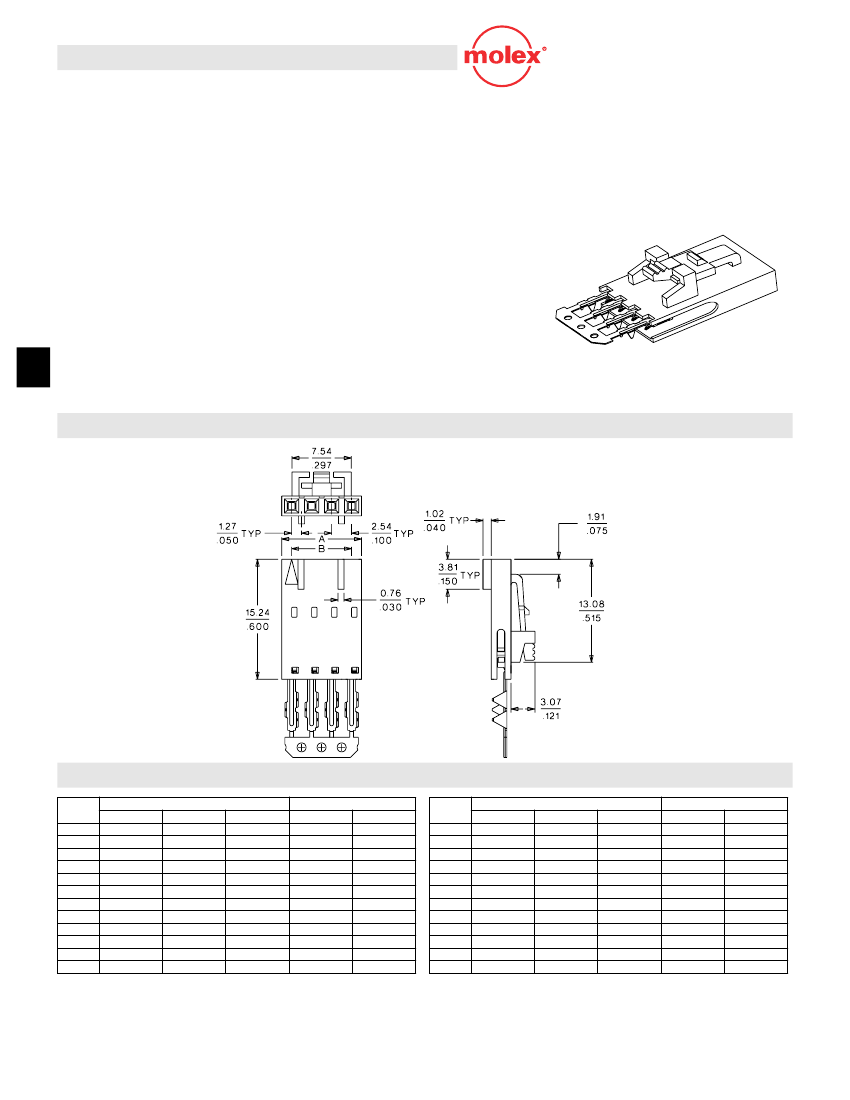

CATALOG DRAWING (FOR REFERENCE ONLY)

FFC/FPC Connectors

ORDERING INFORMATION AND DIMENSIONS

Circuits

" Gold

15-47-4023

15-47-4033

15-47-4043

15-47-4053

15-47-4063

15-47-4073

15-47-4083

15-47-4093

15-47-4103

15-47-4113

15-47-4123

15-47-4133

Order No.

" Gold

15-47-4027

15-47-4037

15-47-4047

15-47-4057

15-47-4067

15-47-4077

15-47-4087

15-47-4097

15-47-4107

15-47-4117

15-47-4127

15-47-4137

Dimension

150

" Tin/Lead

15-38-8020

15-38-8030

15-38-8040

15-38-8050

15-38-8060

15-38-8070

15-38-8080

15-38-8090

15-38-8100

15-38-8110

15-38-8120

15-38-8130

5.05

7.59

10.13

12.67

15.21

17.75

20.29

22.83

25.37

27.91

30.45

32.99

(.199)

(.299)

(.399)

(.499)

(.599)

(.699)

(.799)

(.899)

(.999)

(1.099)

(1.199)

(1.299)

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

(.100)

(.200)

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

(.900)

(1.000)

(1.100)

(1.200)

Circuits

" Gold

15-47-4143

15-47-4153

15-47-4163

15-47-4173

15-47-4183

15-47-4193

15-47-4203

15-47-4213

15-47-4223

15-47-4233

15-47-4243

15-47-4253

Order No.

" Gold

15-47-4147

15-47-4157

15-47-4167

15-47-4177

15-47-4187

15-47-4197

15-47-4207

15-47-4217

15-47-4227

15-47-4237

15-47-4247

15-47-4257

Dimension

150

" Tin/Lead

15-38-8140

15-38-8150

15-38-8160

15-38-8170

15-38-8180

15-38-8190

15-38-8200

15-38-8210

15-38-8220

15-38-8230

15-38-8240

15-38-8250

35.53

38.07

40.61

43.15

45.69

48.23

50.77

53.31

55.85

58.39

60.93

63.47

(1.399)

(1.499)

(1.599)

(1.699)

(1.799)

(1.899)

(1.999)

(2.099)

(2.199)

(2.299)

(2.399)

(2.499)

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

G-50

MX01
