NCM15NPO160F200TRF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000016uF, Through Hole Mount, 1510, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size110KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NCM15NPO160F200TRF Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000016uF, Through Hole Mount, 1510, RADIAL LEADED, ROHS COMPLIANT

NCM15NPO160F200TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.000016 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	5.33 mm
JESD-609 code	e3
length	3.81 mm
Manufacturer's serial number	NCM
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	1%
Rated (DC) voltage (URdc)	200 V
series	NCM
size code	1510
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal pitch	2.54 mm
Terminal shape	WIRE
width	2.54 mm
Base Number Matches	1

Preview

Download Datasheet

View All

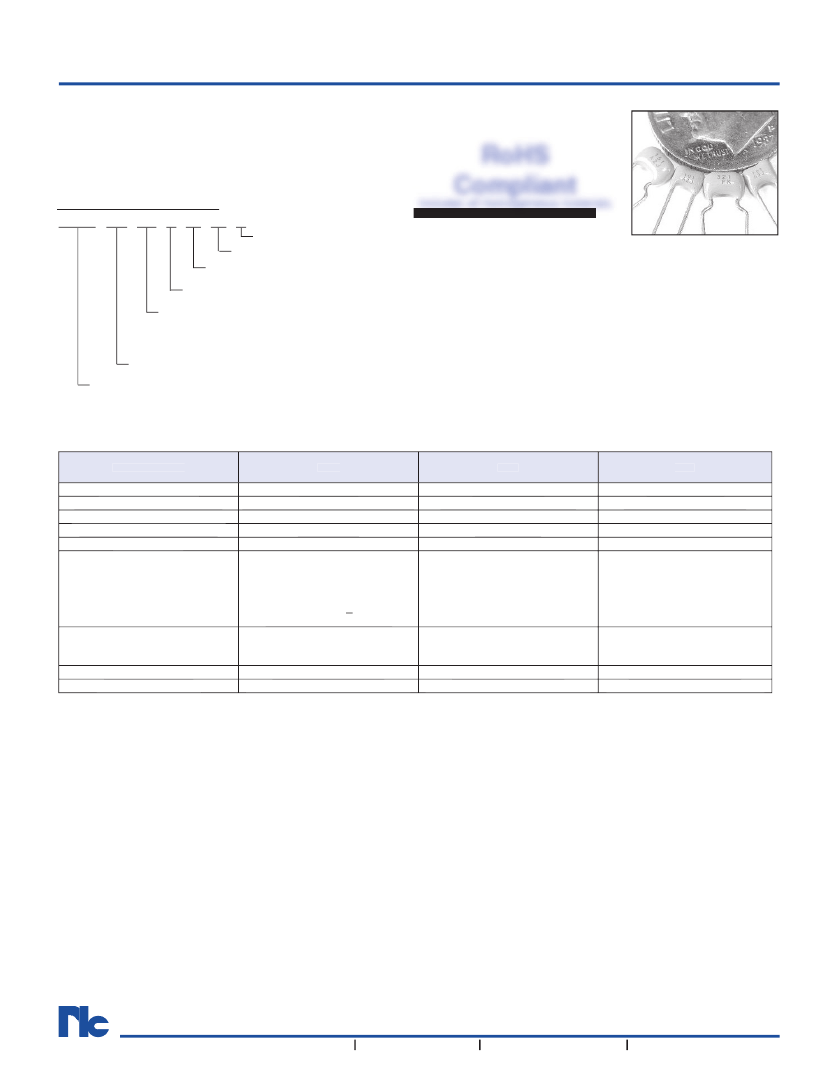

Conformally Coated, Radial Multilayer Ceramic Capacitors

FEATURES

• FLAME RETARDANT EPOXY COATING

• TEMPERATURE COEFFICIENTS NPO, X7R, Z5U

• 50, 100 AND 200 VOLTS

• AVAILABLE ON TAPE AND REEL

PART NUMBER SYSTEM

NCM20 Z5U 104 M

50 TR

F

RoHS Compliant

Tape and Reel

Voltage

Tolerance Code (see specifications table below)

Capacitance code, expressed in pF,

first two digits are significant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefficient

Series, Size Code

NCM Series

includes all homogeneous materials

*See Part

Number System for Details

RoHS

Compliant

SPECIFICATIONS

Characteristics

Capacitance Range*

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characterisitcs

Voltage Rating

NPO

X7R

Z5U

1000pF ~ 4.7µF

±20%(M), +80%/-20%(Z)

+10°C to +85°C

+22%/-56%

50 & 100 Vdc

Dissipation Factor

Insulation Resistance 25°C

(Mil- STD-202, Method 302

Dielectric Strength

Life Test (1000 hours)

1pF ~ 0.1µF

470pF ~ 4.7µF

±1%(F), ±2%(G), ±5%(J), ±10%(K)

±5%(J), ±10%(K), ±20%(M)

-55°C to +125°C

0±30ppm/°C

±15% (0 Vdc)

50, 100 & 200 Vdc

50 & 100 Vdc

0.15% Max. (+25°C and +125°C)

for values greater than 30 pF.

For values of 30pF and below:

2.5% Max. at 1KHz, 1Vrms Max.

Q = 20 x C +400 1.0Vrms

1MHz for values < 1000pF

1KHz for values > 1000pF

100K Megohms or

1000 Megohm -µF Min.,

Whichever is Less

250% of Rated Voltage

200% of Rated Voltage at +125°C 200% of Rated Voltage at +125°C

4.0% Max. at 1KHz, 5Vrms Max.

10K Megohms or

100 Megohm -µF Min.,

Whichever is Less

200% of Rated Voltage

150% of Rated Voltage at +85°C

®

36

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
