MWDM1L-21SCBRP-.150 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MWDM1L-21SCBRP-.150

MWDM1L-21SCBRP-.150: DescriptionD-sub micro-D connectors 21p R/A pcb micro-D socket .150" cadmium; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MWDM1L-21SCBRP-.150 Overview

D-sub micro-D connectors 21p R/A pcb micro-D socket .150" cadmium

MWDM1L-21SCBRP-.150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	_compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-DTL-83513
body width	0.31 inch
subject depth	0.425 inch
body length	1.087 inch
Body/casing type	SOCKET
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn60Pb40)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	32 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKPOST
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	C
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21

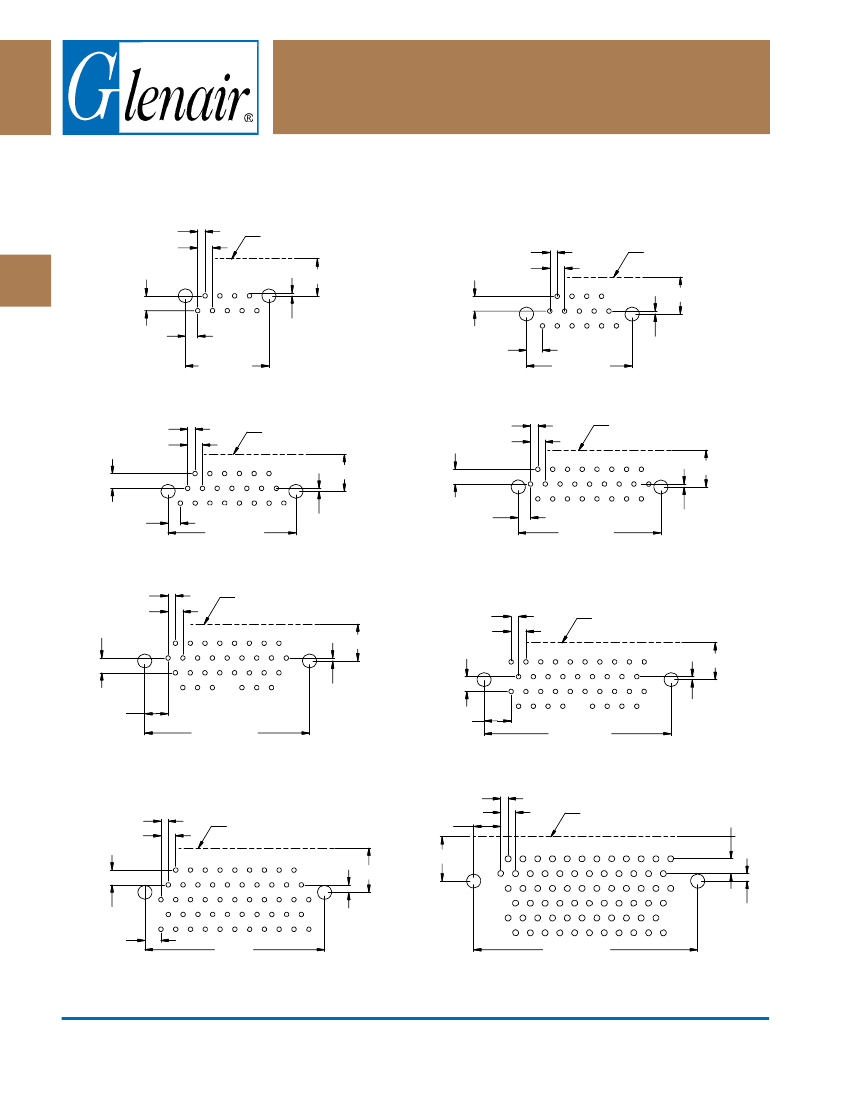

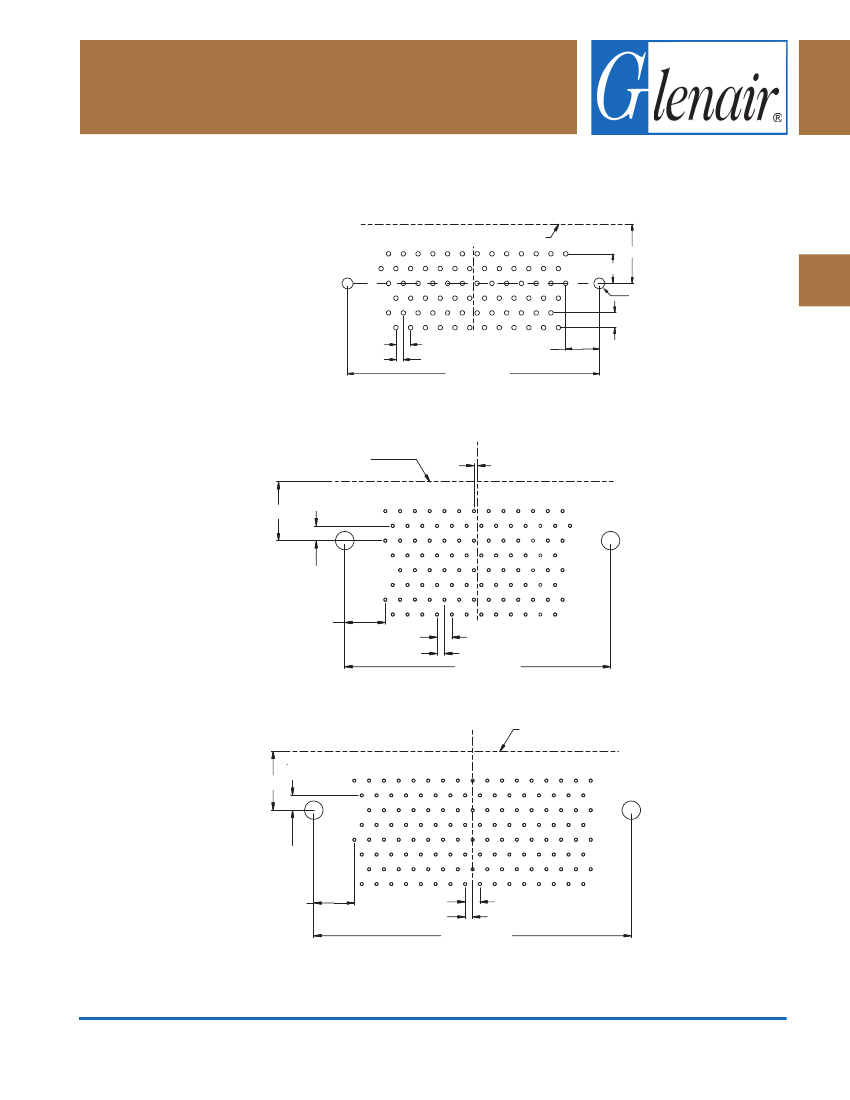

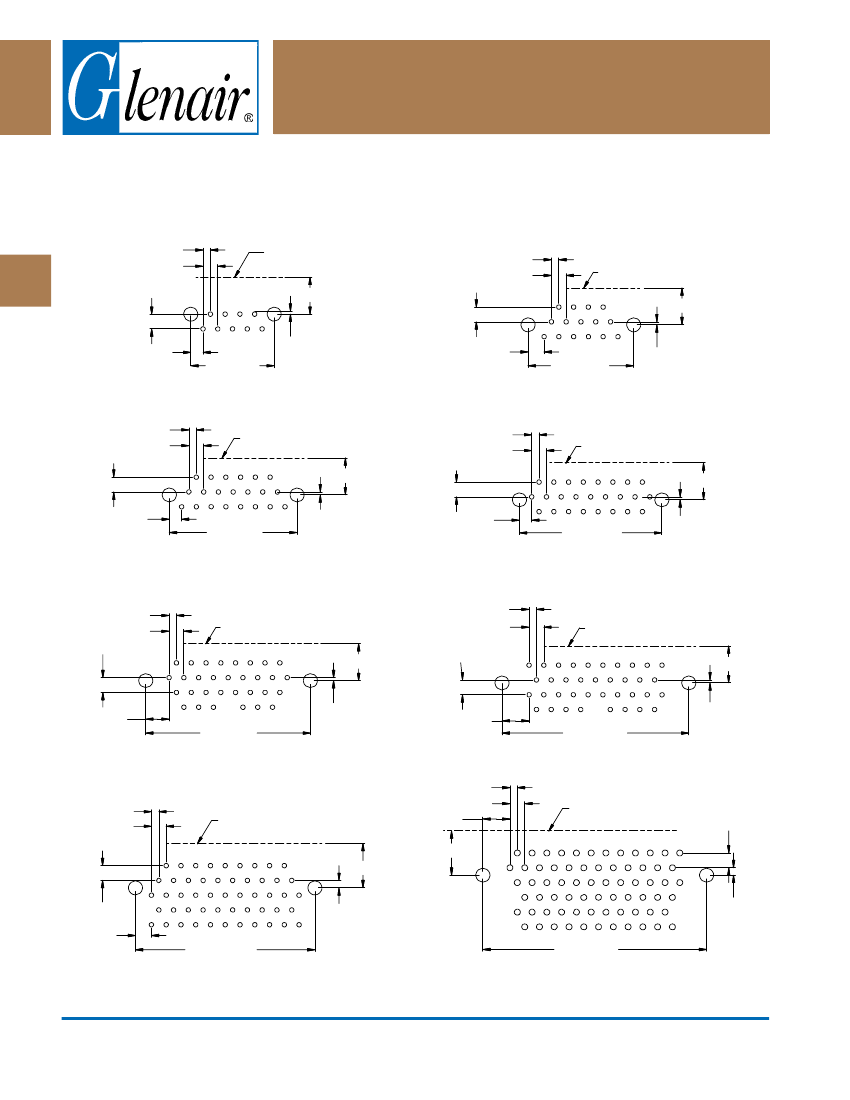

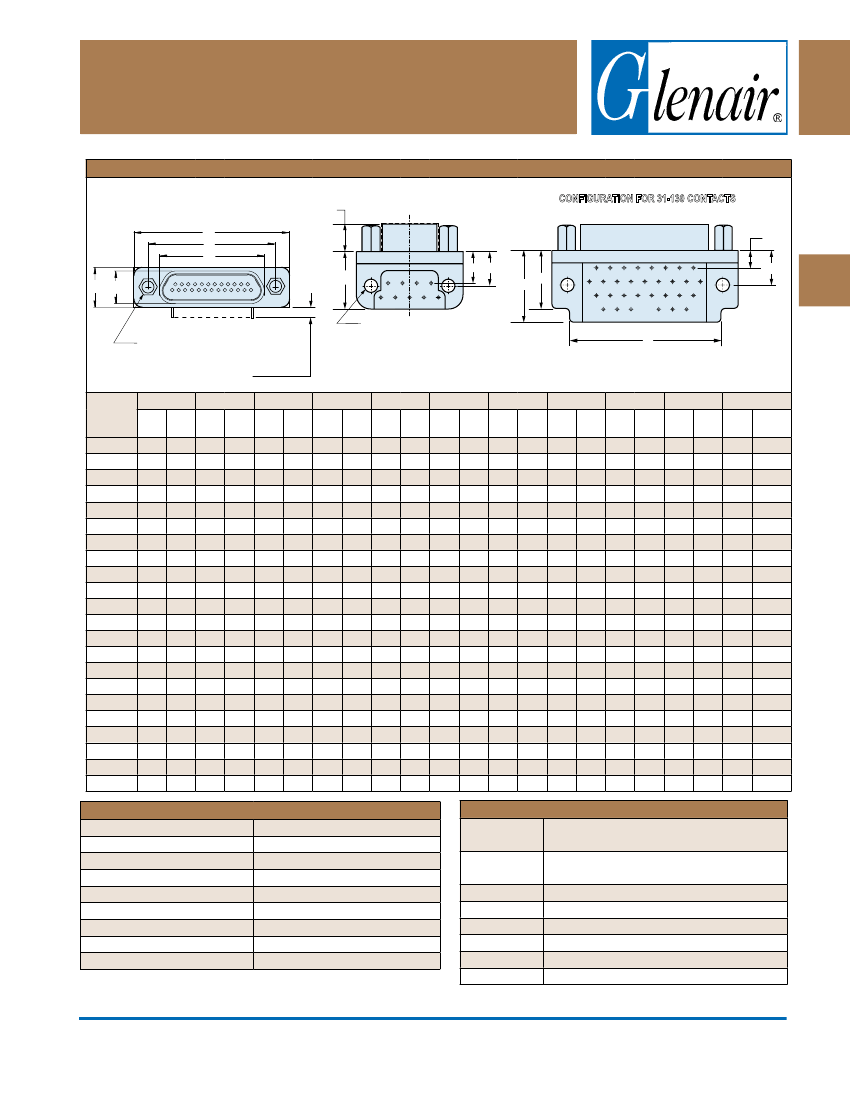

Preview

Download Datasheet

View All

Printed Circuit Board Connectors

High Performance

– These connectors feature gold-plated

TwistPin contacts for best performance. PC tails are .020 inch

diameter. Specify nickel-plated shells or cadmium plated

shells for best availability.

Solder-Dipped

– Terminals are coated with Sn60/Pb40

tin-lead solder for best solderability. Optional gold-plated

terminals are available for RoHS compliance.

Rear Mountable

– Can be installed through panels up to .125

inch thick. Specify rear panel mount jackposts.

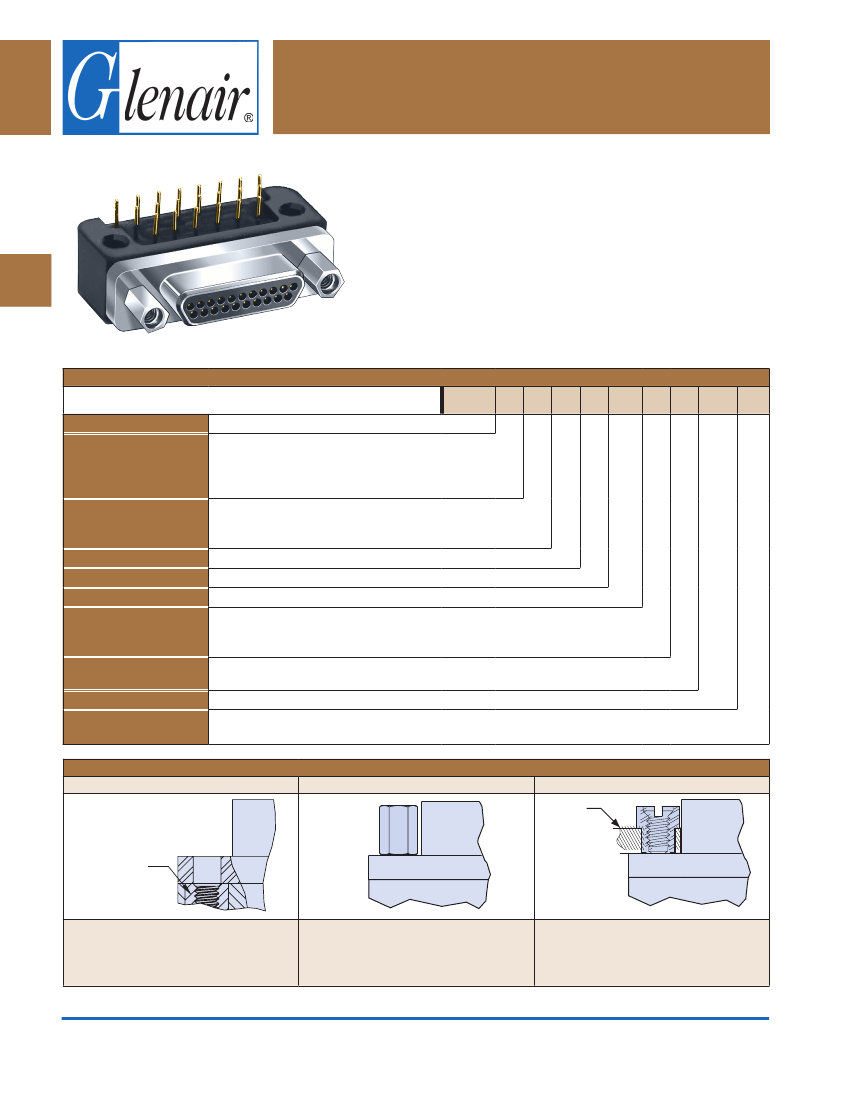

How To Order CBR Style PCB Micro-D Connectors

Sample Part Number

Series

Shell Material

and Finish

MWDM

Glenair Micro-D

Aluminum Shell

- Cadmium

- Nickel

- Black Anodize

- Gold

- Chem Film

Stainless Steel Shell

- Passivated

Micro-D MWDM-CBR

Right Angle Thru-Hole

INDEX

THREADED

INSERT

Micro-D PCB

Insulator Material

Contact Layout

Contact Type

Termination Type

Jackpost Option

(See Table I)

Threaded

Insert Option

Terminal Lentgth in Inches

Gold-Plated

Terminal Mod Code

– Pin

– Socket

CBR -

Condensed Board Right Angle

(Omit for None)

– Jackpost

No Designator

Thru-Hole

For use with Glenair jackposts only. Order

hardware separately. Install with threadlocking

compound.

MWDM

-15

CBR

-.110 513

- LCP or PPS

LCP - 30% Glass-filled liquid crystal polymer

PPS - 40% Glass-filled polyphenylene sulfide

9, 15, 21, 25, 31, 37, 51, 69, 75, 100, 130

(See Table II)

Jackposts for Rear Panel Mounting

– .032” Panel

– .047” Panel

– .062” Panel

– .093” Panel

– .125” Panel

– .125" Panel

- Threaded Insert In Board Mount Hole Omit - for Thru-Hole

.080, .110, .125, .140, .150, .172, .190, .250

Length in Inches ± .015 (0.38)

These connectors are solder-dipped in 60/40 tin-lead solder.

To delete the solder dip and change to gold-plated terminals, add code

513

Table I: Jackpost Options

Panel

R1 Thru R6

Standard Jackpost

Factory installed, not intended for removal.

Jackpost for Rear Panel Mounting

Shipped loosely installed. Install with permanent

threadlocking compound.

Printed in U.S.A.

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-14

E-Mail: sales@glenair.com
