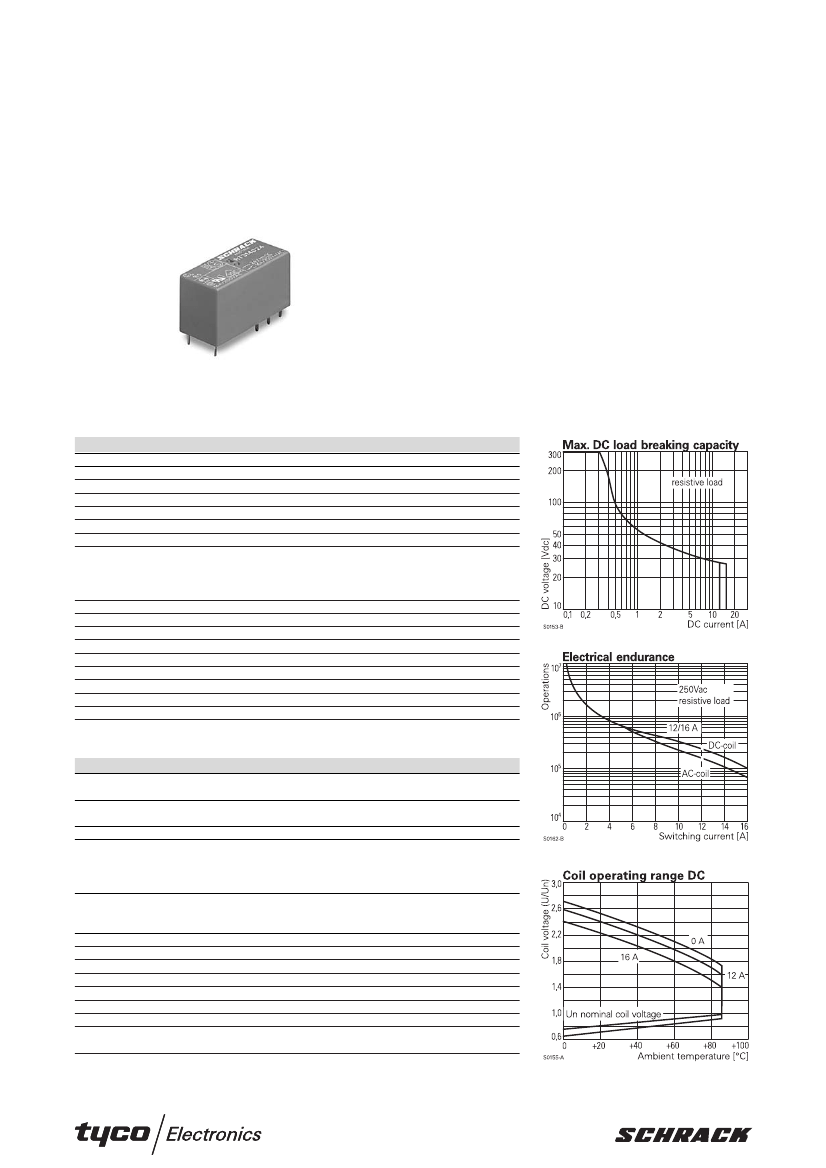

Power PCB Relay RT1
1 pole 12 / 16 A, DC- or AC-coil
Features
•
•
•
•
•
•
•
1 C/O or 1 N/O contact
Sensitive coil 400 mW
5 kV / 10 mm coil-contact, Protection class II
Ambient temperature 85°C (DC-coil)
Height 15.7 mm
Sockets with PCB-type or screw-type terminals
Gold plated contacts available
Applications
Boiler control, timers, garage door control, POS automation,
interface modules
F0144-B
VZBSF
Contact data
Configuration
Type of contact
Rated current
Rated voltage / max.breaking voltage AC
Maximum breaking capacity AC
Make current (max. 4 s at duty cycle 10%)
Contact material
1 C/O contact or 1 N/O contact
single contact
12 A
16 A
250 Vac / 440 Vac
3000 VA
4000 VA
25 A
30 A
AgNi 90/10, AgNi 90/10 gold plated
Technical data of approved types on request
Contact ratings
Type
Load
RT314
16 A, 250 Vac, cosϕ=1, N/C contact
RT314
20 A, 250 Vac, 85°C, N/O contact, UL508
RT314
1000 W, 250 Vac, incandescent lamps
RT314
10 A, 250 Vac, cosϕ=0.6, C/O contact
RT314
5 A / 2 A, 250 Vac, cosϕ=1, tumble-drier motor, N/O contact
RT314
0.26A
peak
/ 0.01 A, 230 Vac, cosϕ=0.38, valve, N/O contact
3
RT314
/
4
hp, 240 Vac;
1
/
3
hp, 120 Vac
RT314
Pilot duty B300
Operations
53x10
3
6x10
3
1.2x10
3
2x10
5
1.1x10
6
7.6x10
6
Coil data
Nominal coil power
Operate category
Rights to change data / design reserved
Nominal voltage
DC coil
AC coil
DC coil
AC coil
5...110 Vdc
24...230 Vac
400 mW
0.75 VA
2/b
Edition: 02/2004
Coil versions, DC-coil
Coil
Nominal
Pull-in
Release
Maximum
Coil
code
voltage
voltage
voltage
voltage
resistance
Vdc
Vdc
Vdc
Vdc
c
005
5
3.5
0.5
12.7
62+10%
006
6
4.2
0.6
15.3
90+10%
012
12
8.4
1.2
30.6
360+10%
024
24
16.8
2.4
61.2
1440+10%
048
48
33.6
4.8
122.4
5520+10%
060
60
42.0
6.0
153.0
7340+12%
110
110
77.0
11.0
280.5
26600+12%
All figures are given for coil without preenergization, at ambient temperature +20°C
Other coil voltages on request
Coil
current
mA
80.0
66.7
33.3
16.7
8.7
8.1
4.1
Power PCB Relay RT1
1 pole 12 / 16 A, DC- or AC-coil
Coil versions, AC-coil
Coil
Nominal
Pull-in
Release
Maximum
Coil
code
voltage
voltage
voltage
voltage
resistance
Vac
Vac
Vac
Vac
c
524
24
18.0
3.6
36.0
350+10%
615
115
86.3
17.3
172.5
8100+15%
730
230
172.5
34.5
345.0
32500+15%
All figures are given for coil without preenergization, at ambient temperature +20°C
Coil
current
mA
31.6
6.6
3.2
Insulation
Dielectric strength
coil-contacts
open contact circuit
Clearance / creepage
Insulation to IEC 60664
Voltage rating
Pollution degree
Overvoltage category
Insulation to VDE 0110b (2/79)
Insulation category / reference voltage
Tracking resistance of relay base
5000 V
rms
1000 V
rms
10 / 10 mm
250 V
3
III
C / 250
CTI 250
Other data
Flammability class according to UL 94
Coil insulation system according to UL 1446
Ambient temperature
Mechanical life
Max. switching rate at rated- / minimum load
Operate- / release time DC-coil
Bounce time N/O contact/N/C contact
Vibration resistance N/O / N/C contact
Shock resistance (destruction)
Category of protection (IEC 61810)
Relay weight
Packaging unit
Accessories
V-0
Class F
DC-coil
-40...+85 °C
AC-coil
-40...+70 °C
DC-coil
>30x10
6
operations
AC-coil
>10x10
6
operations
-1
/ 1200 min
-1
6 min
typ. 7 / 3 ms
typ. 1 / 3 ms
20 / 5 g, 30...500 Hz
100 g
RT II, RT III
14 g
20 / 500 pcs.
see accessories RT

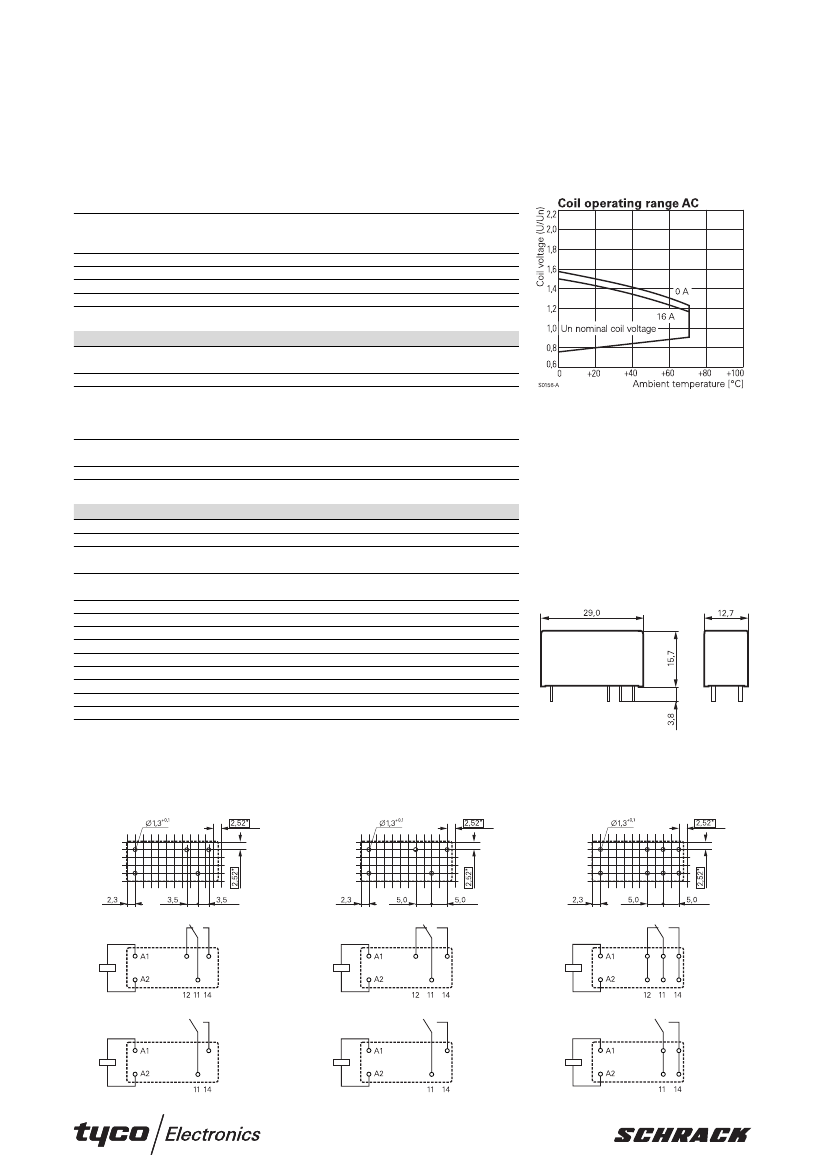

Dimensions
Dimensions in mm
S0272-AB
PCB layout / terminal assignment
12 A, pinning 3.5 mm
View on solder pins
Dimensions in mm
*) With the recommended PCB hole sizes a grid
pattern from 2.5 mm to 2.54 mm can be used.
Rights to change data / design reserved
12 A, pinning 5 mm
16 A, pinning 5 mm
Edition: 02/2004
S0418-BB
S0418-BN
S0418-BA
1 C/O contact
1 C/O contact
1 C/O contact
S0163-BG
S0163-BC
S0163-BE
1 N/O contact
1 N/O contact
1 N/O contact
S0163-BH
S0163-BD
S0163-BF
