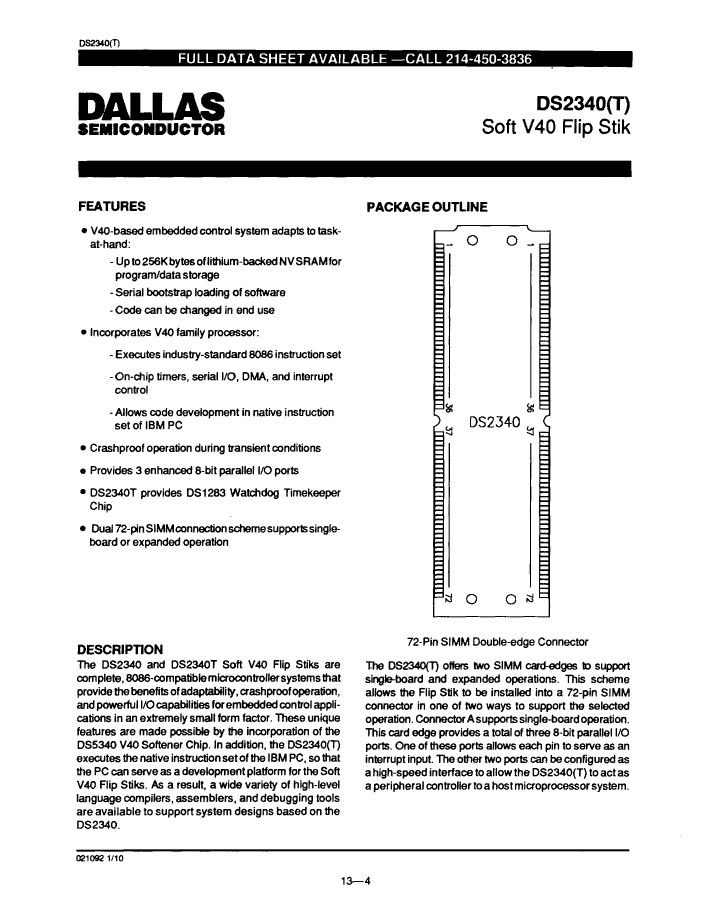

DS2340256B

Description
Microcontroller, 16-Bit, 10MHz, CMOS
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size41KB,1 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Download Datasheet Parametric Compare View All

DS2340256B Overview

Microcontroller, 16-Bit, 10MHz, CMOS

DS2340256B Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionSIMM,
Contacts144
Reach Compliance Codecompli
Has ADCNO
Address bus width20
bit size16
maximum clock frequency10 MHz
DAC channelNO
DMA channelNO
External data bus width8
JESD-30 codeR-XSMA-N144
JESD-609 codee0
Number of I/O lines24
Number of terminals144
Maximum operating temperature55 °C
Minimum operating temperature
PWM channelNO
Package body materialUNSPECIFIED
encapsulated codeSIMM
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
speed10 MHz
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER
Base Number Matches1

DS2340256B Related Products

DS2340256B DS2340T64B DS2340T256B DS234064B
Description Microcontroller, 16-Bit, 10MHz, CMOS Microcontroller, 16-Bit, 10MHz, CMOS Microcontroller, 16-Bit, 10MHz, CMOS Microcontroller, 16-Bit, 10MHz, CMOS
Is it lead-free? Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible
Contacts 144 144 144 144
Reach Compliance Code compli compliant compliant compliant
Has ADC NO NO NO NO
Address bus width 20 20 20 20
bit size 16 16 16 16
maximum clock frequency 10 MHz 10 MHz 10 MHz 10 MHz
DAC channel NO NO NO NO
DMA channel NO NO NO NO
External data bus width 8 8 8 8
JESD-30 code R-XSMA-N144 R-XSMA-N144 R-XSMA-N144 R-XSMA-N144
JESD-609 code e0 e0 e0 e0
Number of I/O lines 24 24 24 24
Number of terminals 144 144 144 144
Maximum operating temperature 55 °C 55 °C 55 °C 55 °C
PWM channel NO NO NO NO
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
encapsulated code SIMM SIMM SIMM SIMM
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
speed 10 MHz 10 MHz 10 MHz 10 MHz
surface mount NO NO NO NO
technology CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD NO LEAD NO LEAD
Terminal location SINGLE SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER
Base Number Matches 1 1 1 -
