2-104746-2 datasheet, PDF - EEWORLD Datasheet

2-104746-2: Description22 SYS50 HDR DRRA UNSHRD, AUFL; CategoryThe connector The connector; File Size165KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

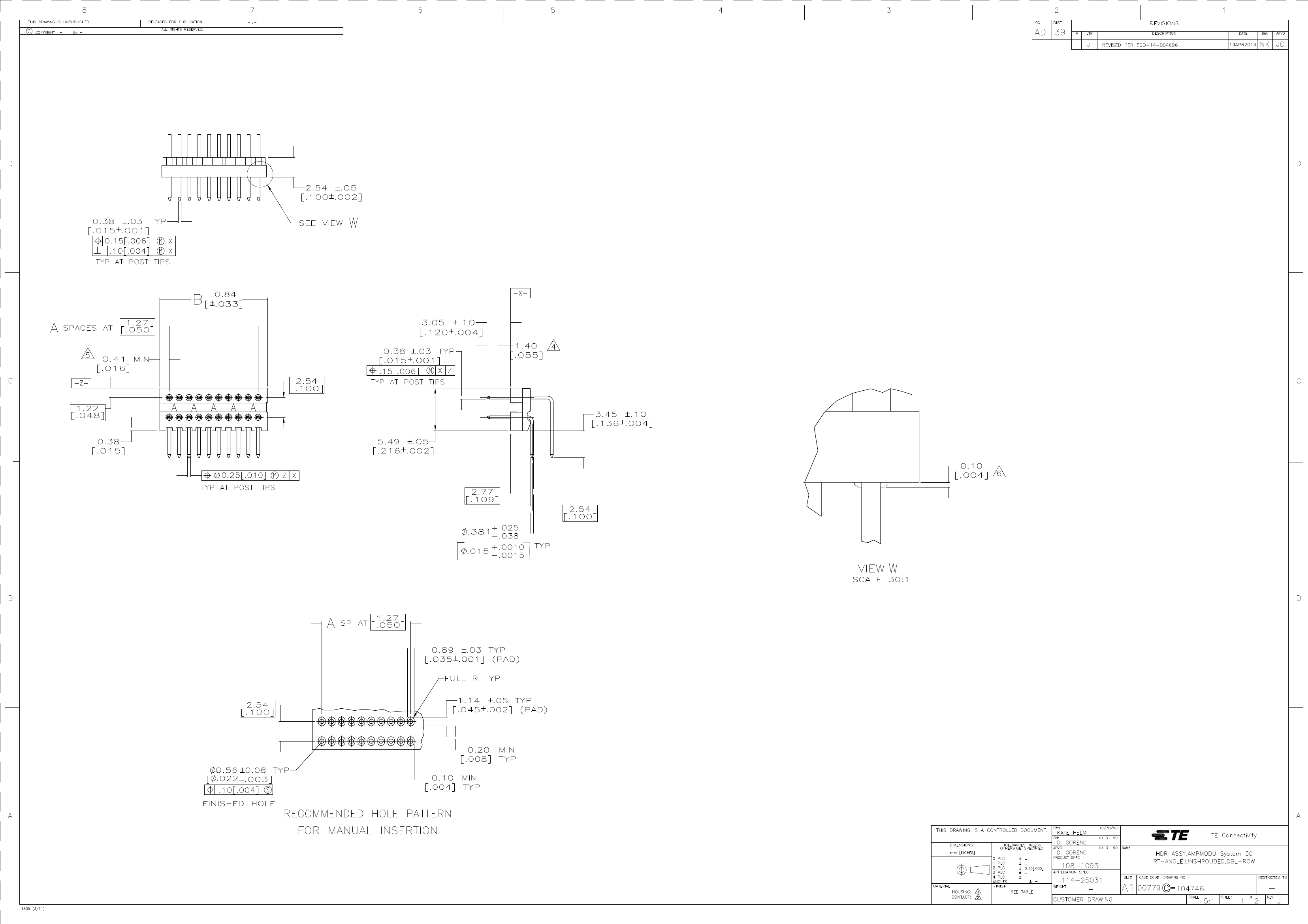

2-104746-2 Overview

22 SYS50 HDR DRRA UNSHRD, AUFL

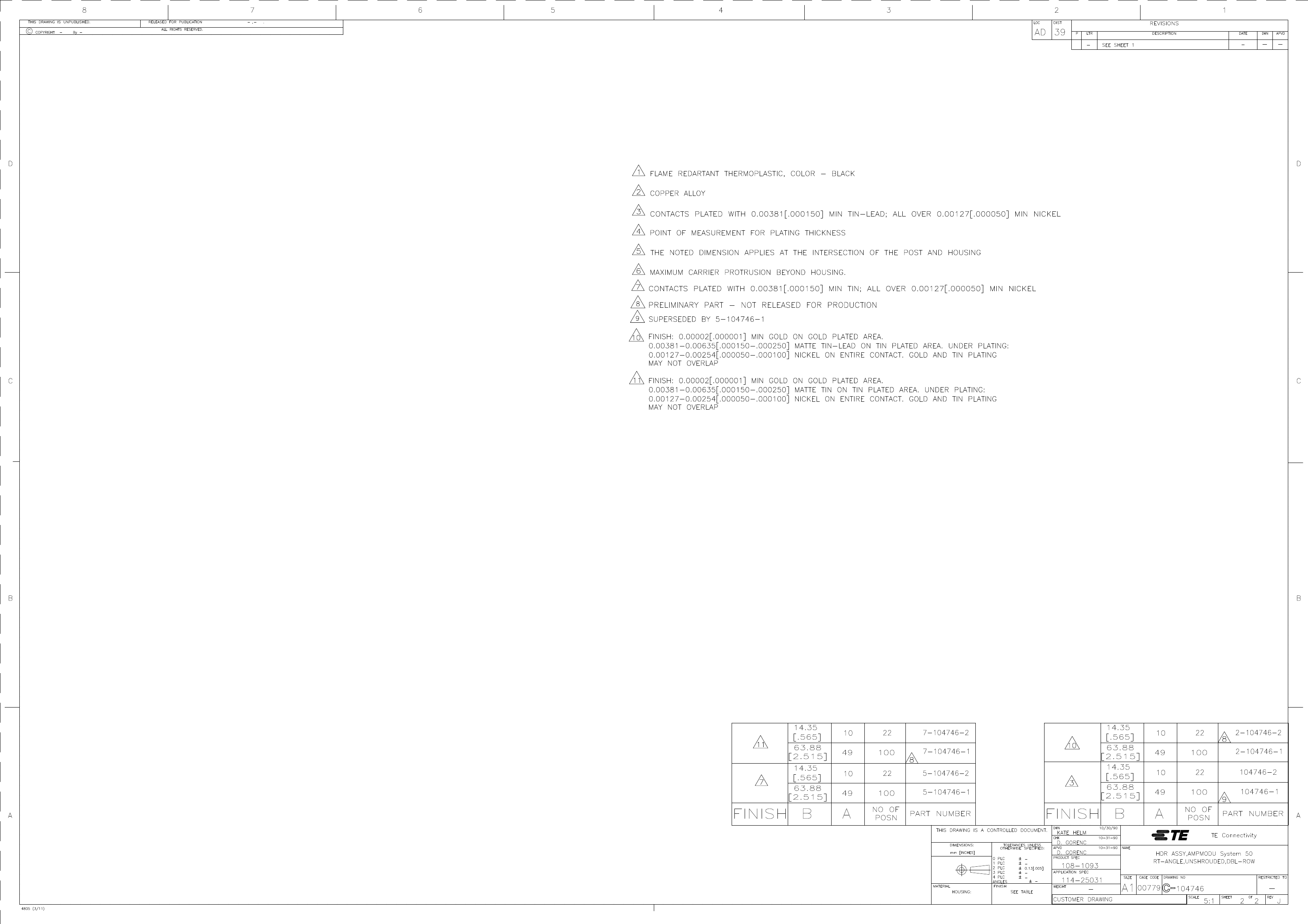

Parameter Name	Attribute value
Brand Name	TE Connectivity
Maker	ECLIPTEK
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.216 inch
subject depth	0.217 inch
body length	0.565 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	104746
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	1u inch
Rated current (signal)	3.6 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.136 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	22
Evacuation force-minimum value	.2224 N
Base Number Matches	1
