Printview: Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating -
Item No.: 770-885/011-000/080-000
.
Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100%
protected against mismating
Item No.: 770-885/011-000/080-000
.
Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
770-885/011-000/080-000
4050821553908
1
50
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).All WINSTA® components are 100%
protected against mismating in terms of:a.) plugging different number of polesb.) plugging when turned by 180°c.)
plugging when laterally staggeredd.) plugging one poleNote on Continuous Service Temperature:-35 °C … +85
°CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105 °CMating cycles:
100, with resistive load IN = 25A, tested (4 mm2/AWG 12)
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of potentials
Potential marking
5
10 mm / 0.394 in %
5
N ⏚ L I- I+
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating -
Item No.: 770-885/011-000/080-000
Technical data
Color
Coding
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Mating cycles
Number of levels
Design
Solder pin arrangement
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Contact material
Processing temperature
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
Marking
pink
B
400 [V]
6 [kV]
25 [A]
200, without resistive load
1
angled
2 in-line solder pins/pole
3.5 [mm]
1.4(+ 0.1 ... - 0.1) [mm]
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Copper or copper alloy, surface-treated
-5°C ... +40°C
0.192 [MJ]
10.555 [g]
47 mm / 1.85 in
18.1 mm / 0.713 in
14.6 mm / 0.575 in
26 mm / 1.024 in
N ⏚ L I- I+
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating -
Item No.: 770-885/011-000/080-000

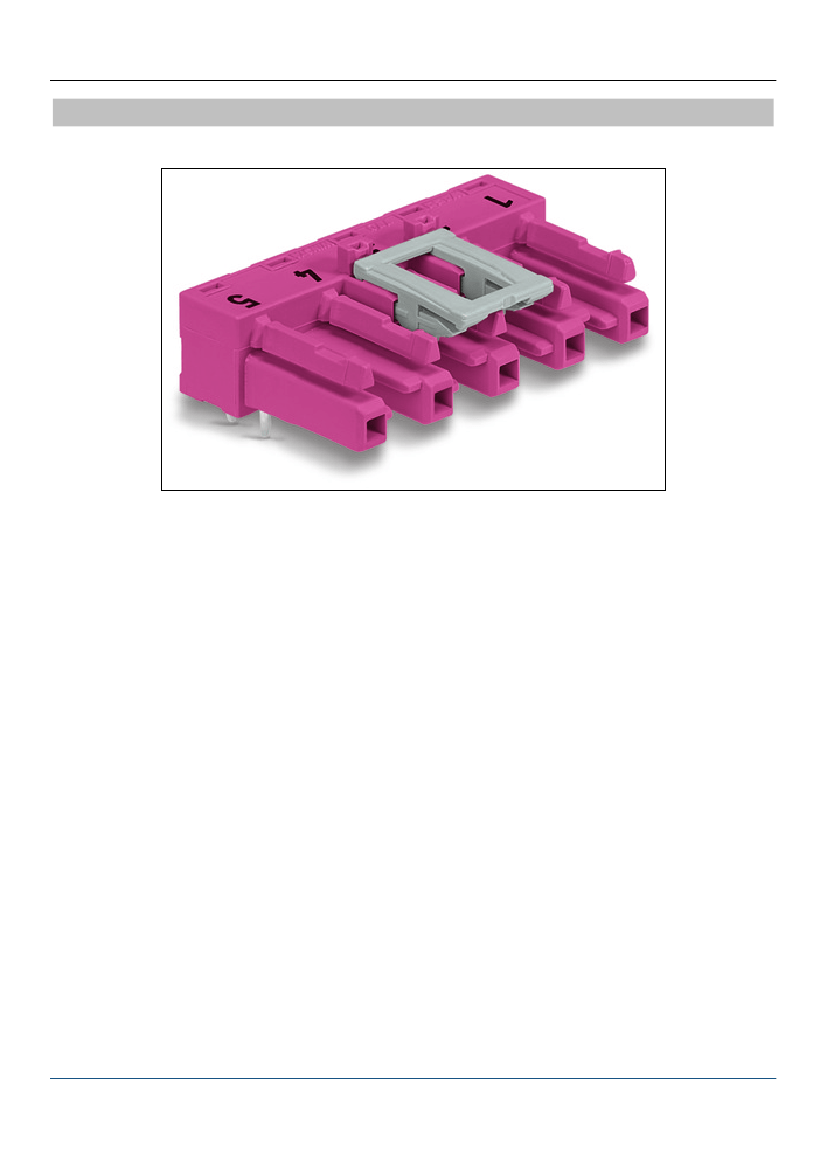

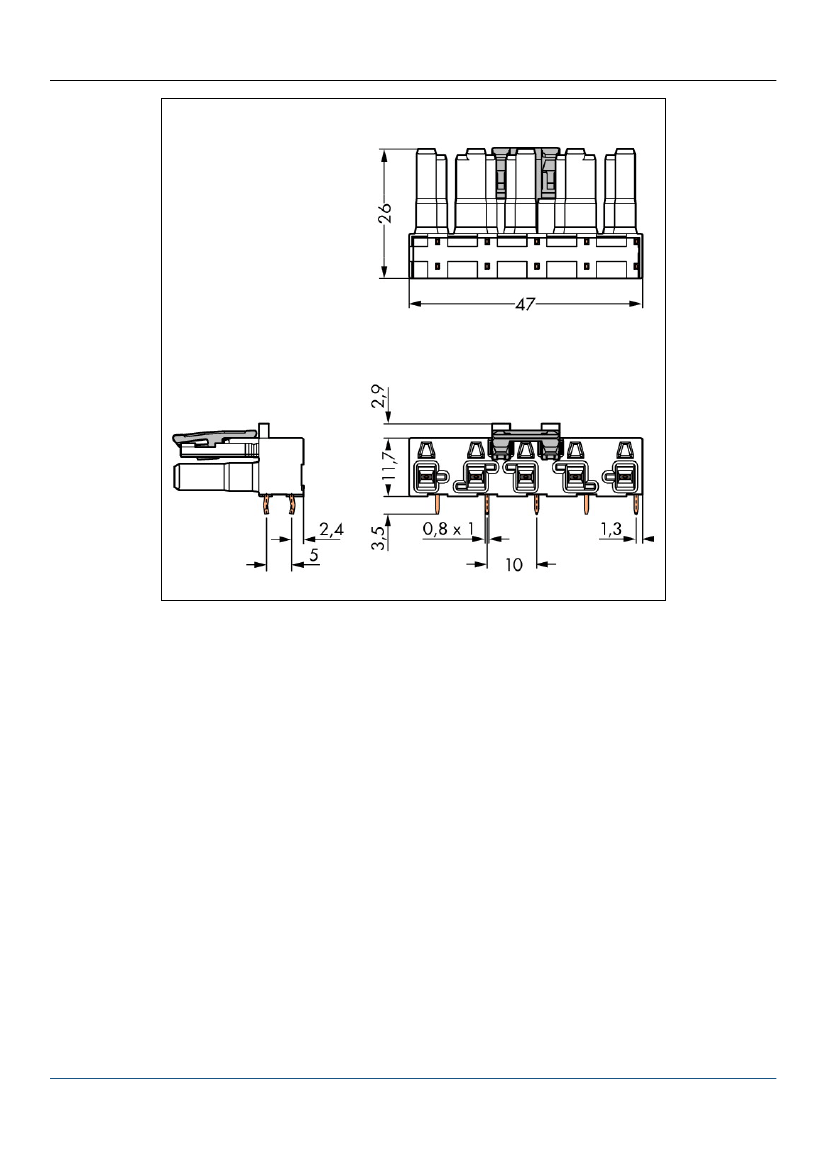

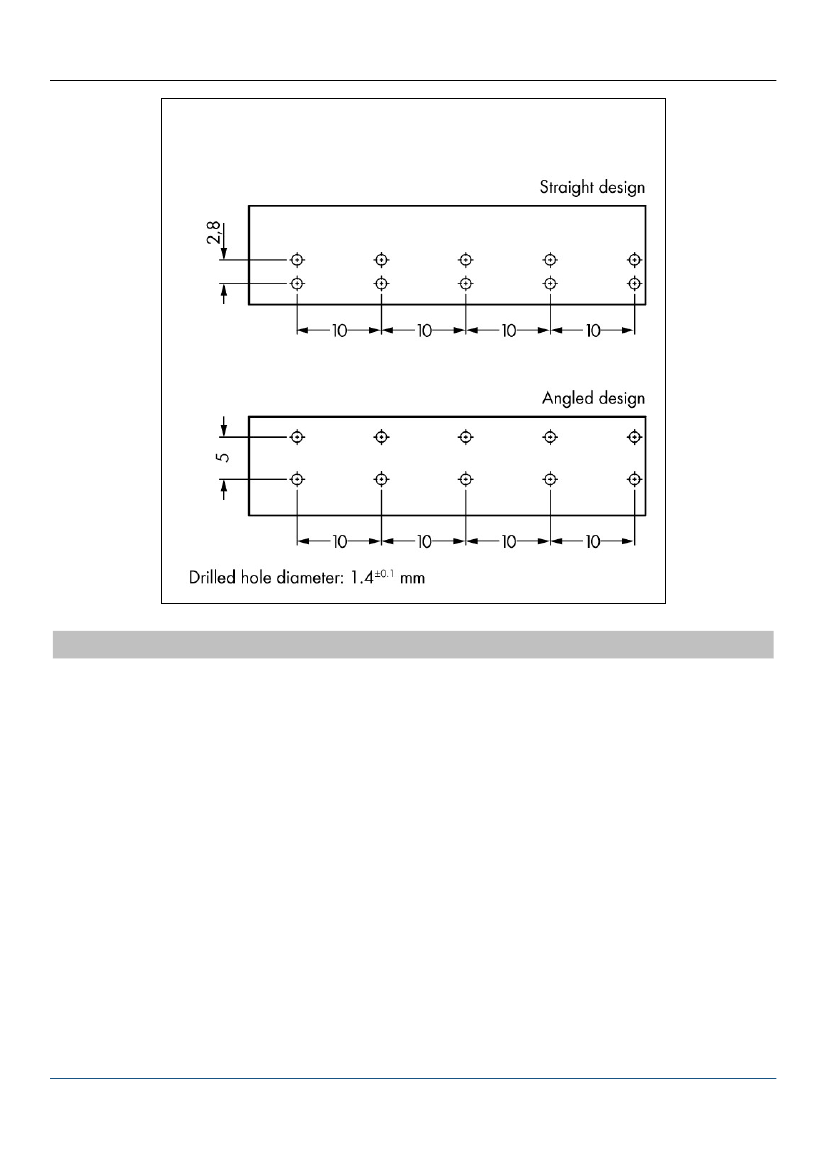

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating -
Item No.: 770-885/011-000/080-000
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: Socket; for PCBs; 5-pole; Pin spacing 10 mm / 0.394 in; 100% protected against mismating -
Item No.: 770-885/011-000/080-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
