8433-0-15-80-03-01-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8433-0-15-80-03-01-04-0

8433-0-15-80-03-01-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size148KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8433-0-15-80-03-01-04-0 Overview

PCB Terminal

8433-0-15-80-03-01-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8433
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

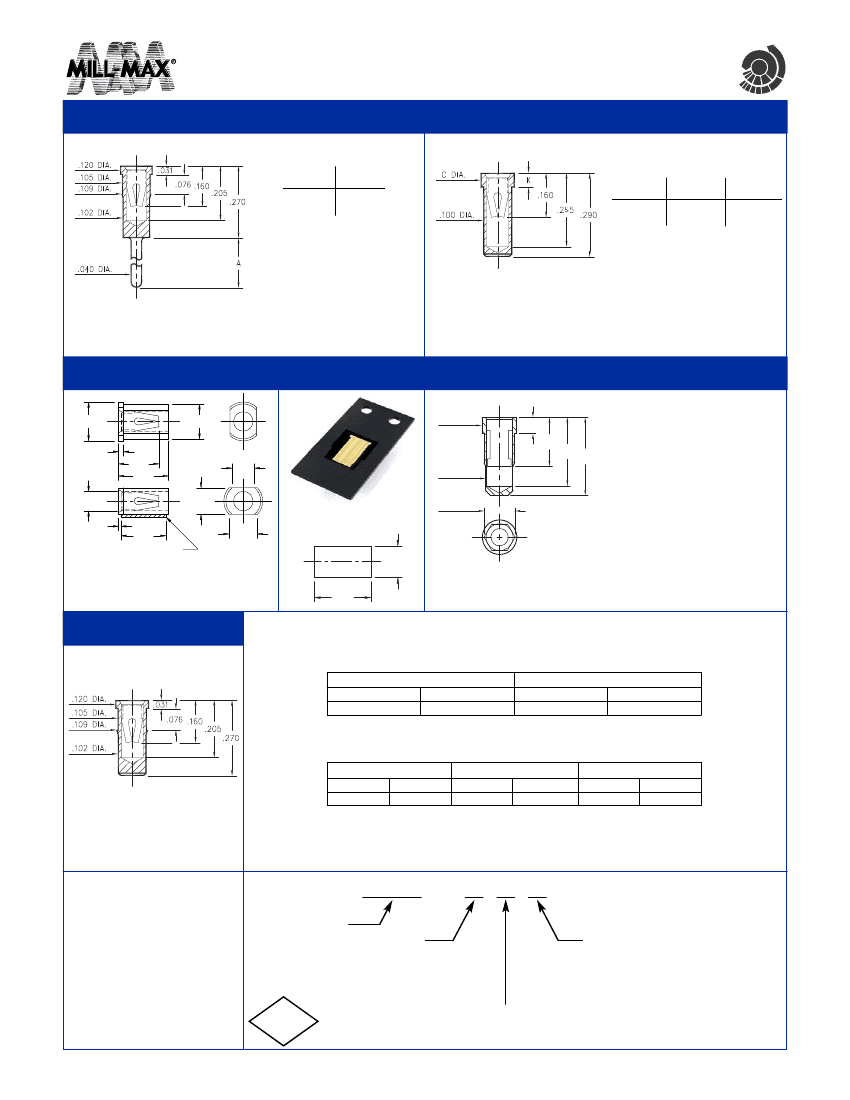

PIN RECEPTACLES

for .040” - .060” diameter pins (#03 contact)

and .059” - .063” diameter pins (#42 contact)

CHI

PINS

0433/8433

Basic Part

Number

Length

0435/0436

0433-0

8433-0

.120

.330

Basic Part

Number

Dia.

Length

0435-0

0436-0

.118

.125

.050

.070

0435-0-15-XX-03-XX-10-0

X433-0-15-XX-03-XX-04-0

Press-fit in .106 mounting hole

Solder mount in .102 min. mounting hole

Also available on 24mm wide carrier

tape: 950 parts per 13” reel.

Order as: 0435-0-57-XX-03-XX-10-0

4064

.156 DIA.

.140 DIA.

.020

.162

.200

0342

.106

DIA.

.050

.150

.090

.210

.240

.084

DIA.

• 0342 receptacle uses

Mill-Max’s new #42 Contact.

This receptacle will accept

the Ø.061±.002 power pins of

¼ brick DC/DC converters.

• #42 contact can be ordered

in standard receptacles that

use #03 contact; or it can be

specified as the spring

element inside custom made

receptacles.

.078 DIA.

.107

.094

DIA.

.010

.180

P.C.B. PAD

P.C.B. Layout

.114

4064-0-18-XX-03-XX-40-0

Surface mount

Also available on 16mm wide carrier

tape: 2,400 parts per 13” reel.

Order as: 4064-0-58-XX-03-XX-40-0

.180

.100

0342-0-15-XX-42-XX-10-0

Hex press-fit in .090±.002

plated thru hole

0434

Mechanical Data #42 Contact:

Insertion/Extraction Force

with a Ø.061 (nominal) pin:

First Cycle

Insertion Force Extraction Force

20N

2nd & Subsequent Cycles

Insertion Force Extraction Force

10N

Compliancy Test

(the “spring back” characteristic of the contact to accept

Ø.059 small pin after insertion of a Ø.063 large pin) :

Initial Cycle with Ø.059 pin Second Cycle with Ø.063 pin

Ins. Force Ext. Force Ins. Force Ext. Force

18N

22N

Third Cycle with Ø.059 pin

Ins. Force Ext. Force

0434-0-15-XX-03-XX-10-0

Press-fit in .106 mounting hole

(Insertion/Extraction Forces are in Newtons and measured with polished

steel gage pins having elliptical shaped tips).

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#03 or #42

CONTACT (DATA ON PAGE 225)

w w w. m i l l - m a x . c o m

157



516-922-6000
