852-40-070-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 852-40-070-20-001000

852-40-070-20-001000: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size538KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

852-40-070-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	852-40-070-20-001000	-	-	View	Buy Now

852-40-070-20-001000 Overview

Board Connector, 70 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT

852-40-070-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	852
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	70
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

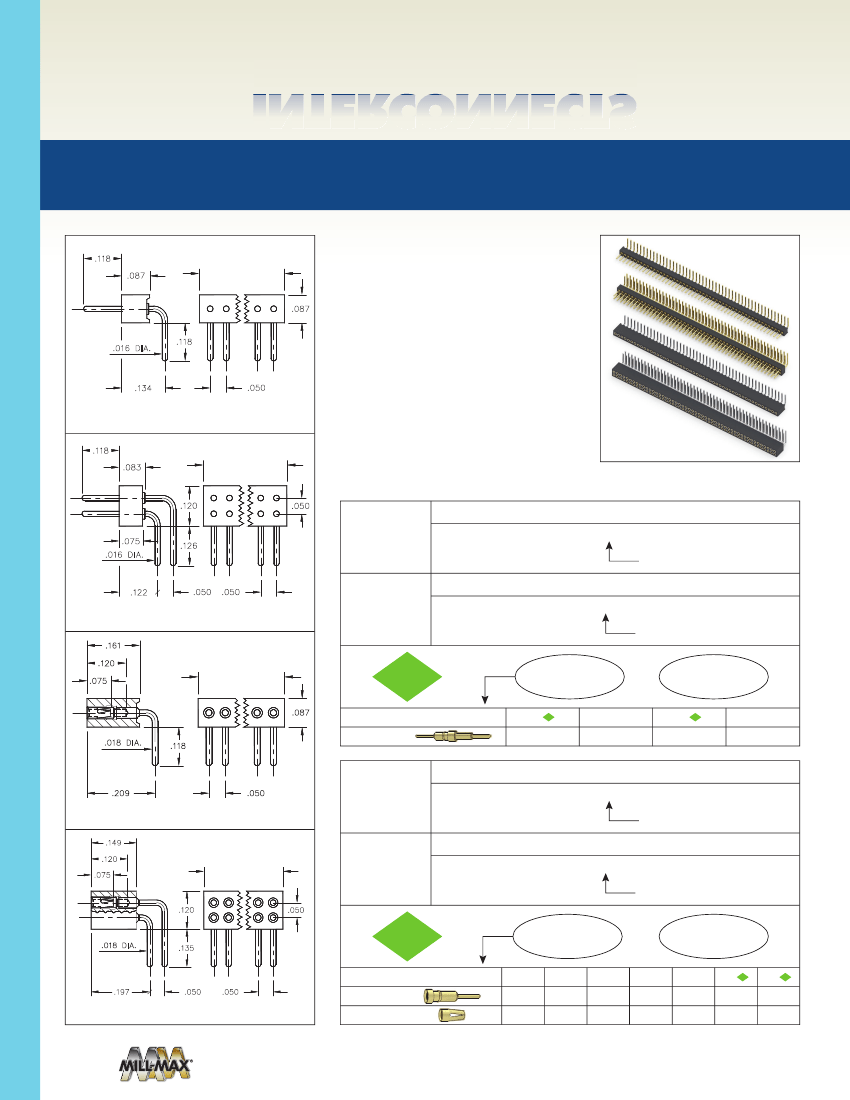

SERIES 850, 851, 852, 853 • 050” GRID RIGHT ANGLE

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

•

Series 850 and 851 interconnects are available

.118

.087

(Number of Pins

X .050”) + .015”

.087

in single and double row form

•

Series 850 & 852 headers use MM #4006-1 and

#4006-2 pins. See page 208 for details

•

Series 851 & 853 sockets use MM #4890-1 and

#4890-2 receptacles that accept pin diameters

from .015”-.021”. See page 160 for details

.016 DIA.

.118

.134

.050

•

Receptacles use Hi-Rel, 3- nger BeCu #11

contact rated at 3 amps. See page 251 for

details

FIG. 1

.118

.083

•

Insulators are high temperature thermoplastic,

(Number of Pins

X .050”/2) + .015”

suitable for all soldering operations

ORDERING INFORMATION

.050

.120

Series 850...001

Single Row Right Angle Pin Header

850 XX 0_ _ 20 001000

01-50

.075

.016 DIA.

.126

FIG. 1

.050

Specify number of pins

.050

.122

Series 852...001

Double Row Right Angle Pin Header

852 XX _ _ _ 20 001000

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.161

.120

.075

FIG. 2

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

µ”

(Number of Pins

X .050”) + .015”

.087

2011/65/EU

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.018 DIA.

.118

Series 851...001

.209

.050

Single Row Right Angle Socket

851 XX 0_ _ 20 001000

01-50

FIG. 3

.149

FIG. 3

Series 853...001

Specify number of pins

Double Row Right Angle Socket

853 XX _ _ _ 20 001000

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 36 | INTERCONNECTS

.120

.075

(Number of Pins

X .050”/2) + .015”

FIG. 4

.050

Specify number of pins

.120

.018 DIA.

.135

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

.197

.050

200

µ”

200

µ”

Au Flash

FIG. 4

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb 200

µ”

Sn/Pb

µ”

100

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
