B067-1633-007-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> B067-1633-007-Z

Preview

B067-1633-007-Z: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size314KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B067-1633-007-Z Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Plug

B067-1633-007-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.193 inch
subject depth	0.197 inch
body length	0.65 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B067
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

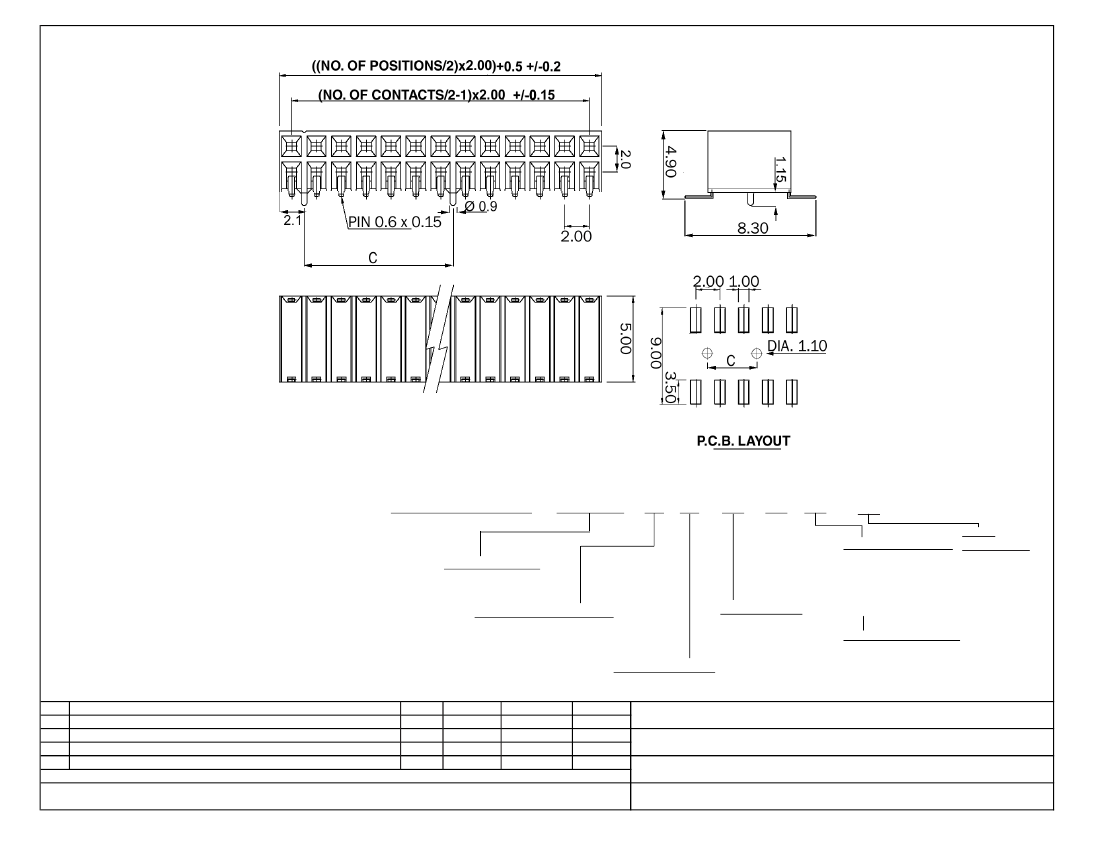

HOW TO ORDER:

B

0

6

7

-

X

3

-

0

X

-

Z

ELECTRICAL:

CURRENT: 1A

# OF CONTACTS:

CONTACT RESISTANCE: 20mΩ Max.

06 thru 50

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC For 1 MIN.

CONTACT TAIL OPTIONS:

OPERATING TEMPERATURE: -40°C to +105°C

3 - SURFACE MOUNT w/OUT POST

MAX PROCESSING TEMPERATURE: 230° For 30 ~ 60 Sec. (260° For 10 Sec.)

BODY HEIGHT:

0 - STANDARD

RoHS

PLATING OVERALL: COMPLIANT

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

INSULATOR: Polyester, UL 94V-0 ; Nylon-6T

CONTACT: Phosphor Bronze

CONTACT PLATING: Full Gold, Full Tin, Selective Plating

Rev

0

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING OPTION:

3 - DOUBLE ROW SIDE ENTRY

Appproved

Date

S.M.

08/07/03

S.M.

12/15/06

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.00mm Pitch, Double Row, Surface Mount

Side Entry, Without Mounting Post

SERIES: B067

Pg: 1
