SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 267, REV. B
1N6660, 1N6660R
JAN, JANTX
JANTXV
HERMETIC POWER SCHOTTKY RECTIFIER
(45 V, 30 A, TO-254 Package)
Applications:
Switching Power Supply
Converters
Free-Wheeling Diodes
Polarity Protection Diode
Features:
Soft Reverse Recovery at Low and High Temperature
Very Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
Guaranteed Reverse Avalanche Characteristics
JAN, JANTX, JANTXV Qualified
Mechanical Dimensions: In Inches / mm
.149 (3.78
Dia.
.139 3.53)
.545 (13.84
.535 13.60)
.260
.249
.050
.040
(6.60
6.32)
(1.27
1.02)
.685 (17.40
.665 16.89)
1.235 (31.37
1.195 30.35)
.800 (20.32
.790 20.07) .545 (13.84
.535 13.58)
1
2
3
.045 (1.14
.035 0.89)
3 Places
.150(3.81) BSC
2 Places
.150(3.81) BSC
TO-254
PINOUT TABLE
TYPE
DUAL RECTIFIER, COMMON CATHODE
DUAL RECTIFIER, COMMON ANODE (R)
PIN 1
ANODE 1
CATHODE 1
PIN 2
COMMON CATHODE
COMMON ANODE
PIN 3
ANODE 2
CATHODE 2
SCHEMATIC
COMMON CATHODE
COMMON ANODE
Maximum Ratings:
221 West Industry Court
3
Deer Park, NY 11729-4681
3
(631) 586-7600 FAX (631) 242-9798
World Wide Web Site - http://www.sensitron.com
E-Mail Address - sales@sensitron.com
SENSITRON
SEMICONDUCTOR
1N6660, 1N6660R
JAN, JANTX
JANTXV
Symbol
V
RWM
I
F(AV)
I
FSM
E
AS
Condition
-
50% duty cycle @T
C
=100°
C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
= 25
C,
I
AS
= 2.0 A,
L = 0.26 mH
Max.
45
30
300
0.54
Units
V
A
A
mJ
Characteristics
Peak Inverse Voltage
Max. Average Forward
Current (Total Package) *
Max. Peak One Cycle Non-
Repetitive Surge Current
(Per Leg)
Non-Repetitive Avalanche
Energy
(Per Leg)
*
Derate linearly at 300 mA/ ° from T
J
= T
C
= +100 ° to +150 ° 300 mA /° times 50 ° = 15 A,
C
C
C.
C
C
the device rating.
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
(Per Leg)
Symbol
V
F1
V
F2
V
F3
V
F4
I
R1
I
R2
Max. Junction Capacitance
(Per Leg)
Max. Voltage Rate of
Change (Per Leg)
C
T
dv/dt
Condition
@ 5 A, Pulse, T
J
= 25
C
@ 15 A, Pulse, T
J
= 25
C
@ 30 A, Pulse, T
J
= 25
C
@ 15 A, Pulse, T
J
= -55
C
@V
R
= 45 V, Pulse,
T
J
= 25
C
@V
R
= 45V, Pulse,
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz,
V
SIG
= 50mV (p-p)
-
Max.
0.55
0.75
1.00
0.80
1.0
40
2000
10,000
Units
V
V
mA
mA
pF
V/ms
Max. Reverse Current
(Per Leg)
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(Per Leg)
Case Style
Symbol
T
J
T
stg
R
JC
Condition
-
-
DC operation
Specification
-65 to +150
-65 to +150
1.65
Units
C
C
C/W
Hermetic TO-254
221 West Industry Court
3
Deer Park, NY 11729-4681
3
(631) 586-7600 FAX (631) 242-9798
World Wide Web Site - http://www.sensitron.com
E-Mail Address - sales@sensitron.com
SENSITRON
SEMICONDUCTOR
1N6660, 1N6660R
JAN, JANTX
JANTXV

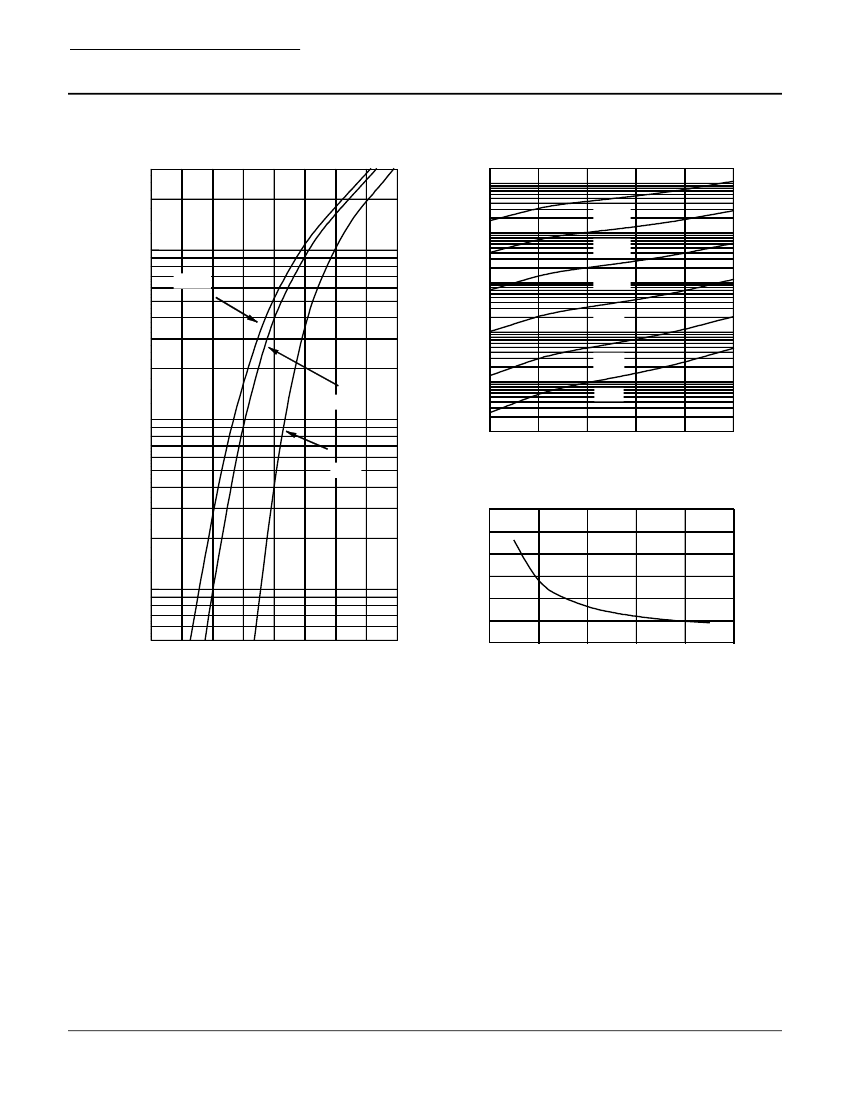

Typical Reverse Characteristics
10
1
(mA)
Typical Forward Characteristics
150 °
C
10
0
Instantaneous Reverse Current - I
R
10
1
125 °
C
100 °
C
75 °
C
150 °
C
(A)
10
-1
F
Instantaneous Forward Current - I
10
-2
50 °
C
10
-3
125 °
C
10
0
25 °
C
10
-4
0
10
C
25 °
800
700
600
500
400
300
200
0
10
20
30
Reverse Voltage - V
R
(V)
40
50
Typical Junction Capacitance
Junction Capacitance - C
T
(pF)
10
-1
0.0
0.2
0.4
0.6
Forward Voltage Drop - V
F
(V)
0.8
20
30
40
Reverse Voltage - V
R
(V)
50
221 West Industry Court
3
Deer Park, NY 11729-4681
3
(631) 586-7600 FAX (631) 242-9798
World Wide Web Site - http://www.sensitron.com
E-Mail Address - sales@sensitron.com
SENSITRON
SEMICONDUCTOR
1N6660, 1N6660R
JAN, JANTX
JANTXV
Typical Thermal Resistance
10
1
Thermal Impedance - Z
thJC
(°
C/W)
10
0
10
-1
10
-2
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
Single Rectangular Pulse Duration (sec)
221 West Industry Court
3
Deer Park, NY 11729-4681
3
(631) 586-7600 FAX (631) 242-9798
World Wide Web Site - http://www.sensitron.com
E-Mail Address - sales@sensitron.com
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
