COMPONENTS PRODUCT INFORMATION
NEW
Connector for Internal Serial Transmission
CONNECTOR
MB-0153-4
June 2013
FI-R Series
RoHS Compliant
High-speed serial transmission such as LVDS, TMDS (HDMI), and PCI Express are
widely used in applications in a variety of markets including the personal computer,
TV, consumer device, copier, and medical device markets.
In these applications connectors not only need to have the ability to transmit signals
at high speed, but they also must have the durability, ease of mating, and variety of
options to respond to the demands of all designs.
The FI-R is the ideal connector series to meet these demands.

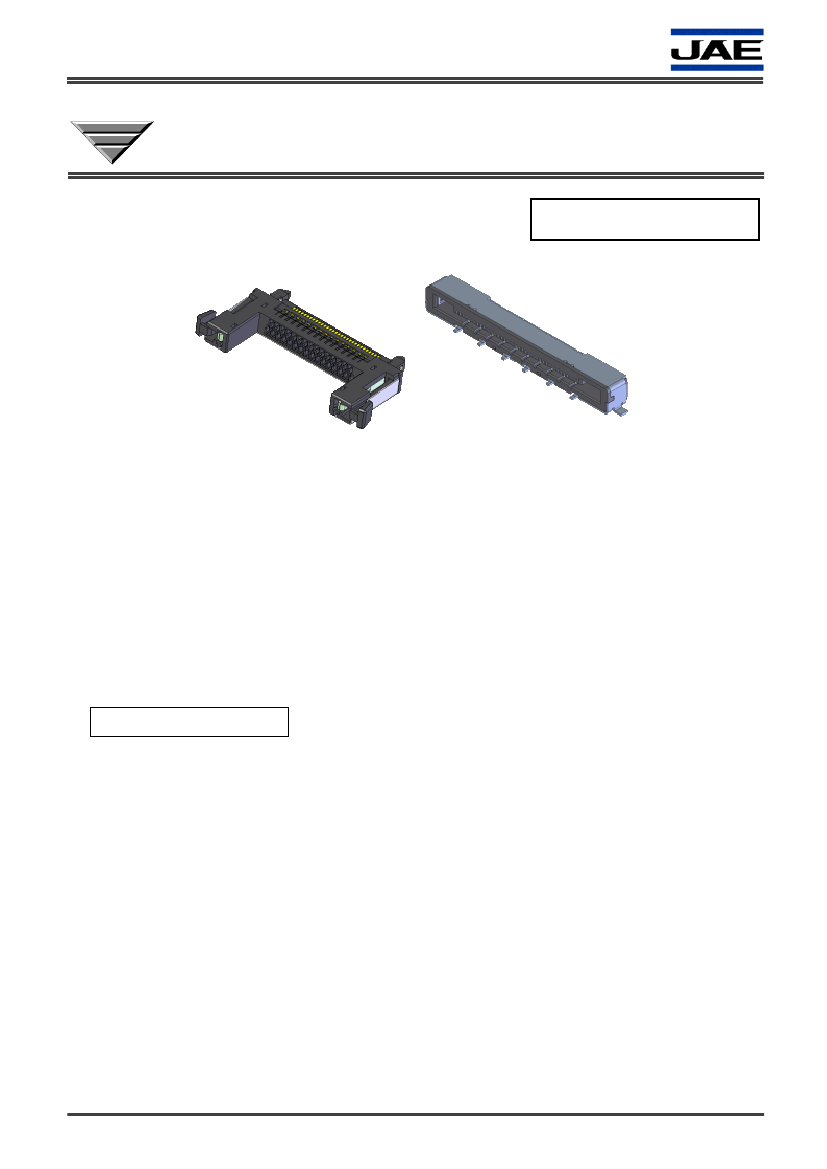

Features
•0.5mm terminal pitch, 3.8mm height connector, compact design with 21, 31, 41, and
51 positions.
•Stable mating with large mating guides on the plug.
•Strong PCB retention with solder hold-downs on the receptacle.
•Impedance matching: 100 ohm. Ground reinforced by shell structure and hold-downs.
•Receptacle options include with and without shell, and right-angle and straight types,
all with a common footprint.
•Mechanical lock to prevent mis-mating and accidental unmating.
•Plug options for discrete wire crimping, fine coaxial wire soldering, and FFC to suit a
variety of needs.
•VESA standard connector for TV LCD interface.
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
1/15
MB-0153-4

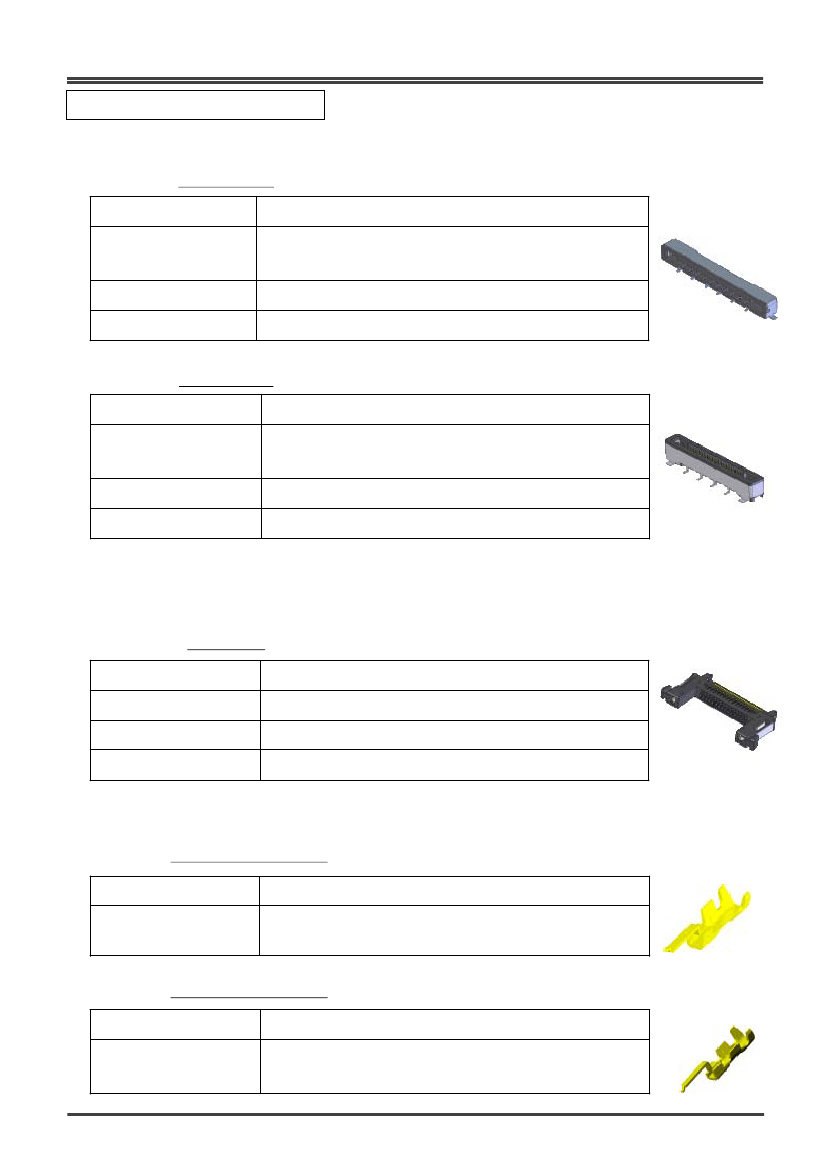

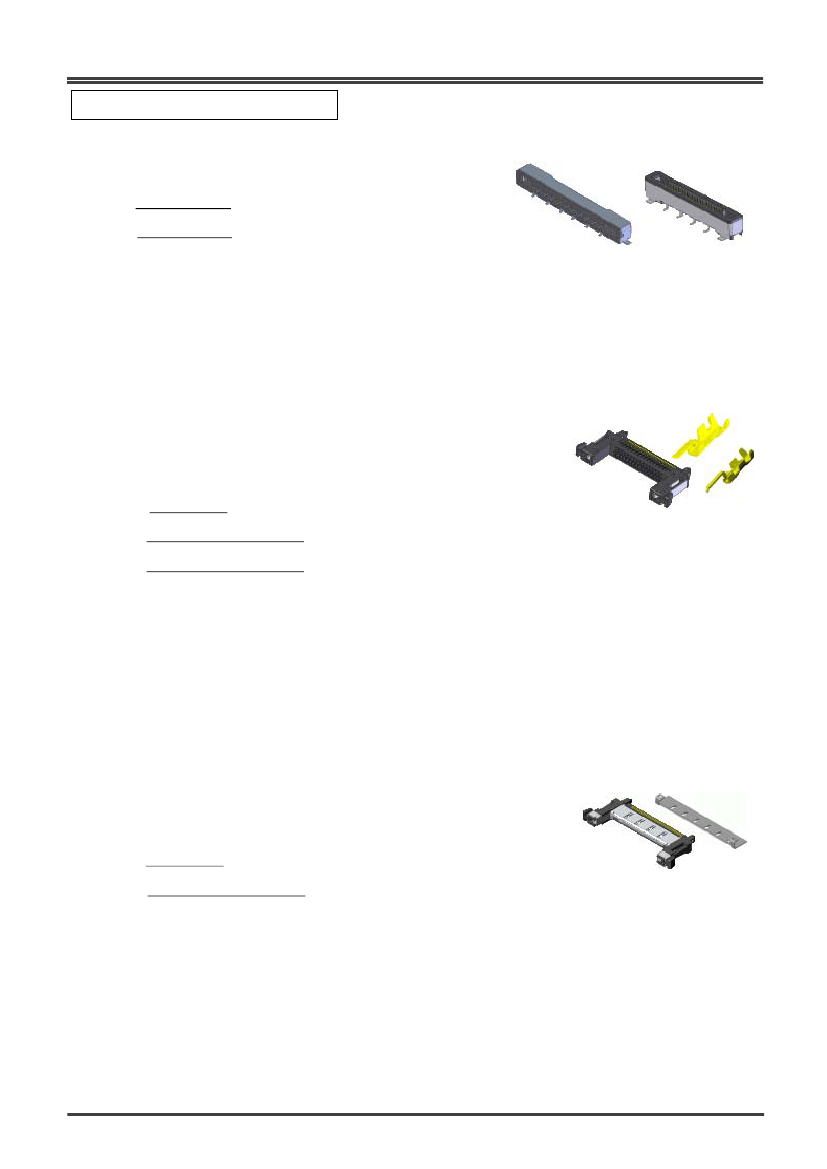

General Specification
Receptacle
A1. FI-RE**S-HF (Right-angle, shell type)
A2. FI-RE**S-VF (Straight, shell type )
■No.
of Contacts: 21, 31, 41, 51pos.
■Contact
Resistance: 50m ohm max.
■Dielectric
Withstanding Voltage:
AC500Vr.m.s, 1 minute
■Operating
Temperature:
-40Deg. C to +80Deg. C
■Rated
Current:
AC, DC 0.8A per terminal
■Insulation
Resistance: 100M ohm min.
■Pitch:
0.5mm
Plug, Crimp Type
B1.
FI-RE**HL (Mechanical lock, shell type)
B2. FI-RC3-1A-1E-15000 (Crimp for upper contact )
B3. FI-RC3-1B-1E-15000 (Crimp for lower contact )
■No.
of Contacts: 21, 31, 41, 51pos.
■Contact
Resistance: 50m ohm max.
■
Dielectric Withstanding Voltage:
AC500Vr.m.s, 1 minute
■Operating
Temperature:
-40Deg. C to +80Deg. C
■Rated
Current:
AC, DC 0.7A per terminal
■Insulation
Resistance: 100M ohm min.
■Pitch:
0.5mm
■Applicable
Cable: 30, 32, 36 AWG
Plug, Solder Type
C1. FI-RE**CL (Mechanical lock, shell type)
C2. FI-RE**CL-SH2-3000 (Cover shell for solder type)
■No.
of Contacts: 21, 31, 41, 51pos.
■Contact
Resistance: 50m ohm max.
■Dielectric
Withstanding Voltage:
AC500Vr.m.s, 1 minute
■Operating
Temperature:
-40Deg. C to +80Deg. C
■Rated
Current:
AC, DC 0.7A per terminal
■Insulation
Resistance: 100M ohm min.
■Pitch:
0.5mm
■Applicable
Cable:
Coaxial cable 40 AWG
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
2/15
MB-0153-4
Materials and Finishes
Receptacle
A1. FI-RE**S-HF (Right-angle, shell type)
Component
Contact
Insulator
Shell
Material / Finish
Copper alloy / Contact area Au,
SMT Terminal area Sn plating
Heat resistant plastic / None
Stainless steel / None
A2. FI-RE**S-VF (Straight, shell type)
Component
Contact
Insulator
Shell
Material / Finish
Copper alloy / Contact area Au,
SMT Terminal area Sn plating
Heat resistant plastic / None
Stainless steel / None
Plug, Crimp Type
B1. FI-RE**HL (Mechanical lock, shell type)
Component
Press Fit Shell
Insulator
Lock Spring
Material / Finish
Copper alloy / Sn plating
Heat resistant plastic / None
Stainless steel / None
B2. FI-RC3-1A-1E-15000 (Crimp for upper contact)
Component
Contact
Material / Finish
Phosphor bronze / Contact area Au,
Terminal area Sn plating
B3. FI-RC3-1B-1E-15000 (Crimp for lower contact )
Component
Contact
Material and Finish
Phosphor bronze / Contact area Au,
Terminal area Sn plating
3/15
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
MB-0153-4
Materials and Finishes
Plug,
Solder Type
C1. FI-RE**CL (Mechanical lock, shell type)
Component
Contact
Press Fit Shell
Insulator
Lock Spring
Material / Finish
Copper alloy / Contact area Au,
Terminal area Sn plating
Copper alloy / Sn plating
Heat resistant plastic / None
Stainless steel / None
C2. FI-RE**CL-SH2-3000 (Cover shell for solder type)
Component
Cover Shell
Material / Finish
Stainless steel / None
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
4/15
MB-0153-4
Ordering Information

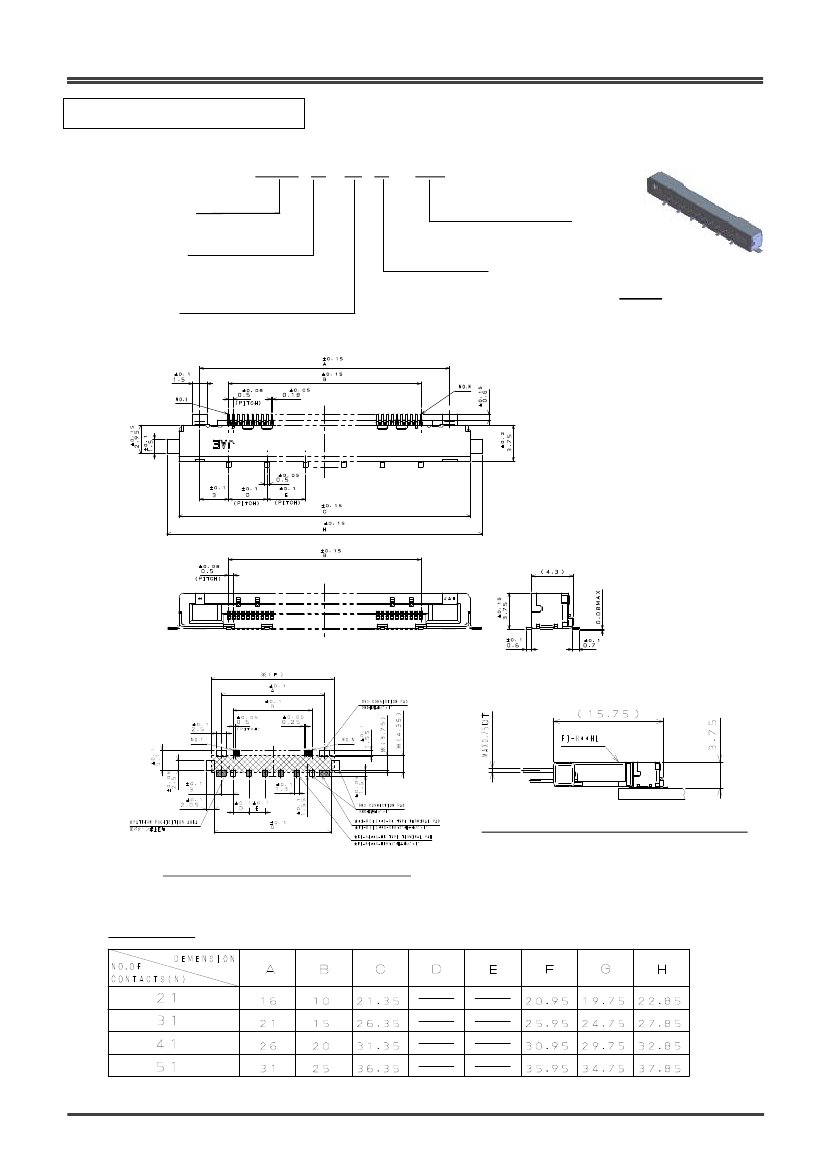

Receptacle (Right-angle, shell type)
Individual Connector (SJ102934 )
FI-R E ** S - HF
Series
E: Shell Type
Receptacle
No. of Contacts :
21, 31, 41, 51 pos.
Right-Angle Type
A1
Unit: mm
Drawing when mated (for reference)
Recommended board dimensions
Dimensions
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
5/15
