31359102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 31359102

31359102: DescriptionRIACON Direct Solder Terminal Block, Type 359, 2 POLE 3.5MM; CategoryThe connector terminals; File Size102KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric View All

31359102 Overview

RIACON Direct Solder Terminal Block, Type 359, 2 POLE 3.5MM

31359102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: UL 94V-0, PA66
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	2
Rated voltage	250 V
safety certificate	CUL; SEV; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	16 AWG
Base Number Matches	1

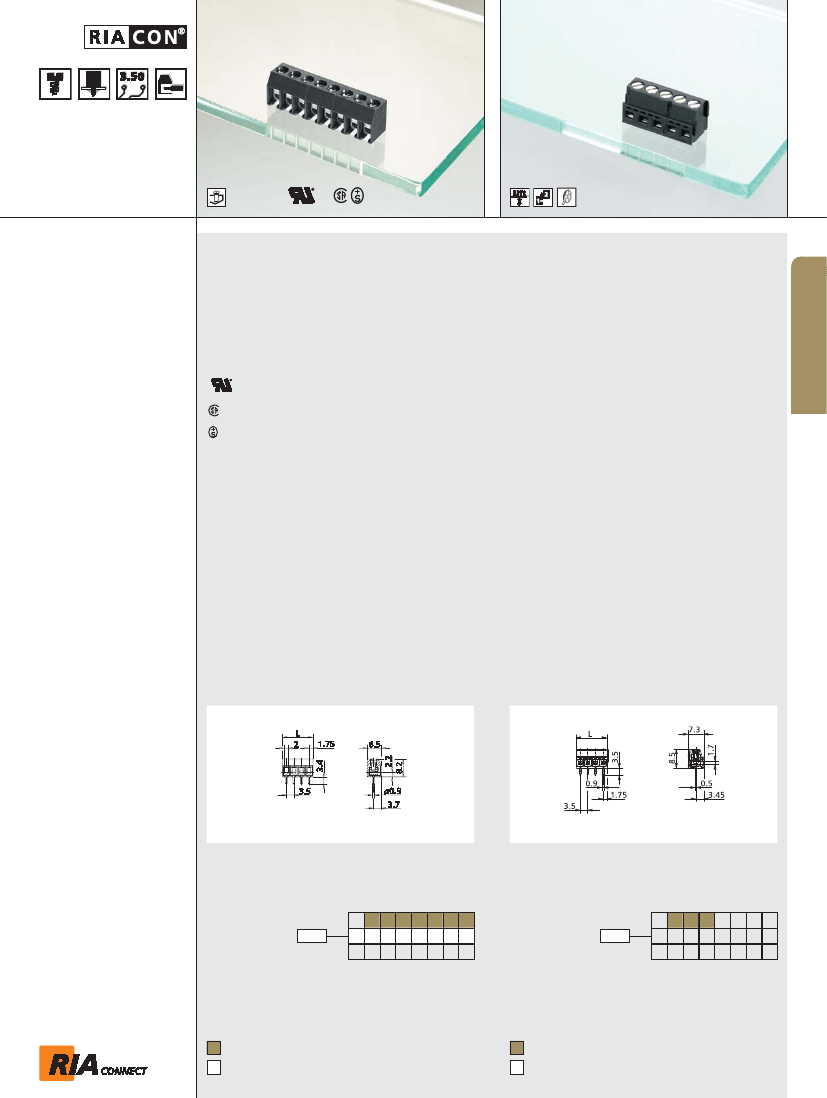

Preview

Download Datasheet

View All

Note for wire range

Additional wire sizes and/or

combinations of same size

wires as follows:

Type 59

#### 2 No. 22 - 18 AWG

(field-wiring);

2 No. 26 - 18 AWG or

1 No. 26 - 14 AWG

(factory-wiring)

Type 059

Screw type terminal block, solderable, centerline

3.5 mm / 0.138 inches, horizontal wire entry, wire

protector

Type 359

Screw type terminal block, solderable, centerline

3.5 mm / 0.138 inches, horizontal wire entry, wire

protector, modular

Technical Data

V / A / AWG

0.33 - 1 mm²

300 / 10 / 28 - 16

300 / 10 / 22 - 18

125 V / 2.5 kV / 6 A

Technical Data

0.08 - 1.5 mm² 125 V / 2,5 kV / 12 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 1.7 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

320

Rated test voltage

0.8

2.5

Protection category according

to IEC 529

IP00

Tightening torque UL

1.3 lb-in max.

Min. insul. strip length

5 mm

Solder pin dimension

0.5*0.9 mm

Recommended pc board hole

dia.

Ø 1.1 mm

Solder pin length

3.5 mm

Pole size

2-4

Color

black

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 2.1 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

160

400

Rated test voltage

2.5

Protection category according

to IEC 529

IP00

Tightening torque UL

1.3 lb-in max.

Min. insul. strip length

5 mm

Solder pin dimension

0.9 mm

Recommended pc board hole

dia.

Ø 1.2 mm

Solder pin length

3.4 mm

Pole size

2 - 16

Color

black

Dimensions in mm

1 mm = 0.0394 in.

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 3.5 mm / 0.138 inches

Part numbers (P/N)

Type 059

centerline 3.5 mm / 0.138 inches

(information: page 56)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 359

(information: page 56)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

centerline 3.5 mm / 0.138 inches

02 03 04

P/N

310591

P/N

313591

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
