507-146Z231H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 507-146Z231H

507-146Z231H: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size175KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

507-146Z231H Overview

Connector Accessory

507-146Z231H Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	507-146
Base Number Matches	1

Preview

Download Datasheet

View All

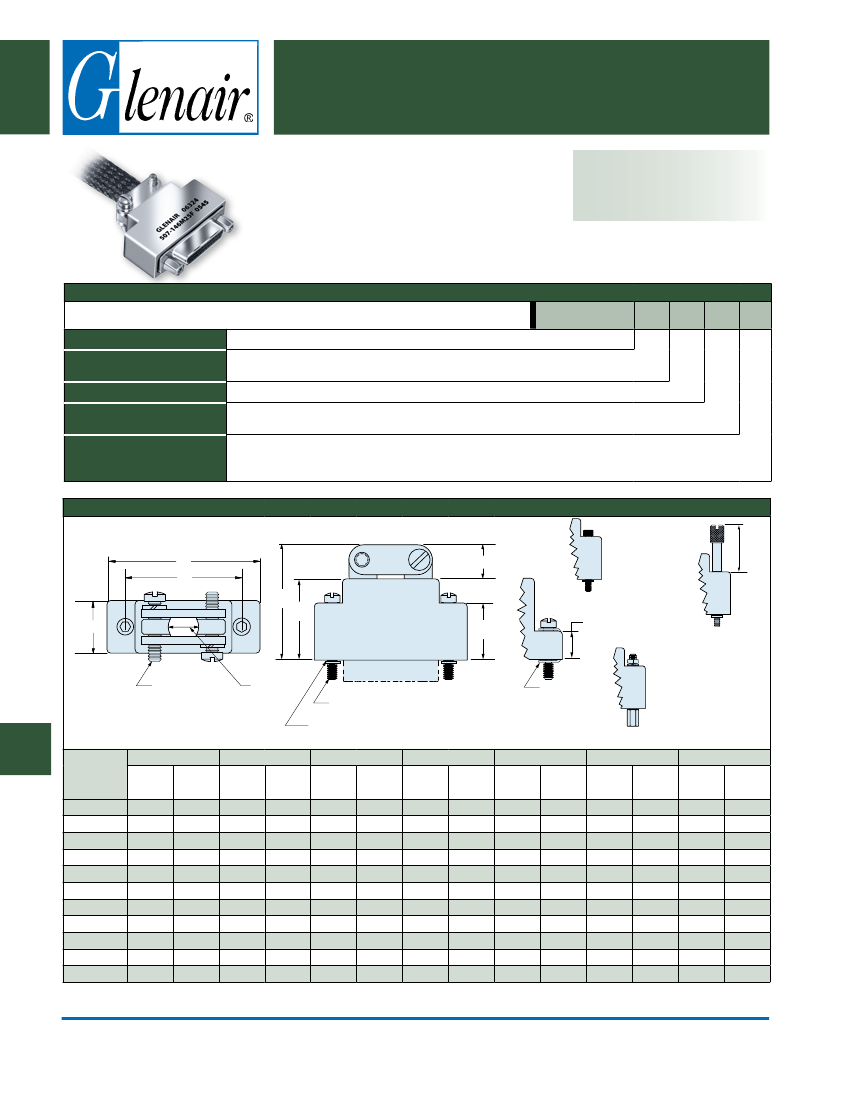

INDEX

Size

51-2

100

Micro-D Backshells

Sample Part Number

Series

Shell Finish

Connector Size

Hardware Option

Jackscrew

Attachment Option

507-146

– Chem Film (Alodyne)

– Electroless Nickel

#4-40 THDS

ØD

507-146

Round Cable Entry Strain Relief Backshell

with Saddle Bar Clamps

507-146 Strain Relief Backshells

feature

saddle bar clamps for easy installation.

E-Rings

attach the backshell to the

Micro-D connector.

Materials

• Shell: Aluminum Alloy 6061 -T6

• Clips: 17-7PH Stainless Steel

• Hardware: 300 Series Stainless Steel

How To Order Round Cable Strain Relief Backshells

507-146

– Cadmium, Yellow Chromate

– Cadmium, Olive Drab

– Hex Head Jackscrew

– Jackpost, Female

–

"C" Clip

– Gold

09, 15, 21, 25, 31, 37 51, 51-2, 67, 69, 100

(See Table I)

OMIT

– Fillister Head Jackscrew

– Extended Jackscrew

OMIT

(Leave Blank) –

Jackscrews Attach With E-Ring.

This Option Applies to Sizes 09 through 69.

Size 100 is Not Available with E-Ring.

Table I: Dimensions

CODE H

HEX HEAD

JACKSCREW

.28 (7.1)

CODE B

FILLISTER HEAD

JACKSCREW

.50 (12.7)

.26 (6.6)

CODE E

EXTENDED

JACKSCREW

CODE F

FEMALE

JACKPOST

#2-56 THDS SIZE 09-69

# 4-40 THDS SIZE 100

E-RING

C CLIP

ALTERNATE

CONFIGURATION

A Max.

In.

.915

1.065

1.215

1.315

1.465

1.615

1.565

1.965

2.365

2.265

2.305

mm.

23.24

27.05

30.86

33.40

37.21

41.02

39.75

49.81

60.07

57.53

58.55

In.

B Max.

mm.

11.43

12.57

11.43

12.57

13.72

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

ØD

In.

± .010

.160

.190

.220

.260

.275

.285

.350

.285

.350

.530

mm.

± 0.25

4.06

4.83

5.59

6.60

6.99

7.24

8.89

7.24

8.89

13.46

In.

E Max.

mm.

19.81

21.08

23.88

25.15

26.16

27.18

29.21

30.73

In.

F Max.

mm.

13.97

15.24

16.51

17.78

18.80

19.81

21.84

23.62

In.

G Max.

mm.

13.72

14.99

17.78

18.80

20.07

21.08

23.11

24.63

.450

.495

.450

.495

.540

.780

.830

.940

.990

1.030

1.070

1.150

1.210

.550

.600

.650

.700

.740

.780

.860

.930

.540

.590

.700

.740

.790

.830

.910

.970

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

M-24

E-Mail: sales@glenair.com
