Aluminum Cased Connectorized Components
Model 1A0005-XX
Directional Couplers
“In-Line” Style
Applications
• Subassemblies
• Lab Systems
• Leveling Loops
• Power Monitoring
• Test and Calibration
Features
• Military Grade
• 1.5 - 2.0 GHz
• “In-Line” Configuration
• Connectors Per MIL-C-39012
• Rugged Aluminum Housing
1A0005-10
1A0005-20
1A0005-30
Model #
1A0005-10
1A0005-20
1A0005-30
Electrical Specifications
Model#
Frequency
GHz
Coupling
dB Mean
Insert. Loss
dB Max
Input VSWR
Max:1
1.5 - 2.0
1.5 - 2.0
1.5 - 2.0
Freq. Sems.
dB Max
10.0 ± 1.0
20.0 ± 1.5
30.0 ± 2.0
Directivity
dB Min
0.20
0.20
0.20
1.17
1.17
1.17
Max CW Power*
Forward Backward
±0.25
±0.25
±0.20
20
19
16
150
150
150
150
150
150
Notes: Electrical and Mechanical Specifications subject to change without notice.
Impedance: 50 ohms
nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available for military and space applications.
*These power ratings apply when optional termination is supplied by Anaren and coupled port VSWR is 2.0:1 or less.
Higher power can be handled with a lower VSWR termination. In general the Max CW Power is identical to 3 dB cou-
plers when there is no internal termination or one supplied by Anaren. All models have SMA connectors.

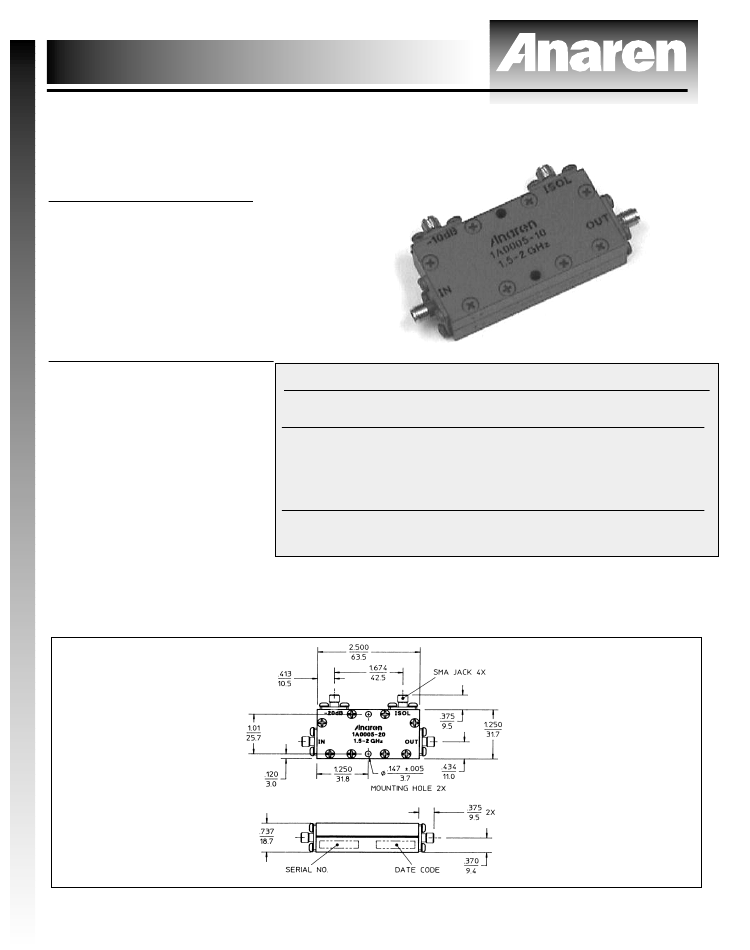

Outline Drawing
