4133VBBFREQ4: DescriptionCrystal Filter, 1 Function(s), 6.75kHz BW(delta f),; CategoryAnalog mixed-signal IC filter; File Size306KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

4133VBBFREQ4 Overview

Crystal Filter, 1 Function(s), 6.75kHz BW(delta f),

4133VBBFREQ4 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Bandwidth (+/- delta f)	6.75 kHz
filter type	CRYSTAL FILTER
high	27.18 mm
Input/output impedance	50 OHM
length	60.71 mm
Installation type	PANEL MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L60.71XB25.91XH27.18 (mm)/L2.39XB1.02XH1.07 (inch)
width	25.91 mm
Base Number Matches	1

Preview

Download Datasheet

View All

2133 & 4133 Series

Front-End Filters: 10.0MHz to 220 MHz

•

Fixed bandwidth (±6.75 kHz) 2-pole

and 4-pole crystal filters

Applications where filtering incoming

radio signals is required to reduce or

eliminate interference

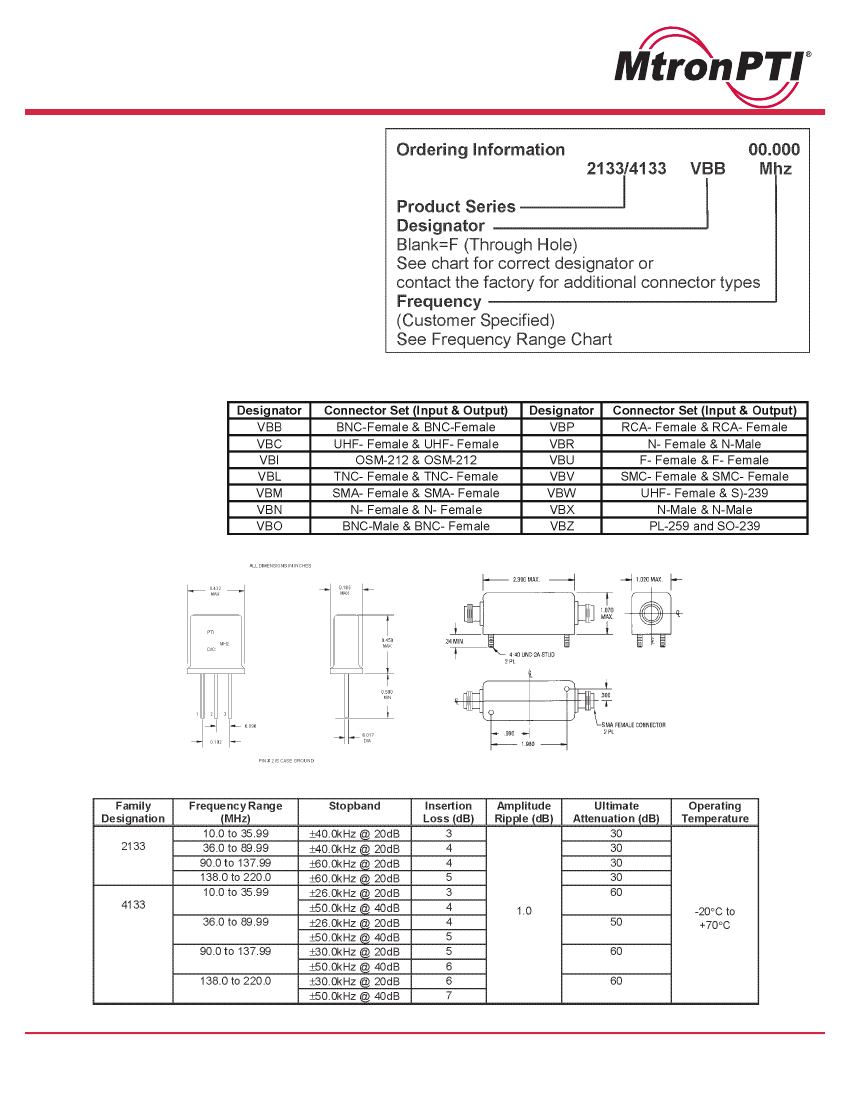

The ordering convention for a connectorized 2133/4133 Series filters with SMA-Female connectors on both the input and

output would be 4133VBM @ 100.00MHz. For other, most popular connector types, reference the table and for others not

listed consult the factory.

2133/4133

2-pole or

4-pole

tandem set

F case

package

2133/4133

50 Ω terminated

connectorized

package

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 8-10-07
