BS170AMO datasheet, PDF - EEWORLD Datasheet

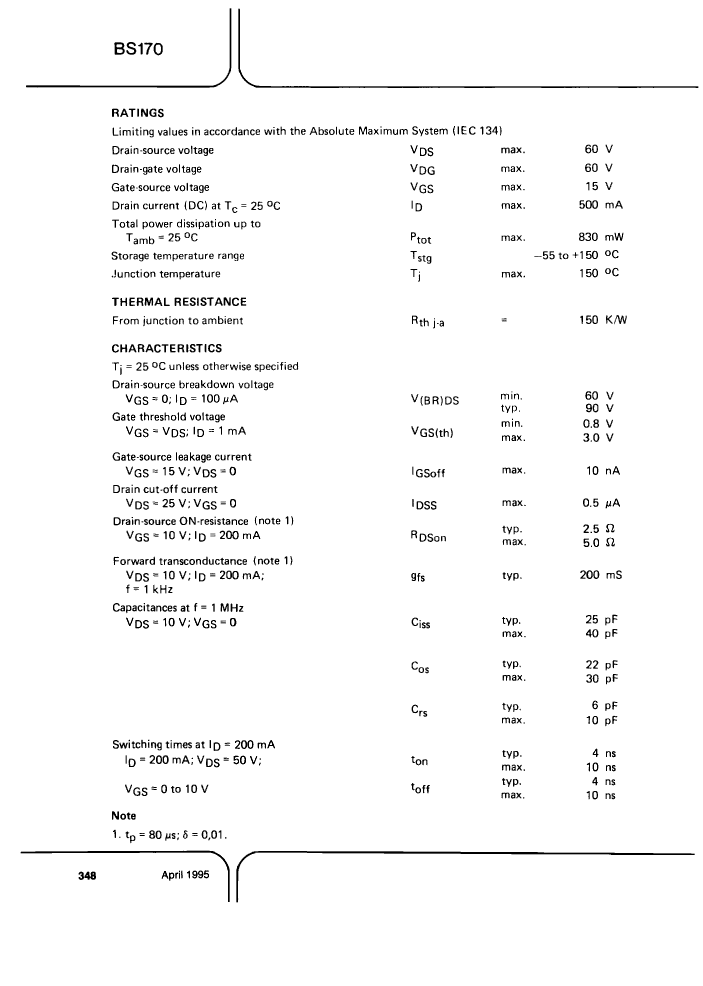

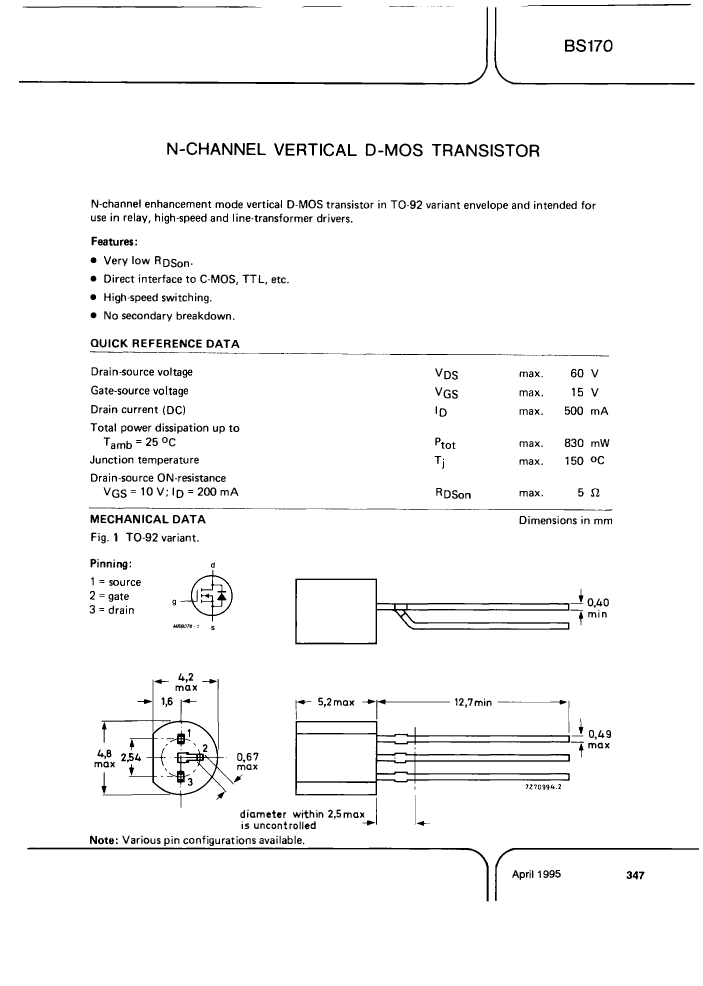

BS170AMO: DescriptionTRANSISTOR 500 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size45KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BS170AMO Overview

TRANSISTOR 500 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal

Parameter Name	Attribute value
Maker	NXP
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (Abs) (ID)	0.5 A
Maximum drain current (ID)	0.5 A
Maximum drain-source on-resistance	5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.83 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	BS170AMO	BS170T/R
Description	TRANSISTOR 500 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal	TRANSISTOR 500 mA, 60 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-92, FET General Purpose Small Signal
Maker	NXP	NXP
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compli	compliant
ECCN code	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V	60 V
Maximum drain current (Abs) (ID)	0.5 A	0.5 A
Maximum drain current (ID)	0.5 A	0.5 A
Maximum drain-source on-resistance	5 Ω	5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF	10 pF
JEDEC-95 code	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	0.83 W	0.83 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
