BYV32-200M-JQR-A datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BYV32-200M-JQR-A

BYV32-200M-JQR-A: DescriptionRectifier Diode, 1 Phase, 2 Element, 20A, 200V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN; CategoryDiscrete semiconductor diode; File Size577KB，2 Pages; ManufacturerSEMELAB

Download Datasheet Parametric View All

BYV32-200M-JQR-A Overview

Rectifier Diode, 1 Phase, 2 Element, 20A, 200V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN

BYV32-200M-JQR-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMELAB
package instruction	TO-220, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AB
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	20 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

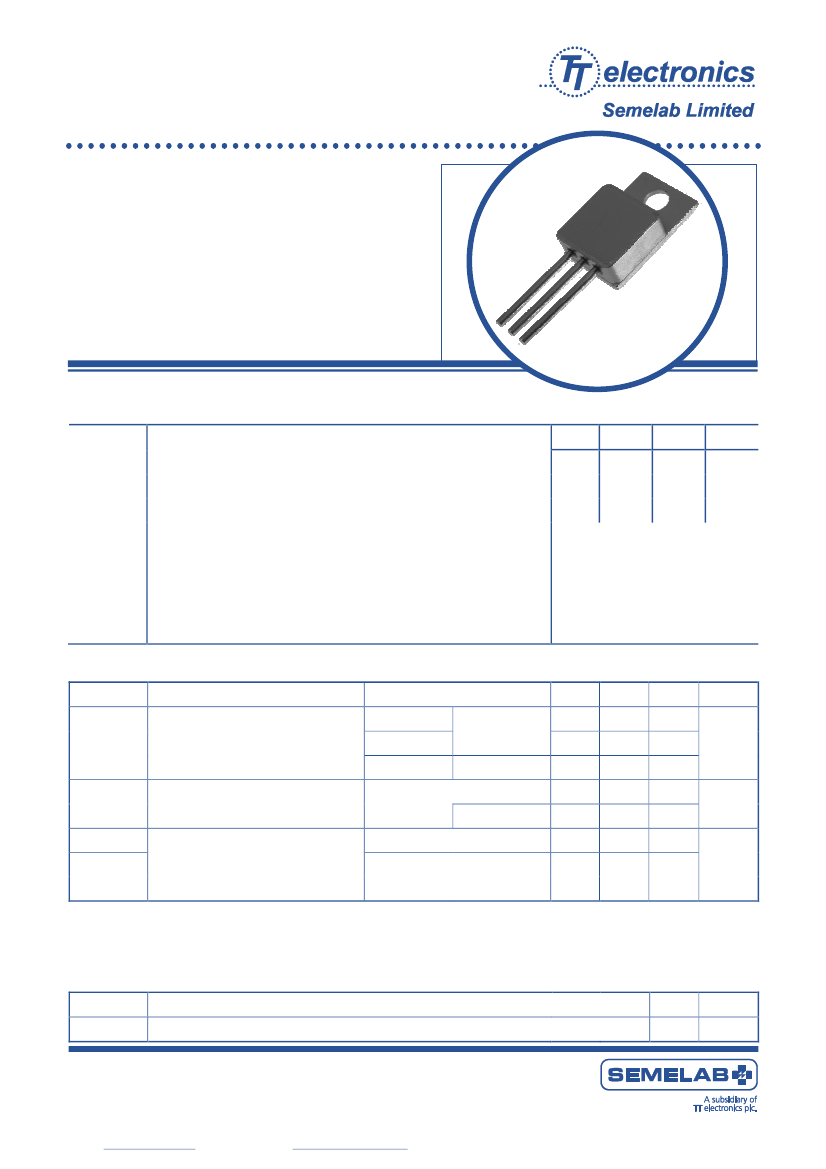

DUAL FAST RECOVERY

RECTIFIER DIODE

BYV32-50M

BYV32-150M

•

BYV32-100M

BYV32-200M

Very Low Reverse Recovery Time – trr <35ns.

Voltage Range 50V To 200V.

Hermetic TO220 (TO-257AB) Isolated Metal Package.

Ideally Suited For Switching Power Supplies, Inverters And As

Free Wheeling Diodes.

Space Level and High-Reliability Screening Options Available

•

ABSOLUTE MAXIMUM RATINGS

(PerDiode, TC= 25°C unless otherwise stated)

50M

100M

150M

200M

VRRM

VRWM

IFRM

IF(AV)

IFSM

TSTG

(1)

Repetitive Peak Reverse Voltage

Working Peak Reverse Voltage

Continuous Reverse Voltage

Repetitive Peak Forward Current

(tp = 10µs)

Average Forward Current

(TC = 70°C)

Surge Peak Forward Current

(tp = 8.3ms half-sine)

StorageTemperature Range

Maximum Operating Junction Temperature

50V

100V 150V 200V

200A

20A

80A

-65 to +200°C

+200°C

ELECTRICAL CHARACTERISTICS

(Per Diode, TC = 25°C unless otherwise stated)

Symbol

(2)

Parameter

Test Conditions

IF = 8A

IF = 20A

IF = 5A

TC = 25°C

TC = 100°C

Min

Typ

Max

1.1

1.5

0.95

Units

Forward Voltage Drop

trr1

trr2

(3)

Reverse Leakage Current

VR = VRWM

TC = 100°C

IF = 1.0A

di/dt = 50A/µs

IR = 1.0A

600

µA

Reverse Recovery Time

IF = 0.5A

IREC = 0.25A

Notes

(1) Switching operation, Duty Cycle = 50%, both diodes conducting.

(2) Pulse Width < 300µs, Duty Cycle < 2%

(3) By design, not a production test

THERMAL PROPERTIES

Symbol

θJC

Parameter

Thermal Resistance Junction to Case (per diode)

Max

4.3

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing an order.

Semelab Limited

Telephone +44 (0) 1455 556565

Email:

sales@semelab-tt.com

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Fax +44 (0) 1455 552612

Website:

http://www.semelab-tt.com

Document Number 7099

Issue 6

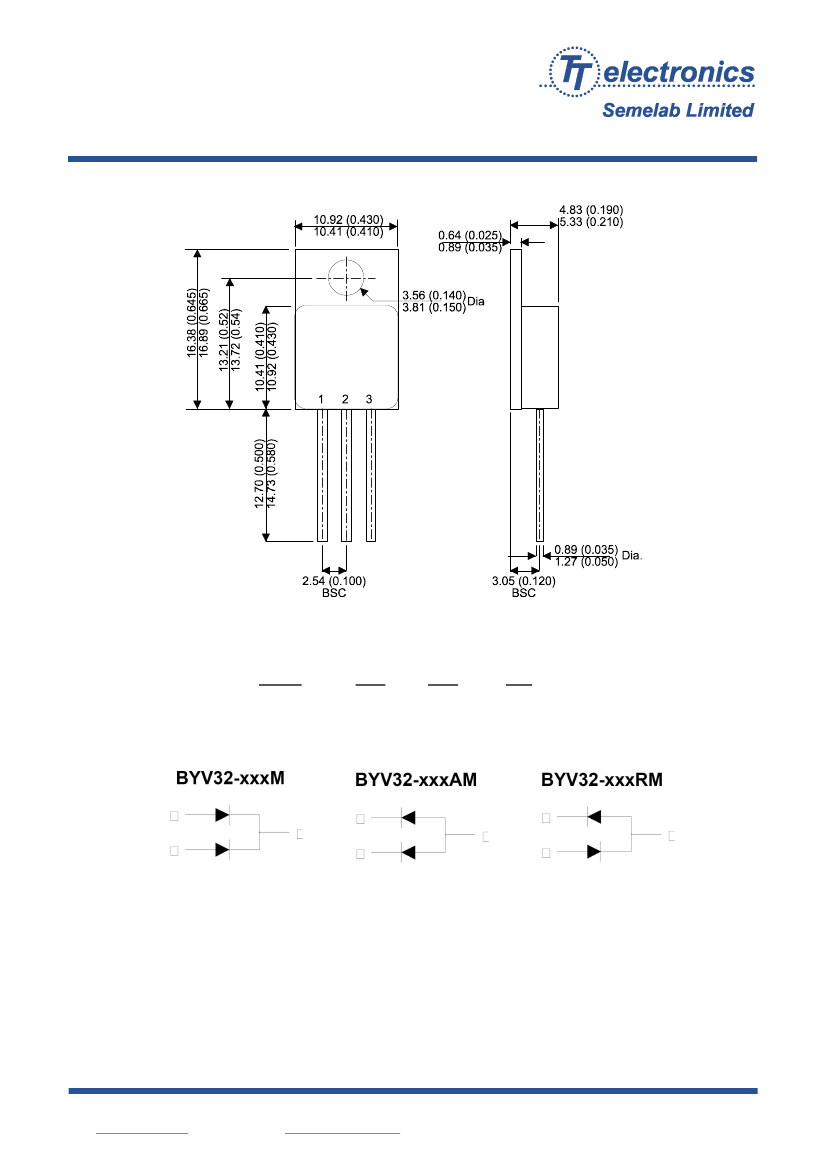

Page 1 of 2
