EH3925TTS-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> EH3925TTS-FREQ

EH3925TTS-FREQ: DescriptionCRYSTAL OSCILLATOR, CLOCK, 2.6MHz - 50MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size108KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EH3925TTS-FREQ Overview

CRYSTAL OSCILLATOR, CLOCK, 2.6MHz - 50MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EH3925TTS-FREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Manufacturer's serial number	EH39
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	2.6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	6 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

EH39

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +1.8V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

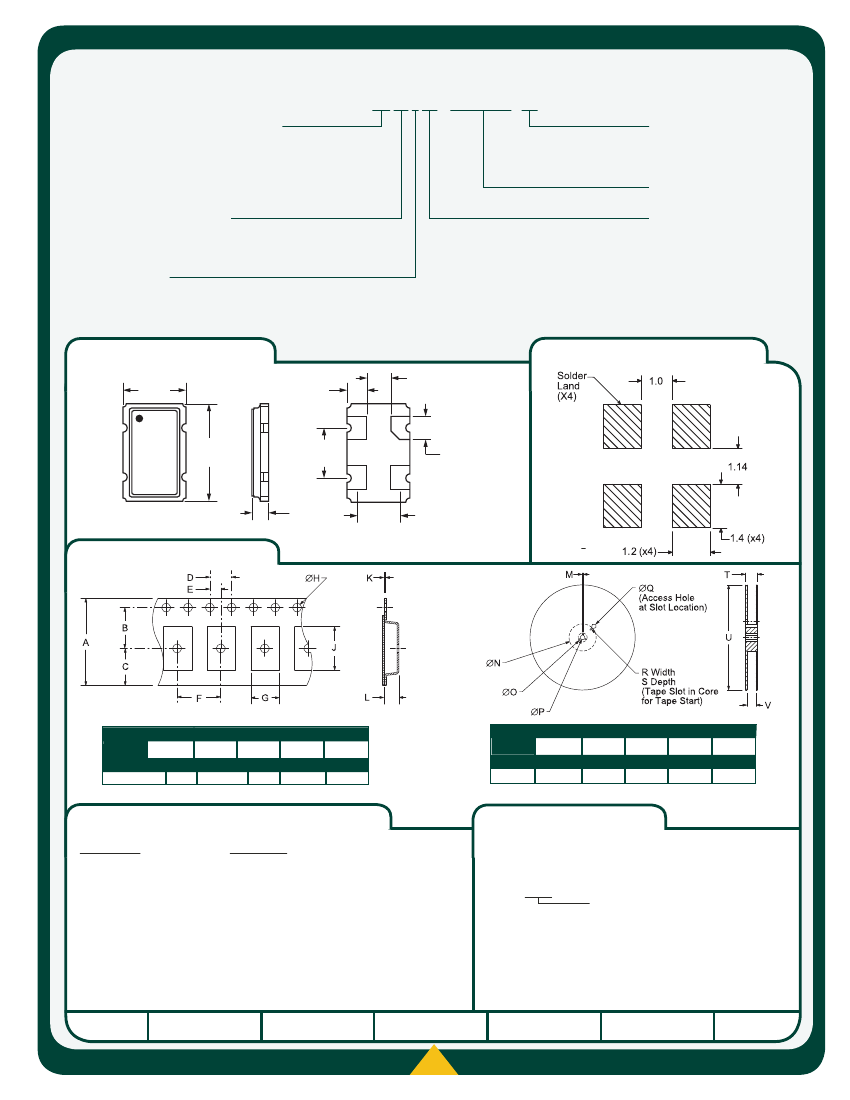

EH39

H 1.3

L 5.0

W 3.2

OSCILLATOR

NOTES

______________________________________________________

______________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current (No Load)

2.500MHz to 25.000MHz

25.001MHz to 75.000MHz

75.001MHz to 110.000MHz

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, 260°C Reflow, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

2.500MHz to 50.000MHz 20% to 80% of Waveform

50.001MHz to 75.000MHz 20% to 80% of Waveform

75.001MHz to 110.000MHz 20% to 80% of Waveform

Load Drive Capability

Duty Cycle

Tri-State Input Voltage

Standby Current

Aging (at 25°C)

Start Up Time

Period Jitter: Absolute
