CNU018S-024-0012

Description
ffc & fpc connectors 24p 0.50mm pitch R/A mnt ffc T/H typehost
CategoryThe connector
File Size83KB,1 Pages
ManufacturerAll Sensors
Download Datasheet Parametric Compare View All

CNU018S-024-0012 Online Shopping

Suppliers Part Number Price MOQ In stock
CNU018S-024-0012 - - View Buy Now

CNU018S-024-0012 Overview

ffc & fpc connectors 24p 0.50mm pitch R/A mnt ffc T/H typehost

CNU018S-024-0012 Parametric

Parameter NameAttribute value
ManufactureYamaichi Electronics
Product CategoryFFC & FPC Connectors
Pitch0.5 mm
Number of Positions24
Mounting AngleRigh
Termination StyleThrough Hole
Housing MaterialLiquid Crystal Polymer (LCP)
Contact MaterialCopper Alloy
Contact PlatingGold
Voltage Rating50 V
Current Rating0.3 A
Temperature Range- 20 C to + 85 C

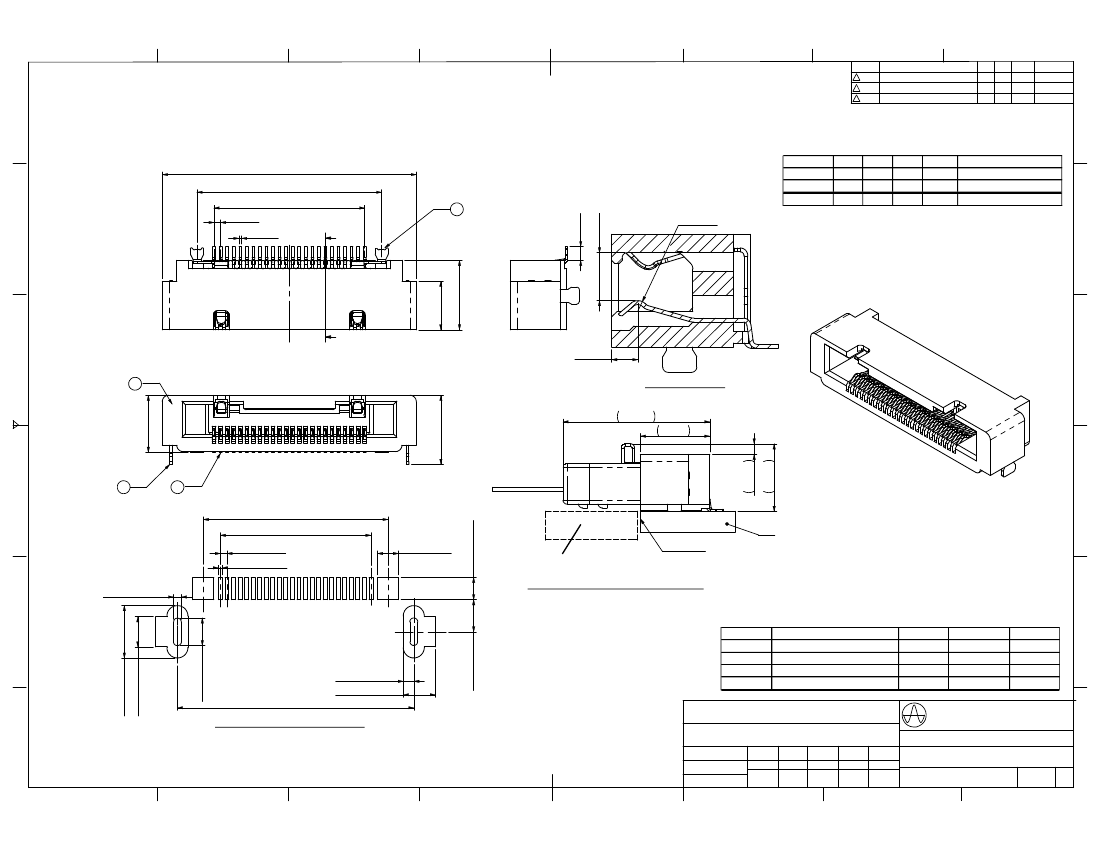

1
2
3
4
5
6
7
REVISION DESCRIPTION
1
2
APP.
8
DRW.
DATE
CHANGE No.
A
3
x
x
x
A
L1
L2
Lp
4
B
50
24.5
32
15.5
24
11.5
Pin count Lp
32.4
23.4
19.4
L1
27.1
18.1
14.1
L2
31.05
22.05
18.05
L3
CNU018S-050-0012
CNU018S-032-0012
CNU018S-024-0012
P/N
B
0.50
0.20
A
1.05
1.83
R0.40
A
C
3.70
5.30
1.00
SEC.A-A(S=10/1)
4.35
C
1
5.27
11.20
5.30
0.80
D
5.15
3
2
L2
Lp
0.50
0.30
±0.03
±0.03
±0.03
±0.05
±0.03
D
PCB
PCB edge
No compornent area recommended
CNU018P-xxx-0001 mating condition
Note.
1.Coplanarity between terminal and reinforcement bracket
terminal should be 0.10mm max.
2.Performance shall be refered to YEU-F2013.
3.Applicable plgu
CNU018P-xxx-0001
E
E
0.60
E
±0.03
1.70
1.60
±0.05
2.10
4.00
2.30
0.80
2.45
L3
±0.03
±0.05
±0.05
4
3
2
1
Item No.
Reinforcement bracket-2
Reinforcement bracket-1
Contact
Insulator
Description
2
2
n
1
QNT.
SUS
SUS
Copper alloy
LCP
Material
Ni/Au
Ni/Au
Ni/Au
Black
Content
±0.05
±0.05
±0.03
2.45
±0.03
Tolerance ±0.25 Unless otherwise specified.
Recommended PCB layout(REF.)
CLASS
F
SCALE
YAMAICHI ELECTRONICS
USA INC.
F
F
5/1
DIMENTION
mm
3rd
APP.
APP.
K.
Abe
CHK.
K.
Abe
DRW. DSGN.
TITLE
CNU018S-xxx-0012
O.
O.
Shimizu Shimizu
7
13/05/09 13/05/09 13/05/09 13/05/09
DRW No.
Sheet No.
REV.
ANGLE PROJ
YEU-A2199
8
/
A
A3-001
1
2
3
4
5
6

CNU018S-024-0012 Related Products

CNU018S-024-0012 CNU018S-050-0012 CNU018S-032-0012
Description ffc & fpc connectors 24p 0.50mm pitch R/A mnt ffc T/H typehost ffc & fpc connectors 50p 0.50mm pitch R/A mnt ffc T/H typehost ffc & fpc connectors 32p 0.50mm pitch R/A mnt ffc T/H typehost
Manufacture Yamaichi Electronics Yamaichi Electronics Yamaichi Electronics
Product Category FFC & FPC Connectors FFC & FPC Connectors FFC & FPC Connectors
Pitch 0.5 mm 0.5 mm 0.5 mm
Number of Positions 24 50 32
Mounting Angle Righ Righ Righ
Termination Style Through Hole Through Hole Through Hole
Housing Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy Copper Alloy Copper Alloy
Contact Plating Gold Gold Gold
Voltage Rating 50 V 50 V 50 V
Current Rating 0.3 A 0.3 A 0.3 A
Temperature Range - 20 C to + 85 C - 20 C to + 85 C - 20 C to + 85 C
