52103-2319: Descriptionffc & fpc connectors 1.0 fpc zif smt hsg F smt hsg assy 23ckt; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52103-2319 Overview

ffc & fpc connectors 1.0 fpc zif smt hsg F smt hsg assy 23ckt

52103-2319 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.106 inch
subject depth	0.169 inch
body length	1.154 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

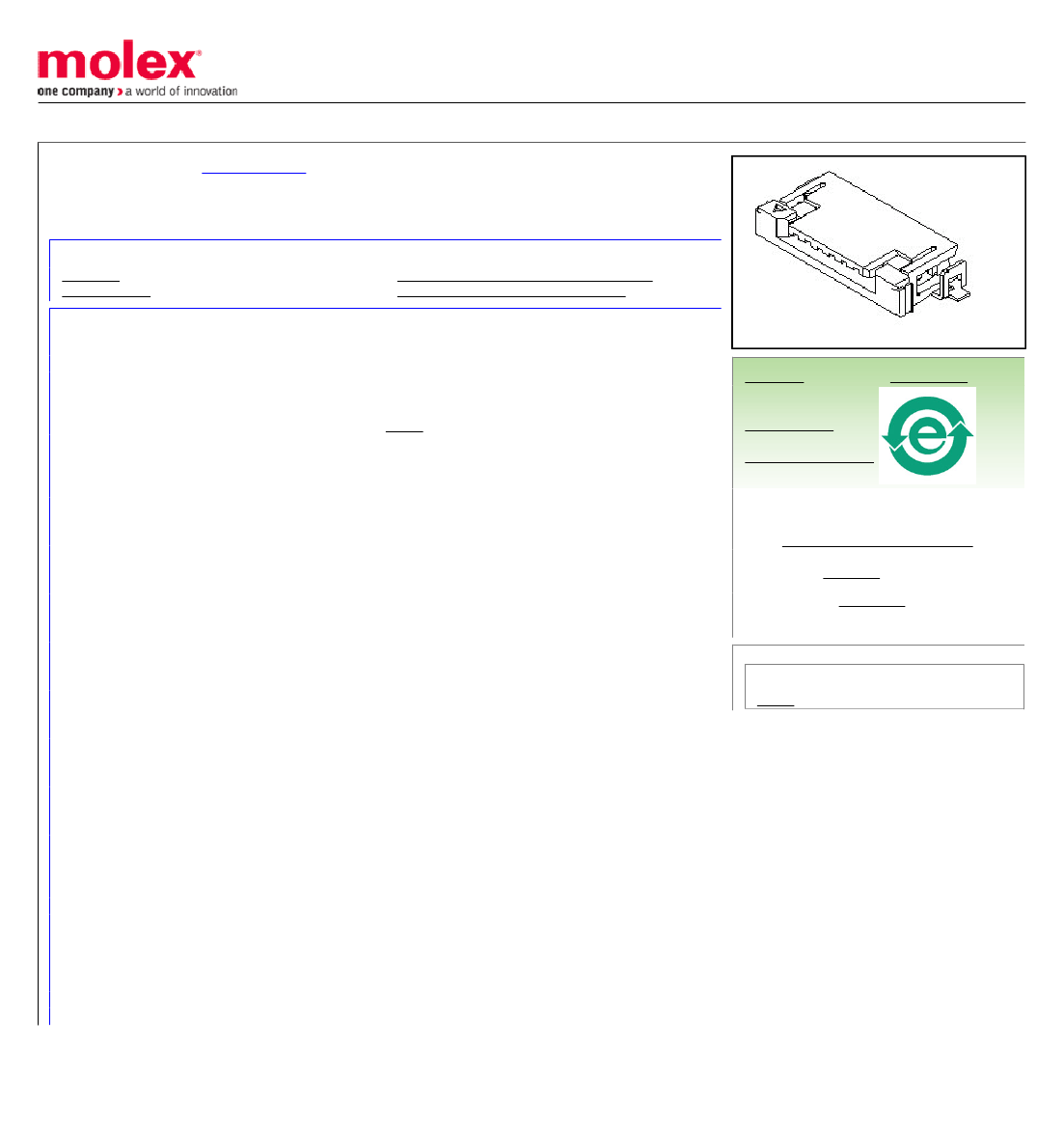

Preview

Download Datasheet

View All

This document was generated on 06/30/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0521032319

Active

1.00mm (.039") Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact Style

Receptacle, Tray Packaging, 23 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52103-004 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Product Name

FFC/FPC Connectors

52103

N/A

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Top

90° Angle

94V-0

2.70mm (.106")

Phosphor Bronze

Tin-Bismuth

Right Angle

2.00mm (.079")

Yes

Tray

1.00mm (.039")

1.016µm (40µ")

N/A

-20°C to +85°C

Surface Mount

FFC/FPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52103Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-52103-004

SD-52103-002

This document was generated on 06/30/2011
