132-01L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 132-01L

132-01L: DescriptionGeneral Purpose Inductor, 0.014uH, 5%, 1 Element, 3823, ROHS COMPLIANT; CategoryPassive components inductor; File Size81KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

132-01L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	132-01L	-	-	View	Buy Now

132-01L Overview

General Purpose Inductor, 0.014uH, 5%, 1 Element, 3823, ROHS COMPLIANT

132-01L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3823
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	3823
structure	Precision
DC Resistance	0.0021 Ω
Nominal inductance(L)	0.014 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead length	4.75 mm
lead spacing	7.37 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	6.6 mm
Package length	9.65 mm
Package form	Radial
Package width	5.84 mm
Minimum quality factor (at nominal inductance)	60
Maximum rated current	4 A
self resonant frequency	2500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 50 MHZ
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Tolerance	5%
Base Number Matches	1

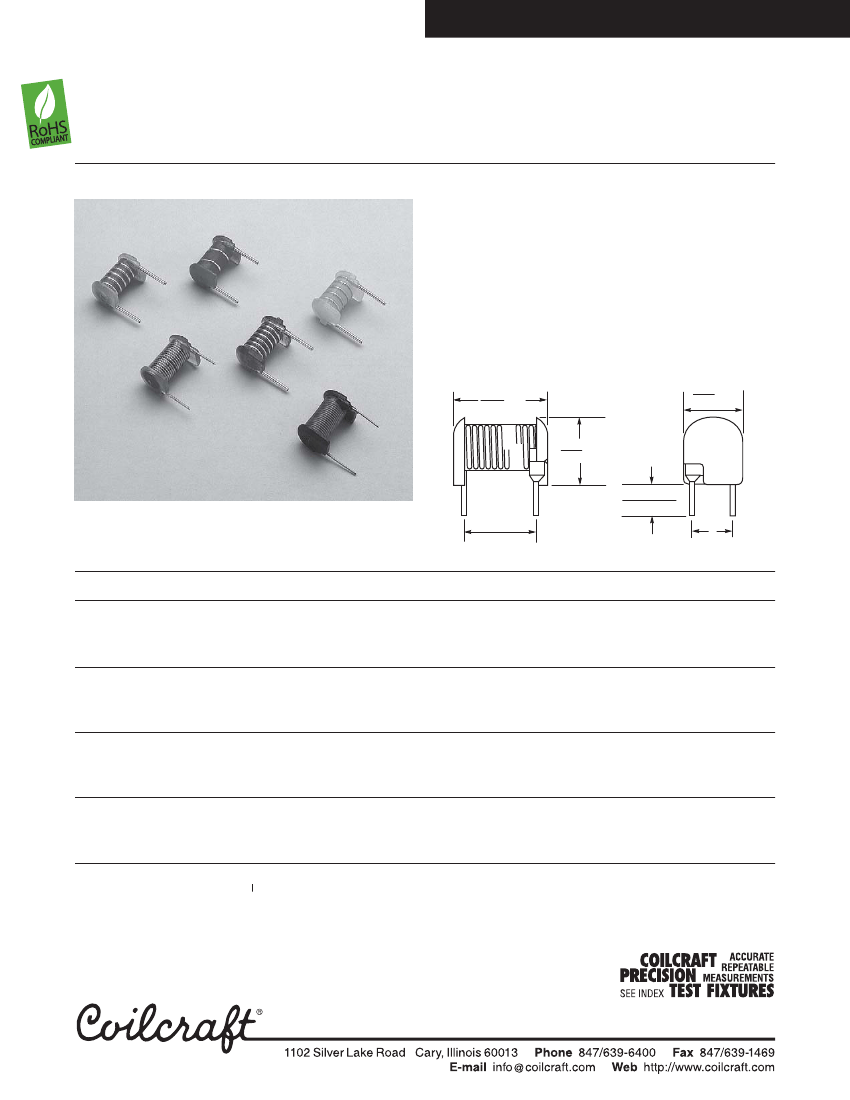

132-01L Preview

Document 114

Fixed RF Inductors – 132 Series

These fixed RF coils are part of Coilcraft’s series of insert

molded inductors. This precision construction technique

ensures constant winding pitch, long-term stability and

tight tolerance (±5%) on inductance.

These high Q fixed inductors are available in standard

values from 14.0 nH to 709 nH.

Coilcraft

Designer’s Kit M304

contains three samples

each of 20 standard values plus 13 values from the

148 Series. To order, please contact Coilcraft or visit

http://order.coilcraft.com.

0.380

max

9,65

0.230

max

5,84

0.260

max

6,60

0.187 ±0.030

4,75 ±0,76

0.290 ±0.005

7,37 ±0,13

Weight:

245 – 510 mg

See table for lead

diameter and spacing

Part

number

132-01L

132-02L

132-03L

132-04L

132-05L

132-06L

132-07L

132-08L

132-09L

132-10L

132-11L

132-12L

132-13L

132-14L

132-15L

132-16L

132-17L

132-18L

132-19L

132-20L

±5% (nH)

14.0

21.0

28.0

37.5

49.0

61.5

120

140

180

220

246

276

333

397

460

505

571

709

min

SRF min

(MHz)

2500

2000

1700

1550

1240

1160

900

800

700

615

525

480

440

410

390

365

340

325

310

275

DCR max

(mOhms)

2.1

3.0

3.8

4.7

5.7

6.6

7.4

8.0

9.0

10.0

13.7

19.0

20.3

22.5

30.6

40.3

43.1

57.3

61.2

82.7

Irms

(A)

4.0

3.5

3.0

2.5

2.0

1.5

Color

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

Black

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

Black

Lead gauge

Turns

(AWG)

Dim A

(in/mm)

0.148/3,76

0.153/3,89

0.154/3,91

0.156/3,96

0.160/4,06

±5% (nH)

31.5

36.5

44.0

53.5

64.0

79.0

99.0

117

138

158

197

235

260

290

345

410

475

550

600

720

60@ 50 MHz

64@ 50 MHz

68@ 50 MHz

72@ 50 MHz

75@ 50 MHz

80@ 50 MHz

66@ 25 MHz

68@ 25 MHz

66@ 25 MHz

72@ 25 MHz

70@ 25 MHz

72@ 25 MHz

66@ 25 MHz

68@ 25 MHz

66@ 25 MHz

1. When ordering, please specify

termination

code:

132-20L

Termination: L

= RoHS compliant tin-silver over copper.

Special order: T

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

2. Inductance and Q measured with leads connected directly to the Agilent/

HP 4287A.

3. SRF measured using the Agilent/HP 8753D.

4. DCR measured using the Cambridge Technology Model 510 Micro

Ohmmeter.

5. Average current for a 20°C temperature rise from 25°C ambient.

6. Tolerance ±0.005″/0,13 mm.

7. The inductance values in column two are more accurate measurements

taken on a contemporary meter. The old values in this column are for

reference by existing users of these parts and were measured with leads

connected directly to a Boonton 260-A.

8. Operating temperature range -40°C to 85°C.

9. Electrical specifications at 25°C.

Specifications subject to change without notice.

Please check our website for latest information.

Document 114

Revised 03/23/06

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
