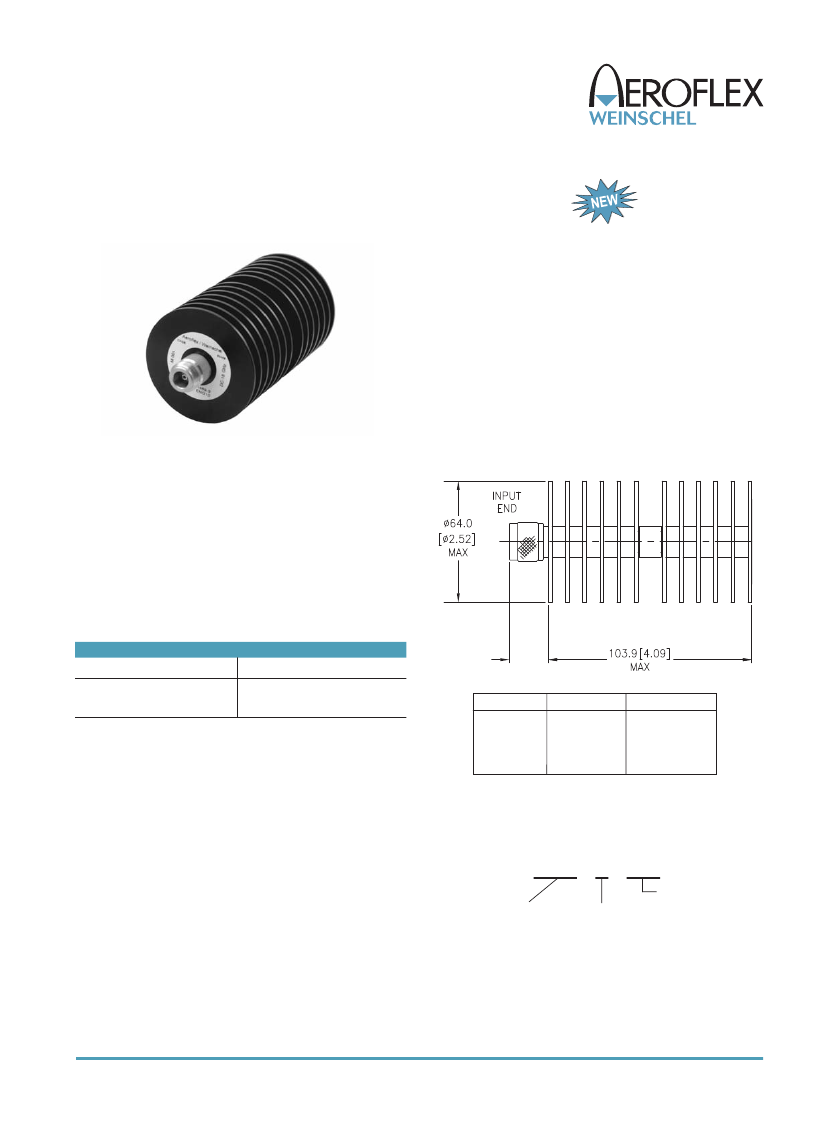

Terminations & Loads
Model 1469
High Power, N & 3.5mm Connectors
Convection Cooled
dc to 18.0 GHz
100 Watts
RoHS
CONNECTOR:
Type N connector per MIL-STD-348 inter-
face dimensions - mate nondestructively with MIL-C-39012
connector. Choice of male (-4) or female connector (-3).
3.5mm connector mates nondestructively with SMA per
MIL-C-39012, 2.92mm (SMK) and other 3.5mm connector.
Choice of male (-2) or female connector (-1).
CONSTRUCTION:
Black, finned aluminum body, stainless
steel connector; gold plated beryllium copper contacts.
WEIGHT:
320 g (11.3 oz)
Features
o
o
o
o
Designed to meet environmental requirements
of MIL-D-39030.
Rugged injection molded connector.
Low Intermodulation Option
1 Kilowatt Peak Power
PHYSICAL DIMENSIONS:
Specifications
NOMINAL IMPEDANCE:
50
Ω
FREQUENCY RANGE:
MAXIMUM SWR:
Frequency (GHz)
dc - 18.0
SWR (maximum)
1.15
dc to 18.0 GHz
“DIM A”
Model #
1469-1
1469-2
1469-3
1469-4
DIM A
12.7
14.0
15.0
22.9
(0.50)
(0.55)
(0.59)
(0.90)
Connector Type
3.5mm female
3.5mm male
N female
N male
POWER RATING (mounted horizontally):
100 watts
average
to 25°C ambient temperature, derated linearly to
10 Watts @ 125°C. 1 kW
peak
(5
μsec
pulse width; 5%
duty cycle).
INTERMODULATION (Model 1469-X-LIM Only):
IM3
(Reflected) = -100 dBc with two input signals @ 869 MHz
and 891 MHz with an average power of +43 dBm each.
TEMPERATURE RANGE:
-55 °C to 125 °C
TEST DATA:
Swept data plots of SWR from 50 MHz to
18 GHz is available at additional cost.
NOTE: All dimensions are given in mm (inches) and are
maximum, unless otherwise specified.
MODEL NUMBER DESCRIPTION:
Example:
1469 - X
-
LIM
IM Option*
Basic
Model
Number
Connector
Option
* Add -LIM to entire model number for Low Intermodulation option.
117
5305 Spectrum Drive, Frederick, MD 21703-7362
s
TEL: 301-846-9222, 800-638-2048
s
Fax: 301-846-9116
web: www.aeroflex.com/weinschel
s
email: weinschel-sales@aeroflex.com
Revision Date: 5/23/2013
