ROHS COMPLIANT

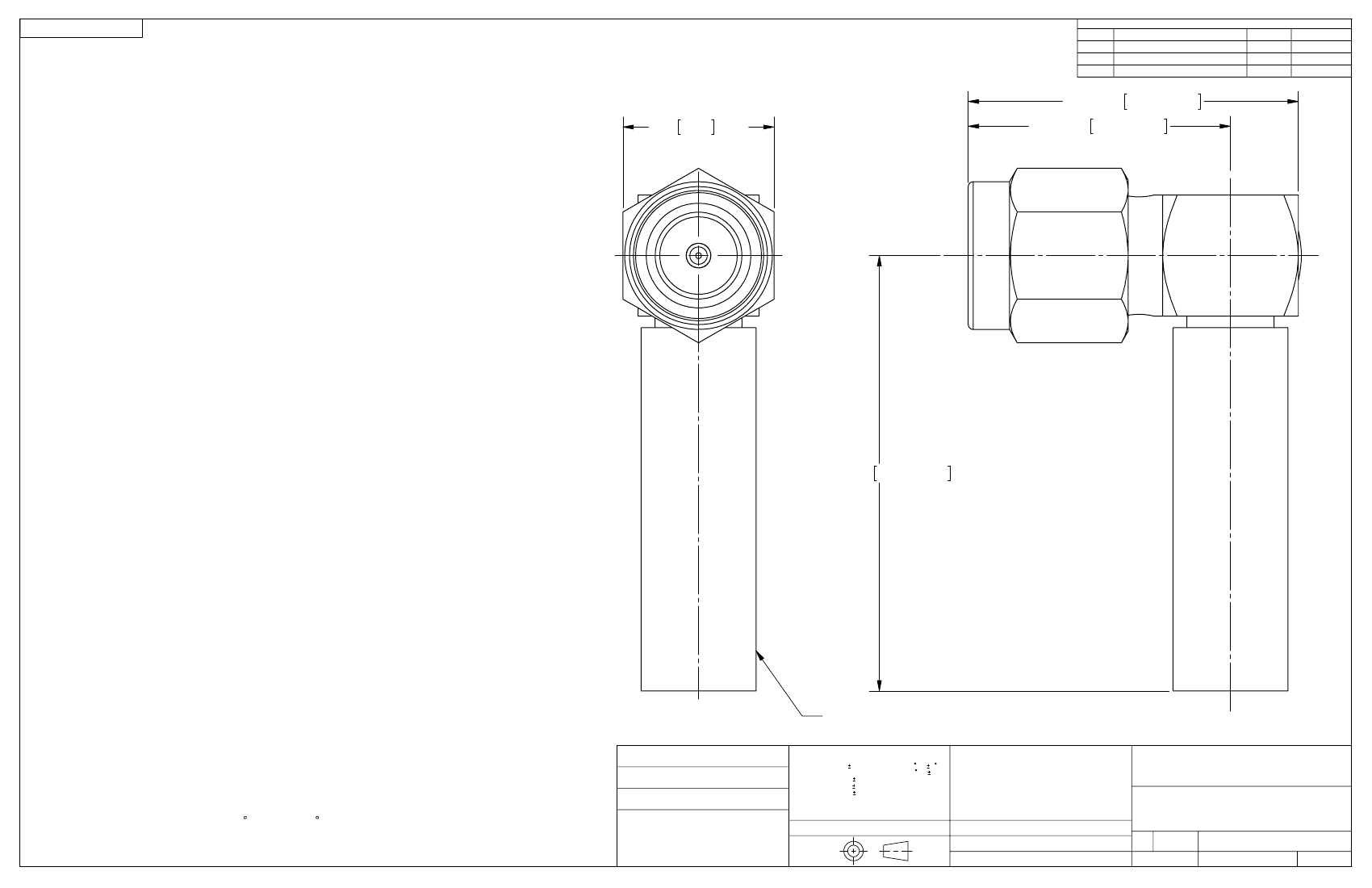

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38106
03/11
PJS
.738 MAX 18.75 MAX
.312 7.92 HEX
.575 MAX 14.61 MAX
MATERIAL:
BODY,
PRESS CAP &
COUPLING NUT:
LOCK RING &
CONTACT:
CRIMP RING:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
COPPER PER ASTM B103
ALLOY UNS C18700. H04.
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER
A-A-59588,
CLASS 2B, GRADE 50/60
SCL POLYOLEFIN PER MIL-I-23053/4, CLASS I
INSULATOR:
GASKET:
SHRINK TUBING:
1.375 MAX 34.93 MAX
FINISH:
BODY, PRESS CAP &
COUPLING NUT:
CONTACT:
PASSIVATED PER AMS-2700
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
NICKEL PER QQ-N-290,CLASS 2, .00005" MIN.
SHRINK TUBING
CRIMP RING:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
INSERTION LOSS:
DWV:
OPERATING TEMP.:
50 OHMS
DC TO 12.4 GHz
1.15 + .02 F (F IN GHz)
.15 X SQRT(F(F IN GHz))
1000 VRMS
-65 C TO +165 C
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
PJS 03/28/11
PJS 03/28/11
PJS 03/28/11
SMA PLUG R/A CRIMP FOR
RG-58 & 303 CABLE
SIZE CAGE CODE DWG. NO.
M39012/56-3129
B
95077
SCALE: 6:1
SHEET 1 OF 1
TITLE:
