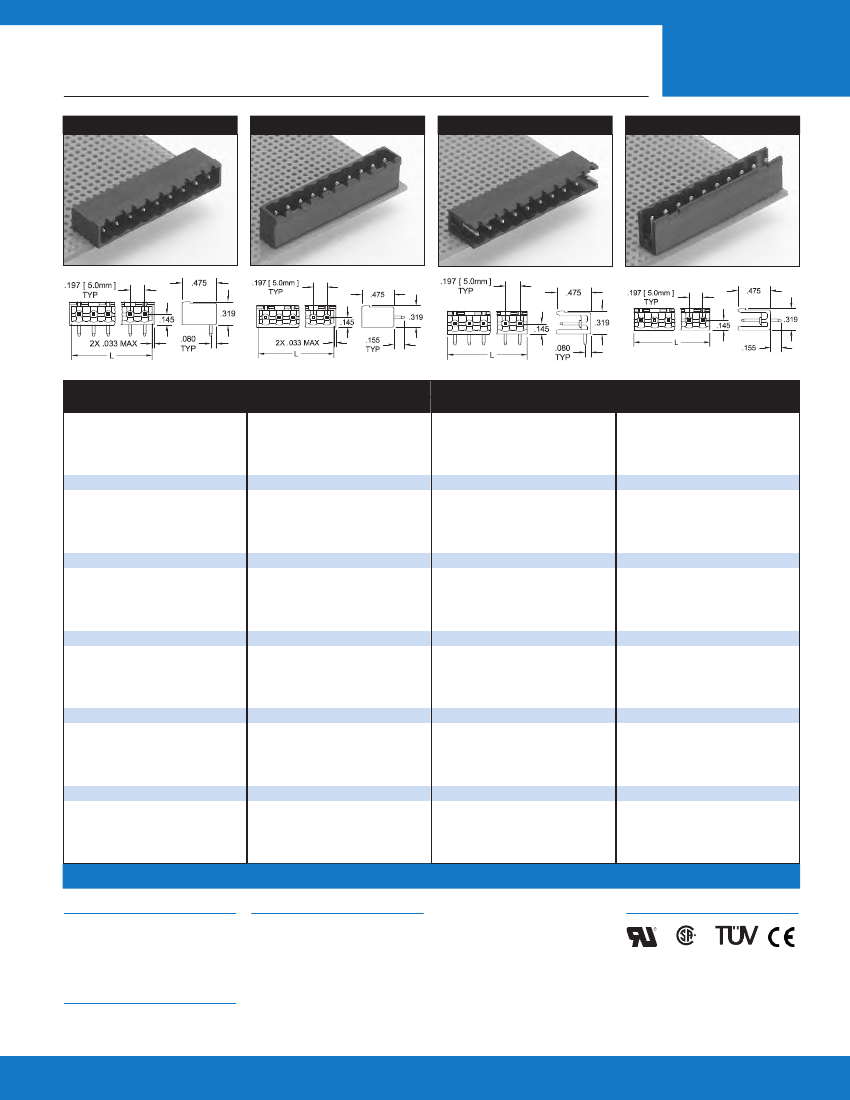

5.0mm
(.197")

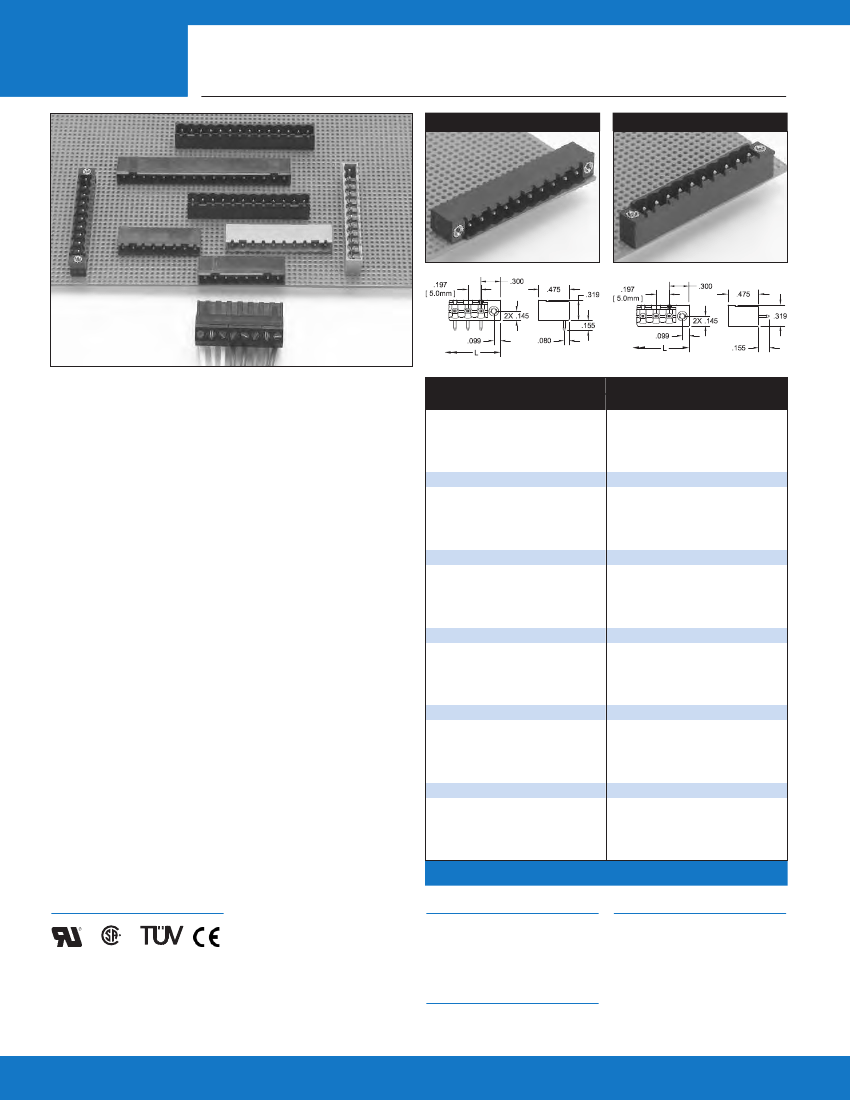

ELFH HEADERS with Locking Ears
ELFH Horizontal—Eared
ELFH Vertical—Eared
ELFH SERIES HEADERS
ELFH Series headers mate
with ELF Series plugs and
accommodate competitive
plugs as well. The headers
are precision-molded from
tough, stable PBT, providing
additional strength and
greater reliability under
extreme conditions.
SMT Compatibility
ELF headers are available
in ultra-high-temperature,
glass-filled polyamide,
capable of withstanding
temperatures of 260°C for
three minutes while under-
going SMT reflow solder-
ing. This eliminates the
need for a separate header
wave soldering operation if
SMT is being employed in
the board manufacturing
process. See page 26 for
instructions on how to
order. Note: Available in
black only.
Accessories:
Polarizing keys
and marking labels. See
page 29.
APPROVALS:
Locking and Mounting Ears
Integrally molded locking
ears are available with all
ELFH headers. A threaded
insert in the header ear is
engaged by a plug mount-
ing screw, which is tight-
ened after plug and header
are mated, securing the
connection. Note: locking
ears add a contact position
per side to header length.
An “E” is added to the cata-
log number to specify locking
ears.
Locking ears can also be
used as mounting ears to
secure the header to printed
circuit boards or chassis,
and are available as well
with blank through-holes in
the “vertical” orientation for
custom mounting.
Gold Plating:
Indicate “1” as
the last digit of catalog no.
for black parts; “1G” in the
last position for green parts.
Consult PCD for assistance
with locking-ear headers.
Marking:
See page 25.
Pos
Catalog #
Black
Catalog #
Green
L
(mm) Pos
Catalog #
Black
Catalog #
Green
L
(mm)
2
3
4
5
6
7
8
9
ELFH02110E
ELFH03110E
ELFH04110E
ELFH05110E
ELFH06110E
ELFH07110E
ELFH08110E
ELFH09110E
ELFH0211GE
ELFH0311GE
ELFH0411GE
ELFH0511GE
ELFH0611GE
ELFH0711GE
ELFH0811GE
ELFH0911GE
ELFH1011GE
ELFH1111GE
ELFH1211GE
ELFH1311GE
ELFH1411GE
ELFH1511GE
ELFH1611GE
ELFH1711GE
20
25
30
35
40
45
50
55
2
3
4
5
6
7
8
9
ELFH02150E ELFH0215GE
ELFH03150E ELFH0315GE
ELFH04150E ELFH0415GE
ELFH05150E ELFH0515GE
ELFH06150E ELFH0615GE
ELFH07150E ELFH0715GE
ELFH08150E ELFH0815GE
ELFH09150E ELFH0915GE
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
10 ELFH10110E
11 ELFH11110E
12 ELFH12110E
13 ELFH13110E
14 ELFH14110E
15 ELFH15110E
16 ELFH16110E
17 ELFH17110E
18 ELFH18110E
19 ELFH19110E
20 ELFH20110E
21 ELFH21110E
22 ELFH22110E
60 10 ELFH10150E ELFH1015GE
65 11 ELFH11150E ELFH1115GE
70 12 ELFH12150E ELFH1215GE
75 13 ELFH13150E ELFH1315GE
80 14 ELFH14150E ELFH1415GE
85 15 ELFH15150E ELFH1515GE
90 16 ELFH16150E ELFH1615GE
95 17 ELFH17150E ELFH1715GE
ELFH1811GE 100 18 ELFH18150E ELFH1815GE 100
ELFH1911GE 105 19 ELFH19150E ELFH1915GE 105
ELFH2011GE 110 20 ELFH20150E ELFH2015GE 110
ELFH2111GE 115 21 ELFH21150E ELFH2115GE 115
ELFH2211GE 120 22 ELFH22150E ELFH2215GE 120
See page 25 for hi-temp, gold plating and marking options
SPECIFICA TIONS:
MATERIALS:
Consult factory for specific product recognitions
Current Rating:
15A
Operating Voltage:
300V
Insulation Resistance:
>105 Megohms
Dielectric Withstanding:
<3000V
HEADER INST ALLATION:
Housing:
PBT, UL 94V-0 (Standard)
PA 46, UL 94V-0 (High temp)
Black or green optional
Contact:
Copper alloy, optional finish
Ear Insert, M2.5:
Brass, nickel finish
Amphenol Pcd
32
Hole Diameter:
.055" min.
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
5.0mm
(.197")

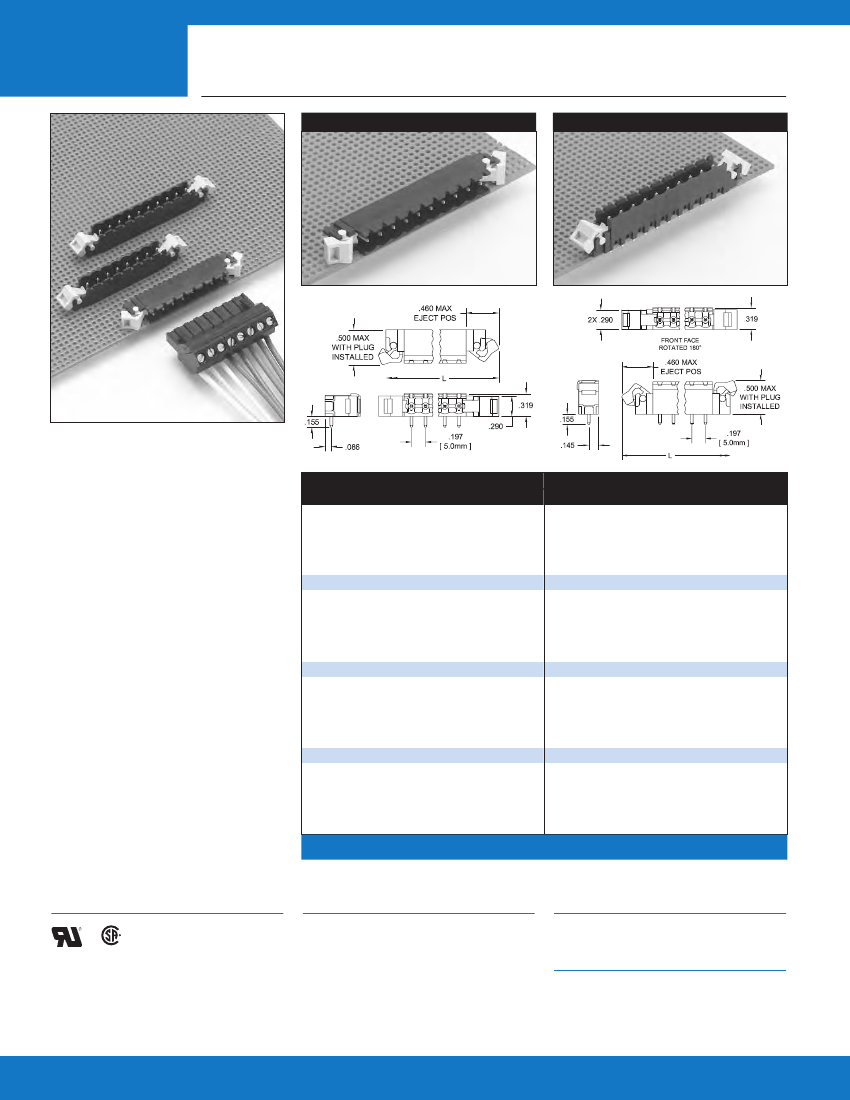

ELFH Horizontal—Ejector Ears
ELFH HEADERS
with Ejector Ears
ELFH Vertical—Ejector Ears
EJECTOR EAR HEADERS
The ELFH Series ejector ear header
allows for plug disconnect with a min -
imal amount of effor t by way of
screwdriver or finger actuation of the
levered ears.
The universal design accepts ELF
Series plugs. It is cur rently available
in 8 through 22 positions, in both
.200" and 5.0mm spacing. Ejector
ear headers can also be provided
with the ELFH Series gold plating
option.
The following options comprise the
standard color combinations for ejec-
tor ear headers:
•
•
Black header, gray ears
Green header, black ears
Pos
Catalog #
Black
Catalog #
Green
L
(mm)
Pos
Catalog #
Black
Catalog #
Green
L
(mm)
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ELFH08110J
ELFH09110J
ELFH10110J
ELFH11110J
ELFH12110J
ELFH13110J
ELFH14110J
ELFH15110J
ELFH16110J
ELFH17110J
ELFH18110J
ELFH19110J
ELFH20110J
ELFH21110J
ELFH22110J
ELFH0811GJ
ELFH0911GJ
ELFH1011GJ
ELFH1111GJ
ELFH1211GJ
ELFH1311GJ
ELFH1411GJ
ELFH1511GJ
63.52
68.52
73.52
78.52
83.52
88.52
93.52
98.52
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ELFH08150J
ELFH09150J
ELFH10150J
ELFH11150J
ELFH12150J
ELFH13150J
ELFH14150J
ELFH15150J
ELFH16150J
ELFH17150J
ELFH18150J
ELFH19150J
ELFH20150J
ELFH21150J
ELFH22150J
ELFH0815GJ
ELFH0915GJ
ELFH1015GJ
ELFH1115GJ
ELFH1215GJ
ELFH1315GJ
ELFH1415GJ
ELFH1515GJ
63.52
68.52
73.52
78.52
83.52
88.52
93.52
98.52
ELFH1611GJ 103.52
ELFH1711GJ 108.52
ELFH1811GJ 113.52
ELFH1911GJ 118.52
ELFH2011GJ 123.52
ELFH2111GJ 128.52
ELFH2211GJ 133.52
ELFH1615GJ 103.52
ELFH1715GJ 108.52
ELFH1815GJ 113.52
ELFH1915GJ 118.52
ELFH2015GJ 123.52
ELFH2115GJ 128.52
ELFH2215GJ 133.52
See page 25 for hi-temp, gold plating and marking options
APPROVALS:
SPECIFICA TIONS:
MATERIALS:
Consult factory for specific product recognitions
Current Rating:
15A
Operating Voltage:
300V
Insulation Resistance:
>105 Megohms
Dielectric Withstanding:
<3000V
Housing:
PBT, UL 94V-0, Black or green
Contact:
Copper alloy, optional finish
HEADER INST ALLATION:
Hole Diameter:
.055" min.
Amphenol Pcd
34
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
.200"
(5.08mm)
ELFH Horizontal—Ejector Ears
ELFH HEADERS
with Ejector Ears
ELFH Vertical—Ejector Ears
EJECTOR EAR HEADERS
The ELFH Series ejector ear header
allows for plug disconnect with a min -
imal amount of effor t by way of
screwdriver or finger actuation of the
levered ears.
The universal design accepts ELF
Series plugs or FXP Series Flexiplug
™
connectors, as well as SCF spring
clamp plugs. It is cur rently available
in 8 through 22 positions, in both
.200" and 5.0mm spacing. Ejector
ear headers can also be provided
with the ELFH Series gold plating
option.
The following options comprise the
standard color combinations for ejec-
tor ear headers:
•
•
Black header, gray ears
Green header, black ears
Pos
Catalog #
Black
Catalog #
Green
L
(In.)
Pos
Catalog #
Black
Catalog #
Green
L
(In.)
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ELFH08210J
ELFH09210J
ELFH10210J
ELFH11210J
ELFH12210J
ELFH13210J
ELFH14210J
ELFH15210J
ELFH16210J
ELFH17210J
ELFH18210J
ELFH19210J
ELFH20210J
ELFH21210J
ELFH22210J
ELFH0821GJ
ELFH0921GJ
ELFH1021GJ
ELFH1121GJ
ELFH1221GJ
ELFH1321GJ
ELFH1421GJ
ELFH1521GJ
ELFH1621GJ
ELFH1721GJ
ELFH1821GJ
ELFH1921GJ
ELFH2021GJ
ELFH2121GJ
ELFH2221GJ
2.526
2.726
2.926
3.126
3.326
3.526
3.726
3.926
4.126
4.326
4.526
4.726
4.926
5.126
5.326
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
ELFH08250J
ELFH09250J
ELFH10250J
ELFH11250J
ELFH12250J
ELFH13250J
ELFH14250J
ELFH15250J
ELFH16250J
ELFH17250J
ELFH18250J
ELFH19250J
ELFH20250J
ELFH21250J
ELFH22250J
ELFH0825GJ
ELFH0925GJ
ELFH1025GJ
ELFH1125GJ
ELFH1225GJ
ELFH1325GJ
ELFH1425GJ
ELFH1525GJ
ELFH1625GJ
ELFH1725GJ
ELFH1825GJ
ELFH1925GJ
ELFH2025GJ
ELFH2125GJ
ELFH2225GJ
2.526
2.726
2.926
3.126
3.326
3.526
3.726
3.926
4.126
4.326
4.526
4.726
4.926
5.126
5.326
See page 25 for gold plating and marking options
APPROVALS:
SPECIFICA TIONS:
MATERIALS:
Contact factory for specific product recognition
Current Rating:
15A
Operating Voltage:
300V
Insulation Resistance:
>10
5
Megohms
Dielectric Withstanding:
<3000V
Housing:
PBT, UL 94V-0, Black or green
Contact:
Copper alloy, optional finish
HEADER INST ALLATION:
Hole Diameter:
.055" min.
Amphenol Pcd
46
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
