REVISION AG
SMH-1XX-XX-XX-X-XX
NO. OF POSITIONS
-02 THRU -36
(PER ROW)
((No OF POS x .100[2.54]
) + .020[.51]) .010[.25]
.031 0.79 x .016[.41]
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
POSITION 01
DO NOT
SCALE FROM
THIS PRINT
LEAD STYLE
-02: SURFACE MOUNT
(USE C-8-03-X)
-22: LOW INSERTION FORCE
(USE C-17-03-X)
OPTIONS
-XX: INDICATES POSITION
POLARIZED (USE PK-06-N)
-TR: TAPE & REEL PACKAGING
(2 - 29 POSITIONS ONLY)
ROW SPECIFICATION
-D: DOUBLE ROW (USE SMH-50-D)
(SEE FIG 1)
-S: SINGLE ROW (USE SSW-50-S)
(SEE FIG 2, SHT 2)
.335 8.51
REF
PLATING
-G: 20µ" OVER IN CONTACT AREA, FLASH GOLD ON TAIL
-T: TIN OVER, MATTE TIN ON TAIL
-S: 30µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" OVER IN CONTACT AREA, FLASH GOLD ON TAIL
-L: 10µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-TM: TIN OVER, MATTE TIN ON TAIL
-SM: 30µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
SECTION "A"-"A"
SMH-50-D
02
C
.285±.010 7.24±0.25
SEE TABLE 1
.100 2.54 REF
01
.195 4.95
REF
"A"
.045 1.15 REF
C
SEE NOTE 2
"A"
.028 0.72 REF

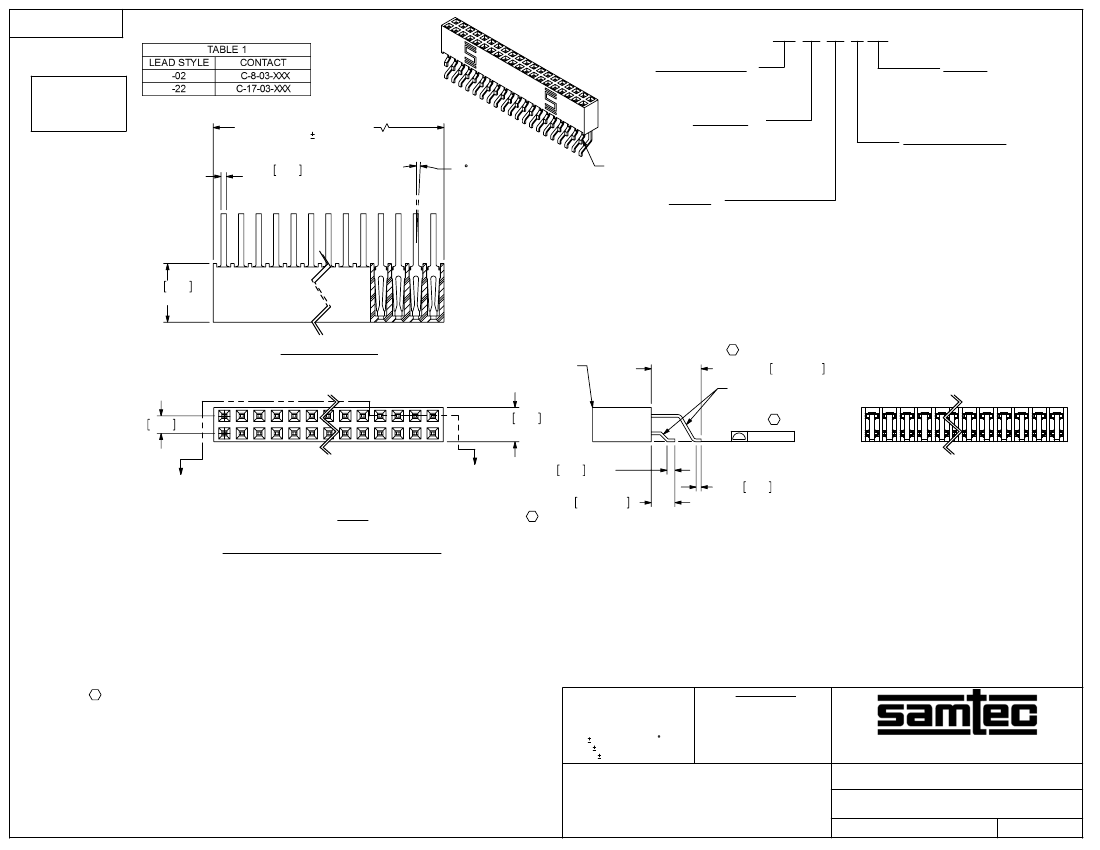

SMH-120-XX-XX-D SHOWN
FIG 1
.135±.010 3.43±0.25
C
SEE SHEET 2 FOR IN-PROCESS VIEWS
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: POSITIONS 02-24= .006[.15], POSITIONS 25-36= .008[.20].
3. BURR ALLOWANCE: .003[.08] MAX.
4. ONE POSITION WILL BE LOST FOR EVERY CUT MADE ON A SOCKET
STRIP: CUT FLASH TO BE .010 [.25] MAX WITH NO FLASH ALLOWED IN
HOLES OR EXTENDING BELOW LEADS
5. MINIMUM PUSHOUT FORCE: 1.5 LB.
6. MAXIMUM ALLOWABLE BOW: .003[.08] INCH/INCH AFTER ASSEMBLY.
7. ENDWALLS AFTER CUTTING: .045 +/-.003.
8. SHEAR TAILS TO DIMENSION SHOWN.
9. CONTACT TAILS TO BE FLUSH TO .003[.08] ABOVE OR BELOW A DATUM LINE
MADE BY THE INSULATOR. (-DH ONLY)
10. NOTE DELETED.
11. POSITIONS 4 OR LESS SHOULD BE LAYER PACKAGED UNLESS OTHERWISE NOTED IN THE PART CALLOUT.
12. NOTE DELETED.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOSPHOR BRONZE
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
SMH-1XX-XX-XX-X-XX
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
BY:
BRATCHER 2/5/99
REVISION AG
.394 10.01
.394 10.01

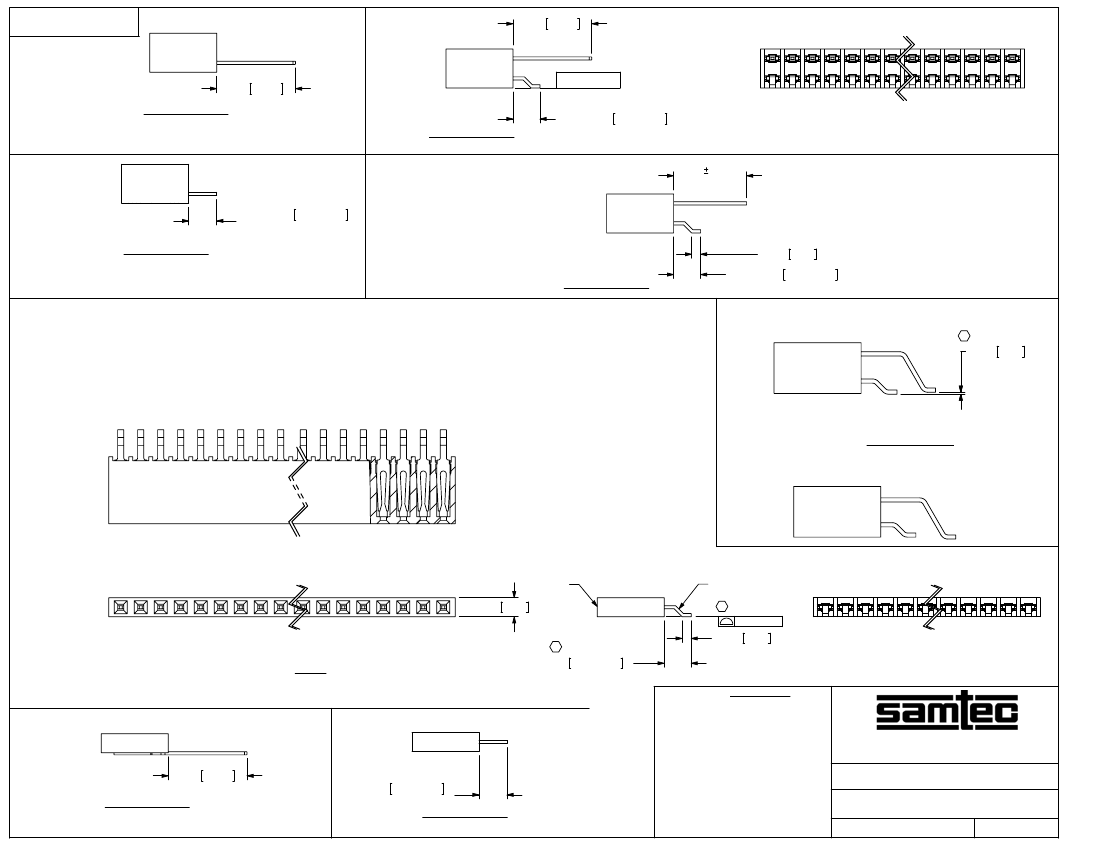

IN-PROCESS 1
MUST FILL WITH DIE SIDE OF PIN FACING DOWN, PINS ARE
STAMPED WITH A SQUARE INDICATOR MARK ON DIE SIDE
SEE NOTE 9
(-DH ONLY)
IN-PROCESS 3
.135±.010 3.43±0.25
.350 .010
(SEE NOTE 8)
.145±.010 3.68±0.25
(SEE NOTE 8)
IN-PROCESS 2
MUST FILL WITH DIE SIDE OF PIN FACING DOWN, PINS ARE
STAMPED WITH A SQUARE INDICATOR MARK ON DIE SIDE
.045 1.15 REF
IN-PROCESS 4
.135±.010 3.43±0.25
C
.003 0.08
TAILS MUST BE WITHIN +/-.003 WITH RESPECT TO
EACH OTHER.
IN-PROCESS 5
SSW-50-S
.095 2.41 REF
01
C
SEE TABLE 1
C
SEE NOTE 2
.045 1.15 REF
SMH-120-XX-XX-S SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 2
.135±.010 3.43±0.25
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
.394 10.01
IN-PROCESS 1
.140±.010 3.56±0.25
(SEE NOTE 8)
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
IN-PROCESS 2
SMH-1XX-XX-XX-X-XX
SHEET
2
OF
3
BY:
BRATCHER 2/5/99
REVISION AG
POSITION 01
POSITION 01
USER DIRECTION OF REELING
POCKET NOT DETAILED
USER DIRECTION OF REELING
POCKET NOT DETAILED
SHM-105-XX-XX-D-TR SHOWN
SHM-105-XX-XX-S-TR SHOWN

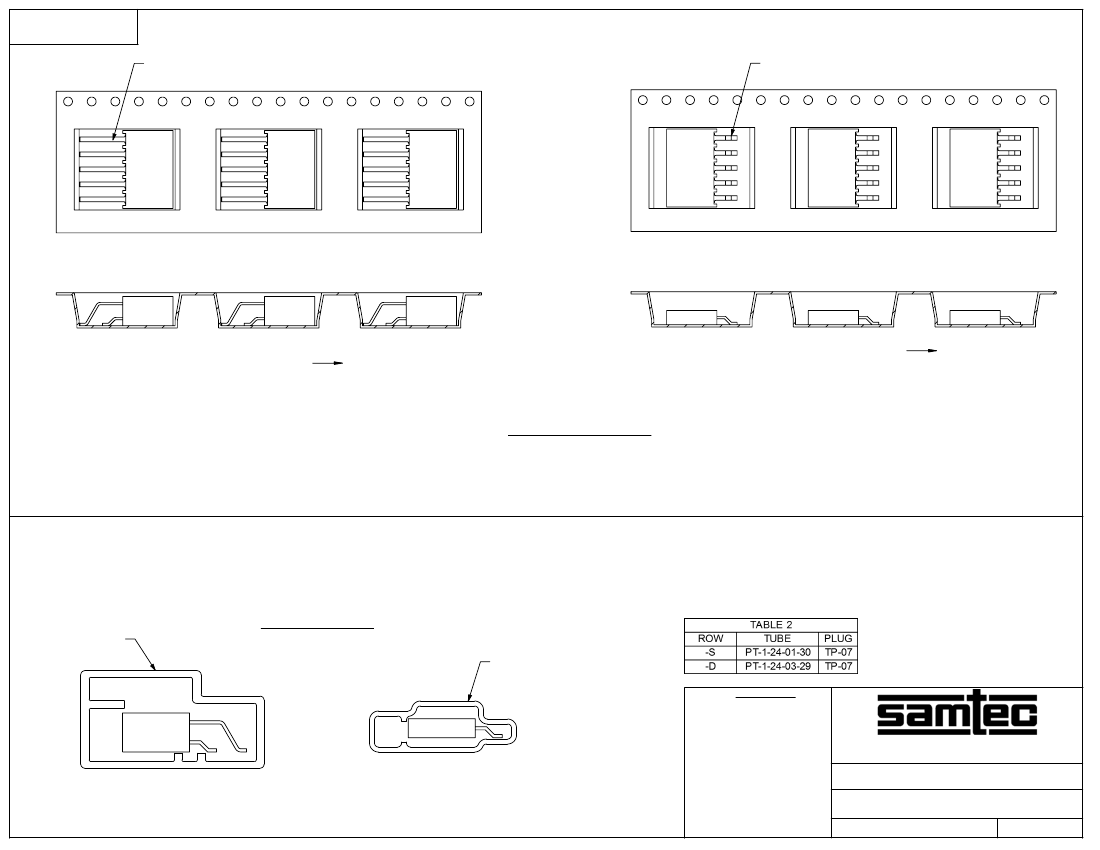

-TR PACKAGING VIEW
PT-1-24-03-29
TUBE PACKAGING
PT-1-24-01-30
*
SEE NOTE 11
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
SMH-1XX-XX-XX-X-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
BY:
BRATCHER 2/5/99
