TFML-105-01-L-D-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> TFML-105-01-L-D-LC

TFML-105-01-L-D-LC: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size492KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFML-105-01-L-D-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TFML-105-01-L-D-LC	-	-	View	Buy Now

TFML-105-01-L-D-LC Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

TFML-105-01-L-D-LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304692536
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
YTEOL	9.15
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.225 inch
subject depth	0.22 inch
body length	0.375 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Manufacturer's serial number	TFM
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

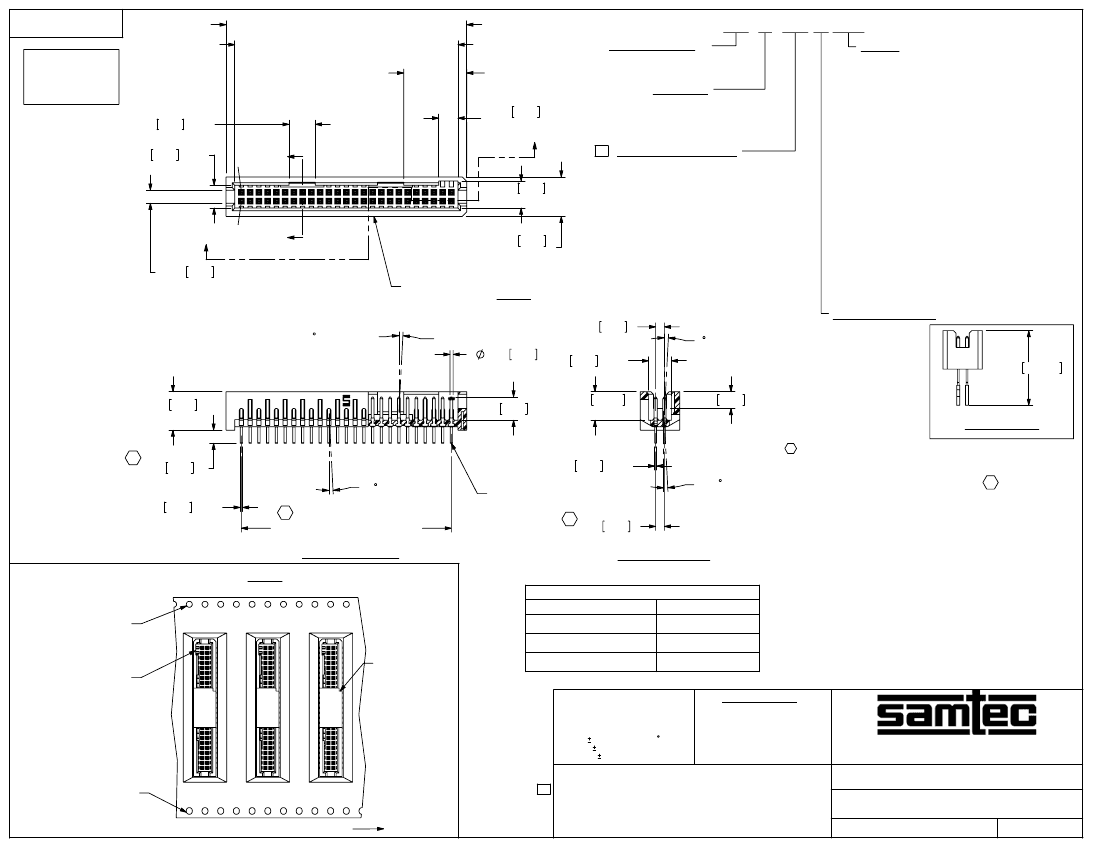

TFML-105-01-L-D-LC Preview

REVISION AS

DO NOT

SCALE FROM

THIS PRINT

.150 3.81 REF

.130 3.30 REF

(No OF POS x .050[1.27]) + .125[3.18] REF

(No OF POS x .050[1.27]) + .025[0.64] REF

"A" REF (TYP)

(SEE NOTE 7 & TABLE 1)

.110 2.79 REF

(SEE NOTE 11)

TFML-1XX-XX-XXX-D-XXX

No OF POSITIONS

-05,-07,-10 THRU -50

(PER ROW)

LEAD STYLE

-01: THROUGH HOLE

(SEE FIG. 1)

-02: SURFACE MOUNT

(SEE FIG.3, SHT 2)

OPTION

-A: ALIGNMENT PIN (USE TFML-XX-D-01-A)

(SEE FIG. 7, SHT 3)

-LC: LOCKING CLIP (USE LC-05-TM) SEE NOTE 12

(SEE FIG. 9, SHT 3, N/A ON -RA OPTION)

-P: PICK & PLACE PAD (USE PPP-04)

(AVAIL IN ALL POSITIONS, N/A

ON -RA OPTION, SEE FIG. 5, SHT 2)

-RA: RIGHT ANGLE (LEAD STYLE -01 ONLY)

(SEE FIG. 4, SHT 2)

-TR: TAPE & REEL

(SEE FIG. 2)(N/A ON -01 LEAD STYLE)

-SA: STAKED ALIGNMENT PIN (USE SM-A5)

(SEE FIG. 8, SHT 3)

-K: POLYAMIDE FILM (USE K-500-300)

(SEE FIG. 6, SHT 2) (N/A ON -RA)

-SN: SOLDER NAIL (USE TFML-XX-D-01-SN &

WT-27-01-T) (SEE FIG. 10, SHEET 4)

(AVAILABLE ON -02 LEAD STYLE ONLY)

-SN2: SOLDER NAIL FOR .093 BOARD

(USE TFML-XX-D-01-SN &

WT-27-02-T) (SEE FIG. 10, SHEET 4)

(AVAILABLE ON -02 LEAD STYLE ONLY)

(NOT AVAILABLE WITH -A, -LC, - RA, -SA)

ROW SPECIFICATION

-D: DOUBLE ROW

"B"

"A"

PLATING SPECIFICATION

"A"

.075 1.91 REF

"B"

-S: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,

MATTE TIN TAIL

-L: LIGHT SELECTIVE, 15 Au / 50 Ni MIN ON CONTACT,

.155 3.94

MATTE TIN TAIL

REF

-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,

MATTE TIN TAIL

-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON CONTACT,

3 Au / 50 Ni MIN ON TAIL

.225 5.72

-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON CONTACT,

MATTE TIN TAIL

REF

-LM: LIGHT SELECTIVE, 15 Au / 50 Ni MIN ON CONTACT,

MATTE TIN TAIL

-SM: SELECTIVE, 30 Au / 50 Ni MIN ON CONTACT,

TFML-XX-D-01-X

MATTE TIN TAIL

FIG. 1

-STL: SELECTIVE, 30 Ni MIN ON CONTACT,

-01: THROUGH HOLE

TIN/LEAD (90/10+/-5%) TAIL

2 MAX SWAY

(TYP)

.050 1.27

.018 0.46

REF

.130 3.30 REF

.1635 4.153

REF

2 MAX TOE

(TYP)

.4270 10.846

.096 2.44 REF

NOTES:

.220 5.59

REF

.134 3.39 REF

IN-PROCESS

.075 1.91

(SEE NOTE 9)

.014 0.36 REF

.010 0.25 REF

2 MAX SWAY

(TYP)

(No OF POS -1) x .050[1.27]

T-1R16-01-XXX-2

.050 1.27

SECTION "A"-"A"

-TR: TAPE & REEL OPTION

SECTION "B"-"B"

TABLE 1

FIG. 2

NO OF POS.

ROUND HOLES

PAD NOTCH

EVEN

"A"

.310

.360

.113

ODD (EXCL. -05,-07 POS)

PART NOTCH

-05,-07

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

REPRESENTS A CRITICAL DIMENSION.

2. COPLANARITY: POSITIONS -10 THRU -26: .004[0.10]

POSITIONS -27 THRU -50: .006[0.15].

3. MANUFACTURING IN-PROCESS DIMENSION

MAX TOE

DESIGNED TO ACHIEVE FINISHED ASSEMBLY.

(TYP)

4. MINIMUM PUSHOUT FORCE: 1.0 LB [4.4 N].

5. MAXIMUM ALLOWABLE BOW: .004 INCH/INCH

[0.10 MM/MM]AFTER ASSEMBLY.

6. MEASURED FROM BEND.

7. POSITIONS -05 AND -07 WILL ONLY HAVE ONE CLIP AT

DIMENSION SHOWN; POSITIONS -10 THROUGH -24

WILL HAVE ONLY ONE CLIP AT DIMENSION SHOWN;

POSITIONS -25 THROUGH -34 WILL HAVE TWO CLIPS AT

DIMENSION SHOWN; POSITIONS -35 THROUGH -50 WILL

HAVE THREE; CLIPS: TWO AT DIMENSION SHOWN & ONE

CENTERED ON INSULATOR.

8. NOTE DELETED.

9. .003[0.08] MAXIMUM TERMINAL BURR

10. .005[0.13] MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS.

11. DIMENSION IS NOT APPLICABLE FOR -05 AND -07 POSITION.

12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE

NEEDED, THE –LC OPTION IS NOT COMPATIBLE

WITH AUTO PLACEMENT. SAMTEC RECOMMENDS

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH

THE –LC OPTION.

PROPRIETARY NOTE

.XX: .01

.XXX: .005

.XXXX: .0020

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

OBLONG HOLES

VECTRA E130i, LCP, UL 94 VO

COLOR: BLACK

CONTACT: PHOS BRONZE, THICKNESS: .018

F:\DWG\MISC\MKTG\TFML-1XX-XX-XXX-D-XXX-MKT.SLDDRW

.050 SHROUDED TERMINAL ASSEMBLY

TFML-1XX-XX-XXX-D-XXX

4/8/99

SHEET

USER DIRECTION OF UNREELING

BY:

DEANP

REVISION AS

"C"

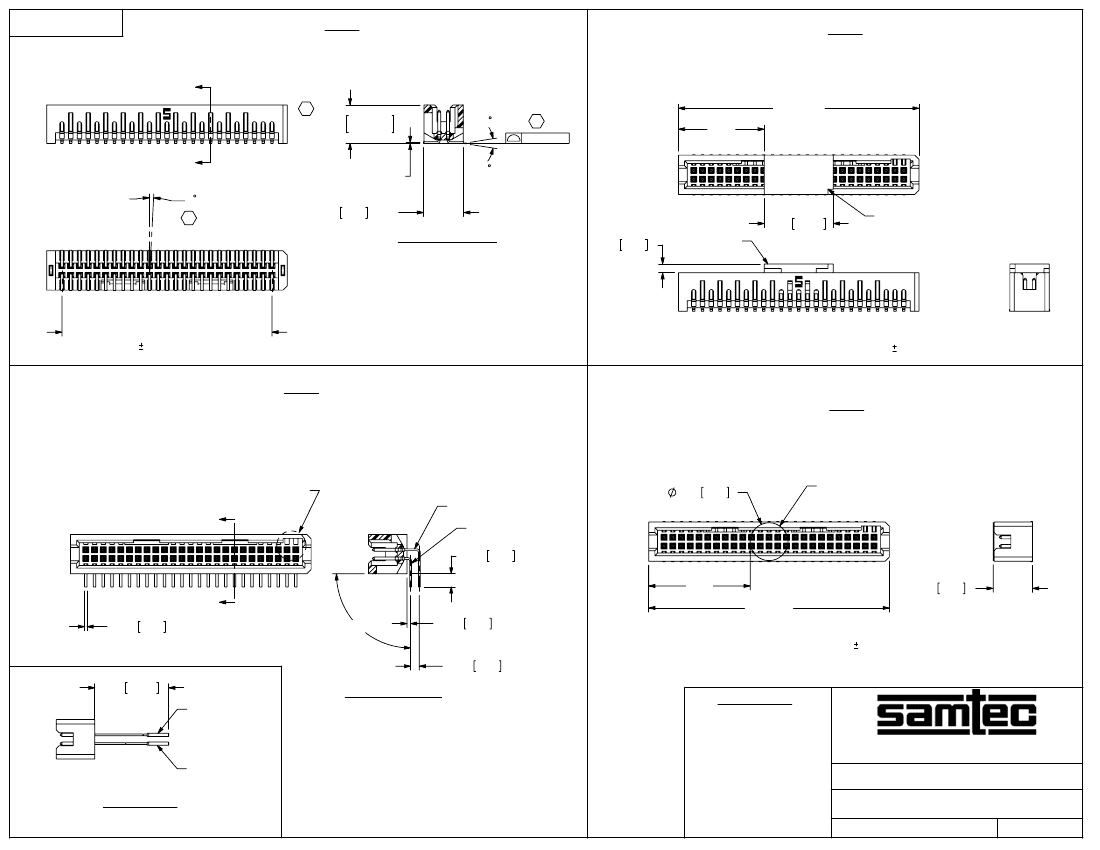

-02: SURFACE MOUNT

(SHOWN: TFML-125-02-XXX-D)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

FIG. 3

FIG. 5

-P: PICK & PLACE PAD OPTION

(SHOWN: TFML-125-02-XXX-D-P)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

NOTCH ON PAD TO BE ON SAME END AS NOTCH IN TFM BODY

"M" REF

"P"

+.012

.220

- .000

+0.30

5.59

0.00

SEE NOTE 2

"C"

3 MAX SWAY

(TYP)

FLUSH TO .012[0.30] MAX

(SEE NOTE 6)

.230 5.84 REF

-3

01 03

SECTION "C"-"C"

.050 1.27

PPP-04

.394 10.01

REF

PAD NOTCH

(No OF POS -1) x .050[1.27]

(TOL ACCUM .005[0.13] OVER 50 POS)

NOTE: "M" = (No OF POS x .050[1.27]) + .125[3.18]

"P" = {("M" - .394[10.00]) / 2} .020[0.51]

FIG. 4

-RA: RIGHT ANGLE OPTION

(SHOWN: TFML-125-01-XXX-D-RA)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

-K: POLYAMIDE FILM PAD OPTION

(SHOWN: TFML-125-02-XXX-D-K)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

FIG. 6

NOTCH TO BE ORIENTED AS SHOWN

"D"

T-1R16-03-XXX

T-1R16-02-XXX

.075 1.91 REF

.216 5.49

K-500-300

"D"

.014 0.36 REF

90°

.020 0.51

"S"

"R" REF

.225 5.72

NOTE: "R" = (No OF POS x .050[1.27]) + .125[3.18]

"S" = {("R" - .216[5.49]) / 2} .020[0.51]

F:\DWG\MISC\MKTG\TFML-1XX-XX-XXX-D-XXX-MKT.SLDDRW

.050 1.27

.422 10.72

(TYP)

SECTION "D"-"D"

T-1R16-03-XXX

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

T-1R16-02-XXX

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

.050 SHROUDED TERMINAL ASSEMBLY

IN-PROCESS

TFML-1XX-XX-XXX-D-XXX

4/8/99

SHEET

BY:

DEANP

REVISION AS

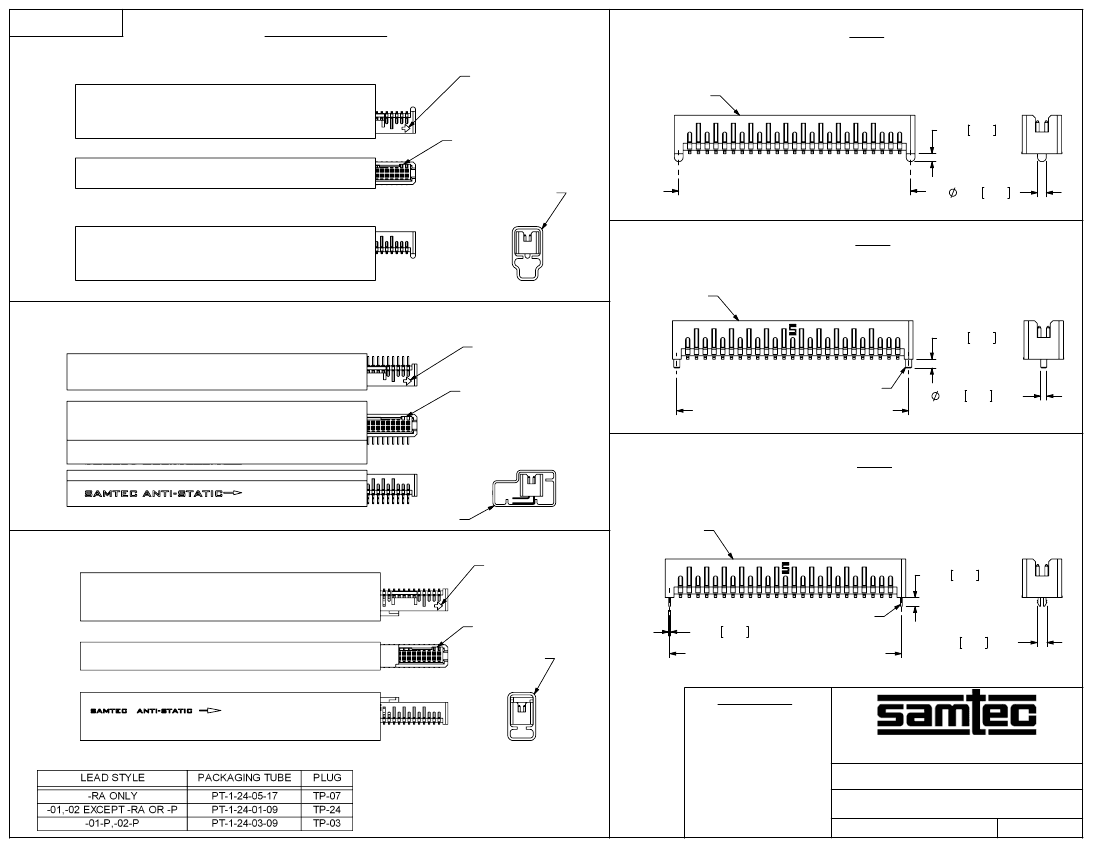

PACKAGING VIEWS

DIRECTION INDICATOR

TFML-XX-D-01-A

FIG. 7

-A: ALIGNMENT PIN OPTION

(SHOWN: TFML-125-02-XXX-D-A)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

-NOT AVAILABLE WITH -RA

PARTS TO BE POSITIONED WITH POLARIZING NOTCH

FACING THE SAMTEC LOGO AND ARROW.

POLARIZING NOTCH

.045 1.14

REF

PT-1-24-01-09

(No OF POS x .050[1.27]) + .075[1.91] REF

.050 1.27

REF

FIG. 8

-SA: STAKED ALIGNMENT PIN OPTION

(SHOWN: TFML-125-02-XXX-D-SA)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

-NOT AVAILABLE ON -RA

TFML-XX-D-01

PARTS TO BE POSITIONED WITH TAILS FACING LOGO SIDE OF

TUBE AND POLARIZING NOTCH ORIENTED AS SHOWN

DIRECTION INDICATOR

.050 1.27

POLARIZING NOTCH

SM-A5

(No OF POS x .050[1.27]) + .075[1.91]

.035 0.89 REF

FIG. 9

-LC: LOCKING CLIP OPTION

(SHOWN: TFML-125-02-XXX-D-LC)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

-NOT AVAILABLE ON -RA

TFML-XX-D-01

DIRECTION INDICATOR

PT-01-24-05-17

POSITION PARTS WITH POLARIZING NOTCH ORIENTED AS SHOWN

.050 1.27

LC-05-TM

.010 0.25 REF

(No OF POS x .050[1.27]) + .075[1.91]

F:\DWG\MISC\MKTG\TFML-1XX-XX-XXX-D-XXX-MKT.SLDDRW

POLARIZING NOTCH

PT-1-24-03-09

.056 1.42 REF

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

.050 SHROUDED TERMINAL ASSEMBLY

TFML-1XX-XX-XXX-D-XXX

4/8/99

SHEET

BY:

DEANP

REVISION AS

FIG. 10

-SNX: SOLDER NAIL

(SHOWN: TFML-125-02-XXX-D-SN)

(SAME AS FIG. 1, UNLESS OTHERWISE STATED)

(ONLY AVAILABLE ON -02 LEAD STYLE)

(NO OF POS. X .050[1.27])+.275 REF

TFML-XX-D-01-SN

"E"

FLUSH TO .005[0.13] ABOVE

"B" REF

WT-27-XX-T

2 MAX SWAY

(TYP)

C10

.075 1.91 REF

.026 0.66

REF (2 PLCS)

"E"

SECTION "E"-"E"

(No OF POS x .050[1.27]) + .175[4.45]

OPTION

-SN

-SN2

TABLE 2

"B"

.071[1.80]

.106[2.69]

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

.050 SHROUDED TERMINAL ASSEMBLY

F:\DWG\MISC\MKTG\TFML-1XX-XX-XXX-D-XXX-MKT.SLDDRW

BY:

DEANP

TFML-1XX-XX-XXX-D-XXX

4/8/99

SHEET

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Relationship between PCB & Integrated Circuit

Ground tester circuit

Laser power circuit

TCM853 circuit diagram using external control voltage

555 multifunctional ceiling fan controller circuit

Miniaturized isolation amplifier IS0212P

DSP-Sitara course learning sharing 7--Compiling Linux: 1. Install the cross compiler, which has been shared before. 2. Cleaning the Kernel Sources--Cleaning the code will delete the .config file, so if you want to keep the original configuration file, bac...; qinkaiabc DSP and ARM Processors

How to design monitors and TVs with USB Type-C PD interfaces?: With the popularity of USB Type-C interface, more and more mobile phones and laptops support video output through the C interface. This small and sophisticated interface is likely to replace the tradi...; Legendary008 Domestic Chip Exchange

How to use 51 single chip microcomputer to analyze the parameters of triangle wave?: How to use 51 single chip microcomputer to analyze the amplitude, frequency and slope of triangle wave? Please give me some advice....; dzj874754 51mcu

How to change the color of a row in ListView in C#: How to change the color of a row in ListView in C#, WinCE program....; panshiowen Embedded System

Adding menus to dialog-based projects in evc: How to add a menu to a dialog box...; 33love Embedded System

What do you most want to do after the epidemic?: Since the Chinese New Year, I have checked the national epidemic data every night before going to bed and when I get up, to see if the number of confirmed cases has decreased, to see if the number of ...; eric_wang Talking

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
