TMMS-139-01-L-Q-FS datasheet, PDF

TMMS-139-01-L-Q-FS: DescriptionBoard Connector, 156 Contact(s), 4 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size358KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

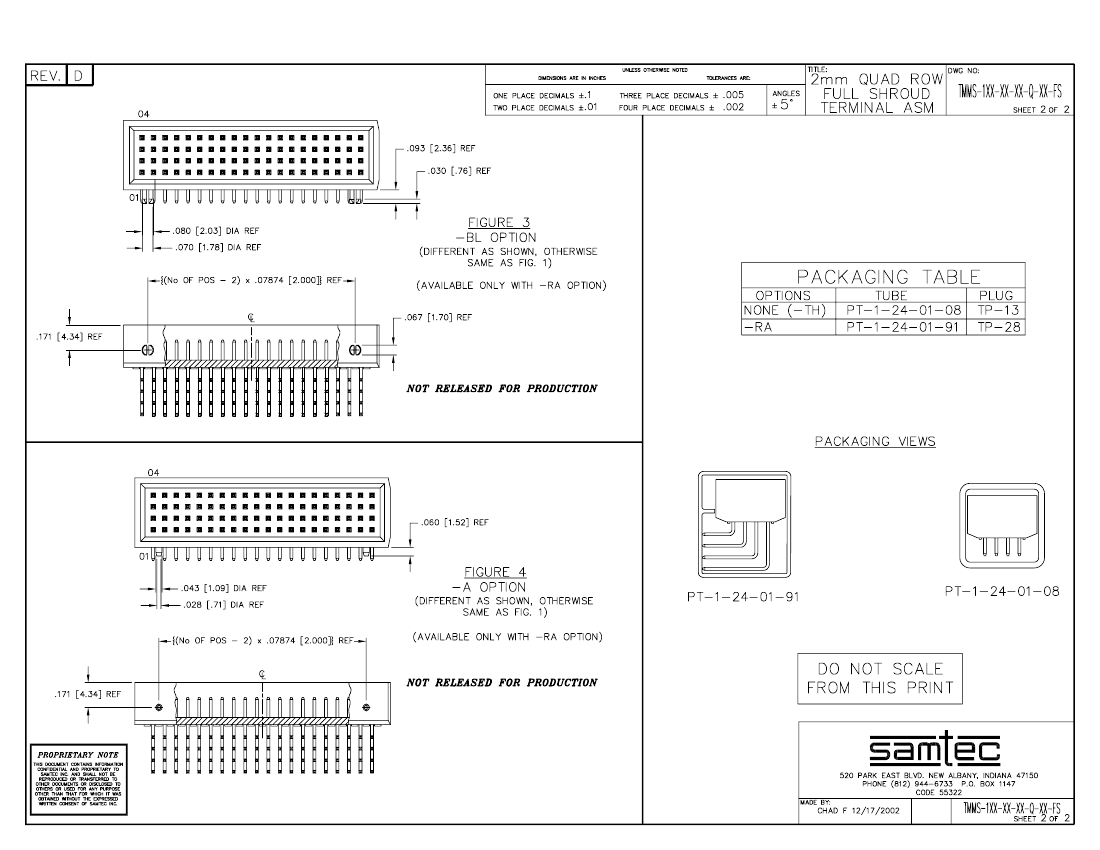

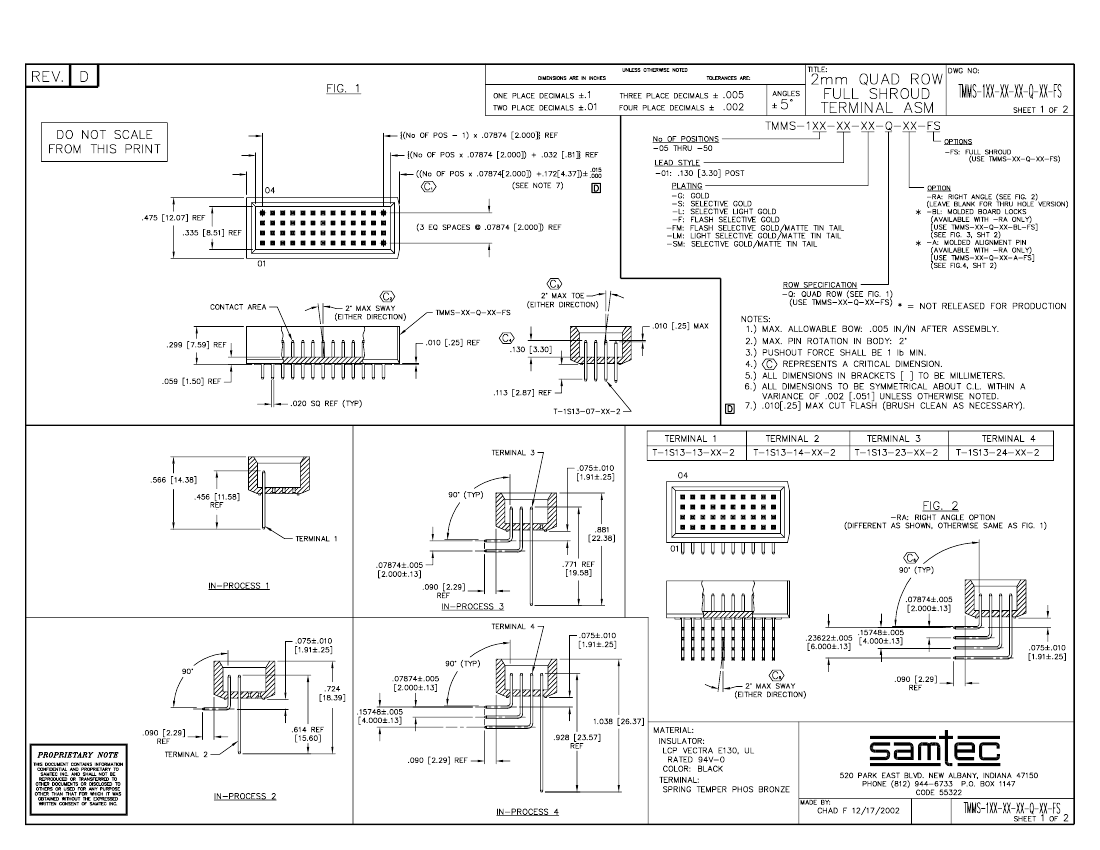

TMMS-139-01-L-Q-FS Overview

Board Connector, 156 Contact(s), 4 Row(s), Male, Straight, Solder Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1098247855
Reach Compliance Code	compliant
YTEOL	8.7
Other features	SHROUDED
body width	0.475 inch
subject depth	0.299 inch
body length	3.253 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE

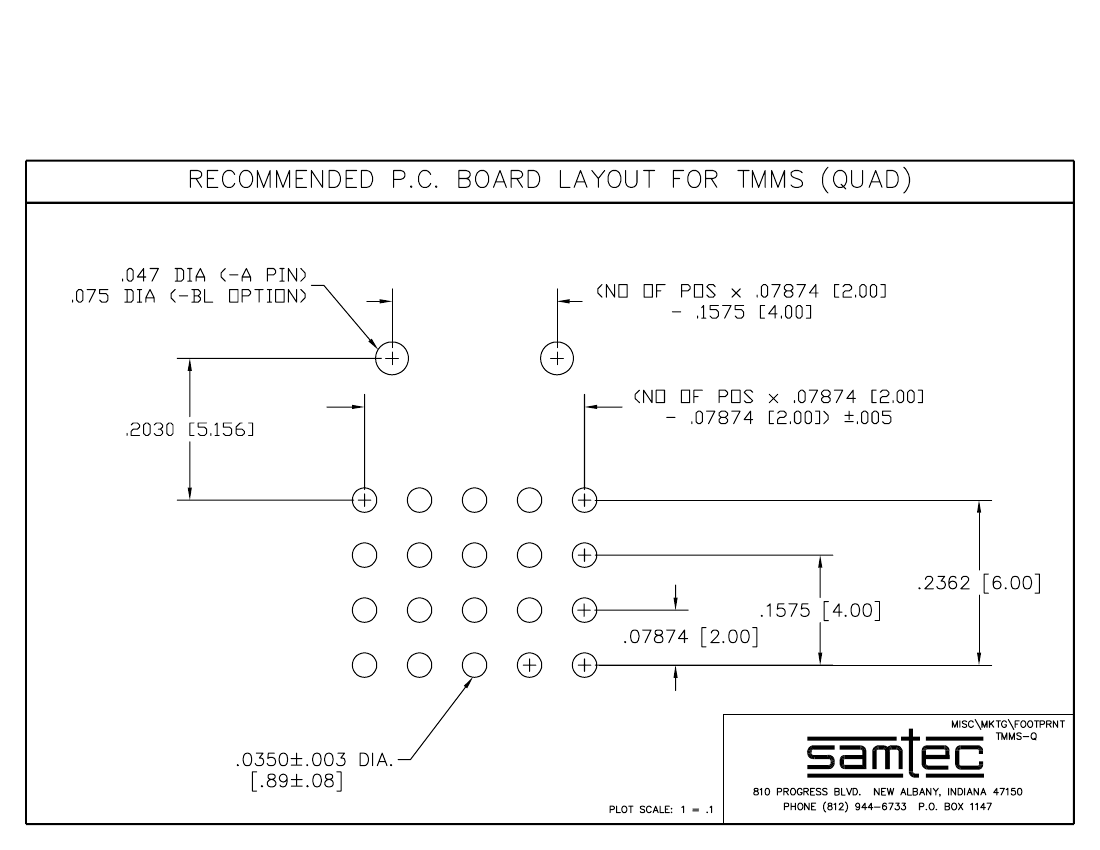

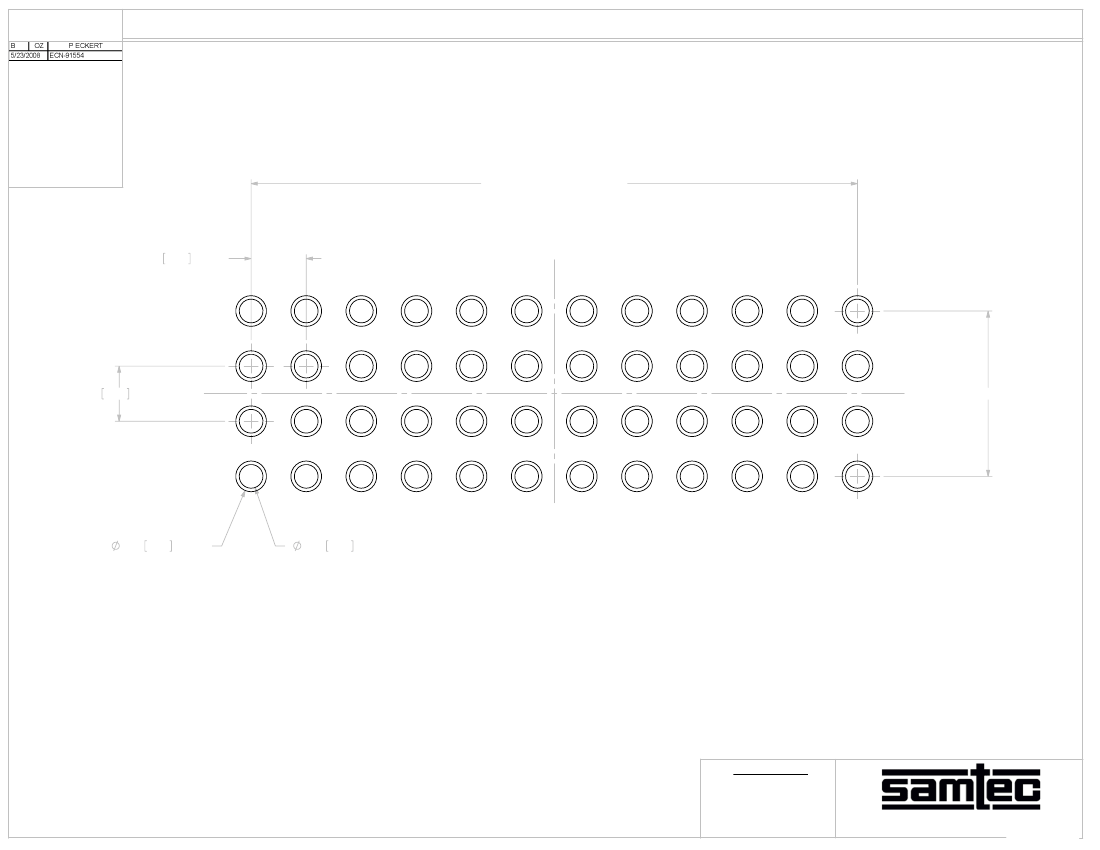

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Plating thickness	10u inch
Guideline	UL
Terminal length	0.113 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	156
UL Flammability Code	94V-0
