TMMS-150-01-F-Q-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> TMMS-150-01-F-Q-RA

TMMS-150-01-F-Q-RA: DescriptionBoard Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size525KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TMMS-150-01-F-Q-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TMMS-150-01-F-Q-RA	-	-	View	Buy Now

TMMS-150-01-F-Q-RA Overview

Board Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,

TMMS-150-01-F-Q-RA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2103075996
Reach Compliance Code	compliant
YTEOL	8.7
Other features	SHROUDED
body width	0.475 inch
subject depth	0.61 inch
body length	4.122 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	200
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

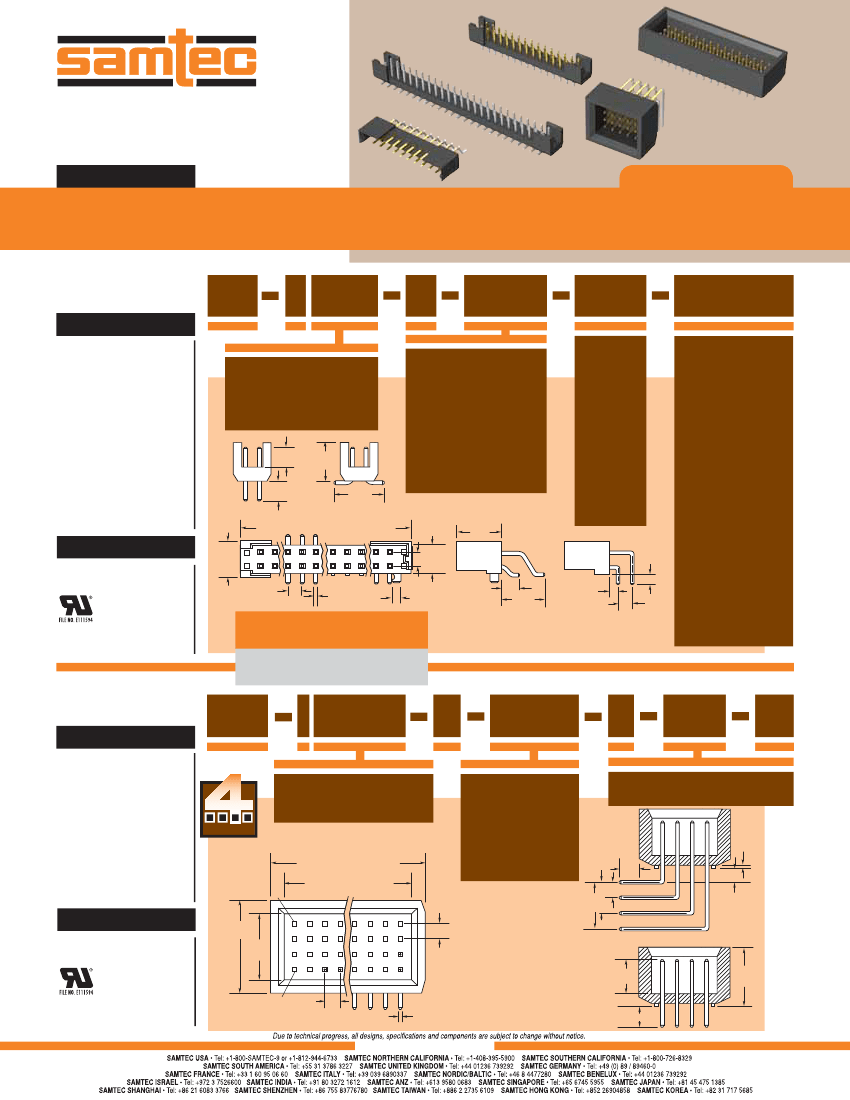

F-214

TSH–115–01–L–D

TSH–125–01–T–DV

TMMS–115–01–L–Q–FS

TMMS–105–01–F–Q–RA–FS

(2,00 mm) .0787"

TSH–110–01–L–DH–SL

TSH, TMMS SERIES

SHROUDED HEADERS

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, PTF

TSH

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?TSH

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

05, 10, 15, 20, 25,

30, 35, 40, 45

(40 & 45 = –D & -RA only)

(Standard sizes)

–F

= Gold ﬂash on post,

Matte Tin on tail

–D

= Vertical

Through-Hole

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

–DV

= Vertical

Surface Mount

= Locking Clip

(–DV only) (N/A with -A)

(Manual placement

required)

–LC

(3,20)

.126

(2,46)

.097

–RA

= Right Angle

Through-Hole

= Alignment Pin

(–DV only) (N/A with -LC)

–A

(5,33)

.210

(7,06)

.278

–T

= Matte Tin

–DV

–SL

= Solder Locks (–DH only)

= (4,50 mm) .177" DIA

Polyimide Film

Pick & Place Pad

(N/A with 15 - 30 positions)

(–DH only)

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max

–D

–DH

= Horizontal

Surface Mount

–K

(No. of positions + 2) x (2,00) .0787

(5,26)

.207

(6,32)

.249

(4,00)

.158

(2,44)

.096

(2,41)

.095

(1,27)

.050

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(2,00) .0787

(0,50)

.0197

(1,27)

.050

DIA

(2,00)

.0787

(6,22)

.245

= Metal Pick & Place Pad

(2,00)

(–DV only) (N/A -T plating)

.0787

–M

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

ALSO AVAILABLE

(MOQ Required)

• Other sizes and platings

Contact Samtec.

–DH

–RA

–TR

= Tape & Reel

Mates with:

SQT, SQW, ESQT

TMMS

NO. PINS

PER ROW

PLATING

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TMMS

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

05, 10, 15, 20,

30, 40, 50

ROW

(No. of positions x

(2,00) .0787) + (4,37) .172

No. of positions x

(2,00) .0787 +(0,81) .032

(2,00)

.0787

–F

= Gold ﬂash on post,

Matte Tin on tail

–RA

= Right Angle

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

(4,00)

.1574

(2,29)

.090

(0,25)

.010

(2,00) .0787

(6,00)

.2362

(1,91)

.075

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(12,07)

.475

(8,51)

.335

(3,30)

.130

–RA

(7,59)

.299

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(2,00)

.0787

(0,51)

.020

(2,87) .113

WWW.SAMTEC.COM
