32-6510-10R

Description
IC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder Kinked Leads
CategoryThe connector    socket
File Size204KB,1 Pages
ManufacturerAries Electronics
Download Datasheet Parametric View All

32-6510-10R Overview

IC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder Kinked Leads

32-6510-10R Parametric

Parameter NameAttribute value
Objectid315946779
Reach Compliance Codecompliant
Country Of OriginUSA
ECCN codeEAR99
YTEOL7.13
body width0.7 inch
subject depth0.201 inch
body length1.6 inch
Contact to complete cooperationSN ON NI
Contact materialP-CUSN
Contact styleBELLOWED TYPE
current rating1 A
Device slot typeIC SOCKET
Type of equipment usedDIP32
Dielectric withstand voltage500VAC V
Shell materialGLASS FILLED THERMOPLASTIC
Insulation resistance1000000000 Ω
Manufacturer's serial number510
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts32
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing0.6 mm
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Series X510

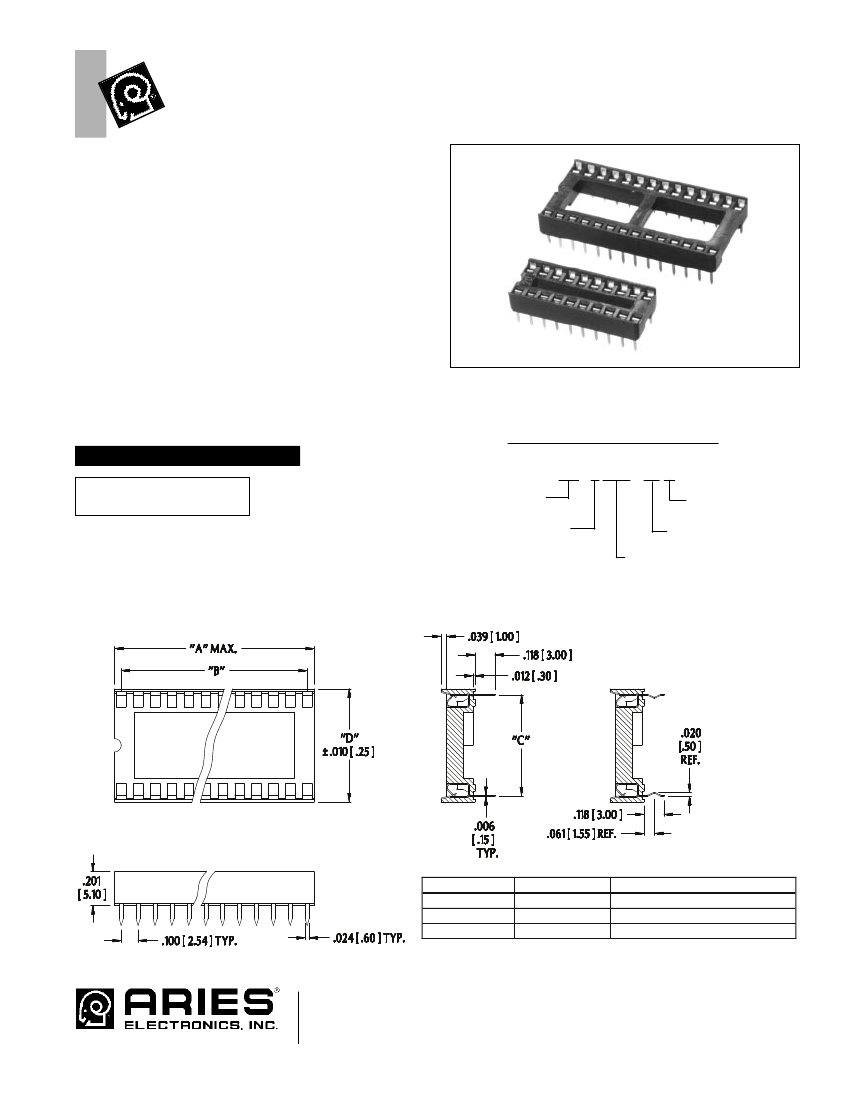

Economy Open Frame DIP Sockets
FEATURES:
•Dual-beam contacts offering reliable connection with
wiping action.
•End-to-end and side-to-side stackable.
•Available with either straight or retention style solder
tail pin.
SPECIFICATIONS:
•Body material is black UL 94V-0 glass-filled
Thermoplastic (PBT).
•Contacts are Phosphor Bronze.
•Contact plating is 100µ [2.54µm] Tin over 35µ [.89µm]
min. Nickel.
•Operating temperature=-67 to 221°F [-55 to 105°C].
•Contact current rating=1 Amp.
•Contact resistance=30 mOhms max. @ DC 100 mAmps.
•Insulator resistance=1000 MOhms min. DC 250V.
•Dielectric withstanding voltage=AC 500V for 1 minute.
•Accepts leads .060-.130 [1.52-3.30] long.
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the stan-
dard products shown on this page, special materials, platings, sizes, and configura-
tions can be furnished, depending on quantities. Aries reserves the right to change
product specifications without notice.
ORDERING INFORMATION
XX-X510-10X
No. of pins
(see table)
Row-to-row pitch:
3=.300 [7.62]
6=.600 [15.24]
9=.900 [22.86]
Series
Optional suffix:
R=retential tail
Tin plated
solder tail pin
All tolerances ± .005 [.13]
unless otherwise specified
“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Centers “C”
.300 [7.62]
.600 [15.24]
.900 [22.86]
Dim. “D”
.400 [10.16]
.700 [17.78]
1.000 [25.40]
Available Sizes
6, 8, 14, 16, 18, 20, 22, 24, 28
24, 28, 32, 40, 42, 48
64
NORTH AMERICA
http://www.arieselec.com • info@arieselec.com
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UNITED KINGDOM
Milton Keynes, GB
TEL: +44 1908 260007
FAX: +44 1908 260008
EUROPE (MAINLAND)
Papendrecht, Holland
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
