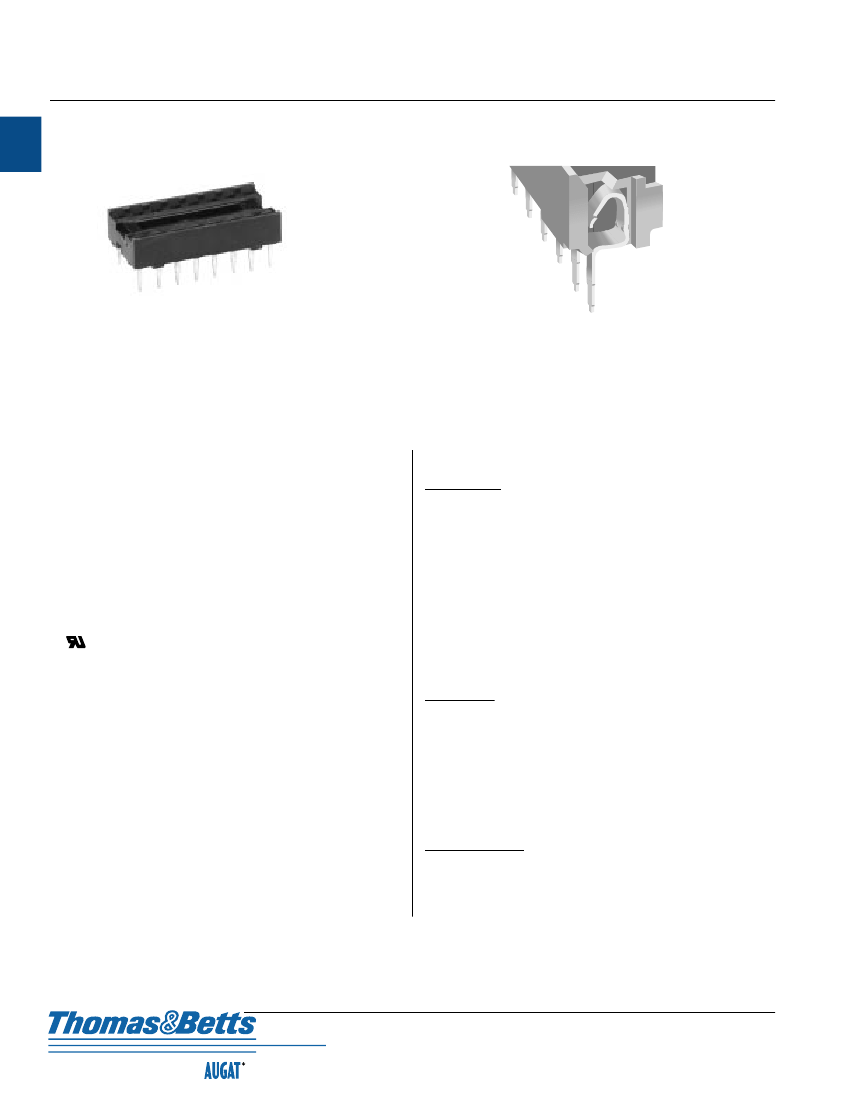

200C Series
A
Stamped Single Beam Contact Closed Bottom DIP Sockets
216-AG19DC
FEATURES:
The Augat 200C Series single beam side wipe contact provides maximum
normal force and consistent mechanical performance in Augat's lowest
cost socket.
• Non-wicking, closed bottom design gives protection against flux and
solder contamination
• Protected open entry for easy insertion of IC's by hand or
by automatic insertion
• Anti-overstress design protects contacts, helps eliminate damage from
oversize leads and maintains consistent normal force
• High normal force results in gas tight connections
•
Recognized under the Component Program of Underwriters
®
Laboratories, Inc. File No. E111362
PERFORMANCE SPECIFICATIONS:
MECHANICAL
Vibration ........................ Passed MIL-STD-1344, Method 2005.1,
Condition III, 15 G’s
Shock .............................. Passed MIL-STD-1344, Method 2004.1,
Condition G, 100 G’s
Durability ...................... Passed MIL-STD-1344, Method 2016, 50 cycles
Normal Force ................ 170 Grams (6.0 oz.) with .009" x .015"
(0,23 x 0,38) IC lead typ.
Contact Retention .......... 340 Grams (12.0 oz.) minimum
Solderability .................. Passed MIL-STD-202, Method 208
Insertion Force .............. 169 Grams (6.0 oz.) average with a .013" x .020"
(0,33 x 0,51) dia. polished steel pin
Withdrawal Force .......... 43 Grams (1.5 oz.) average with a .009" x .015"
(0,23 x 0,38) dia. polished steel pin
ELECTRICAL
Contact Resistance ........ 10 Milliohms
Contact Rating .............. 2 Amps
Capacitance .................... .5 pF per MIL-STD-202, Method 305
(Adjacent contacts max.)
Insulation Resistance .... 2 x 10
6
Megohms per MIL-STD-1344,
Method 3003.1
Dielectric Withstanding
Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,
Method 3001
ENVIRONMENTAL
Humidity ........................ Passed MIL-STD-1344, Method 1002.2
Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1
Temperature Cycling .... Passed MIL-STD-1344, Method 1003.1
Operation Temperature .. Gold -55°C to +125°C
Tin -55°C to +105°C
Salt Spray ...................... Passed MIL-STD-1344, Method 1001.1
APPLICATION DIMENSIONS:
• PWB Thickness Range: Standard .062" and .092" (1,57 and 2,34)
• PWB Hole Size Range: .055"
±
.002" (1,40
±
0,05)
• IC Pin Dimension Range: .008" x .015" ( 0,20 x 0,38) through
.015" x .023" (0,38 x 0,58), .115" (2,92) min. length
MATERIAL SPECIFICATIONS:
Insulator ........................ Thermoplastic polyester, UL rated 94V-0
Contacts .......................... Phosphor bronze or beryllium copper
Plating ............................ Tin/lead
Quality & Innovation From The
Product Group
A4
Thomas & Betts
1555 Lynnfield Road
Memphis, TN 38119
(901) 682-8221 FAX (901) 537-8805
