GTCS28-601M-R10-2 datasheet, PDF

Datasheet> All Categories > Circuit protection> GTCS28-601M-R10-2

GTCS28-601M-R10-2: Descriptiongas discharge tubes - gdts / gas plasma arrestors 8mm 600v 2pole smt gdt; CategoryCircuit protection; File Size347KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

GTCS28-601M-R10-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GTCS28-601M-R10-2	-	-	View	Buy Now

GTCS28-601M-R10-2 Overview

gas discharge tubes - gdts / gas plasma arrestors 8mm 600v 2pole smt gdt

GTCS28-601M-R10-2 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors
RoHS	Yes
DC Breakover Voltage (Nominal)	600 V
Number of Electrodes	2
Termination Style	SMD/SMT
Failsafe Protection Y/N	Y
Packaging	Ammo Pack
Dimensions	6 mm L
Factory Pack Quantity	500

Preview

Download Datasheet

View All

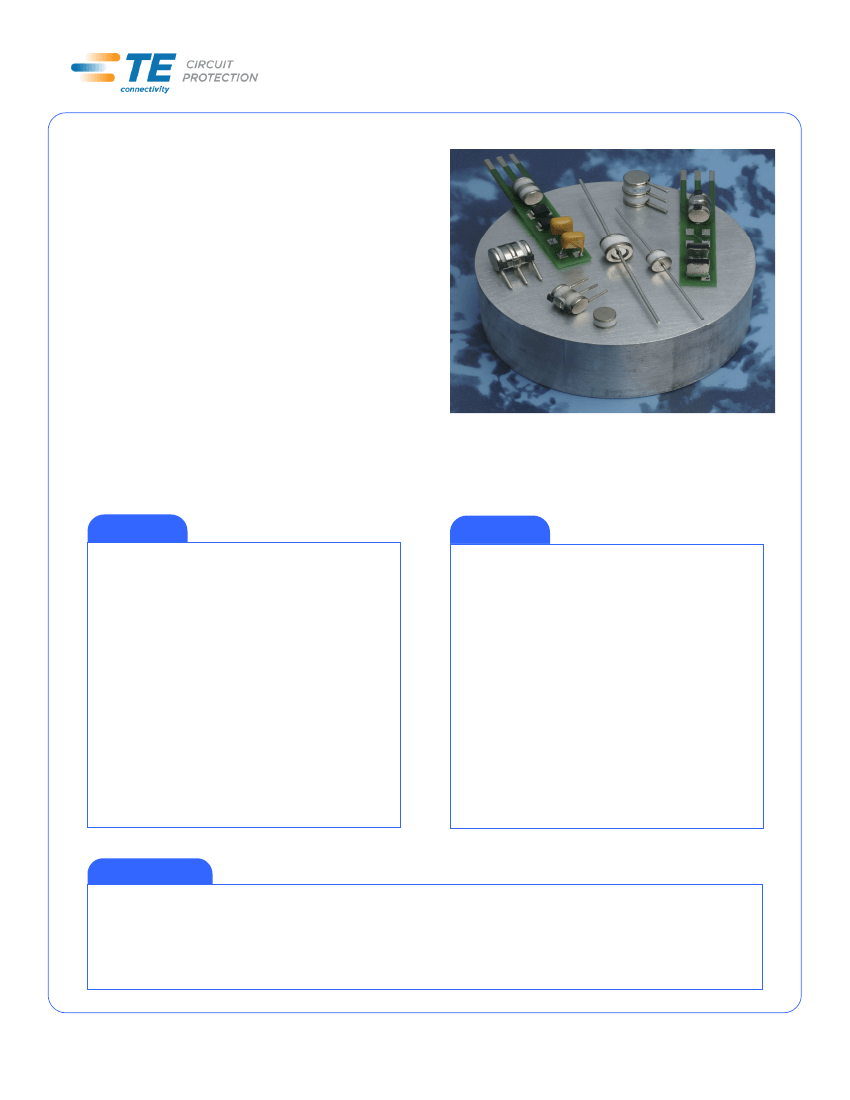

GasDischarge Tubes

GTCX28-XXXM-R10 Series

TE Circuit Protection 8mm 2Pole GDTs (ceramic

gas discharge tubes), are commonly used to help

protect sensitive telecom equipment such as

communication lines, signal lines and data

transmission lines from damage caused by

transient surge voltages that typically result from

lightning strikes and equipment switching

operations.

TE Circuit Protection GDTs offer a high level of

surge protection, low capacitance and a broad

array of breakover voltage levels, making them

suitable for applications such as MDF (Main

Distribution Frame) modules, high data-rate

telecom applications (e.g. ADSL, VDSL), and

surge protection on power lines. Raychem Circuit

Protection GDTs, can help equipment meet the

most stringent regulatory standards.

Benefits:



Helps provide overvoltage fault protection against

high energy surges



Suitable for high-frequency applications

Features:



2Pole, 8mm devices



Broad voltage range from 75V-600V



Various form factors: surface mount, axial leads, no

leads



Low capacitance and insertion loss



UL 497B recognized



RoHS compliant



Devices tested per ITU K.12 recommendations



Non-radioactive materials

Applications:



Telecommunications

- MDF modules, xDSL equipment, RF system

protection, antenna, base station

•

Industrial and consumer electronics, such as

- Surge protectors

- Alarm system

Gas Discharge Tubes

Document: SCD27375

Status: Released

Rev: B Date: MAY 18, 2011

GTCS28-601M-R10-2 Related Products

	GTCS28-601M-R10-2	GTCS28-351M-R10-2	GTCS28-471M-R10-2
Description	gas discharge tubes - gdts / gas plasma arrestors 8mm 600v 2pole smt gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 350v 2pole smt gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 470v 2pole smt gdt
Manufacture	TE Connectivity	TE Connectivity	TE Connectivity
Product Category	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors
RoHS	Yes	Yes	Yes
DC Breakover Voltage (Nominal)	600 V	350 V	470 V
Number of Electrodes	2	2	2
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Failsafe Protection Y/N	Y	Y	Y
Packaging	Ammo Pack	Ammo Pack	Ammo Pack
Dimensions	6 mm L	6 mm L	6 mm L
Factory Pack Quantity	500	500	500
