GTCS28-750M-R05-2: Descriptiongas discharge tubes - gdts / gas plasma arrestors 8mm 75v 2pole smt gdt; CategoryCircuit protection; File Size91KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

GTCS28-750M-R05-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GTCS28-750M-R05-2	-	-	View	Buy Now

GTCS28-750M-R05-2 Overview

gas discharge tubes - gdts / gas plasma arrestors 8mm 75v 2pole smt gdt

GTCS28-750M-R05-2 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors
RoHS	Yes
DC Breakover Voltage (Nominal)	75 V
Number of Electrodes	2
Termination Style	SMD/SMT
Failsafe Protection Y/N	Y
Packaging	Ammo Pack
Dimensions	6 mm L
Factory Pack Quantity	500

Preview

Download Datasheet

View All

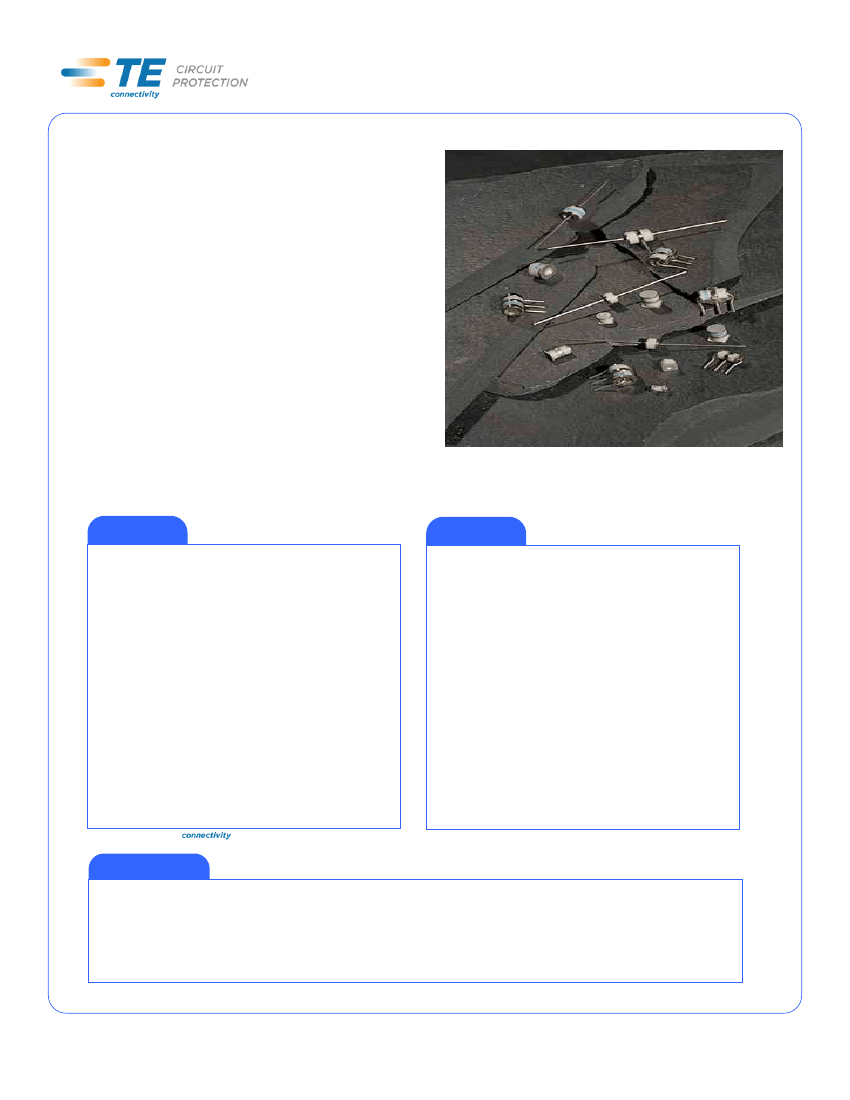

Gas Discharge Tubes

GTCX28-XXXM-R05 Series

TE Circuit Protection Products 8mm 2Pole GDTs

(ceramic gas discharge tubes), are commonly

used to help protect sensitive telecom equipment

such as communication lines, signal lines and data

transmission lines from damage caused by

transient surge voltages that typically result from

lightning strikes and equipment switching

operations.

TE Circuit Protection Products GDTs offer a high

level of surge protection, low capacitance and a

broad array of breakover voltage levels, making

them suitable for applications such as MDF (Main

Distribution Frame) modules, high data-rate

telecom applications (e.g. ADSL, VDSL), and

surge protection on power lines. Raychem Circuit

Protection GDTs, can help equipment meet the

most stringent regulatory standards.

Benefits:

•

Helps provide overvoltage fault protection against

high energy surges

•

Suitable for high-frequency applications

Features:

•

2Pole, 8mm devices

•

Broad voltage range from 75V-600V

•

Various form factors: surface mount, axial leads, no

leads

•

Low capacitance and insertion loss

•

UL 497B recognized

•

RoHS compliant

•

Devices tested per ITU K.12 recommendations

•

Non-radioactive materials

Applications:

•

Telecommunications

- MDF modules, xDSL equipment, RF system

protection, antenna, base station

•

Industrial and consumer electronics, such as

- Surge protectors

- Alarm system

Gas Discharge Tubes

Document: SCD27654

Status: Released

Rev: B

Date: MAY 17, 2011

GTCS28-750M-R05-2 Related Products

	GTCS28-750M-R05-2	GTCS28-601M-R05-2	GTCA28-421M-R05-2	GTCA28-201M-R05	GTCN28-231L-R05
Description	gas discharge tubes - gdts / gas plasma arrestors 8mm 75v 2pole smt gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 600v 2pole smt gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 420v 2pole axial leads gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 200v 2pole axial leads gdt	gas discharge tubes - gdts / gas plasma arrestors 8mm 230v 2pole NO leads gdt
Manufacture	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Product Category	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors	Gas Discharge Tubes - GDTs / Gas Plasma Arrestors
DC Breakover Voltage (Nominal)	75 V	600 V	420 V	200 V	230 V
Number of Electrodes	2	2	2	2	2
Termination Style	SMD/SMT	SMD/SMT	Axial	Axial	SMD/SMT
Failsafe Protection Y/N	Y	Y	Y	Y	Y
Packaging	Ammo Pack	Ammo Pack	Ammo Pack	Tray	Tray
Dimensions	6 mm L	6 mm L	8 mm D x 6 mm L	8 mm D x 6 mm L	8 mm D x 6 mm L
Factory Pack Quantity	500	500	1000	1000	2000
RoHS	Yes	Yes	Yes	-	Yes
