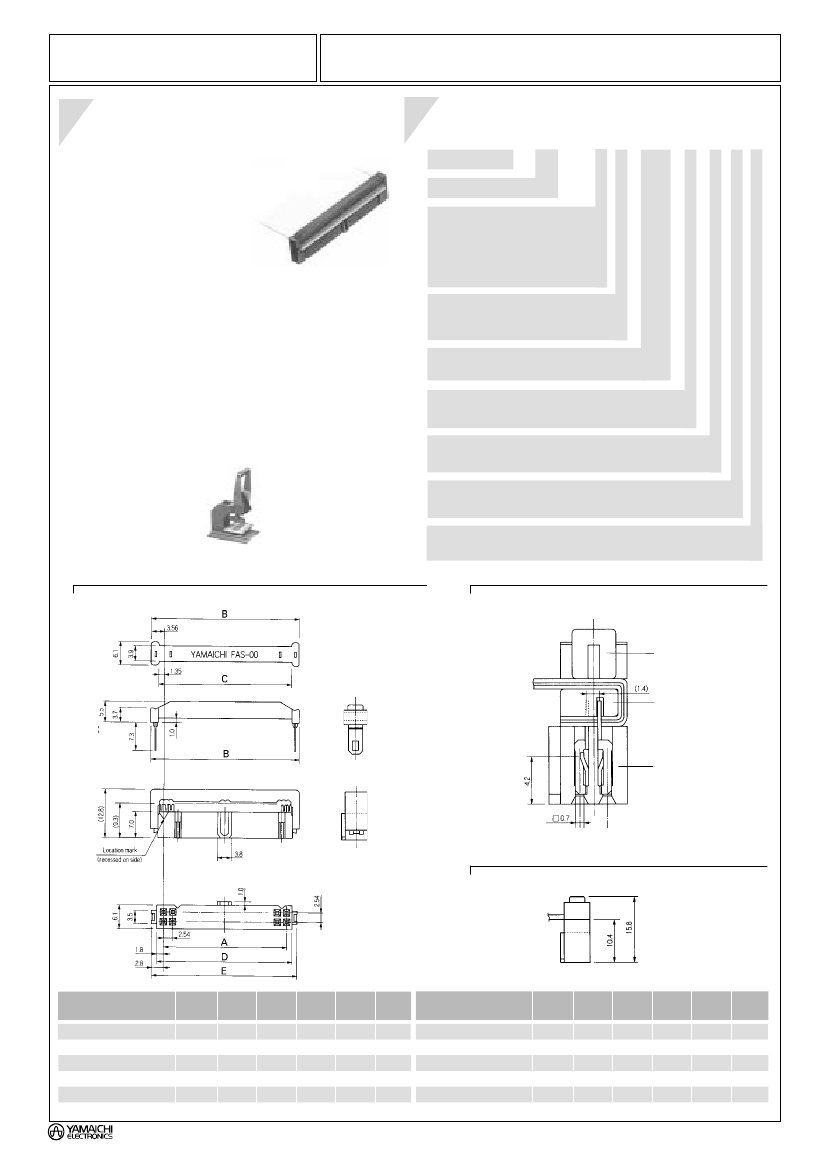

FA Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
MIL Std. IDC Type Socket,
(2.54mm Pitch)
1,000MΩ min. at 500 V DC
700 V AC rms for 1 minute
30mΩ max. at 10mA
1A
–20°C to +105°C
Part Number
(Details)
FAS
- 3401 - 2 1 0 1 - 2 - 0 * F
Series
(socket)
No. of Leads
Housing Type:
1=MIL std. key
(without central key)
2=MIL std. key
(with central key)
3=MIL std. key
(with 2 key slots: 50,
60 or 64 leads only)
Materials and Finish
Housing: PBT, UL 94V-0 rated
Contacts: Copper Alloy
Plating: Contacts - Gold over Nickel
Crimp Terminals - Gold or Tin over Nickel
Features
➭
2.54 mm contact pitch connectors for MIL standard flat cables
➭
Variations include latch header plugs, box header plugs,
and flat cable gang wired sockets
➭
Two types (short latch and middle latch) of latch header
plugs available
Pressure Cover Type:
1 = Open End
2 = Closed End
Strain Relief Option: 00 = without
01 = with
Housing Colour: 1 = Black
2 = Blue (Standard)
0 = Mating Cables (1.27 pitch):
AWG 28 Stranded Wire or AWG 30 Solid Wire
Jigs and Tools
For FAS / FAP Type
➭
Hand press: FX-003
➭
Applicable jig: FA-005
Contact Plating: A = Gold
(
0.76µm over Ni 2.5~4.5µm)
B = Gold
(0.3~0.5µm over Ni 2.5~4.5µm)
Crimp Terminal Plating:
F = Gold Flash over Nickel
(2.5~4.5µm
- Standard)
Applicable Dimensions
(Reference Only)
Contact Details
Strain
Relief
Pressure
Cover
Socket
YAMAICHI ELECTRONICS - Munich 089 / 45109-0
Cable Connection
Part No.
FAS-1001-2101-*-0**
FAS-1401-2101-*-0**
FAS-1601-2101-*-0**
FAS-2001-2101-*-0**
FAS-2601-2101-*-0**
FAS-3001-2101-*-0**
No. of
Leads
10
14
16
20
26
30
A
10.16
16.16
17.78
22.86
30.48
35.56
B
17.28
22.28
24.90
29.98
37.60
42.68
C
12.86
17.86
20.48
25.56
33.18
38.26
D
13.76
18.72
21.38
26.46
34.08
39.16
E
15.76
20.56
23.38
28.46
36.08
41.16
Part No.
FAS-3401-2101-*-0**
FAS-4001-2101-*-0**
FAS-5001-2101-*-0**
FAS-6001-2101-*-0**
FAS-6401-2101-*-0**
No. of
Leads
34
40
50
60
64
A
40.64
48.26
60.96
73.66
78.74
B
47.76
55.38
68.08
80.78
85.86
C
43.34
50.96
63.66
76.36
81.44
D
44.24
51.86
64.56
77.26
82.34
E
46.24
53.86
66.56
79.26
84.34
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
