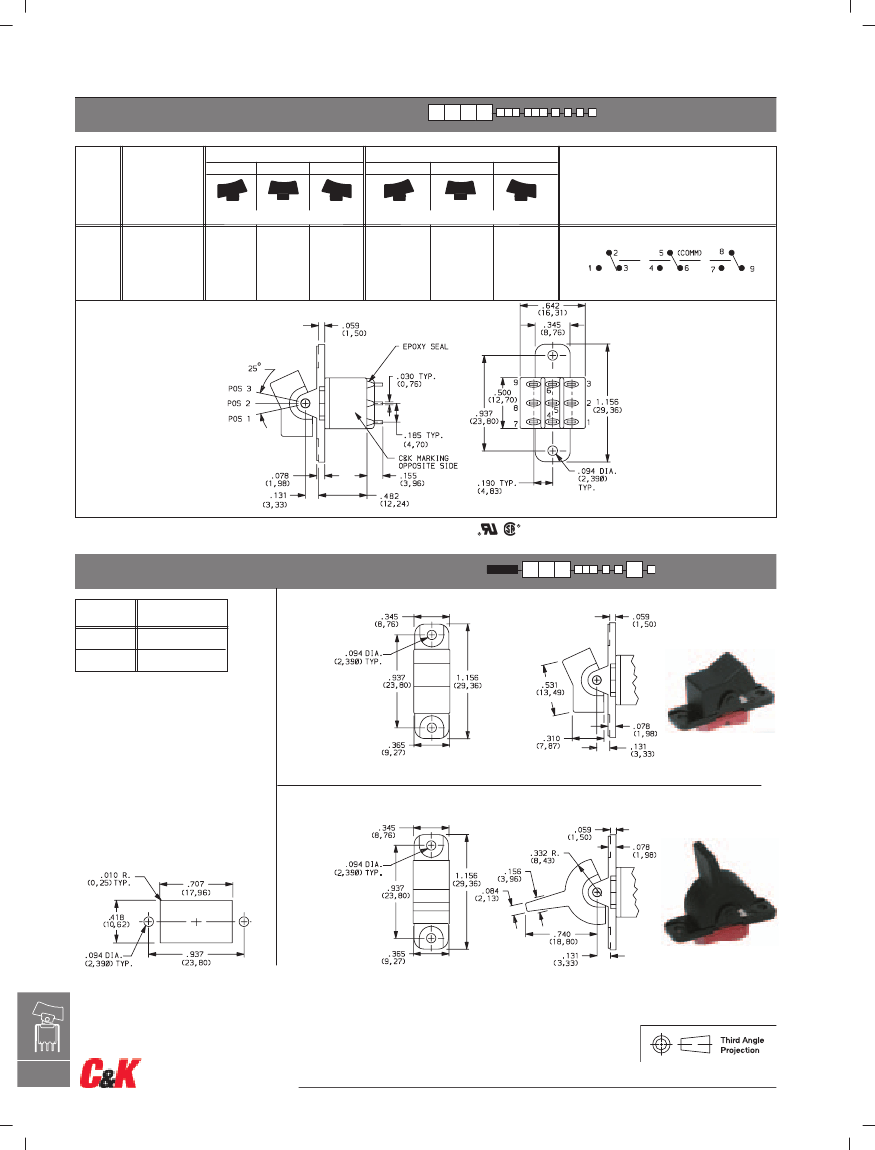

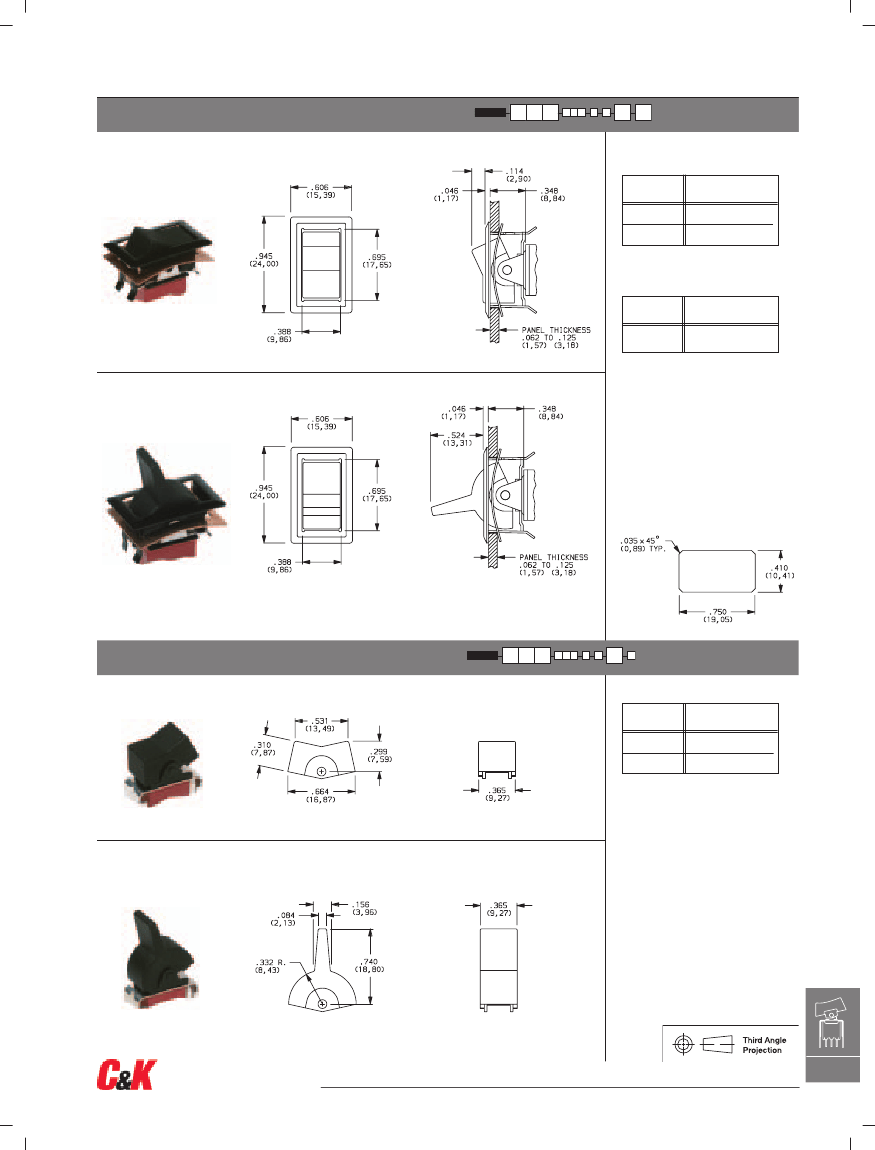

E Series
Sealed Miniature Rocker and Lever Handle Switches
Typical Applications
•
Telecommunications
process contaminants
•
Instrumentation
•
ESD Resistance—all actuator options
•
Computers & peripherals
•
Rocker, case & bushing UL 94V-0
•
RoHS compliant
Features/Benefits
•
Sealed against solder and cleaning
Models Available
Specifications
CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or
DC max. Q contact material (E1XX & E2XX Models): 7.5 AMPS
@125 V AC or 28 V DC; 3 AMPS @ 250 V AC. (E3XX Models):
5 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC.
See page H-37 for additional ratings.
ELECTRICAL LIFE: E1XX and E2XX models: 40,000 make-and-break
cycles at full load. E3XX models: 30,000 cycles.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
ELECTROSTATIC DISCHARGE (ESD) OPTION: All actuator
options: 15,000 V DC max. @ sea level, actuator to terminals.
DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 85ºC.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
Materials
CASE & BUSHING: Glass filled nylon 6/6, flame retardant, heat
stabilized (UL 94V-0).
ACTUATOR: Nylon, black standard, internal o-ring seal standard
with all actuators.
FRAME: Spring steel, black standard.
SWITCH SUPPORT: Brass or steel, matte-tin plated.
ACTUATOR PIVOT & MOUNTING BRACKET: Nylon.
ACTUATOR PIVOT RETAINER: Stainless steel.
CONTACTS & TERMINALS: B contact material: Copper alloy, with gold
plate over nickel plate. Q contact material: Copper alloy, silver
plated. See page H-37 for additional contact materials.
TERMINAL SEAL: Epoxy.
HARDWARE: Nut, Screw & Lockwasher: Stainless steel.
Standoff: Nylon standard, aluminum available, consult Customer
Service Center.
NOTE:
Any models supplied with Q, B, G, S, P & R contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

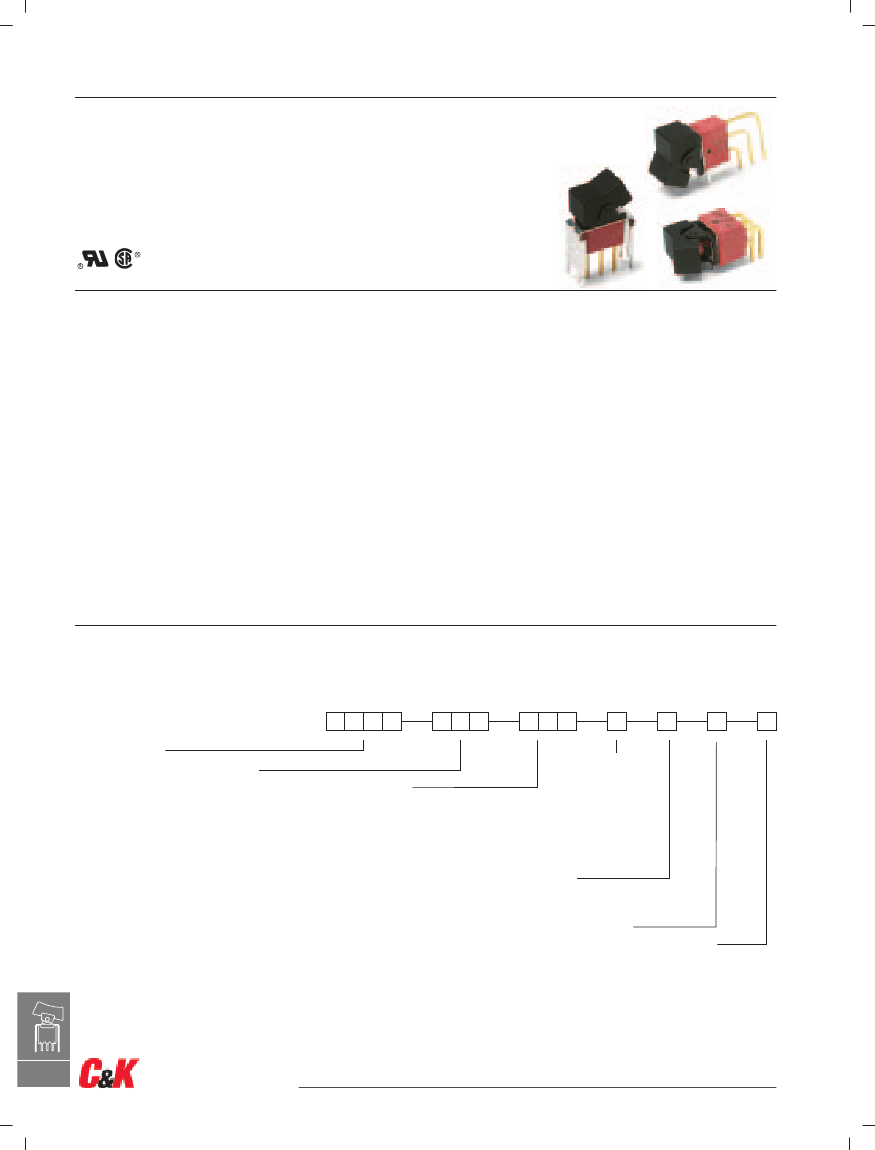

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages H-27 through H-39. For additional options not shown in catalog, consult Customer Service Center. All
models are process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.
Rocker
Switch Function
E101
SP On-None-On
E103
SP On-Off-On
E105
SP Mom.-Off-Mom.
E107
SP On-Off-Mom.
E108
SP On-None-Mom.
E201
DP On-None-On
E203
DP On-Off-On
E205
DP Mom.-Off-Mom.
E207
DP On-Off-Mom.
E208
DP On-None-Mom.
E211
DP On-On-On
E213
DP On-On-Mom.
E215
DP Mom.-On-Mom.
E301
3P On-None-On
Actuator
J1
.531 long rocker
J2
Lever
J3
.906" long rocker
J11
Rocker with frame
J21
Lever with frame
J50
.362" long rocker
J60
Lever
J90
Lever
Terminations
A
Right angle, PC thru-hole
AV2
Vertical right angle, PC thru-hole
C
PC Thru-hole
Z
Solder lug
A3
Right angle, snap-in, PC thru-hole
AV3
Vertical right angle, snap-in, PC thru-hole
V3
.460" high, V-bracket
V4
.630" high, V-bracket
V5
Vertical right angle, PC thru-hole
V6
.460" high, V-bracket
V7
.630" high, V-bracket
V8
.953" high, V-bracket
V21
.555" high, V-bracket, snap-in
V31
.460" high, V-bracket, snap-in
Contact Material
B
Gold
P
Gold, matte tin
Q
Silver
S
Silver, matte-tin
G
Gold over silver
R
Gold over silver, matte-tin
Seal
E
Epoxy
Actuator Color
2
Black
3
Red
Frame Color
2
Black
NONE
No frame color required
Metal Frame Color
(J11, J21 Actuators)
2
Black
H
H–26
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ck-components.com
E Series
Sealed Miniature Rocker and Lever Handle Switches

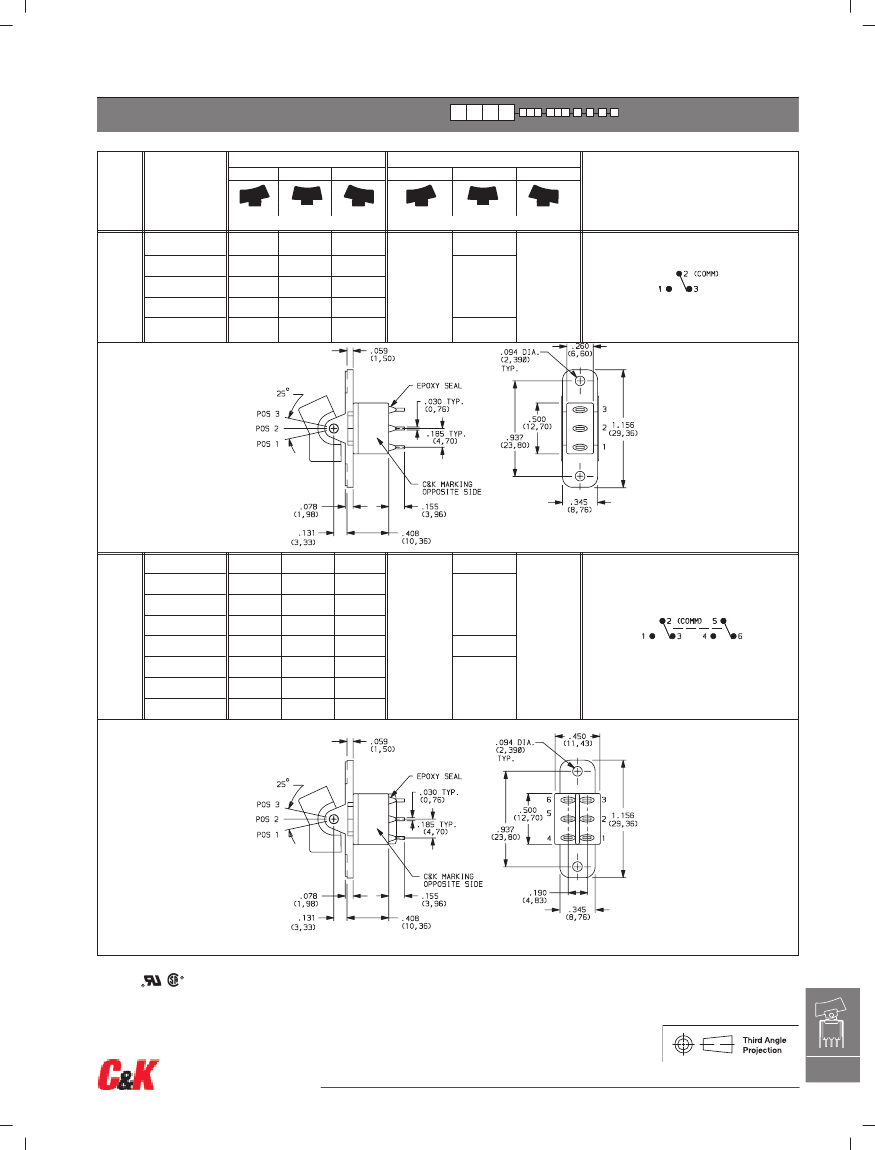

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
CONNECTED TERMINALS
POS. 1
POS. 2
POS. 3
NO.
POLES
MODEL
NO.
C&K marking on opposite side
ON
ON
MOM.
ON
ON
NONE
OFF
OFF
OFF
NONE
ON
ON
MOM.
MOM.
MOM.
C&K marking on opposite side
N/A
SCHEMATIC
E101
E103
SP
E105
E107
E108
2-3
OPEN
2-1
N/A
SPDT
SPDT
Part number shown: E101J1ZBE2
Terminal Nos.
For Reference Only
ON
ON
MOM.
ON
ON
ON
ON
MOM.
NONE
OFF
OFF
OFF
NONE
ON
ON
ON
ON
ON
MOM.
MOM.
2-3,5-6
2-1,5-4
N/A
MOM.
ON
MOM.
MOM.
2-3,5-4
DPDT
OPEN
N/A
E201
E203
E205
E207
DP
E208
E211**
E213**
E215**
DPDT
Rocker
Part number shown: E201J1ZBE2
MOM. = Momentary
All models
contact material.
with all options when ordered with G, Q, R or S
Terminal Nos.
For Reference Only
** Wiring for 3-way switch, Hardware available seperately, see Technical Data section of this catalog.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–27
www.ck-components.com
E Series
Sealed Miniature Rocker and Lever Handle Switches
SWITCH FUNCTION
POS. 1
SWITCH FUNCTION
POS. 2
POS. 3
CONNECTED TERMINALS
POS. 1
POS. 2
POS. 3
NO.
POLES
MODEL
NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
3P
E301
ON
NONE
ON
2-3,5-6,8-9
N/A
2-1,5-4,8-7
3PDT
3PDT
Terminal Nos.
For Reference Only
Part number shown: E301J1ZBE2
MOM. = Momentary
** Wiring for 3-way switch, see Technical Data section of this catalog.
ACTUATOR COLOR
All models
with all options when ordered with G, Q, R and S contact material.
ACTUATOR–PANEL REAR MOUNT
OPTION
CODE
ACTUATOR
COLOR
BLACK
RED
ACTUATOR
J1
LEVER
2
3
Finish: Matte. Other colors, custom actuator mark-
ings and legends available, consult Customer
Service Center.
NOTE:
Hardware: two each—mounting screws,
nuts, lockwashers and standoffs for 1/8 inch thick
panel are supplied standard on switches with panel
mounting bracket. Internal o-ring actuator seal
standard. Actuators available separately, see
page H-37. Hardware available seperately, see
Technical Data section of this catalog. J1, J2 actua-
tors available with C, Z or Z3 terminations.
J2
PANEL MOUNTING
J1 & J2 Actuators
LEVER
Rocker
H
H–28
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ck-components.com
E Series
Sealed Miniature Rocker and Lever Handle Switches
ACTUATOR COLOR
ACTUATOR–REAR MOUNT
J11
ROCKER WITH FRAME
ACTUATOR
FRAME COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
RED
2
3
OPTION
CODE
FRAME COLOR
BLACK
2
NOTE:
This option has reduced anti-static capability.
J21
LEVER WITH FRAME
Actuator finish: Matte, frame finish: gloss.
Other colors, custom actuator markings
and legends available, consult Customer
Service Center.
NOTE:
Internal o-ring actuator seal standard.
Actuators & frames available separately, see
page H-37. Hardware available seperately, see
Technical Data section of this catalog. N. J11
& J21 actuators available with C, Z & Z3 ter-
minations.
PANEL MOUNTING
NOTE:
This option has reduced anti-static capability.
ACTUATOR COLOR
ACTUATOR–PC MOUNT
ACTUATOR
J1
ROCKER
OPTION
CODE
ACTUATOR
COLOR
BLACK
RED
2
3
J2
LEVER
Finish: Matte. Other colors, custom actuator
markings and legends available, consult
Customer Service Center.
NOTE:
Hardware: two each—mounting
screws, nuts, lockwashers and standoffs for
1/8 inch thick panel are supplied standard on
switches with panel mounting bracket. Internal
o-ring actuator seal standard. Actuators
available separately, see page H-37. Hardware
available seperately, see Technical Data sec-
tion of this catalog. J1, J2 actuators available
with A, A3, AV2, AV3, V2-V61 terminations.
Rocker
H
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–29
www.ck-components.com
E Series
Sealed Miniature Rocker and Lever Handle Switches
ACTUATOR COLOR
ACTUATOR–PC MOUNT
ACTUATOR
J3
ROCKER
OPTION
CODE
ACTUATOR
COLOR
BLACK
RED
2
3
Finish: Matte. Other colors, custom actuator
markings and legends available, consult
Customer Service Center.
NOTE:
Hardware: two each—mounting screws,
nuts, lockwashers and standoffs for 1/8 inch
thick panel are supplied standard on switches
with panel mounting bracket. Internal o-ring
actuator seal standard. Actuators available
separately, see page H-37. Hardware available
seperately, see Technical Data section of this
catalog.
J3 actuators available with AV2, AV3
& V2-V61 terminations. Some permissible actua-
tor/termination combinations may lack clearance
between actuator and PC board, and care must
be exercised to accommodate this condition.
J50, J60 & J90 actuators available with
A, AV2, AV3, V2 – V61 terminations.
J50
ROCKER
J60
LEVER
J90
LEVER

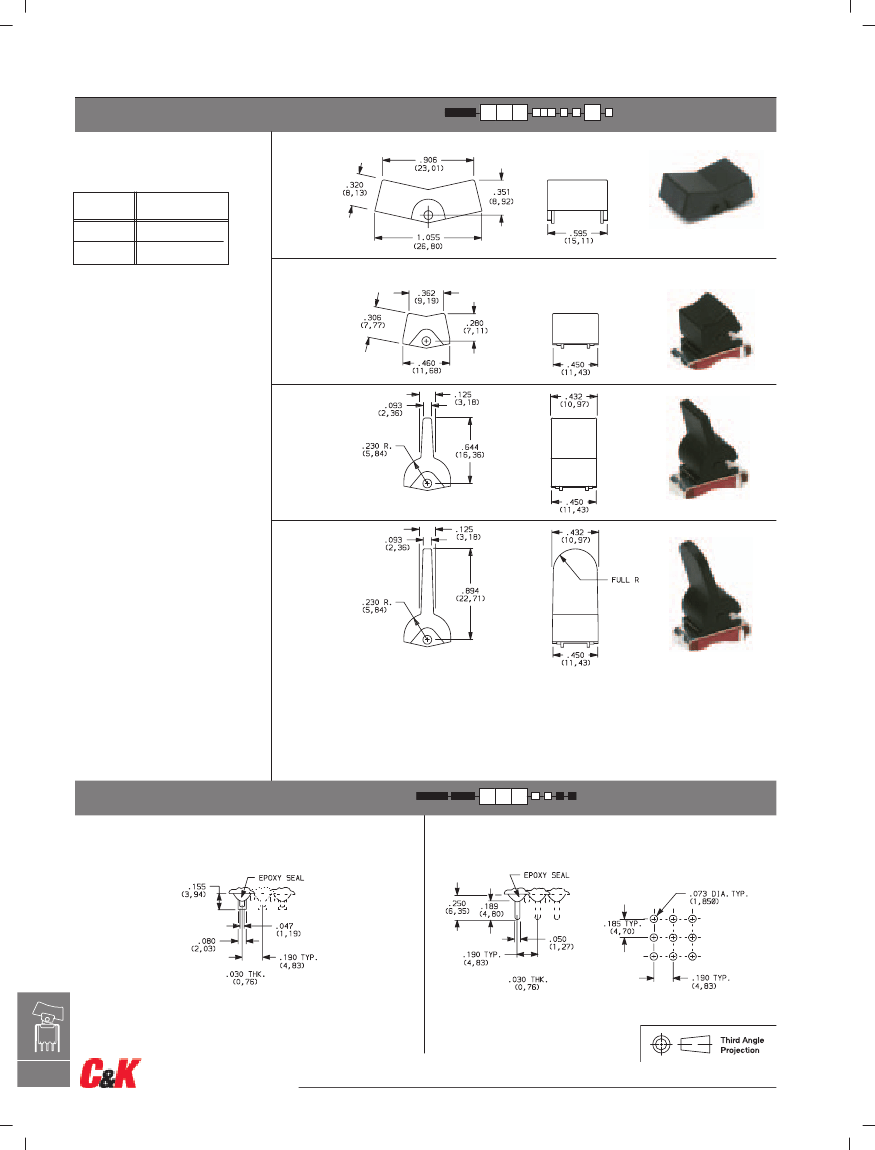

TERMINATIONS
