M83723/76G24436

Description
MIL Series Connector, 43 Contact(s), Aluminum Alloy, Male, Crimp Terminal
CategoryThe connector    The connector
File Size122KB,4 Pages
ManufacturerDefense Logistics Agency
Download Datasheet Parametric View All

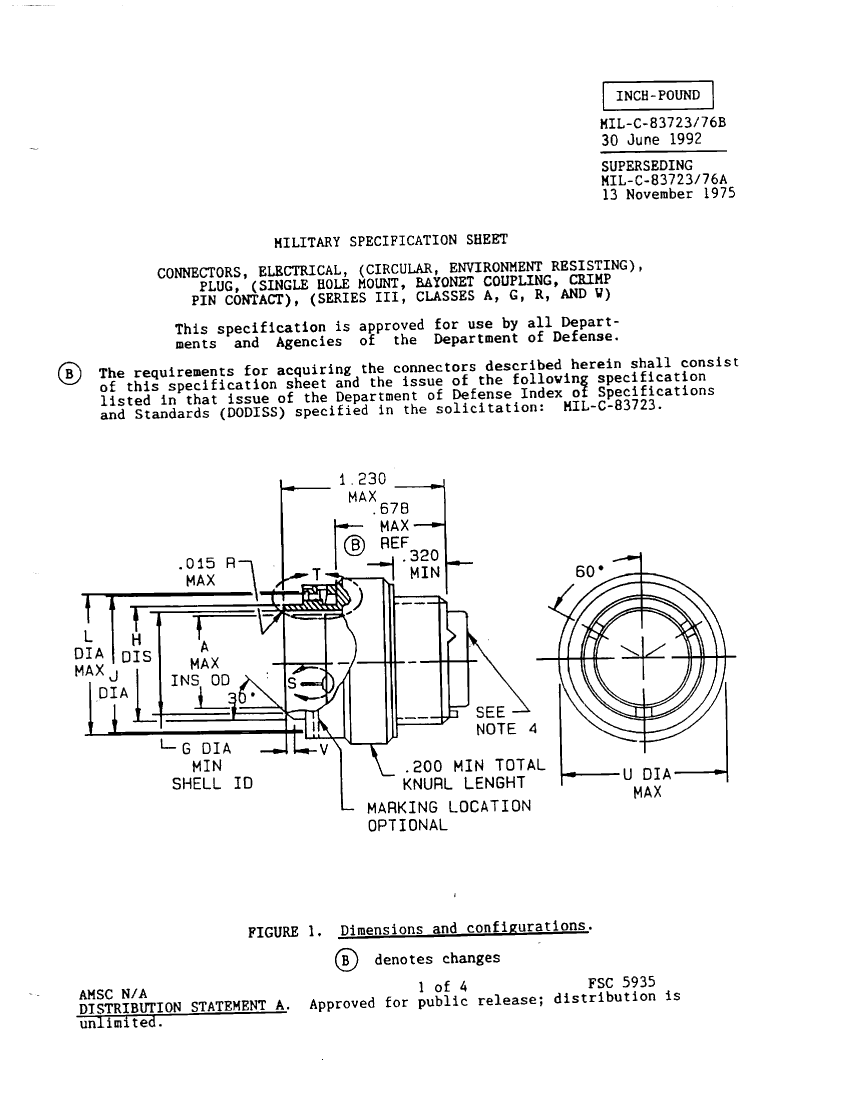

M83723/76G24436 Overview

MIL Series Connector, 43 Contact(s), Aluminum Alloy, Male, Crimp Terminal

M83723/76G24436 Parametric

Parameter NameAttribute value
Objectid1131045117
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL8.5
Other featuresSTANDARD: MIL-C 83723
Rear interface of connectorMS3155 Per Spec=3Teeth

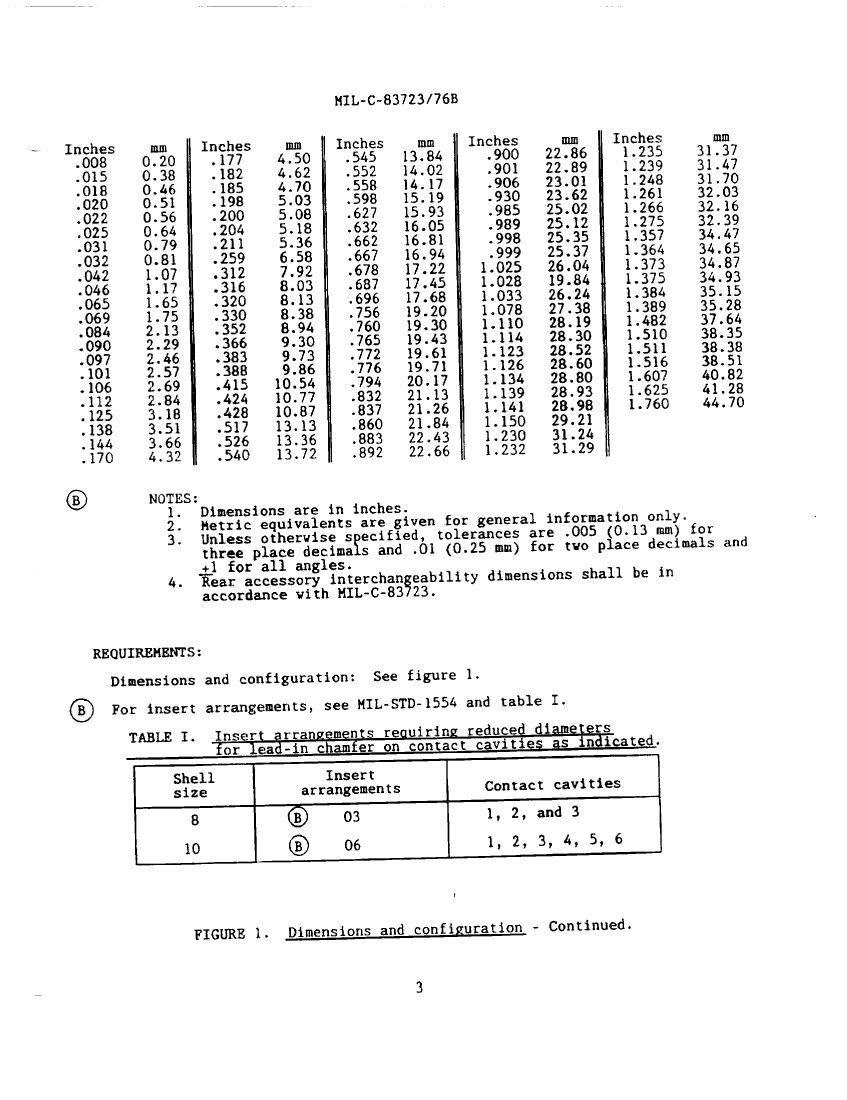

Connector insertion detailsI252
Connector typeMIL SERIES CONNECTOR
Contact point genderMALE
Contact part numberM39029/4-110,M39029/4-111
Number of contacts23,20
Contact size20,16
Contact typeCrp Rear Rlse
Coupling typeBAYONET
other instructionsPlug, Straight
Drawing date and revision30JUN92,B
Environmental characteristicsENVIRONMENT RESISTANT
waterproof levelComplete
MIL complianceYES

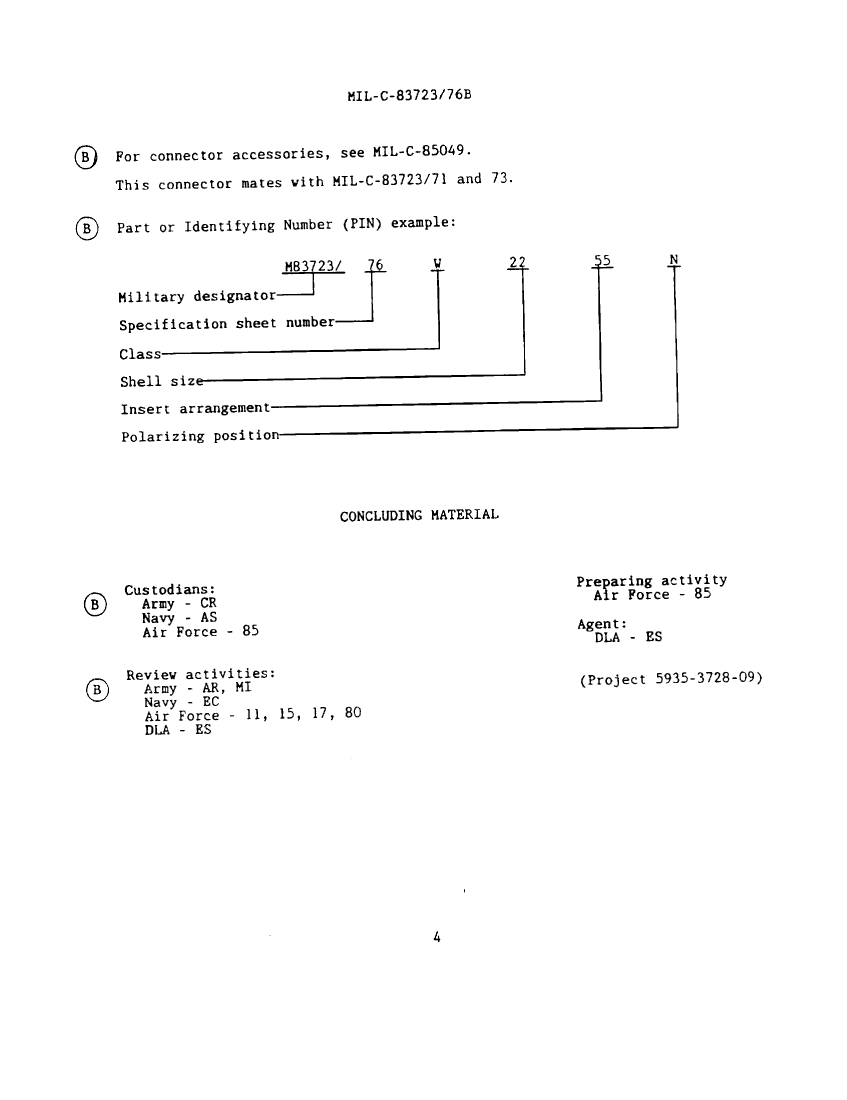

Manufacturer's serial numberM83723/76
Military connector housing0191B
Mixed contactsYES
Maximum operating temperature200 °C
Minimum operating temperature-55 °C

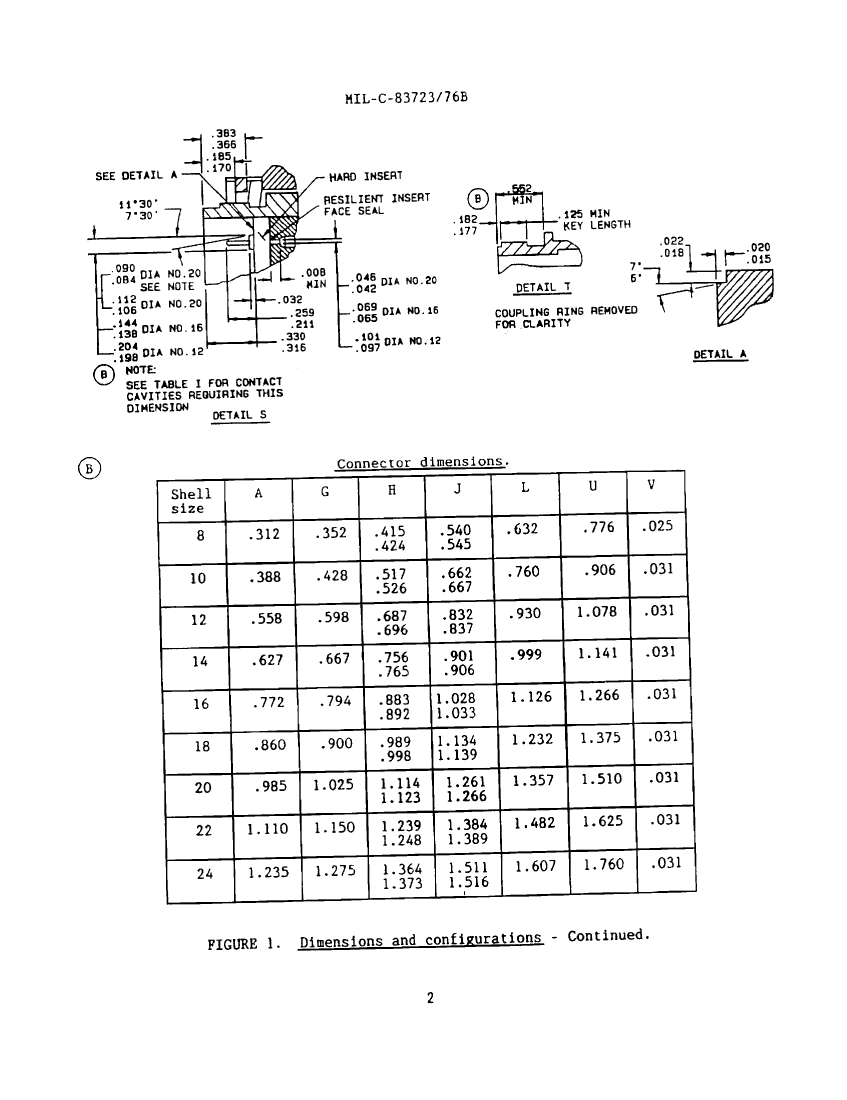

Maximum plug diameter1.76 inch
polarization6
Shell materialALUMINUM ALLOY
Housing size24
Termination typeCRIMP
Total number of contacts43
Unique insertion number24-43
