PS1K50B-215SAB-U: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size268KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1K50B-215SAB-U Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

PS1K50B-215SAB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305275380
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.244 inch
subject depth	0.197 inch
body length	1.42 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	PS1K
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	5u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

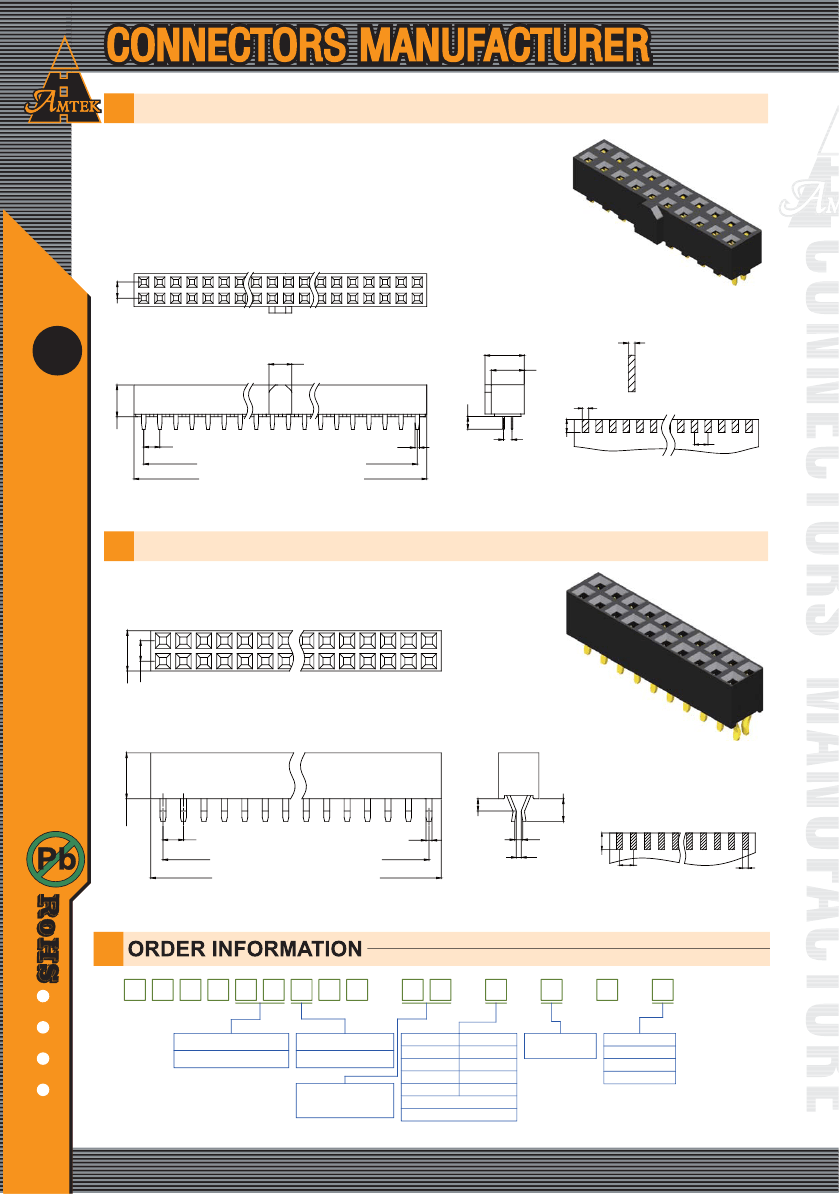

Female Header 2.54mm 2 Row H=5.0mm Straddle Type With Bump

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:P.B.T or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

2.54±0.05

3.60±0.10

2.00±0.25

5.00±0.15

2.40

5.00±0.15

2.54±0.05

5.70±0.15

1.50

2.54±0.10

PIN 0.74x0.40

2.54 X No. of Contacts/2-2.54±0.25

2.54 X No. of Positions+0.50±0.30

3.00

1.00±0.25

0.45 0.65

2.80±0.25

emale Header 2.54mm

6.20±0.15

5.20±0.10

1.20

1.00

2.54±0.10

PIN 0.70x0.25

2.54 X No. of Contacts/2-2.54±0.25

2.54 X No. of Positions+0.50±0.30

1.27±0.25

2.54

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS1K50B-2XX-U

Female Header 2.54mm 2 Row H=5.7mm Straddle Type

2.54

1.02

Recommended P.C.B Layout(TOP Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:PS1K57-2XX-L

P S 1 K X X X - 2

50:Insulator Height H=5.0mm

57:Insulator Height H=5.7mm

Blank:W/O Bump

B:With Bump

X X

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

L:RoHS + P.B.T

(L For PS1K57 Only)

U:RoHS + Nylon 6T

(U For PS1K50B Only)

No. of Contacts per row

(02~40)

T:Tin Plated

TE:Tin 200u"

Standard Recommended

2-130

www.amtek-co.com.tw
