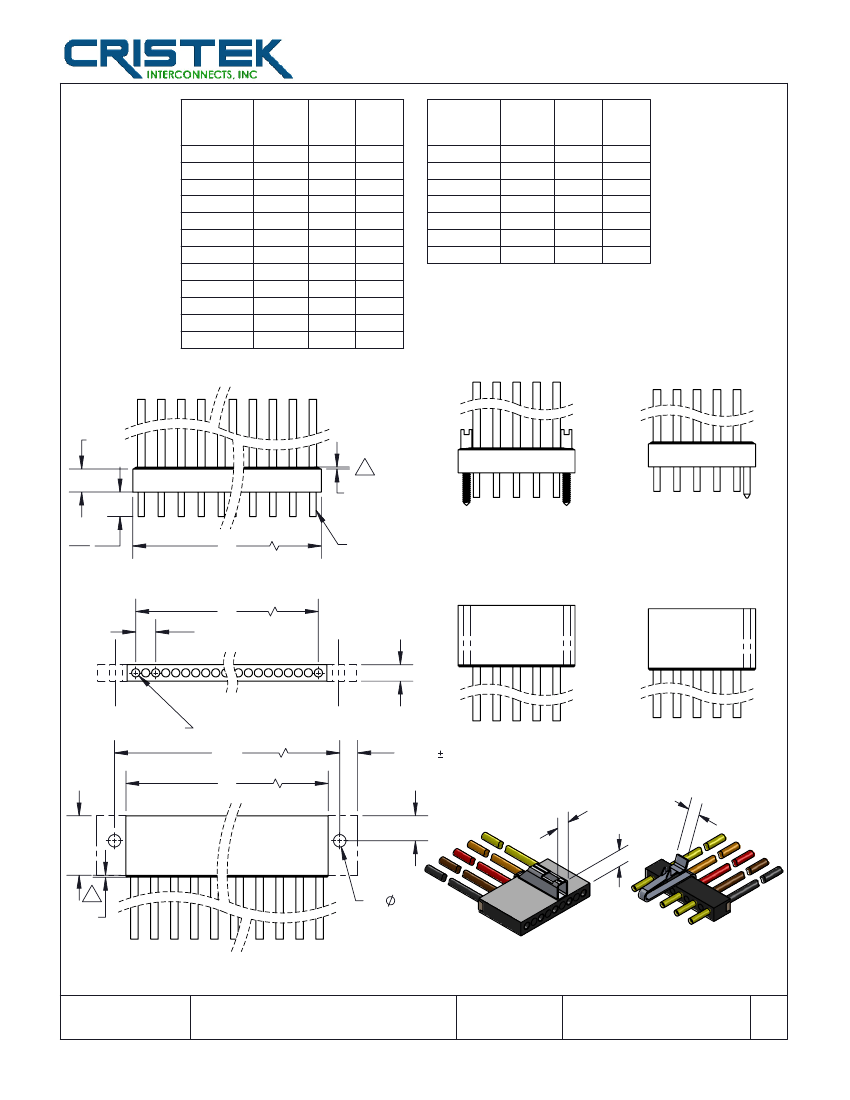

CENTI-STRIP
(.100 SPACING MICRO STRIP)
THINGS TO KNOW ABOUT MICRO STRIPS
1. FOR ORDERING PURPOSES SPECIFY ONLY
THE NUMBER OF CONTACTS NEEDED,
DO NOT INCLUDE POSITIONS FOR HARDWARE.
2. IF HARDWARE IS ORDERED, EXCEPT FOR LATCHES
IT IS INSTALLED IN THE RECEPTACLE. BE SURE
TO ORDER PLUGS TO ACCEPT HARDWARE.
3. HARDWARE CAN BE MODIFIED, COMBINED OR POSITIONED
TO CONFORM TO CUSTOMER SPECIFICATIONS.
PLEASE CONTACT CRISTEK FOR FURTHER INFORMATION.
SERIES
CCS
CCS XX X
CRISTEK PLASTIC
MICRO STRIP
NUMBER OF CONTACTS
02 - 25*** (SEE TABLE)
GENDER
P = PLUG, PIN CONTACTS
S = RECEPTACLE, SOCKET CONTACTS
X X X XXX
XX
TH
THROUGH HOLE **
- OMIT IF NOT APPLICABLE
(THROUGH HOLE AVAILABLE ONLY
IN PLUG CONFIGURATION)
GUIDE PIN POLARIZING POSITION
- OMIT IF NOT APPLICABLE
(THE CONTACT NUMBER THE GUIDE PIN
WILL FOLLOW - i.e. "6"; THE GUIDE PIN
WILL FALL BETWEEN CONTACT #6 & #7)
WIRE LENGTH (+1.00 / -0.00)
STRANDED
1 = 6 INCHES
2 = 12 INCHES
3 = 18 INCHES
4 = 24 INCHES
5 = 36 INCHES
6 = 72 INCHES
SOLID COPPER (+0.20 / -0.00)
1 = 0.5 INCH
2 = 1.0 INCH
3 = 0.25 INCH
WIRE SIZE
STRANDED WIRE
0 = 26 AWG
1 = 24 AWG
2 = 28 AWG
SOLID WIRE
0 = 25 AWG
1 = 24 AWG
WIRE COLOR/TYPE
0 = WHITE STRANDED *
1 = YELLOW STRANDED
2 = 10 SOLID COLORS REPEATED *
3 = FULL COLOR CODE STRANDED
9 = SOLID COPPER *
HARDWARE
0 = NO HARDWARE INSTALLED
B = GUIDE PIN BEFORE CONTACT 1 IN RECEPTACLE,
CORRESPONDING HOLE IN PLUG
(NOTE: ADD .050 TO DIMENSIONS A & B)
D = GUIDE PIN AT BOTH ENDS OF RECEPTACLE,
CORRESPONDING HOLES IN PLUG
(NOTE: ADD .100 TO DIMENSIONS A & B)
G = GUIDE PIN IN RECEPTACLE OR CORRESPONDING
HOLE IN PLUG (INDICATE POSITION IN PLUG
OR RECEPTACLE AT END OF PART NO.)
S = 1 MM COUPLING SCREW AT BOTH ENDS OF
RECEPTACLE, CORRESPONDING HOLES IN PLUG
(NOTE: ADD .100 TO DIMENSIONS A & B)
L = LATCH INSTALLED IN CENTER POSITION.
(IN CONNECTORS WITH UNEVEN NUMBER OF
CONTACTS, LATCH WILL BE INSTALLED IN THE
CAVITY ONE POSITION HIGHER THAN THE
CENTER POSITION.)
INSULATOR MATERIAL
5 = POLYPHENYLENE SULFIDE
TERMINATION
0000 - SOLDER CUP *
WIRE TYPE
STRANDED
H = HARNESS (MIL-W-16878/4)
M = MILITARY (MIL-W-22759/11) *
S = SPACE (MIL-W-22759/33)
SOLID
G = GOLD PLATED COPPER
T = SOLDER DIPPED COPPER *
MATERIALS AND FINISHES ARE IAW MIL-DTL-83513
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
INSULATOR - GLASS FILLED THERMOPLASTIC
PIN/SOCKET CONTACT - COPPER ALLOY
CONTACT - GOLD OVER NICKEL
* = MOST COMMONLY USED & STOCKED TERMINATION OPTIONS
** = DIMENSIONS / INFORMATION FOR THROUGH HOLE MOUNTING OPTION
*** = SIZE 25 NOT AVAILABLE WITH END MOUNTED HARDWARE.
3. SPECIFICATIONS:
2. FINISH:
CURRENT RATING ------------------ 3 AMPS MAX
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS MIN
DWV AT SEA LEVEL ---------------- 600 VAC
DWV AT 70,000 FT ALTITUDE --- 150 VAC
CONTACT RESISTANCE ------------ 8 MILLIOHMS MAX AT 2.5 AMPS
LOW LEVEL CONTACT ------------- 10 MILLIOHMS MAX
RESISTANCE
CONTACT RETENTION ------------- 5 lb MINIMUM AXIAL LOAD
ENGAGEMENT FORCE ------------- 6 oz MAX
SEPARATION FORCE --------------- 0.5 oz MIN
4. ADDITIONAL INFORMATION:
CONTACT CRISTEK FOR OTHER
CONFIGURATIONS.
5 STANDARD HEIGHT OF EPOXY. SOME
SIZES AND APPLICATIONS MAY REQUIRE
ADDITIONAL STRAIN RELIEF.
CONTACT CRISTEK FOR DETAILS.
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
CENTI-STRIP
(.100 SPACING MICRO STRIP)
DWG. NO.
SHT
2
OF
2
CCS
CRISTEK.COM
888.265.9162
G
REV
