NOTES
1 MATERIAL:
BODY: HIGH TEMPERATURE
GLASS FILLED LCP, BLACK
UL94V-0
CONTACTS: COPPER ALLOY
2 PLATING:
2.03-3.81
m
[80-150
in]
NICKEL UNDERPLATE.
0.38
m
[15
in] OR
0.76
m
[30 in] AVG GOLD
ON WIPING AREA.
5.08
m
[200
in] MIN
MATTE TIN ON SOLDER TAILS.
3 STANDARD LENGTH HEADERS
MATE WITH 3M
TM
SOCKETS,
158 SERIES (REFERENCE 3M
DRAWING 78-5100-2358-9).

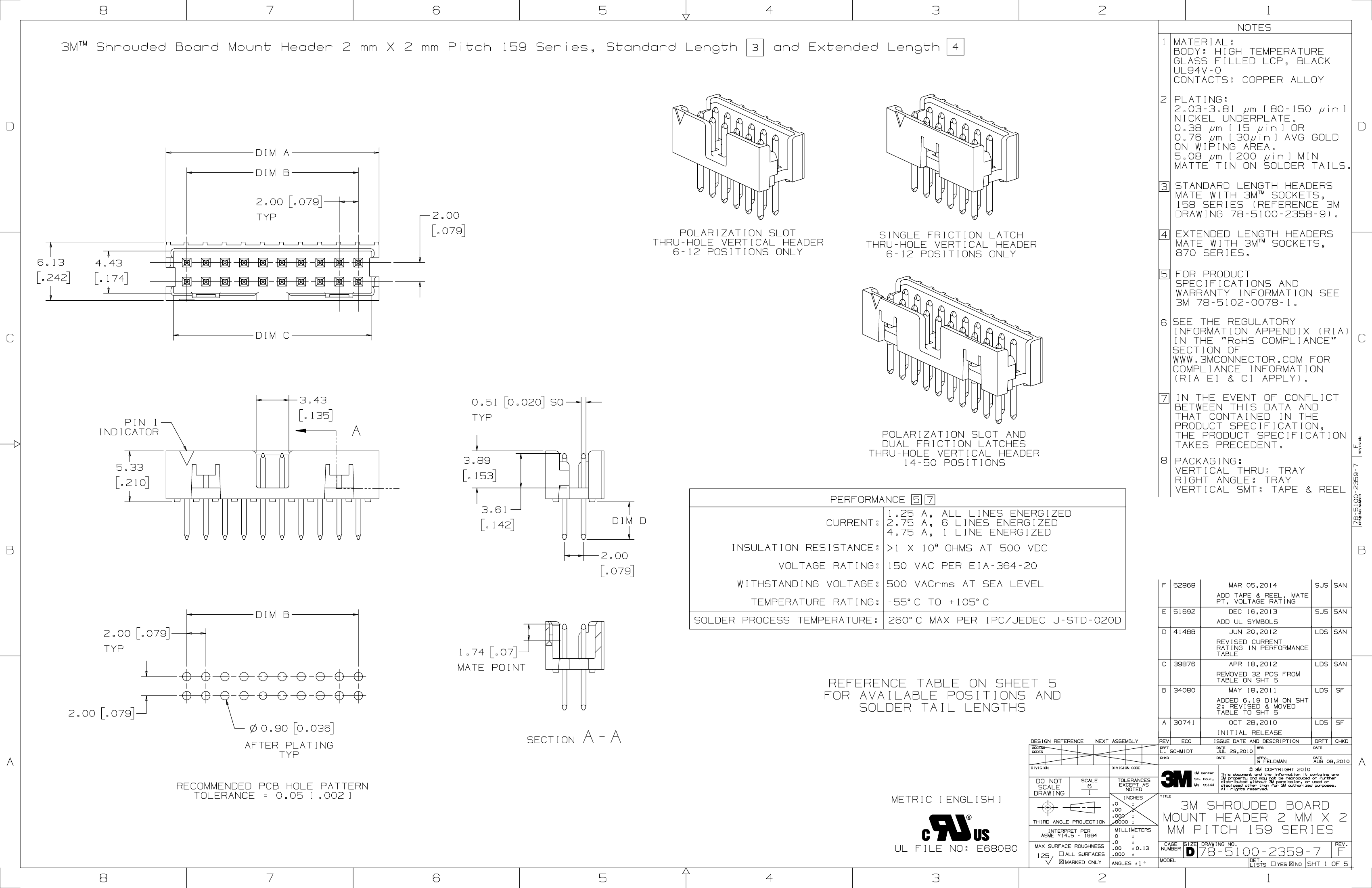

Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Standard Length
and Extended Length
D
DIM A
DIM B
2.00 .079
TYP
2.00
.079
POLARIZATION SLOT
THRU-HOLE VERTICAL HEADER
6-12 POSITIONS ONLY
SINGLE FRICTION LATCH
THRU-HOLE VERTICAL HEADER
6-12 POSITIONS ONLY
D
4 EXTENDED LENGTH HEADERS
MATE WITH 3M
TM
SOCKETS,
870 SERIES.
5 FOR PRODUCT
SPECIFICATIONS AND
WARRANTY INFORMATION SEE
3M 78-5102-0078-1.
6 SEE THE REGULATORY
INFORMATION APPENDIX (RIA)
IN THE "RoHS COMPLIANCE"
SECTION OF
WWW.3MCONNECTOR.COM FOR
COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY).
6.13
.242
4.43
.174
C
DIM C
C
3.43
PIN 1
INDICATOR
.135
0.51 0.020 SQ
TYP
5.33
.210
.153
PERFORMANCE 5 7
3.61
.142
DIM D
1.25 A, ALL LINES ENERGIZED
CURRENT: 2.75 A, 6 LINES ENERGIZED
4.75 A, 1 LINE ENERGIZED
INSULATION RESISTANCE: >1 X 10
9
OHMS AT 500 VDC
VOLTAGE RATING: 150 VAC PER EIA-364-20
WITHSTANDING VOLTAGE: 500 VACrms AT SEA LEVEL
TEMPERATURE RATING: -55 C TO +105 C
DIM B
78-5100-2359-7
3.89
8 PACKAGING:
VERTICAL THRU: TRAY
RIGHT ANGLE: TRAY
VERTICAL SMT: TAPE & REEL
B
2.00
.079
B
F
52868
MAR 05,2014
ADD TAPE & REEL, MATE
PT, VOLTAGE RATING
E
51692
DEC 16,2013
ADD UL SYMBOLS
D
41488
JUN 20,2012
REVISED CURRENT
RATING IN PERFORMANCE
TABLE
C
39876
APR 18,2012
REMOVED 32 POS FROM
TABLE ON SHT 5
B
34080
MAY 18,2011
ADDED 6.19 DIM ON SHT
2; REVISED & MOVED
TABLE TO SHT 5
A
30741
ECO
SJS SAN
SJS SAN
SOLDER PROCESS TEMPERATURE:
260 C MAX PER IPC/JEDEC J-STD-020D
2.00 .079
TYP
1.74 .07
MATE POINT
LDS SAN
LDS SAN
2.00 .079
0.90 0.036
AFTER PLATING
TYP
SECTION
REFERENCE TABLE ON SHEET 5
FOR AVAILABLE POSITIONS AND
SOLDER TAIL LENGTHS
LDS
SF
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
SF
CHKD
A-A
DESIGN REFERENCE
ACCESS
CODES
NEXT ASSEMBLY
REV
DRFT
L. SCHMIDT
CHKD
JUL 29,2010
DATE
APPVL
DATE
A
S FELDMAN
DIVISION
DIVISION CODE
3M Center
AUG 09,2010
A
C
St. Paul,
MN
55144
3M COPYRIGHT 2010
RECOMMENDED PCB HOLE PATTERN
TOLERANCE = 0.05 [.002]
METRIC [ENGLISH]
R
DO NOT
SCALE
DRAWING
SCALE
6
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
0.13
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
3M SHROUDED BOARD
MOUNT HEADER 2 MM X 2
MM
PITCH 159 SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
UL FILE NO: E68080
MAX SURFACE ROUGHNESS
125
ALL SURFACES
MARKED ONLY
78-5100-2359-7
DET.
LISTS
YES
NO
F
1
SHT 1 OF 5
8
7
6
5
4
3
2
1
DRAWING NUMBER
REVISION
A
POLARIZATION SLOT AND
DUAL FRICTION LATCHES
THRU-HOLE VERTICAL HEADER
14-50 POSITIONS
7 IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND
THAT CONTAINED IN THE
PRODUCT SPECIFICATION,
THE PRODUCT SPECIFICATION
TAKES PRECEDENT.
F
8
3M
TM
7
6
5
3
4
3
4
2
1

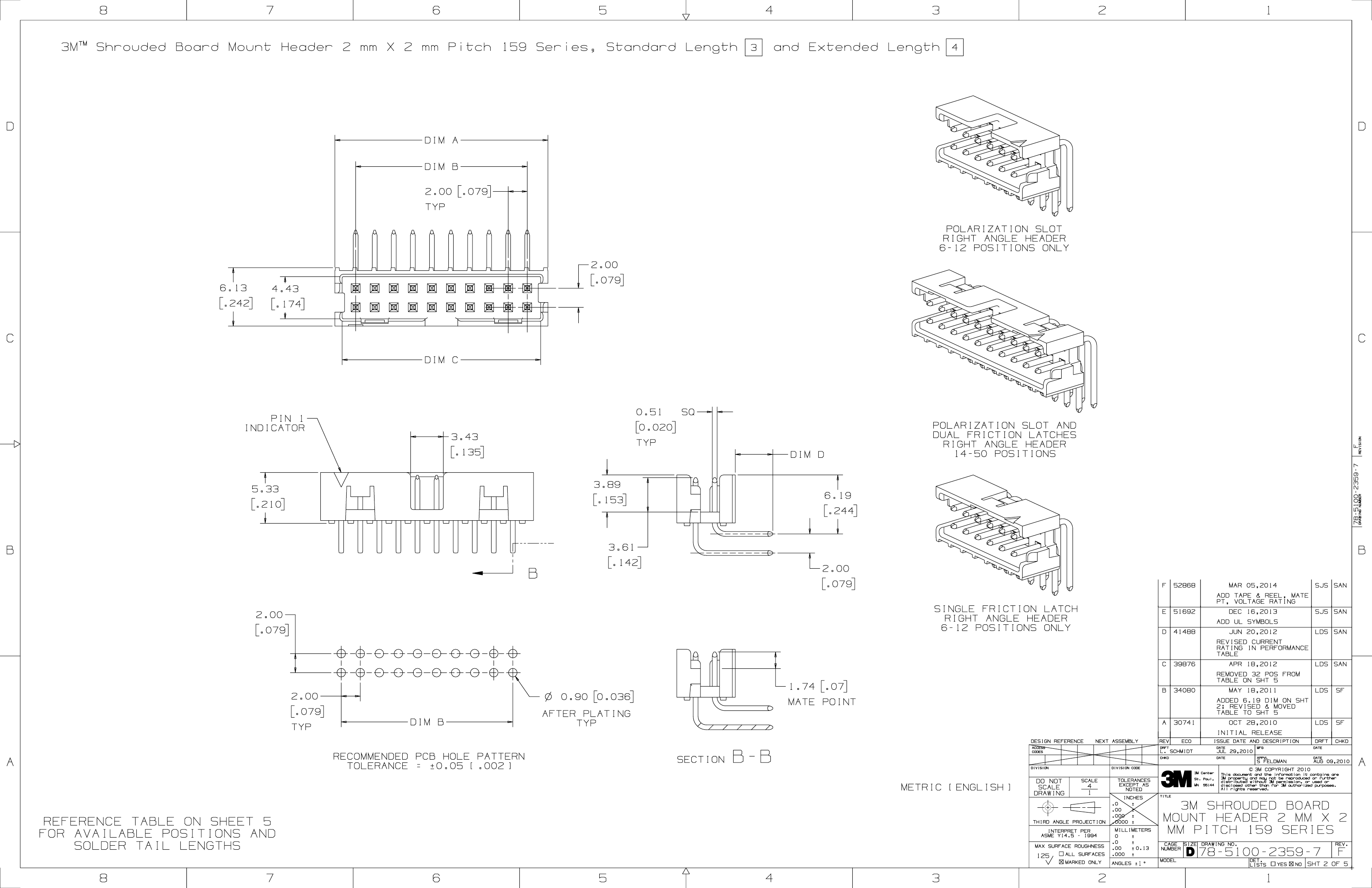

Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Standard Length
and Extended Length
D
DIM A
DIM B
2.00 .079
TYP
POLARIZATION SLOT
RIGHT ANGLE HEADER
6-12 POSITIONS ONLY
2.00
6.13
.242
.079
4.43
.174
D
C
DIM C
C
PIN 1
INDICATOR
3.43
.135
0.51
0.020
TYP
SQ
POLARIZATION SLOT AND
DUAL FRICTION LATCHES
RIGHT ANGLE HEADER
14-50 POSITIONS
REVISION
DRAWING NUMBER
DIM D
5.33
.210
3.89
.153
6.19
.244
B
3.61
.142
B
2.00
.079
2.00
.079
SINGLE FRICTION LATCH
RIGHT ANGLE HEADER
6-12 POSITIONS ONLY
F
52868
MAR 05,2014
ADD TAPE & REEL, MATE
PT, VOLTAGE RATING
E
51692
DEC 16,2013
ADD UL SYMBOLS
D
41488
JUN 20,2012
REVISED CURRENT
RATING IN PERFORMANCE
TABLE
C
39876
APR 18,2012
REMOVED 32 POS FROM
TABLE ON SHT 5
B
34080
MAY 18,2011
ADDED 6.19 DIM ON SHT
2; REVISED & MOVED
TABLE TO SHT 5
A
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
SJS SAN
SJS SAN
LDS SAN
LDS SAN
1.74 .07
2.00
.079
TYP
DIM B
0.90 0.036
AFTER PLATING
TYP
MATE POINT
LDS
SF
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
SF
CHKD
A
RECOMMENDED PCB HOLE PATTERN
TOLERANCE =
0.05 [.002]
SECTION
B-B
METRIC [ENGLISH]
ACCESS
CODES
L. SCHMIDT
CHKD
JUL 29,2010
DATE
APPVL
DATE
S FELDMAN
DIVISION
DIVISION CODE
3M Center
AUG 09,2010
C
St. Paul,
MN
55144
3M COPYRIGHT 2010
DO NOT
SCALE
DRAWING
SCALE
4
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
0.13
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
REFERENCE TABLE ON SHEET 5
FOR AVAILABLE POSITIONS AND
SOLDER TAIL LENGTHS
8
7
6
5
4
3
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
3M SHROUDED BOARD
MOUNT HEADER 2 MM X 2
MM
PITCH 159 SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2359-7
DET.
LISTS
YES
NO
F
1
SHT 2 OF 5
2
1
78-5100-2359-7
F
B
A
8
3M
TM
7
6
5
3
4
3
4
2
1

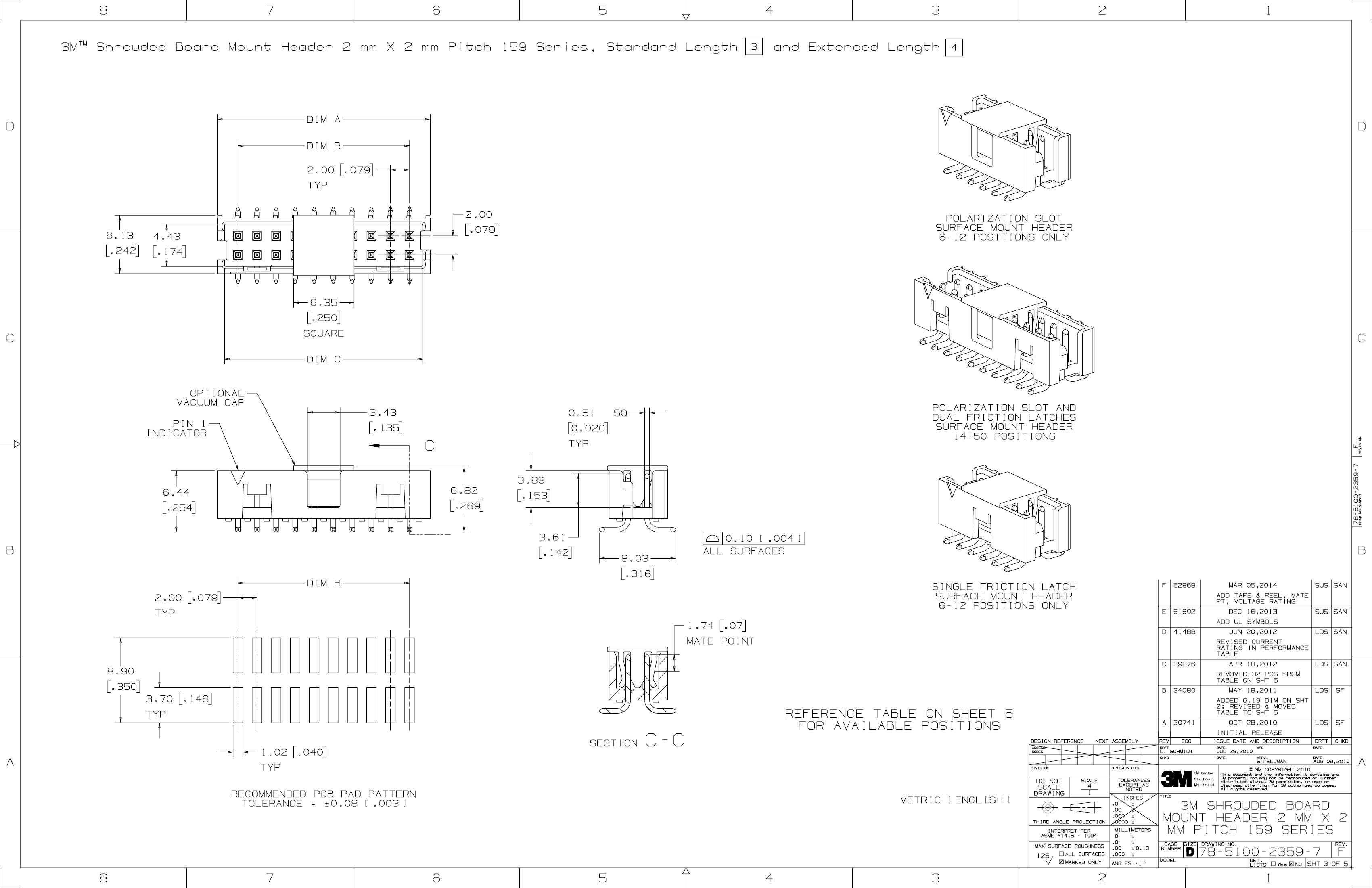

Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Standard Length
and Extended Length
D
DIM A
DIM B
2.00 .079
TYP
2.00
6.13
.242
4.43
.174
.079
D
POLARIZATION SLOT
SURFACE MOUNT HEADER
6-12 POSITIONS ONLY
6.35
.250
C
SQUARE
DIM C
C
OPTIONAL
VACUUM CAP
3.43
PIN 1
INDICATOR
.135
0.51
0.020
SQ
C
3.89
6.44
.254
6.82
.269
.153
78-5100-2359-7
F
TYP
3.61
B
DIM B
2.00 .079
TYP
.142
8.03
.316
0.10 [.004]
ALL SURFACES
B
SINGLE FRICTION LATCH
SURFACE MOUNT HEADER
6-12 POSITIONS ONLY
F
52868
MAR 05,2014
ADD TAPE & REEL, MATE
PT, VOLTAGE RATING
E
51692
DEC 16,2013
ADD UL SYMBOLS
D
41488
JUN 20,2012
REVISED CURRENT
RATING IN PERFORMANCE
TABLE
C
39876
APR 18,2012
REMOVED 32 POS FROM
TABLE ON SHT 5
B
34080
MAY 18,2011
ADDED 6.19 DIM ON SHT
2; REVISED & MOVED
TABLE TO SHT 5
A
DESIGN REFERENCE
ACCESS
CODES
SJS SAN
SJS SAN
1.74 .07
MATE POINT
LDS SAN
LDS SAN
8.90
.350
3.70 .146
TYP
SECTION
1.02 .040
LDS
SF
REFERENCE TABLE ON SHEET 5
FOR AVAILABLE POSITIONS
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
SF
CHKD
C-C
NEXT ASSEMBLY
REV
DRFT
L. SCHMIDT
CHKD
JUL 29,2010
DATE
APPVL
DATE
A
S FELDMAN
AUG 09,2010
TYP
RECOMMENDED PCB PAD PATTERN
TOLERANCE =
0.08 [.003]
DIVISION
DIVISION CODE
3M Center
A
C
St. Paul,
MN
55144
3M COPYRIGHT 2010
DO NOT
SCALE
DRAWING
SCALE
4
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
0.13
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
METRIC [ENGLISH]
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
3M SHROUDED BOARD
MOUNT HEADER 2 MM X 2
MM
PITCH 159 SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2359-7
DET.
LISTS
YES
NO
F
1
SHT 3 OF 5
8
7
6
5
4
3
2
1
DRAWING NUMBER
REVISION
POLARIZATION SLOT AND
DUAL FRICTION LATCHES
SURFACE MOUNT HEADER
14-50 POSITIONS
8
7
6
5
4
3
2
1
3M
TM

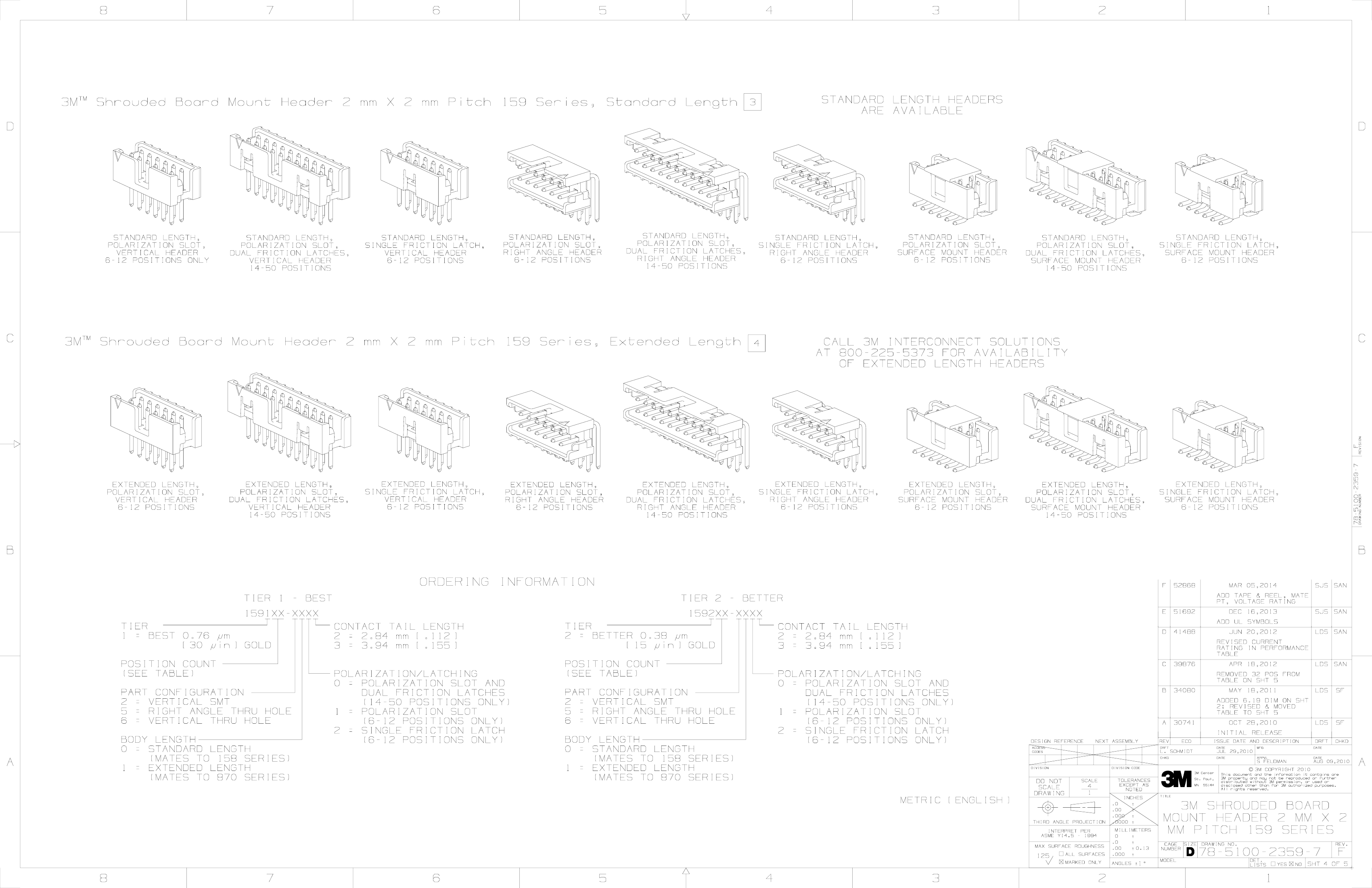

Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Standard Length
D
3
STANDARD LENGTH HEADERS
ARE AVAILABLE
D
STANDARD LENGTH,
POLARIZATION SLOT,
VERTICAL HEADER
6-12 POSITIONS ONLY
STANDARD LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
VERTICAL HEADER
14-50 POSITIONS
STANDARD LENGTH,
SINGLE FRICTION LATCH,
VERTICAL HEADER
6-12 POSITIONS
STANDARD LENGTH,
POLARIZATION SLOT,
RIGHT ANGLE HEADER
6-12 POSITIONS
STANDARD LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
RIGHT ANGLE HEADER
14-50 POSITIONS
STANDARD LENGTH,
SINGLE FRICTION LATCH,
RIGHT ANGLE HEADER
6-12 POSITIONS
STANDARD LENGTH,
POLARIZATION SLOT,
SURFACE MOUNT HEADER
6-12 POSITIONS
STANDARD LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
SURFACE MOUNT HEADER
14-50 POSITIONS
STANDARD LENGTH,
SINGLE FRICTION LATCH,
SURFACE MOUNT HEADER
6-12 POSITIONS
C
3M
TM
Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Extended Length
4
CALL 3M INTERCONNECT SOLUTIONS
AT 800-225-5373 FOR AVAILABILITY
OF EXTENDED LENGTH HEADERS
C
B
ORDERING INFORMATION
TIER 1 - BEST
1591XX-XXXX
TIER
1 = BEST 0.76
m
[30
in] GOLD
POSITION COUNT
(SEE TABLE)
PART CONFIGURATION
2 = VERTICAL SMT
5 = RIGHT ANGLE THRU HOLE
6 = VERTICAL THRU HOLE
BODY LENGTH
0 = STANDARD LENGTH
(MATES TO 158 SERIES)
1 = EXTENDED LENGTH
(MATES TO 870 SERIES)
CONTACT TAIL LENGTH
2 = 2.84 mm [.112]
3 = 3.94 mm [.155]
POLARIZATION/LATCHING
0 = POLARIZATION SLOT AND
DUAL FRICTION LATCHES
(14-50 POSITIONS ONLY)
1 = POLARIZATION SLOT
(6-12 POSITIONS ONLY)
2 = SINGLE FRICTION LATCH
(6-12 POSITIONS ONLY)
TIER 2 - BETTER
1592XX-XXXX
TIER
2 = BETTER 0.38
m
[15
in] GOLD
POSITION COUNT
(SEE TABLE)
PART CONFIGURATION
2 = VERTICAL SMT
5 = RIGHT ANGLE THRU HOLE
6 = VERTICAL THRU HOLE
BODY LENGTH
0 = STANDARD LENGTH
(MATES TO 158 SERIES)
1 = EXTENDED LENGTH
(MATES TO 870 SERIES)
CONTACT TAIL LENGTH
2 = 2.84 mm [.112]
3 = 3.94 mm [.155]
POLARIZATION/LATCHING
0 = POLARIZATION SLOT AND
DUAL FRICTION LATCHES
(14-50 POSITIONS ONLY)
1 = POLARIZATION SLOT
(6-12 POSITIONS ONLY)
2 = SINGLE FRICTION LATCH
(6-12 POSITIONS ONLY)
E
51692
F
52868
MAR 05,2014
ADD TAPE & REEL, MATE
PT, VOLTAGE RATING
DEC 16,2013
ADD UL SYMBOLS
D
41488
JUN 20,2012
REVISED CURRENT
RATING IN PERFORMANCE
TABLE
C
39876
APR 18,2012
REMOVED 32 POS FROM
TABLE ON SHT 5
B
34080
MAY 18,2011
ADDED 6.19 DIM ON SHT
2; REVISED & MOVED
TABLE TO SHT 5
A
DESIGN REFERENCE
ACCESS
CODES
B
SJS SAN
SJS SAN
LDS SAN
LDS SAN
LDS
SF
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
SF
CHKD
NEXT ASSEMBLY
REV
DRFT
L. SCHMIDT
CHKD
JUL 29,2010
DATE
APPVL
DATE
A
S FELDMAN
DIVISION
DIVISION CODE
3M Center
AUG 09,2010
A
C
St. Paul,
MN
55144
3M COPYRIGHT 2010
DO NOT
SCALE
DRAWING
SCALE
4
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
0.13
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
METRIC [ENGLISH]
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
3M SHROUDED BOARD
MOUNT HEADER 2 MM X 2
MM
PITCH 159 SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2359-7
DET.
LISTS
YES
NO
F
1
SHT 4 OF 5
8
7
6
5
4
3
2
1
DRAWING NUMBER
EXTENDED LENGTH,
POLARIZATION SLOT,
VERTICAL HEADER
6-12 POSITIONS
EXTENDED LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
VERTICAL HEADER
14-50 POSITIONS
EXTENDED LENGTH,
SINGLE FRICTION LATCH,
VERTICAL HEADER
6-12 POSITIONS
EXTENDED LENGTH,
POLARIZATION SLOT,
RIGHT ANGLE HEADER
6-12 POSITIONS
EXTENDED LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
RIGHT ANGLE HEADER
14-50 POSITIONS
EXTENDED LENGTH,
SINGLE FRICTION LATCH,
RIGHT ANGLE HEADER
6-12 POSITIONS
EXTENDED LENGTH,
POLARIZATION SLOT,
SURFACE MOUNT HEADER
6-12 POSITIONS
EXTENDED LENGTH,
POLARIZATION SLOT,
DUAL FRICTION LATCHES,
SURFACE MOUNT HEADER
14-50 POSITIONS
EXTENDED LENGTH,
SINGLE FRICTION LATCH,
SURFACE MOUNT HEADER
6-12 POSITIONS
78-5100-2359-7
REVISION
F
8
3M
TM
7
6
5
3
4
3
4
2
1

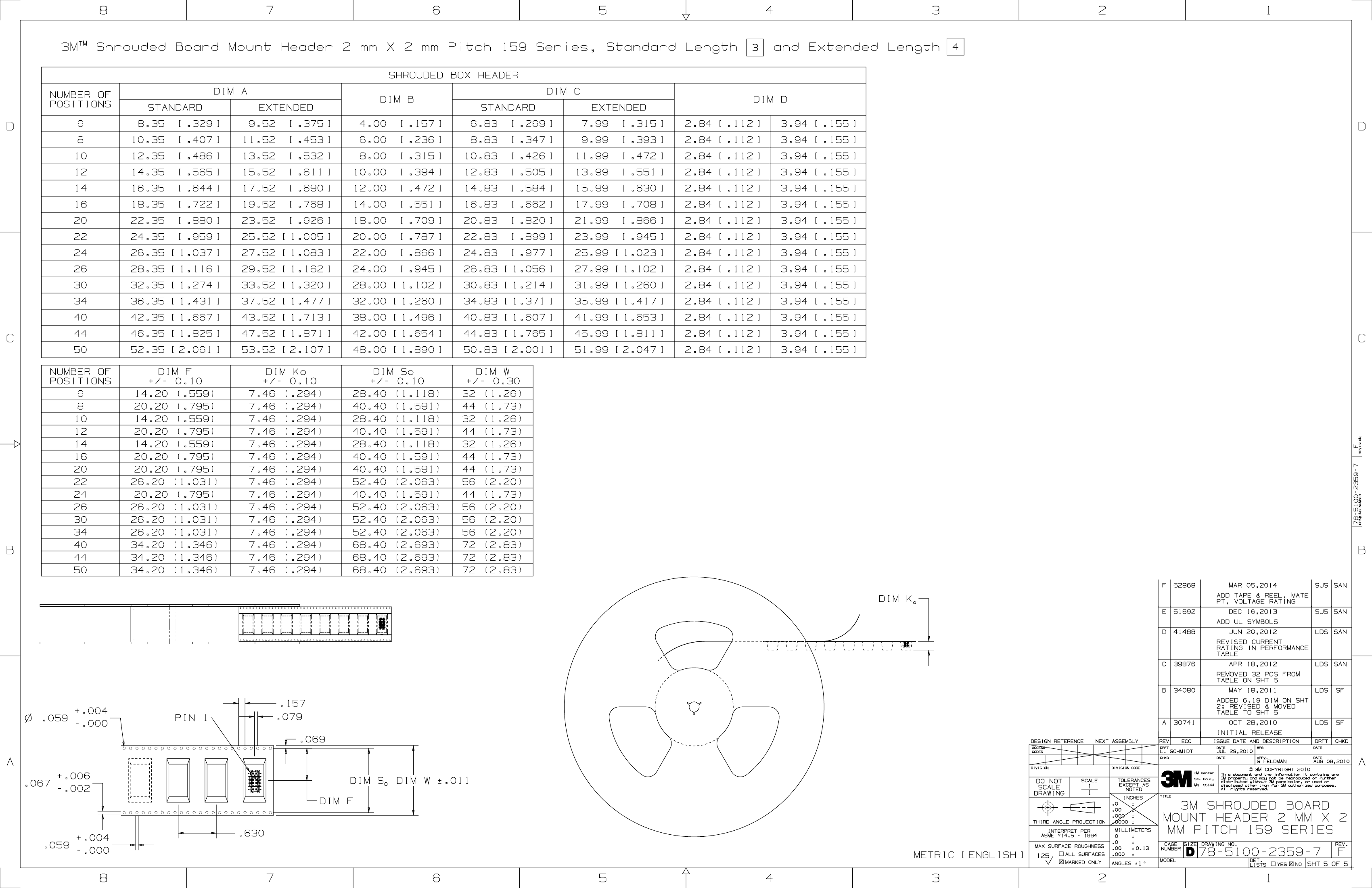

Shrouded Board Mount Header 2 mm X 2 mm Pitch 159 Series, Standard Length
SHROUDED BOX HEADER
and Extended Length
NUMBER OF
POSITIONS
DIM A
STANDARD
8.35
10.35
12.35
14.35
16.35
18.35
22.35
24.35
[.329]
[.407]
[.486]
[.565]
[.644]
[.722]
[.880]
[.959]
EXTENDED
9.52
11.52
13.52
15.52
17.52
19.52
23.52
[.375]
[.453]
[.532]
[.611]
[.690]
[.768]
[.926]
DIM B
4.00
6.00
8.00
10.00
12.00
14.00
18.00
20.00
22.00
24.00
[.157]
[.236]
[.315]
[.394]
[.472]
[.551]
[.709]
[.787]
[.866]
[.945]
DIM C
STANDARD
6.83
8.83
10.83
12.83
14.83
16.83
20.83
22.83
24.83
[.269]
[.347]
[.426]
[.505]
[.584]
[.662]
[.820]
[.899]
[.977]
EXTENDED
7.99
9.99
11.99
13.99
15.99
17.99
21.99
23.99
[.315]
[.393]
[.472]
[.551]
[.630]
[.708]
[.866]
[.945]
DIM D
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
2.84 [.112]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
3.94 [.155]
D
6
8
10
12
14
16
20
22
24
26
30
34
40
D
25.52 [1.005]
27.52 [1.083]
29.52 [1.162]
33.52 [1.320]
37.52 [1.477]
43.52 [1.713]
47.52 [1.871]
53.52 [2.107]
DIM Ko
+/- 0.10
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
7.46 (.294)
26.35 [1.037]
28.35 [1.116]
32.35 [1.274]
36.35 [1.431]
42.35 [1.667]
46.35 [1.825]
52.35 [2.061]
DIM F
+/- 0.10
14.20 (.559)
20.20 (.795)
14.20 (.559)
20.20 (.795)
14.20 (.559)
20.20 (.795)
20.20 (.795)
26.20 (1.031)
20.20 (.795)
26.20 (1.031)
26.20 (1.031)
26.20 (1.031)
34.20 (1.346)
34.20 (1.346)
34.20 (1.346)
25.99 [1.023]
27.99 [1.102]
31.99 [1.260]
35.99 [1.417]
41.99 [1.653]
45.99 [1.811]
51.99 [2.047]
26.83 [1.056]
30.83 [1.214]
34.83 [1.371]
40.83 [1.607]
44.83 [1.765]
50.83 [2.001]
DIM W
+/- 0.30
32 (1.26)
44 (1.73)
32 (1.26)
44 (1.73)
32 (1.26)
44 (1.73)
44 (1.73)
56 (2.20)
44 (1.73)
56 (2.20)
56 (2.20)
56 (2.20)
72 (2.83)
72 (2.83)
72 (2.83)
28.00 [1.102]
32.00 [1.260]
38.00 [1.496]
42.00 [1.654]
48.00 [1.890]
DIM So
+/- 0.10
28.40 (1.118)
40.40 (1.591)
28.40 (1.118)
40.40 (1.591)
28.40 (1.118)
40.40 (1.591)
40.40 (1.591)
52.40 (2.063)
40.40 (1.591)
52.40 (2.063)
52.40 (2.063)
52.40 (2.063)
68.40 (2.693)
68.40 (2.693)
68.40 (2.693)
C
44
50
NUMBER OF
POSITIONS
6
8
10
12
14
16
20
22
24
26
30
34
40
44
50
C
78-5100-2359-7
F
52868
MAR 05,2014
ADD TAPE & REEL, MATE
PT, VOLTAGE RATING
E
51692
DEC 16,2013
ADD UL SYMBOLS
D
41488
JUN 20,2012
REVISED CURRENT
RATING IN PERFORMANCE
TABLE
C
39876
APR 18,2012
REMOVED 32 POS FROM
TABLE ON SHT 5
B
34080
MAY 18,2011
ADDED 6.19 DIM ON SHT
2; REVISED & MOVED
TABLE TO SHT 5
A
DESIGN REFERENCE
ACCESS
CODES
B
B
SJS SAN
DIM K
o
SJS SAN
LDS SAN
LDS SAN
LDS
SF
+.004
.059
-.000
.157
PIN 1
.079
.069
NEXT ASSEMBLY
30741
ECO
OCT 28,2010
INITIAL RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
LDS
DRFT
DATE
SF
CHKD
REV
DRFT
L. SCHMIDT
CHKD
JUL 29,2010
DATE
APPVL
DATE
A
+.006
.067
-.002
DIM S
O
DIM W
DIM F
.011
S FELDMAN
DIVISION
DIVISION CODE
3M Center
AUG 09,2010
A
C
St. Paul,
MN
55144
3M COPYRIGHT 2010
DO NOT
SCALE
DRAWING
SCALE
1
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
0.13
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
+.004
.059
-.000
.630
METRIC [ENGLISH]
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
3M SHROUDED BOARD
MOUNT HEADER 2 MM X 2
MM
PITCH 159 SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
125
ALL SURFACES
MARKED ONLY
78-5100-2359-7
DET.
LISTS
YES
NO
F
1
SHT 5 OF 5
8
7
6
5
4
3
2
1
DRAWING NUMBER
REVISION
F
京公网安备 11010802033920号
EEWORLD
