FiberDrive
TM
Visible or IR Laser Module
With
Integrated Drive Electronics
Performance
The Blue Sky Research
FiberDrive
TM

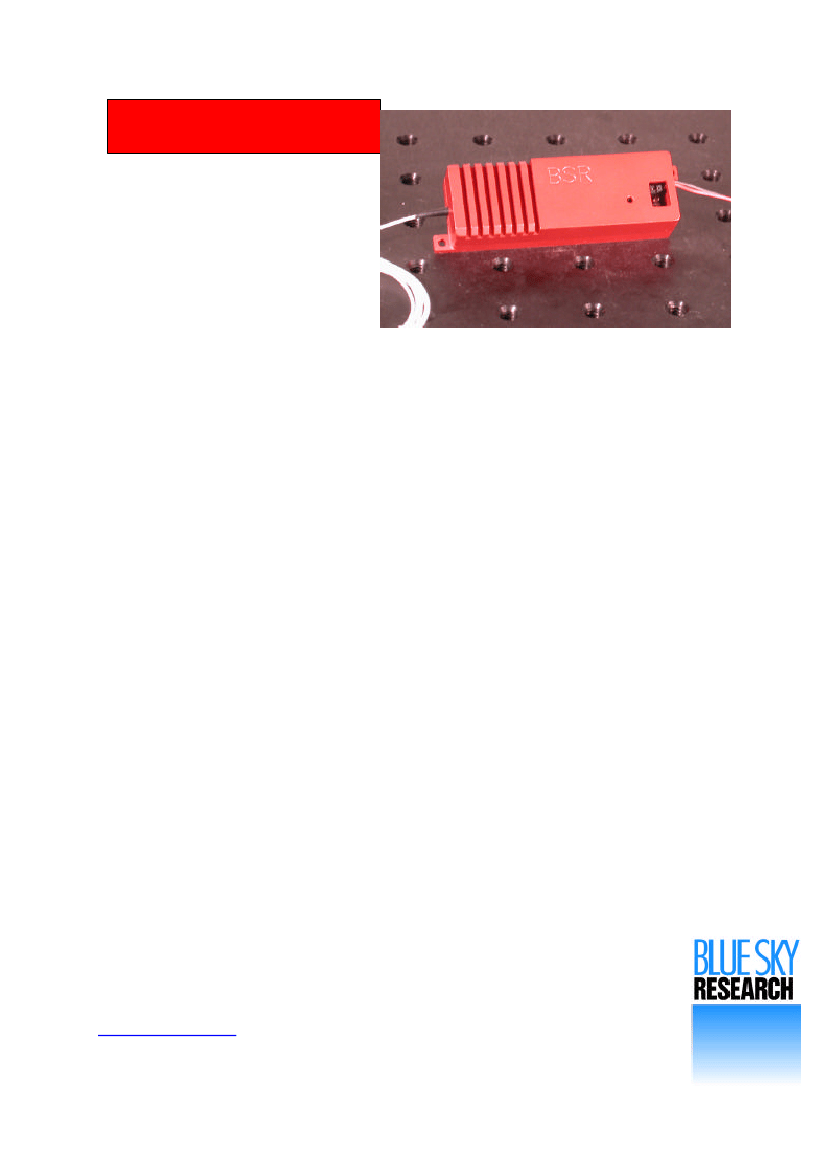

laser module features a high output power, fiber
pigtailed 635nm laser diode, and integrated drive electronics in a compact, easy to use
package. Standard features include Automatic Power Control (APC) or Automatic Current
Control (ACC) electronics, 1-m single mode fiber pigtail, and 5V dc operation. From
1.5mW to 100mW power output options are available depending on the source diode used. In
addition to 635nm, the following wavelengths are also available: 658nm, 685nm, 785nm,
808nm, 830nm, 850nm and 980nm. Custom wavelengths, power options, and laser
configurations will be considered.
The small foot print
FiberDrive
TM
package measures 2.8”x0.94”x0.6”
(71mmx24mmx15mm), and incorporates a 1-meter, single mode or polarization-maintaining
fiber pigtail for OEM, remote sourcing, and measurement or instrumentation applications.
The
FiberDrive
TM
module requires 5Vdc for operation, and includes monitoring, control, and
protection circuits. Users can easily configure the
FiberDrive
TM
to ACC or APC modes of
operation via a simple jumper connection, and vary the output power via a trim-pot.
Available options include: Fiber type: SM, PM or MM fiber; Connectors: FC/PC, FC/APC,
SC/PC, or SC/APC; Depending on the desired wavelength, from 1.5mW to 100mW output
power is available; and/or Collimators, and pins for PCB mounting.
Custom wavelengths,
power options and laser configurations are available upon request.
Features
* Selectable ACC/APC operation
* Integrated drive electronics
* Simple 5Vdc operation
* to 20mW of 635nm Pout
* Small package footprint & height
* 1-m single mode fiber pigtail
Applications
* Spectroscopy
* Fluorescence
* Laser Disc/CD/DVD mastering
* Biomedical & Medical
* Printing
* Optical Storage
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408)941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberDRIVE635 Rev 5/23/2007
FiberDrive
TM
Optical Specifications
(T
A
=25C)
Wavelength
Power Out
Polarization
Noise (DC to 20MHz)
Power Stability
Fiber Type
Fiber NA
Mode Field Dia.
Circularity
M2 Value
Fiber Connector
635nm +7/-2 nm
20, 10, 5 mW
17 dB*
<0.5% RMS
<1.0% Pk-Pk
1.0% @ 1hr
3.0% @ 24hrs
SM, 125µm clad
0.13
4.5
µm
+/- 0.5
0.97
1.1
Various
* For polarization maintaing fiber only.
Electrical Specifications
Input:
5Vdc +/- 5%
Environmental Specifications
Cooling
Operating Temp.
Storage Temp.
** Varies by model.
Convection / Heatsink**
0 – 40
°C
0 to 70
°C
Typical APC Performance – FDRV58
1.2
1.1
1
Power Out (Arb. Units)
0.9
0.8
0.7
0.6
0.5
0.4
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
Hours
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408)941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberDRIVE635 Rev 5/23/2007
FiberDrive
TM
ElecElectrical Pin Out (Manual Trimpot with no Pins Available)
Pin No.
Name
1 NC
2 NC
3 GND
4 Set
5 NC
6 APC
7 ACC
8 CC
9 Vcc
10 GND
11 NC
12 NC
13 NC
14 GND
15 NC
16 NC
Type
Passive
Passive
Active
Analog input
Passive
Active
Active
Active
Power
Active
Passive
Passive
Passive
Active
Passive
Passive
No connection
No connection
Ground
Constant current or constant power setting, 0-2.5V
No connection
Connect to Pin 8, Automatic Power Control. Also provides PD monitor output voltage.
Connect to Pin 8, Constant Current Control.
Control common
5V +/- 5% Laser Driver Voltage
Ground
No connection
No connection
No connection
Ground
No connection
No connection
Description

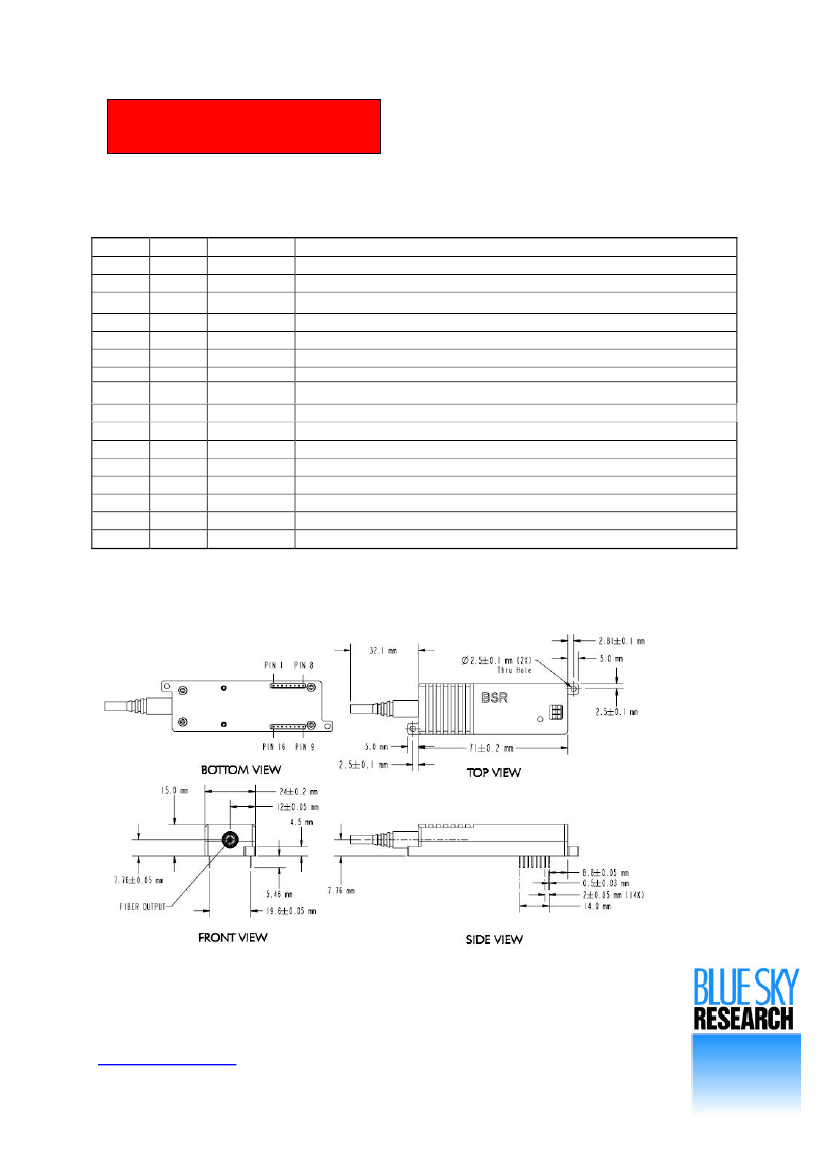

Mechanical Layout
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408)941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberDRIVE635 Rev 5/23/2007
FiberDrive
TM
ORDERING INFORMATION
Product Family
Wavelength, (nm)
PinOut Configuration
0 = no pins on bottom
P = PCB pins
V = 3
rd
Wire for Power Control
FDRV
-
- -
0635, 0658, 0785, 0808, 0850
Power Output (mW)
05, 10,15, 20, etc.
Fiber Type
S = single mode
P = polarization maintaining
Fiber Connector
F = FC/PC
A = FC/APC
S = SC/PC
G = AC/APC
Collimator
0 = None
M = 1mm
N = 1.5mm
P = 2.5m
Q = 3.5mm
Example: FDRV-0635-P20-S-F0, FiberDrive635
TM
laser module with 635nm
Laser diode, PCB pins on bottom of package, 20mW power output, single mode fiber, FC/PC fiber connector, and no collimated
beam output optics
This component does not comply with the Federal Regulations (21 CFR Subchapter1) as administered by the Center for Devices and
Radiological health. Purchaser acknowledges that his/her products must comply with these regulations before they can be sold to a
customer.
Blue Sky Research follows a policy of continuous improvement. Specifications are subject to change without notice. DS-01.03
Contact Information:
BLUE Sky Research
* 1537 Centre Pointe Drive * Milpitas, CA 95035 * (408) 941-6068 * FAX (408)941–0406
www.blueskyresearch.com
* email: Sales @blueskyresearch.com
FiberDRIVE635 Rev 5/23/2007
