FUJITSU TAKAMISAWA
COMPONENT CATALOG
PC BOARD CONNECTORS
720M SERIES (CRIMP TYPE CONNECTORS)
s

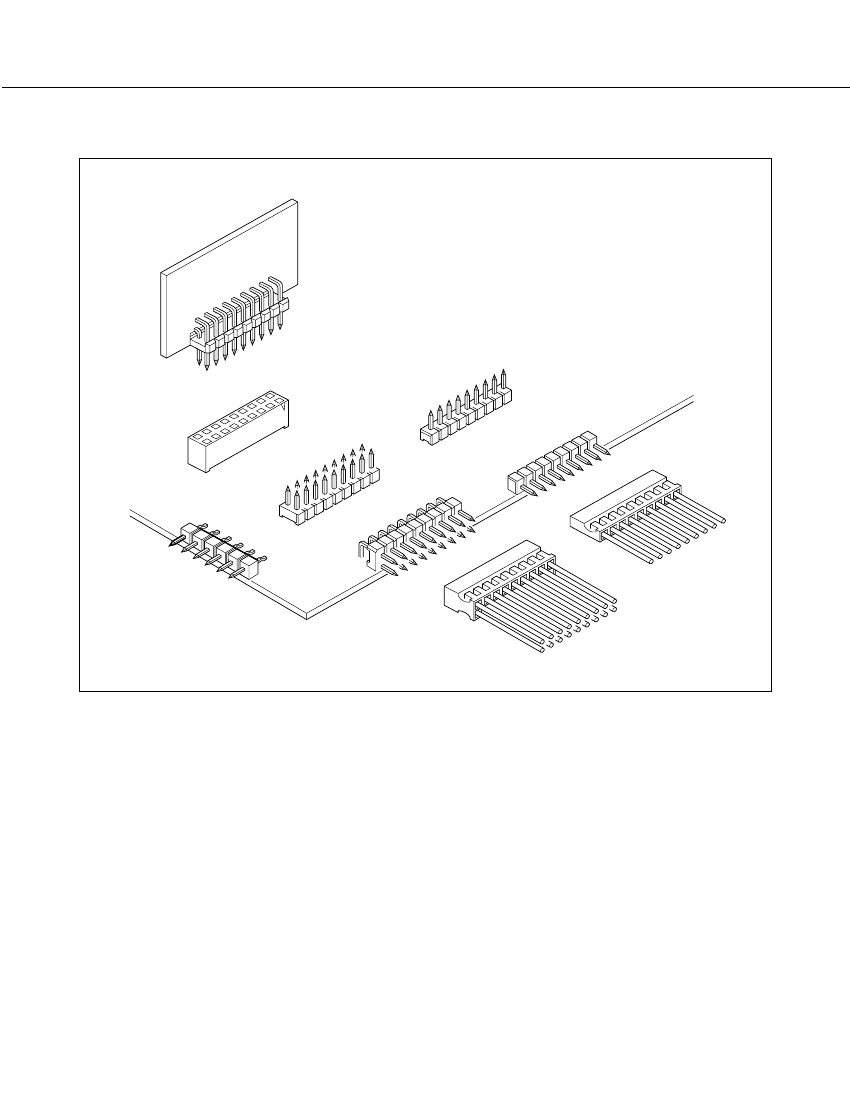

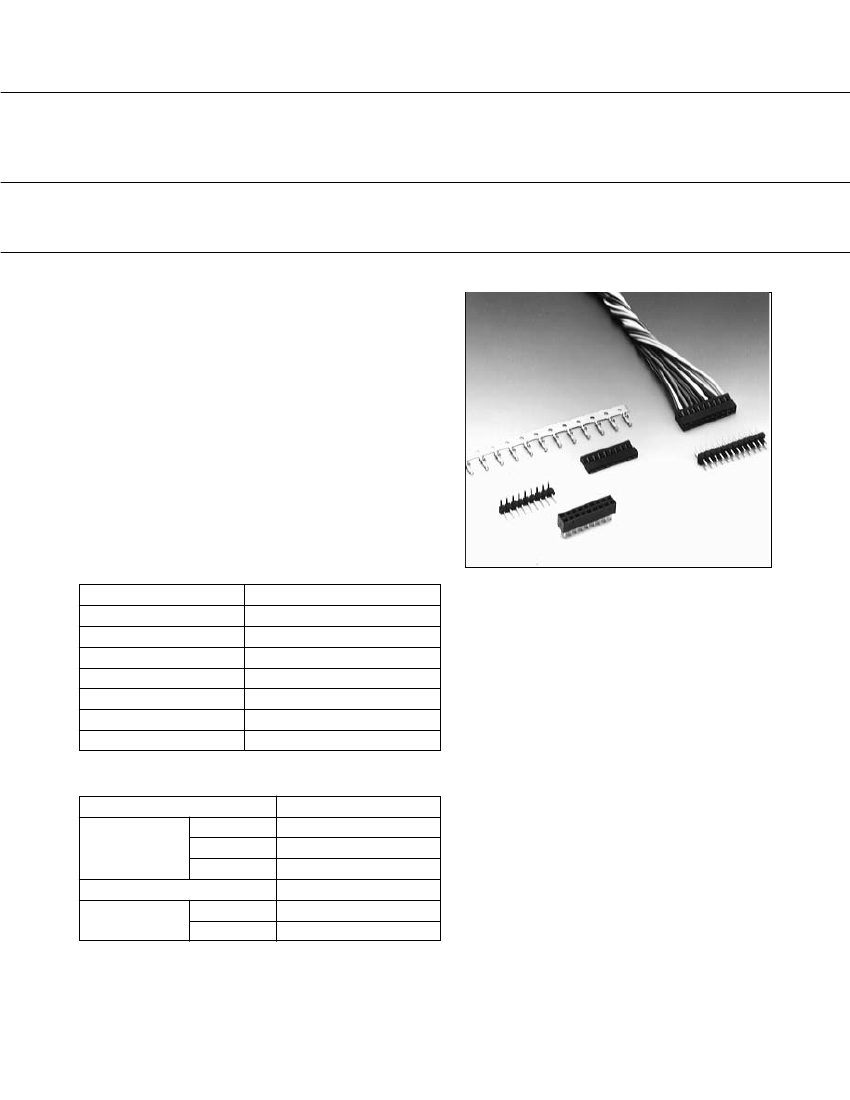

FEATURES
• The 720 series connectors (crimp type connectors)
are designed for a wide range of uses.
• 1-row and 2-row types are available to allow various
types of mounting.
• DIP sockets allow board-to-board connections (for 18-
pin type only).
• Contact pitch of 2
×
2 mm (0.079
×
0.079 in.),
mounting height of 3.8 mm (0.149 in.) for crimp type,
and 6.6 mm (0.260 in.) for DIP type. A compact and
low profile allows high density mounting.
• Multiple crimp sockets can be aligned in contact with
each other to connect with one header on a PC board.
• Insulator material is UL approved (94V-0/94V-1).
s
SPECIFICATIONS
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric strength
Applicable wire
Specification
–55°C to +85°C
DC 3 A
AC 250 V
20 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ max. (500 V)
AC 500 V for 1 minute
AWG #26 to #34
s
MATERIALS
Item
Plug
Insulating material
Plug (SMT)
Housing
Conductor
Contact
Plating
Terminal
Materials
Polyester (UL94V-0)
PPS
PPO
Copper alloy
Gold
Palladium
720M Series (Crimp Type Connectors)
PLUG (2-ROW, RIGHT-ANGLE TYPE)
s

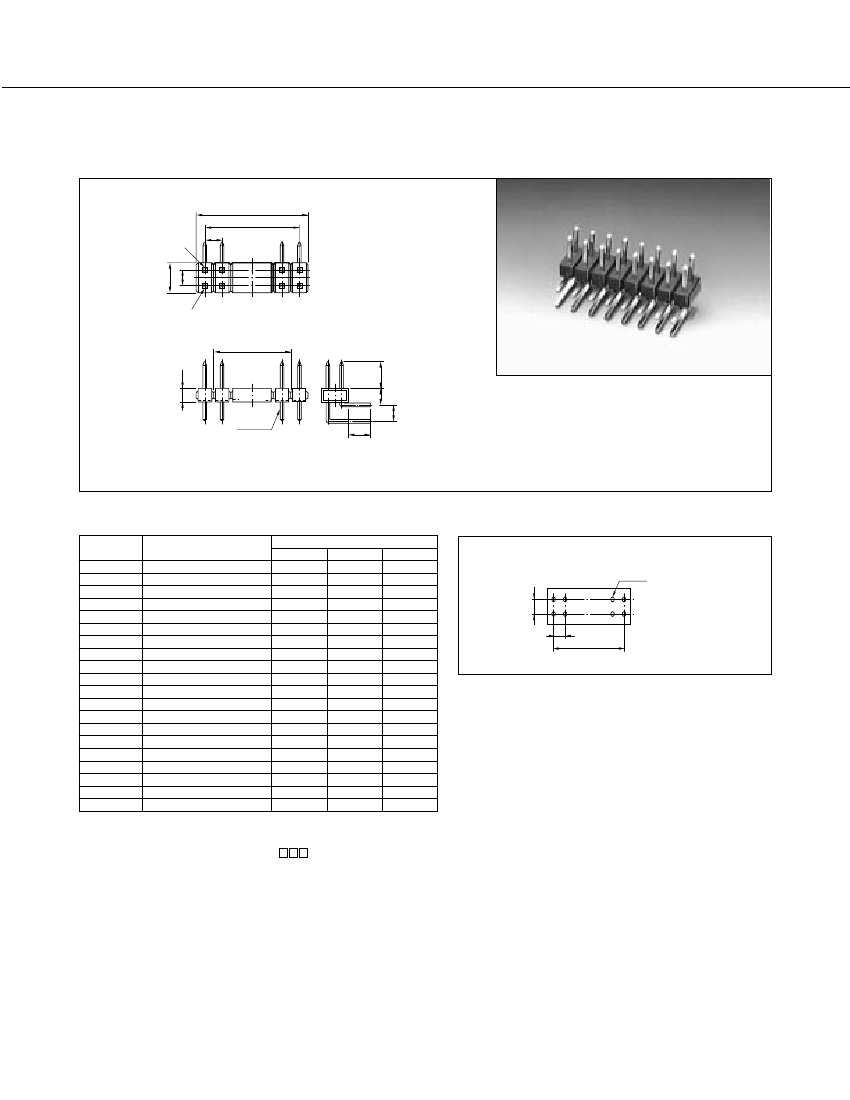

DIMENSIONS
A
B
2.0(0.079)
Pin No. 2
4.0(0.157)
2.0
(.079)
Pin No. 1
c
1.8 (0.0711)
3.5
(0.138)
0.5
×
0.5
(0.020
×
0.020)
2.6(0.103)
2.05
2.0
(.081)
(0.079)
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
40
44
50
Part number
FCN-725P004-G/WM
FCN-725P006-G/WM
FCN-725P008-G/WM
FCN-725P010-G/WM
FCN-725P012-G/WM
FCN-725P014-G/WM
FCN-725P016-G/WM
FCN-725P018-G/WM
FCN-725P020-G/WM
FCN-725P022-G/WM
FCN-725P024-G/WM
FCN-725P026-G/WM
FCN-725P028-G/WM
FCN-725P030-G/WM
FCN-725P032-G/WM
FCN-725P034-G/WM
FCN-725P036-G/WM
FCN-725P040-G/WM
FCN-725P044-G/WM
FCN-725P050-G/WM
Dimensions (unit: mm (in.))
C
B
A
—
4.0 (0.157) 2.0 (0.079)
6.0 (0.236) 4.0 (0.157) 2.0 (0.079)
8.0 (0.315) 6.0 (0.236) 4.0 (0.157)
10.0 (0.394) 8.0 (0.315) 6.0 (0.236)
12.0 (0.472) 10.0 (0.394) 8.0 (0.315)
14.0 (0.551) 12.0 (0.472) 10.0 (0.394)
16.0 (0.630) 14.0 (0.551) 12.0 (0.472)
18.0 (0.708) 16.0 (0.630) 14.0 (0.551)
20.0 (0.787) 18.0 (0.708) 16.0 (0.630)
22.0 (0.866) 20.0 (0.787) 18.0 (0.708)
24.0 (0.945) 22.0 (0.866) 20.0 (0.787)
26.0 (1.023) 24.0 (0.945) 22.0 (0.866)
28.0 (1.102) 26.0 (1.023) 24.0 (0.945)
30.0 (1.181) 28.0 (1.102) 26.0 (1.023)
32.0 (1.260) 30.0 (1.181) 28.0 (1.102)
34.0 (1.339) 32.0 (1.260) 30.0 (1.181
36.0 (1.417) 34.0 (1.339) 32.0 (1.260)
40.0 (1.575) 38.0 (1.496) 36.0 (1.417)
44.0 (1.732) 42.0 (1.654) 40.0 (1.575)
50.0 (1.969) 48.0 (1.890) 46.0 (1.811)
s
MOUNTING HOLE LAYOUT
2(0.079)
±0.05(0.002)
(Component side)
φ0.8(0.031)
±0.05(0.002)
2(0.079)
±0.05(0.002)
B
±0.1(0.004)
Unit: mm (in.)
Note: Tin-plated plugs are also available.
Part number: FCN-725P
-T/WM
