3403.0176.11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3403.0176.11

3403.0176.11: Descriptionsurface mount fuses umt 250 fuse 10a T; CategoryCircuit protection Circuit protection; File Size420KB，4 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

3403.0176.11 Overview

surface mount fuses umt 250 fuse 10a T

3403.0176.11 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	18 weeks 3 days
Other features	RATED BREAKING CAPACITY AT 125 VDC: 35 A
Fusing characteristics	TIME LAG
body width	3 mm
body height	3 mm
Body length or diameter	10.1 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	166 J
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BAG
physical size	10.1mm x 3mm x 3mm
Pre-discharge time - minutes	10 ms
Rated breaking capacity	35 A
Rated current	10 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Rated voltage (DC)	125 V
Guideline	CCC; CSA; IEC; KC; PSE; UL; UMF; VDE
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Fuses

https://www.schurter.com /PG01_2

UMT 250

Surface Mount Fuse, 3 x 10.1 mm, Time-Lag T, 250 VAC, 125 VDC

IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T

Description

See below:

Approvals and Compliances

Applications

- Primary protection on SMD PCBs

- Medical equipment

- Battery protection

- High current range from 80 mA to 10 A

- High breaking capacity of 200 A @ 250 VAC (IEC)

- UL approval for 277 VAC and 250 VDC

Unique Selling Proposition

- Compact design

- Maximum breaking capacity at minimal footprint

- Suitable for pulse-shaped continuous currents

References

Weblinks

Packaging Details

Fuse Kit

Fuse Kit UMT 250 / UMZ 250

pdf datasheet, html-datasheet, General Product Information, Packaging

details, Distributor-Stock-Check, Detailed request for product, Microsite

Application Note Primary Protection in Equipmentwith

further information on increased

Pulse Strength

and their test conditions according to inter-

national standards see

Impulse Withstand Voltage

Technical Data

Rated Voltage

Rated current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

250 VAC, 125 VDC

0.08 - 10 A

35 A - 200 A

Time-Lag T

PCB,SMT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Ceramic

Tin-Plated Copper Alloy

0.23 g

0 °C to 60 °C, max. 70% r.h.

, Rated current, Voltage, Cha-

racteristic, Breaking Capacity

Soldering Methods

Solderability

Resistance to Soldering Heat

Life Test

Moisture Resistance Test

Terminal Strength

Mechanical Shock

Resistance to Solvents

Flammability

Reflow, Wave

Soldering Profile

245 °C / 3 sec acc. to IEC 60068-2-58,

Test Td

260 °C / 40 sec acc. to IPC/JEDEC J-

STD-020D, 1 cycle

MIL-STD-202, Method 108A

(1000h @ 0.42*In @ 70°C)

MIL-STD-202, Method 106E

(50 cycles in a temp./mister chamber)

MIL-STD-202, Method 211A

(Deflection of board 1 mm for 1 minute)

MIL-STD-202, Method 213B

(Shock 50g, half sine wave, 11 ms)

MIL-STD-202, Method 215A

min. UL 94V-1

(acc. to EIA/IS-722, Test 4.12)

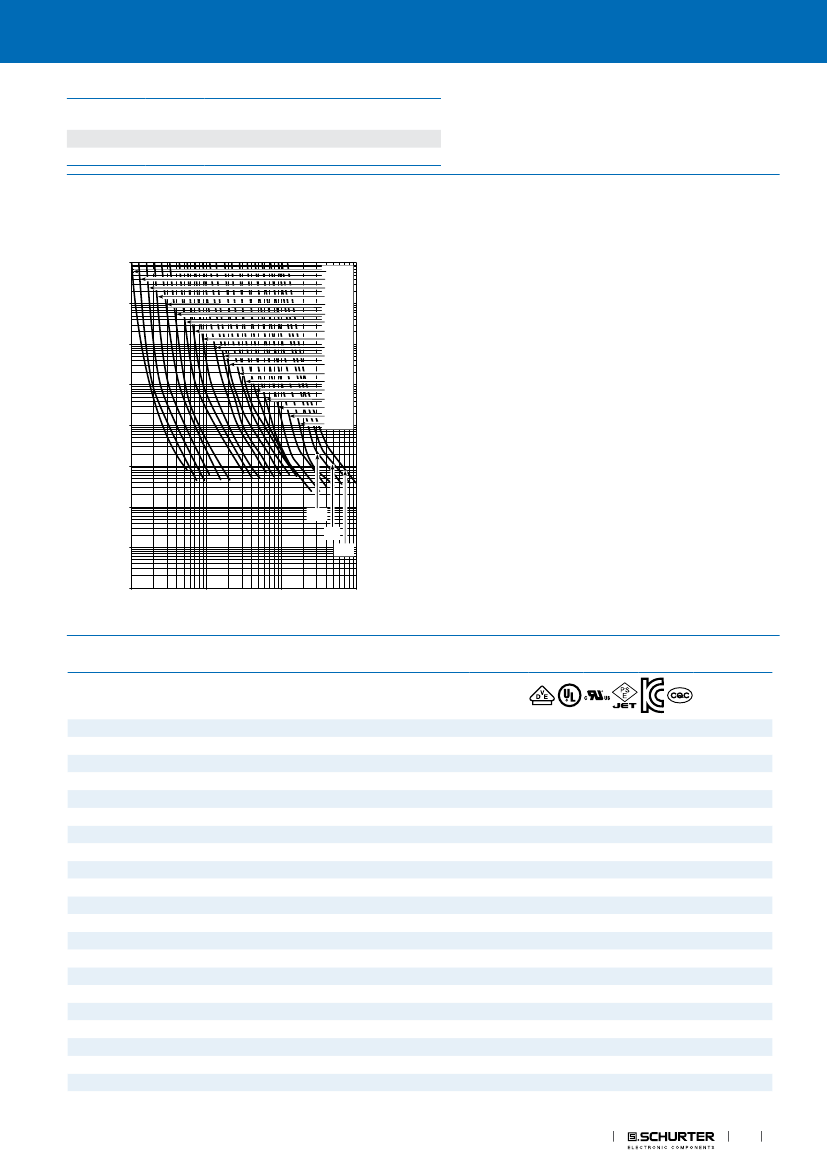

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national

and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF

16949, medical technology according to ISO 134485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-

ments by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: UMT 250

Fuses
