M80-5T12242M3 datasheet, PDF - EEWORLD Datasheet

M80-5T12242M3: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

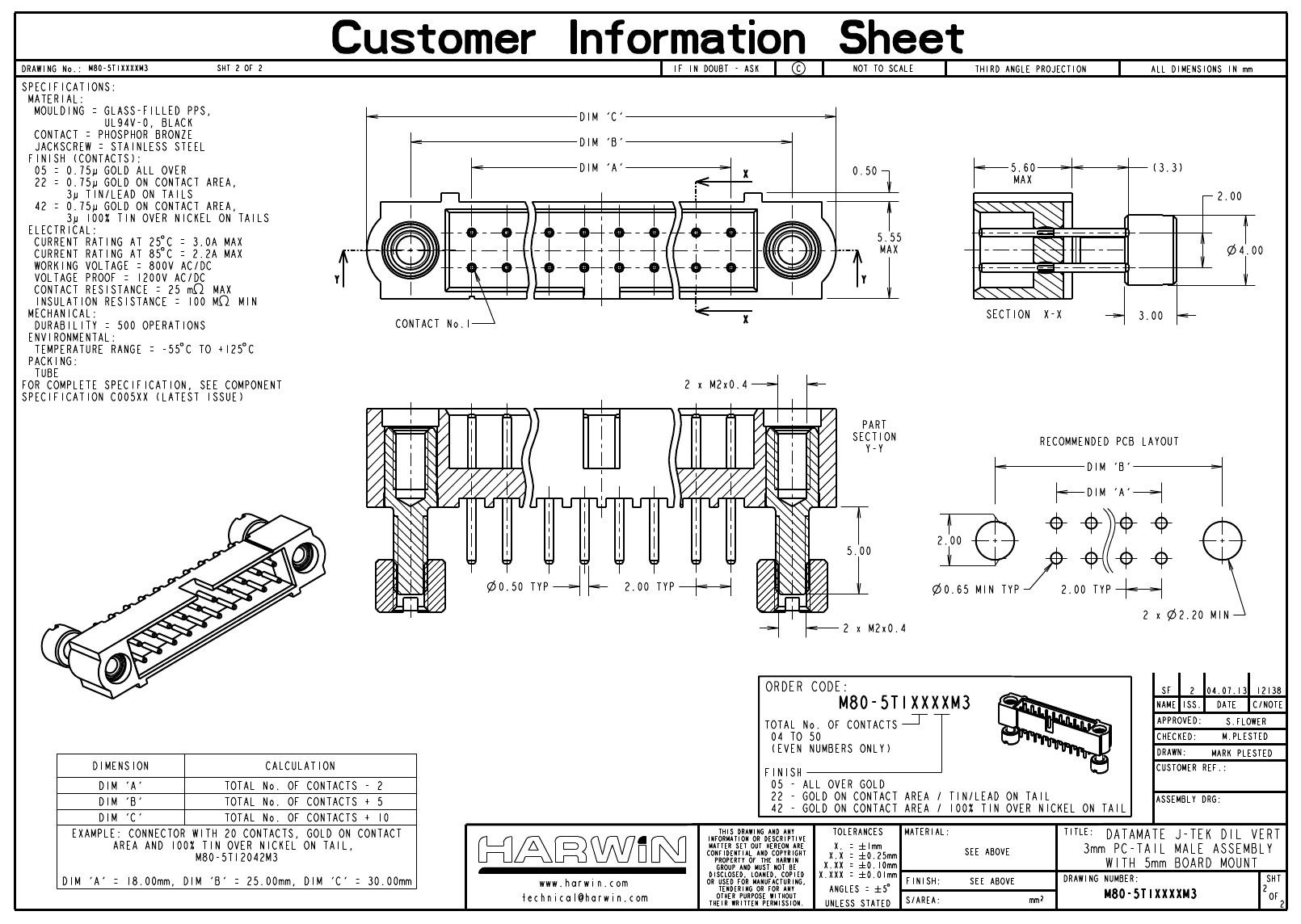

Download Datasheet Parametric View All

M80-5T12242M3 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1246615240
Reach Compliance Code	compliant
Country Of Origin	UK
ECCN code	EAR99
YTEOL	8.7
Board mount options	HOLE .086-.098
body width	0.238 inch
subject depth	0.22 inch
body length	1.26 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e3
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2X0.4
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.129 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22
