5 x 20mm Fuses
S506 Series, Time-Delay, Glass Tube
Description
• Time-delay, low breaking capacity
• Optional axial leads available
• 5 x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Designed to IEC 60127-2/3 (32mA-10A) &
extensions:12.5A-15A
S506 Electrical Characteristics
2.1 In
2.75 In
4 In
In
max
min
max
min
max
32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec
8A-15A
2 min 600 ms 10 sec 150 ms 3 sec
10 In
min
max
10 ms 300 ms
20 ms 300 ms
20 ms 300 ms
Dimensions - mm
Drawing Not to Scale
Agency Information
• UL Recognized Card: Guide JDYX2, File E19180
• CSA Component Acceptance: File 1803366
• cURus Recognition: Guide JDYX8, File E19180
• SEMKO Approval: File 507078, 415434, 806492
• VDE Approval: File 40011926
• BSI Approval: File KM55676
• IMQ Approval: File E1921, CA03.00530
• PSE/JET: File JET1641-31003-1005,
JET1641-31003-1006
• CCC Approval: File 2005010207155693,
2002010207011294
• Ratings above 4A have a 0.81mm diameter lead
Ordering
Specify product code
• Insert packaging code prefix before part number. E.g.
BK/S506-1-R
Specify option code if desired
• For axial leads, insert “V” between catalog series and
amp rating. E.g. BK/S506-V-2-R
Specifications
Product
Code
S506-32-R
S506-40-R
S506-50-R
S506-63-R
S506-80-R
S506-100-R
S506-125-R
S506-160-R
S506-200-R
S506-250-R
S506-315-R
S506-400-R
S506-500-R
S506-630-R
S506-800-R
S506-1-R
S506-1.25-R
S506-1.6-R
S506-2-R
S506-2.5-R
S506-3.15-R
S506-4-R
S506-5-R
S506-6.3-R
S506-8-R
S506-10-R
S506-12.5-R
S506-15-R
Voltage Interrupting Rating
Typical DC
Typical
Typical
Agency Approvals
Rating (amps) at Rated Cold Resistance Melting I
2
t Voltage IMQ VDE BSI SEMKO UR CCC PSE/ CSA cURus
Vac Voltage (50Hz) Vac
(Ω)*
(amps) Drop (mV)‡
JET
250
35
21.0
0.0051
1050
X
X
X
X
X
X
250
35
13.90
0.0072
920
X
X
X
X
X
X
250
35
9.24
0.0095
800
X
X
X
X
X
X
X
250
35
6.96
0.021
760
X
X
X
X
X
X
X
250
35
4.42
0.038
580
X
X
X
X
X
X
X
250
35
2.80
0.045
490
X
X
X
X
X
X
X
250
35
1.97
0.063
390
X
X
X
X
X
X
X
250
35
1.27
0.093
320
X
X
X
X
X
X
X
250
35
1.00
0.114
340
X
X
X
X
X
X
X
250
35
0.640
0.265
270
X
X
X
X
X
X
X
250
35
0.450
0.621
250
X
X
X
X
X
X
X
250
35
0.31
0.872
210
X
X
X
X
X
X
X
250
35
0.183
0.827
140
X
X
X
X
X
X
X
X
250
35
0.186
1.33
150
X
X
X
X
X
X
X
X
250
35
0.129
2.78
75
X
X
X
X
X
X
X
X
250
35
0.0757
6.45
87.5
X
X
X
X
X
X
X
X
X
250
35
0.060
10.05
86
X
X
X
X
X
X
X
X
X
250
35
0.0425
21.7
82
X
X
X
X
X
X
X
X
X
250
35
0.03325
31.6
77
X
X
X
X
X
X
X
X
X
250
35
0.0255
59.4
72.5
X
X
X
X
X
X
X
X
X
250
35
0.0185
96.4
68.5
X
X
X
X
X
X
X
X
X
250
40
0.0139
71.8
67
X
X
X
X
X
X
X
X
X
250
50
0.00985
142.5
60.5
X
X
X
X
X
X
X
X
X
250
63
0.0071
237.6
54
X
X
X
X
X
X
X
X
X
250
80
0.007
255.8
55
X
X
X
X
X
X
X
X
250
100
0.005
450
54
X
X
X
X
X
X
X
X
250
125
0.004
1019.5
45
X
X
X
250
125
0.004
1091.7
65.5
X
X
X
* DC Cold Resistance (measured at <10% of rated current)
‡ Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)
0709
BU-SB08673
Page 1 of 2
Data Sheet 4332

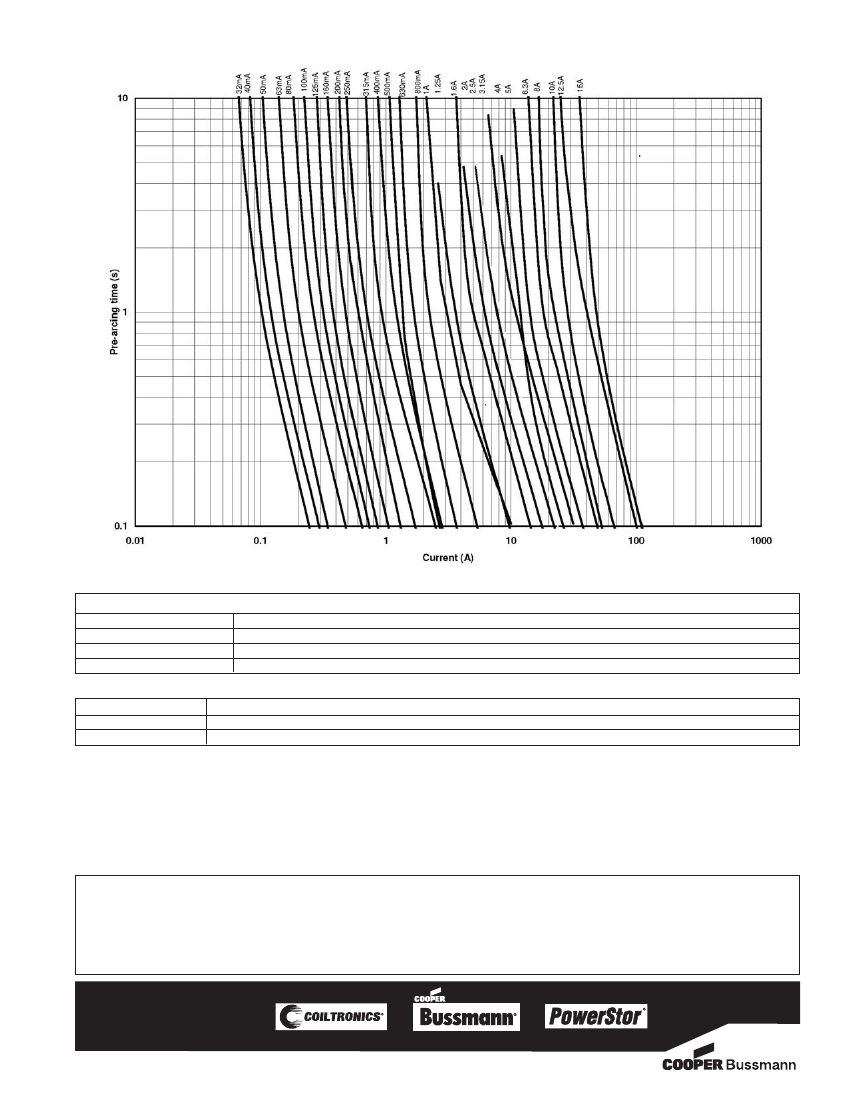

Nominal Time-Current Characterisitics of S506-R
Packaging Code
Packaging Code Suffix
BK
BK1
TR2
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Option Code
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
