TPM-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> TPM-30

TPM-30: Descriptionspecialty fuses tpm 30 amp fuse; CategoryCircuit protection; File Size438KB，4 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

TPM-30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TPM-30	-	-	View	Buy Now

TPM-30 Overview

specialty fuses tpm 30 amp fuse

TPM-30 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Specialty Fuses
RoHS	N
Body Style	Square Body Blade Fuses
Current Rating	30 A
Voltage Rating DC	80 V
Mounting Style	Holde
Termination Style	Plug I
Fuse Type	Fast Blow
Fuse Size / Grou	Telepowe
Indicator Style	Element Window

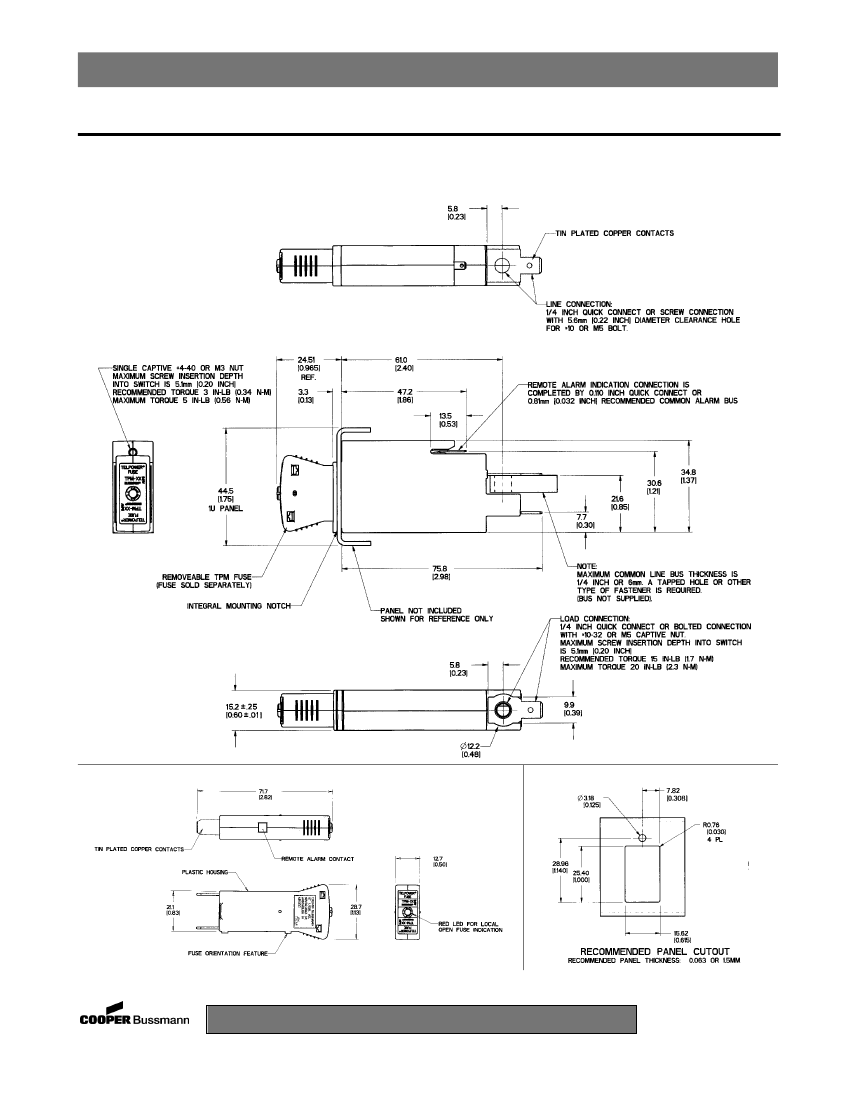

Dimensions	0.965 in L x 0.6 in W
Case Heigh	1.75 i
Case Length	0.965 i
Case Width	0.6 i
Interrupt Rating	20 kA
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	10
Type	Miniature Fused Disconnect Switch Fuse
Unit Weigh	19.504 g

Preview

Download Datasheet

View All

Telpower

DC Power Protection Systems

Bussmann

Telpower

Miniature Fused Disconnect Switch

TPM & TPMDS

TPMDS -

Telpower

Miniature Fused Disconnect Switch

TPM -

Telpower

Miniature Fuse - Current Limiting

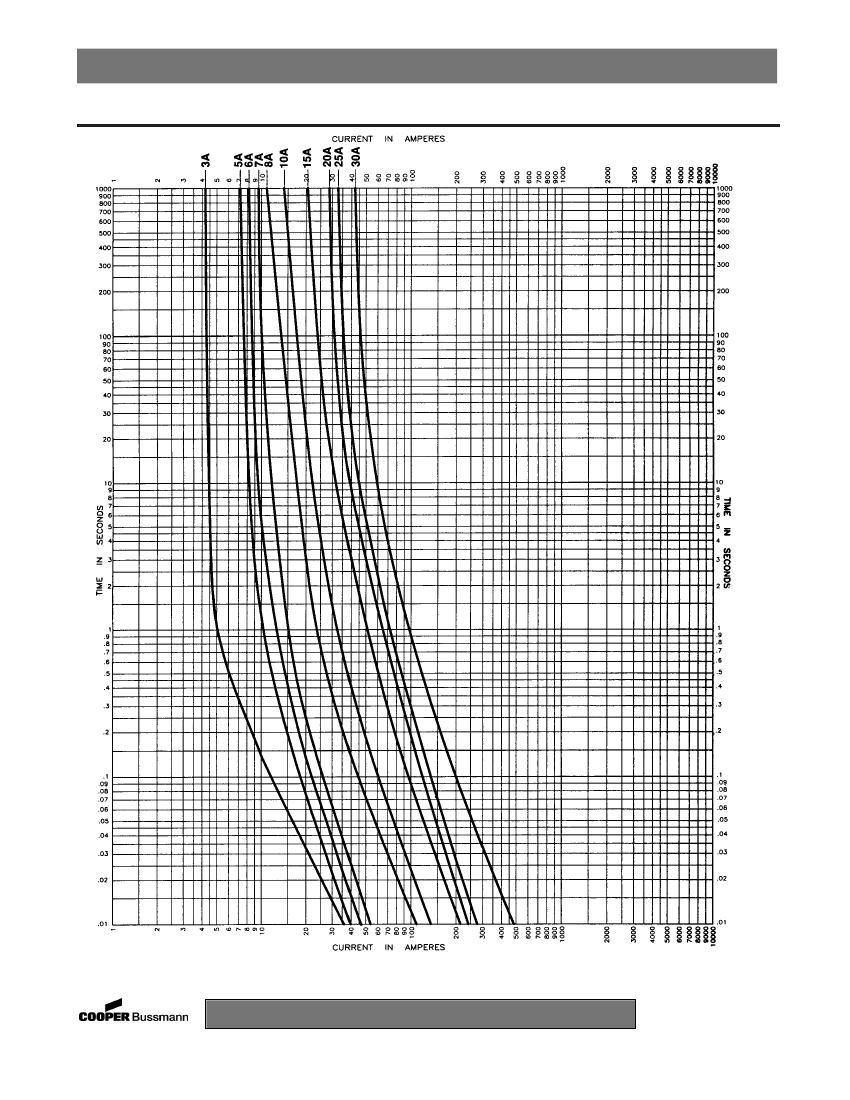

Ampere Ratings:

3-30A

Voltage Rating:

80VDC

Interrupting Rating:

20,000A

Agency Information:

UL Recognized (investigated to UL 1801) as a

disconnect switch for the interruption of load current

by means of withdrawing the fuse pullout.

Recognized to U.S. and Canadian requirements under the

component recognition program of Underwriters

Laboratories Inc.

Files E219046 and E56412.

Catalog Number

TPM-3

TPM-4

TPM-5

TPM-6

TPM-7

TPM-8

TPM-10

TPM-12

TPM-15

TPM-20

TPM-25

TPM-30

TPMDS-E

TPMDS-M

Description

Miniature Fuse

Miniature Disconnect, English

Miniature Disconnect, Metric

Ampere Rating

10A

12A

15A

20A

25A

30A

3-30A

TPM & TPMDS

General Information:

• Smallest and most versatile fused disconnect

switch available.

• Small size allows for assembly into 1 U (1.75 inch /

44.5 mm) panel.

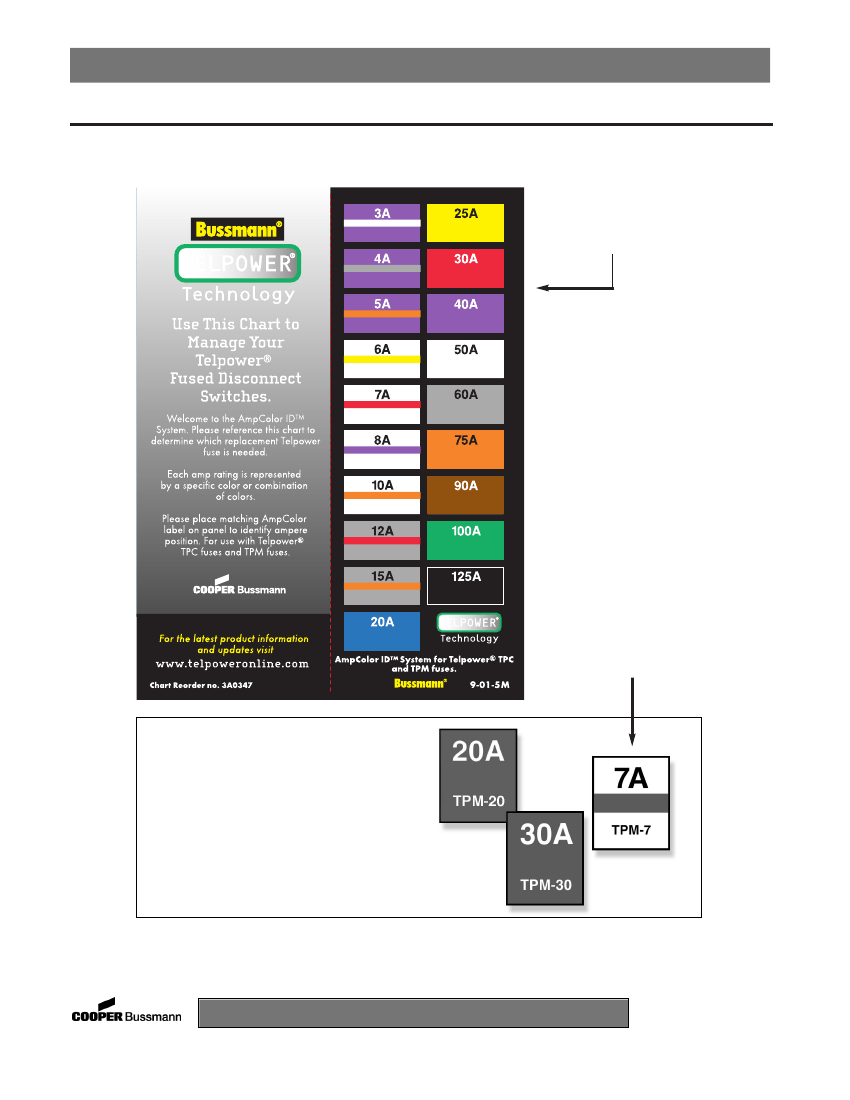

• AmpColor ID™ System for easy fuse replacement.

• Switch design provides for easy panel mounting by single

captive 4-40 (M3) nut and panel notch integral to switch

footprint.

• Local and remote open fuse indication. Local alarm

indication provided by LED on TPM fuse.

• Current-limiting capability

• Complete system coordination capability

• Load connection: 1/4 inch quick-connect or bolted

connection with 10-32 (M5) captive nut.

• Line connection: 1/4 inch quick-connect or screw

connection with clearance hole for #10 (M5) bolt.

• Maximum alarm circuit current: 20 mA

• Materials:

Fuse housing - black thermoplastic, UL 94 V-0, 170ºC RTI

Switch housing - black thermoplastic, UL 94 V-0, 140ºC RTI

CE logo denotes compliance with European Union Low

Voltage Directive (50-1000VAC, 75-1500VDC). Refer

to Data Sheet: 8002 or contact Bussmann Application

Engineering at 636-527-1270 for more information.

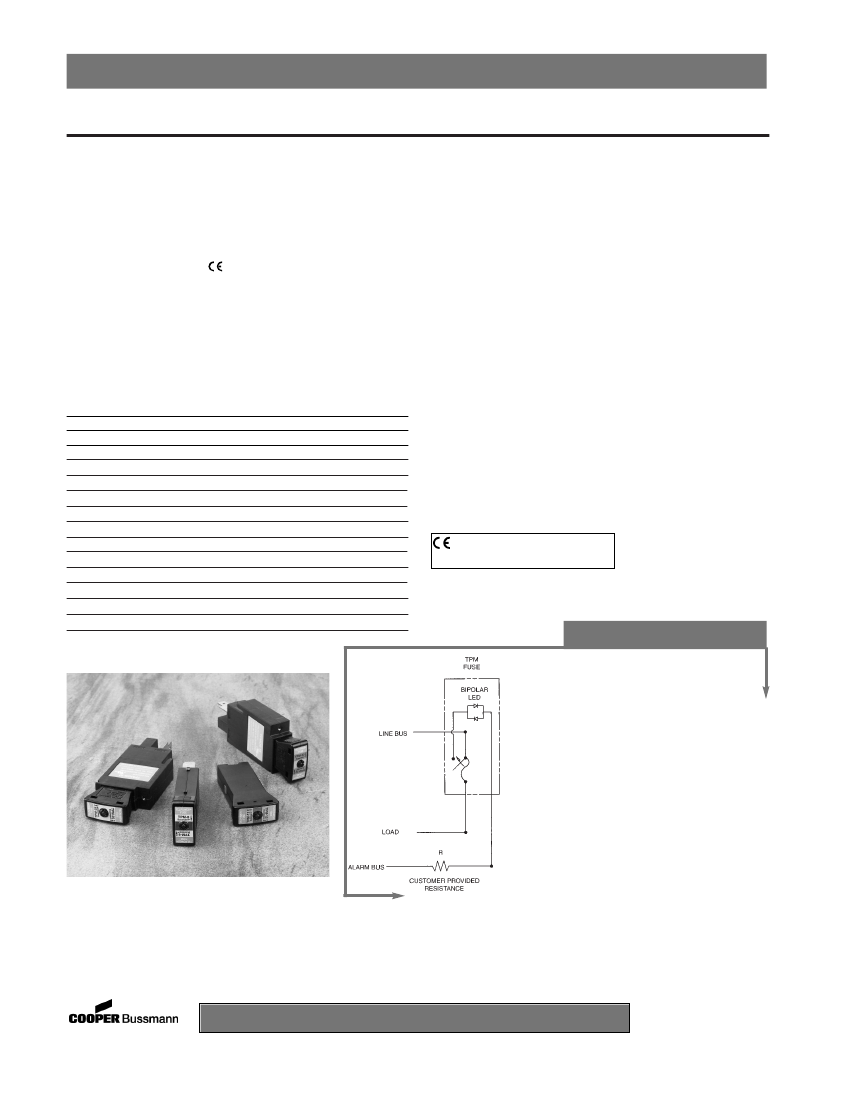

TPM Alarm Schematic

NOTES:

1. The resistance, R, must be provided by the end-user

to limit the alarm output current to a maximum of

20 mA. The value, R, should be calculated using the

system voltage value.

If remote alarm functionality is not required,

the

END-USER CIRCUITRY

must still be supplied

to provide a resistive path to the return for the

local alarm to properly function.

2. The fuse is polarized to maintain proper orientation with

the switch housing. The line and load terminals are

identified on the switch housing.

•

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are definition uncontrolled. This bulletin

is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained

in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.

11-13-02

SB02302

Form No. TPM & TPMDS

Page 1 of 4

Data Sheet: 5022
