KTK-10BC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> KTK-10BC

KTK-10BC: Descriptionindustrial & electrical fuses limitron FA fuse; CategoryCircuit protection; File Size45KB，1 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

KTK-10BC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KTK-10BC	-	-	View	Buy Now

KTK-10BC Overview

industrial & electrical fuses limitron FA fuse

KTK-10BC Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	Yes
Body Style	Cartridge Fuses
Current Rating	10 A
Voltage Rating AC	600 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	Limi
Indicator Style	Without Indic
Packaging	Bulk
Produc	Industrial Power Fuses
Factory Pack Quantity	3
Unit Weigh	8.165 g

Preview

Download Datasheet

View All

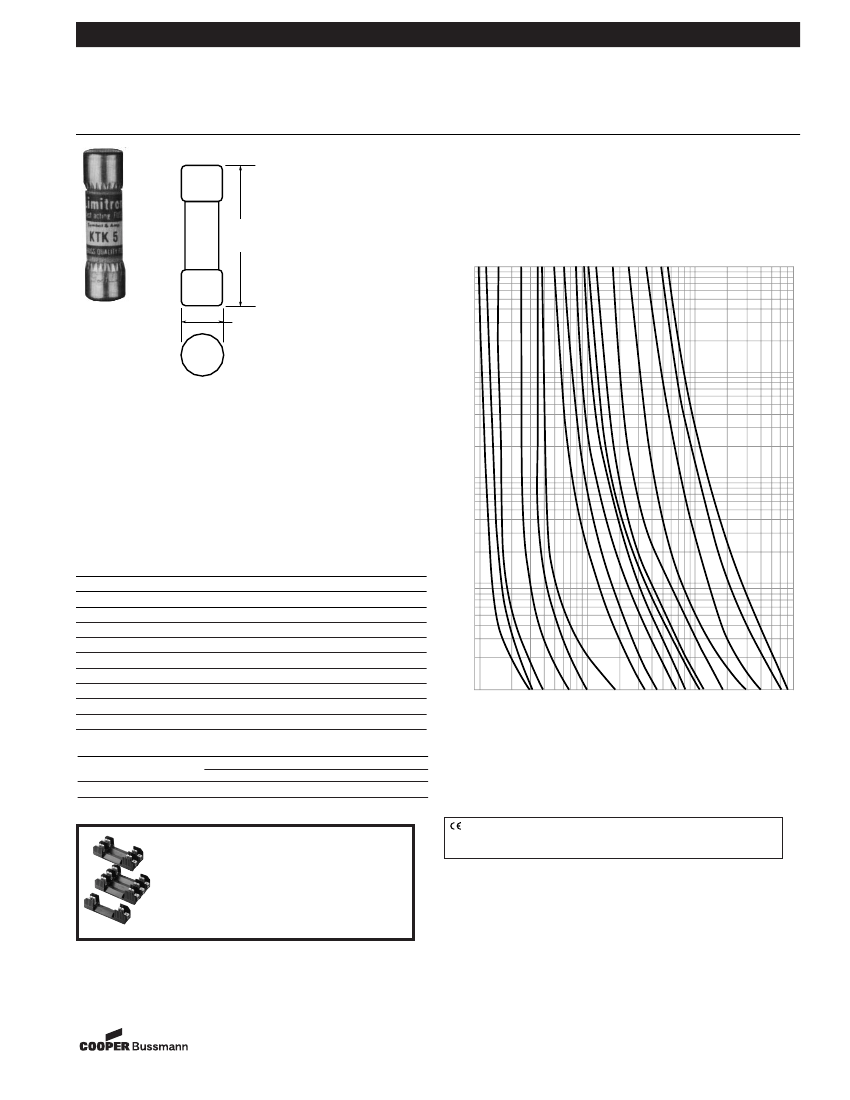

Bussmann

LIMITRON

Fast-Acting Fuses

600 Volt, 1/10 - 30 Amps

Dimensional Data

• LIMITRON

fast-acting fuse.

• Melamine tube.

• Nickel-plated bronze endcaps.

KTK

6/10

3/4

1-1/2

2-1/2

(±0.031)

(38.1mm)

1.5

Time-Current Characteristic Curves–Average Melt

AMPERE

RATING

100

.41

(±0.004)

(10.3mm)

Catalog Symbol:

KTK

Fast-Acting

1/10 TO 30A

600Vac (or less)

Interrupting Rating:

100,000A RMS Sym. (UL)

UL Listed, STD. 248-14, (Guide #JDYX, File #E19180)

CSA Certified:

C22.2 NO. 248.14

(File #53787—Class #1422-01)

HRC-MISC

TIME IN SECONDS

Electrical Ratings (Catalog Symbol and Amperes)

600Vac - UL Listed and C.S.A.

KTK-1/10

KTK-1/8

KTK-2/10

KTK-1/4

KTK-3/10

KTK-4/10

KTK-1/2

KTK-6/10

KTK-3/4

KTK-1

KTK-1-1/4

KTK-1-1/2

KTK-2

KTK-2-1/2

KTK-3

KTK-3-1/2

KTK-4

KTK-5

KTK-6

KTK-7

KTK-7-1/2

KTK-8

KTK-9

KTK-10

KTK-12

KTK-15

KTK-20

KTK-25

KTK-30

—

RMS SYMMETRICAL CURRENT IN AMPERES

Carton Quantity and Weight

Ampere

Ratings

1-30

Carton

Qty.

Weight*

Lbs.

.180

Kg.

.082

*Weight per carton.

Recommended fuseblocks/fuseholders for

13/32” x 1-1/2” fuses

See Data Sheets listed below

• Open fuseblocks - 1104, 2104

• Finger-safe fuseholders - 1109, 1102, 1103, 1151

• Panel-mount fuseholders - 2114, 2113, 2108,

2112, 2109, 2140

• In-line fuseholders - 2127, 2126

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-150Vdc). Refer to Data Sheet: 8002 or contact Bussmann

Application Engineering at 636-527-1270 for more information.

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly

present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products

and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it

should be tested by the user in all possible applications.

100

11-13-02

N02177

Form No. KTK

Page 1 of 1

Data Sheet: 1011

800

—

.01

KTK-10BC Related Products

	KTK-10BC	KTK-R-30	KTK-20BC	KTK-3BC
Description	industrial & electrical fuses limitron FA fuse	industrial & electrical fuses 600vac 30a fast acting limitron	industrial & electrical fuses limitron FA fuse	industrial & electrical fuses limitron FA fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses	Industrial & Electrical Fuses
RoHS	Yes	In Transiti	Yes	Yes
Body Style	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
Current Rating	10 A	30 A	20 A	3 A
Voltage Rating AC	600 V	600 V	600 V	600 V
Mounting Style	Holde	Holde	Holde	Holde
Termination Style	Cli	Cli	Cli	Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	Limi	Limi	Limi	Limi
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic
Packaging	Bulk	Bulk	Bulk	Bulk
Produc	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses	Industrial Power Fuses
Factory Pack Quantity	3	10	3	3
Unit Weigh	8.165 g	9.072 g	8.165 g	8.165 g
