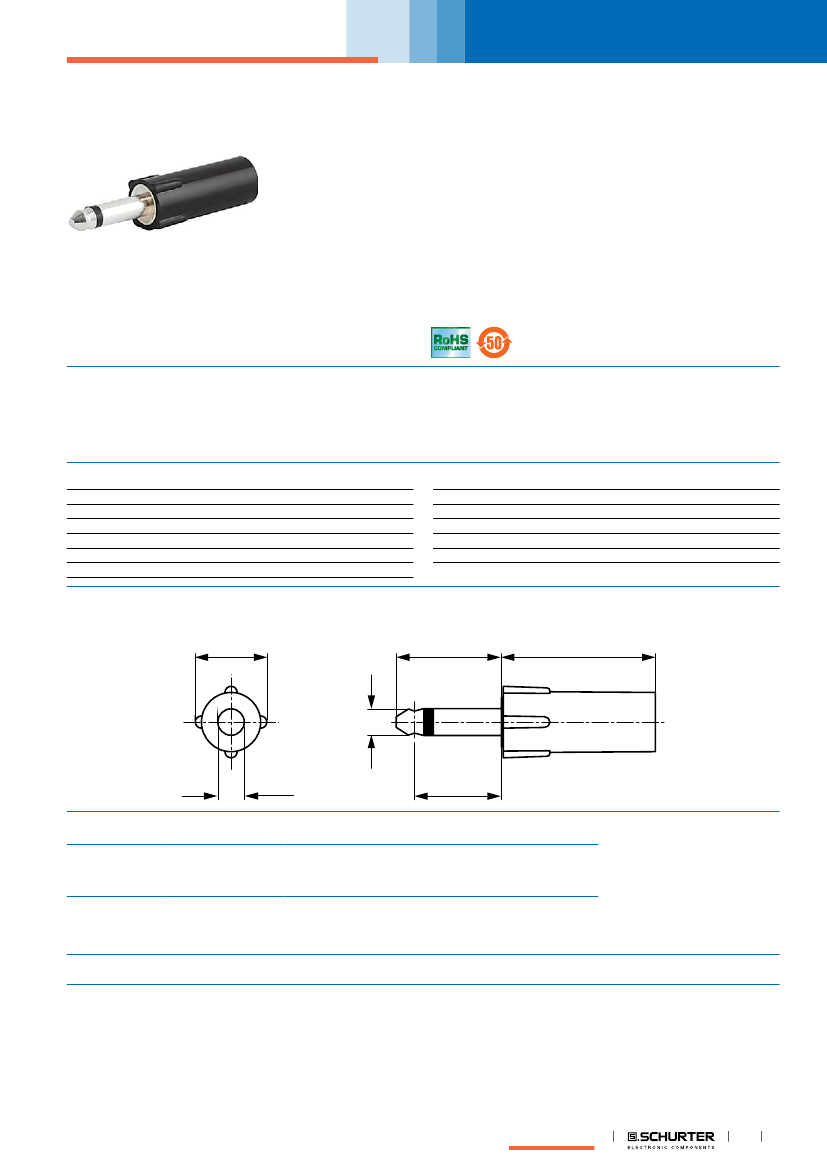

Data and Signal Plug/Socket
www.schurter.com/PG12
Data & Signal, Plug, 3.5 mm, 2-pole, solder terminal, insulated
4802.1210
Description
- Solder terminal:
for cable mounting
- Data and Signal transfer
- Data and Signal Connectors 2-pole, insulated, straight
References
Weblinks
Alternative: Housing shielded
4802.1200; 4802.1230
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-
Stock-Check, Distributor-Stock-Check
Technical Data
Diameter
Number of Poles
Ratings DC
Ratings AC
Dielectric Strength
Insulation Resistance
3.5 mm
2-pole
1 A / 12 VDC
1 A / 12 VAC
500 VDC
> 10000 MΩ␣ @ 500 VDC
Allowable Operation Temp.
Terminal
Housing
Style
Lifetime
-20 °C to 70 °C
solder terminal
insulated
straight
10000 Insertions
Dimensions
Ø 9.2
13.6
19.8
Ø 3.5
Ø 3.4
All Variants
Product group
Data and Signal Plug/
Sockets
█
Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Diameter [mm]
3.5
Number of Poles
2-pole
Terminal
solder terminal
Order Number
4802.1210
█
11.2
Packaging unit
100 Pcs
Appliance inlet
1
4802.1210
Mating Outlets/Connectors
Category / Description
Data and Signal Plug/Socket
www.schurter.com/PG12
Data and Signal Plug/Socket Overview complete
4802, Socket, solder terminal, screened, 3.5 mm, 2-pole, straight, , UK-Connector
4802, Socket, solder terminal, insulated, 3.5 mm, 2-pole, straight, , UK-Connector
4802, Socket, PCB terminals, screened, 3.5 mm, 2-pole, straight, , UK-Connector
4802, Socket, PCB terminals, insulated, 3.5 mm, 2-pole, straight, , UK-Connector
Data and Signal Plug/Socket further types to 4802 UK-Stecker, D=3,5mm
4802.2200
4802.2210
4802.2220
4802.2230
2
Appliance inlet
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
22.07.2014
