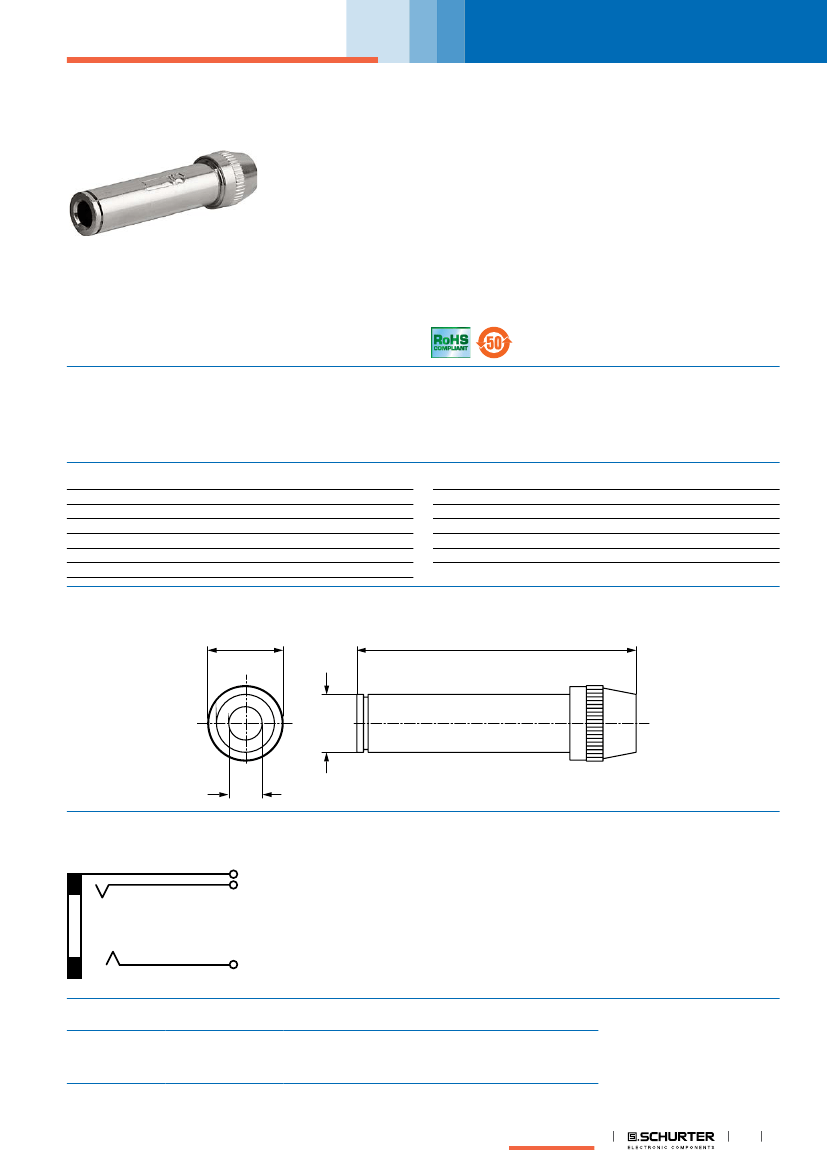

Data and Signal Plug/Socket
www.schurter.com/PG12
Daten & Signal, Inline Socket, 6.3 mm, 2-pole, solder terminal, shielded
4803.3200
Description
- Solder terminal:
- Data and Signal transfer
- Data and Signal Connectors 2-pole, shielded, straight
References
Weblinks
Alternative: Housing insulated
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-
Stock-Check, Distributor-Stock-Check
Technical Data
Diameter
Number of Poles
Ratings DC
Ratings AC
Dielectric Strength
Insulation Resistance
6.3 mm
2-pole
2 A / 12 VDC
2 A / 12 VAC
1000 VDC
> 10000 MΩ␣ @ 500 VDC
Allowable Operation Temp.
Terminal
Housing
Style
Lifetime
-20 °C to 70 °C
solder terminal
screened
straight
10000 Insertions
Dimensions
Ø 14.5
53.5
Ø 11.1
Ø 6.4
Diagrams
All Variants
Product group
Data and Signal Plug/
Sockets
Diameter [mm]
6.3
Number of Poles
2-pole
Terminal
solder terminal
Order Number
4803.3200
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Appliance inlet
1
4803.3200
Packaging unit
Mating Inlets/Plugs
Category / Description
Data and Signal Plug/Socket
www.schurter.com/PG12
100 Pcs
Data and Signal Plug/Socket Overview complete
4803, Plug, solder terminal, screened, 6.3 mm, 2-pole, straight, , UK-Connector
4803, Plug, solder terminal, insulated, 6.3 mm, 2-pole, straight, , UK-Connector
4803, Plug, solder terminal, insulated, 6.3 mm, 2-pole, angled, , UK-Connector
Data and Signal Plug/Socket further types to 4803 UK-Stecker, D=6,5mm
4803.1200
4803.1210
4803.1220
2
Appliance inlet
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
22.07.2014
